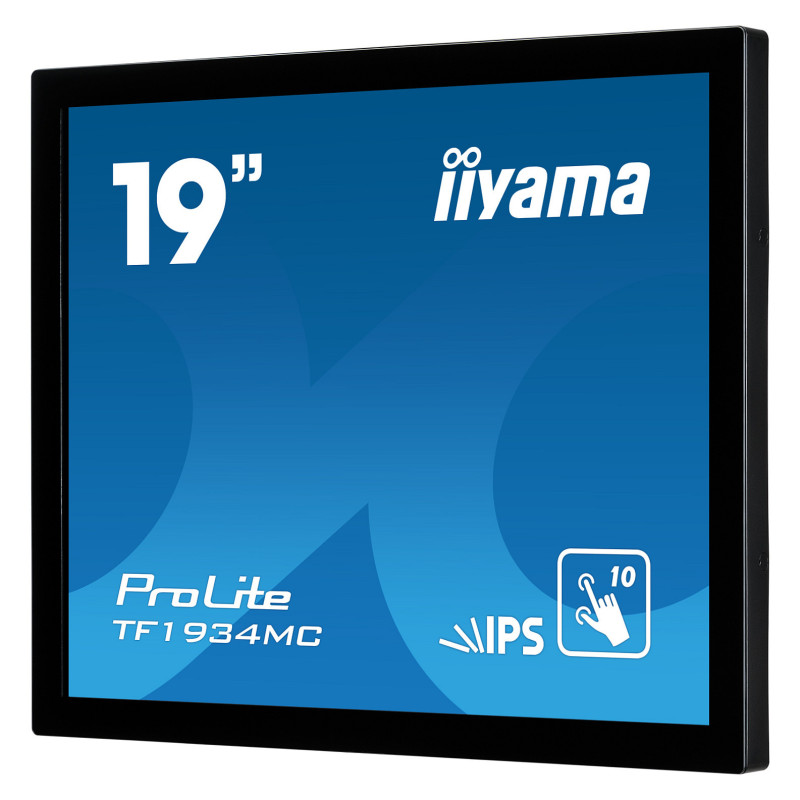

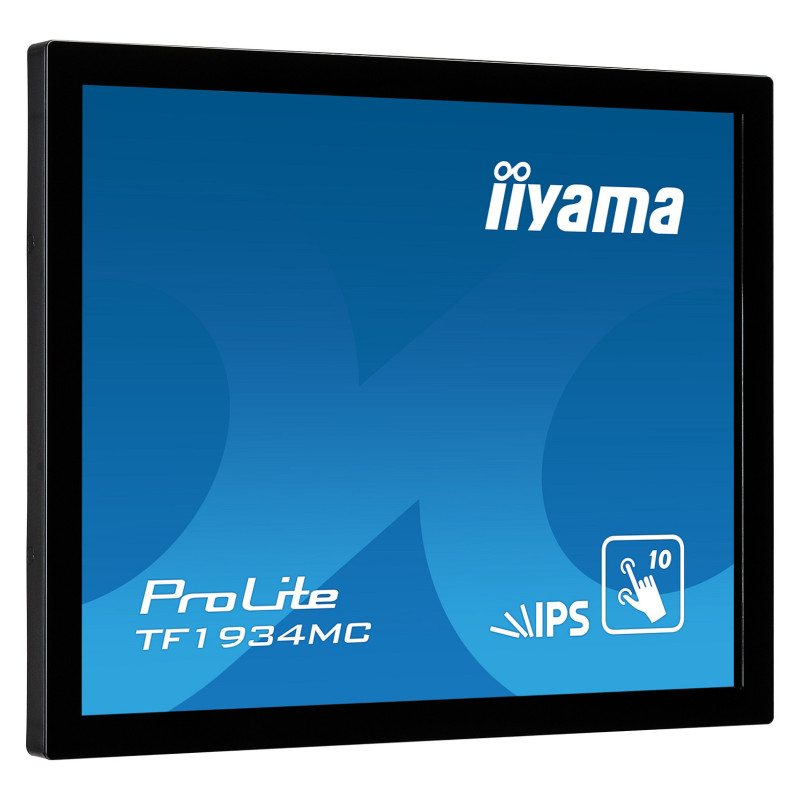

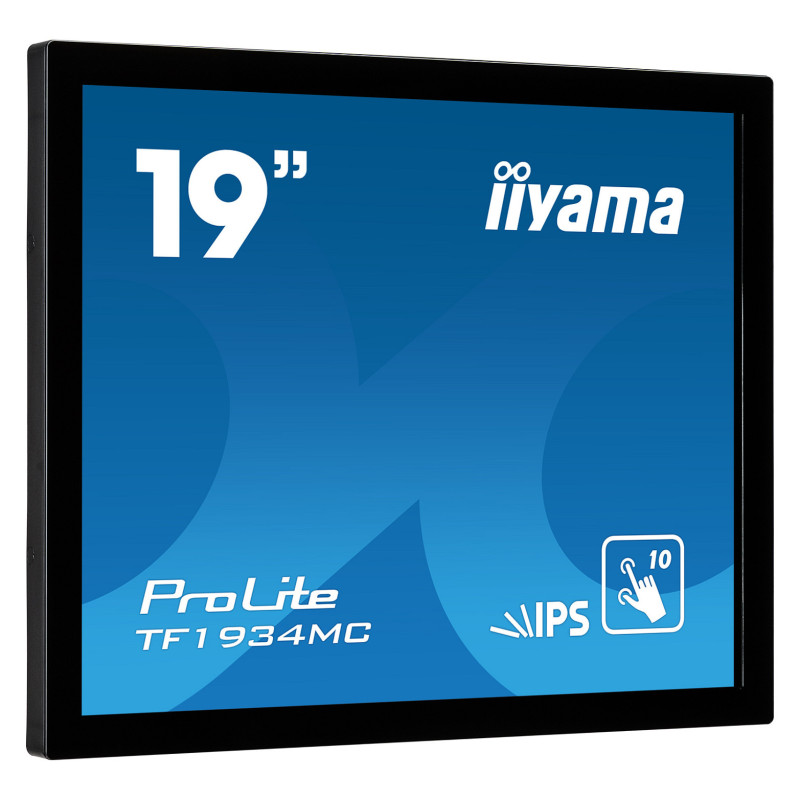

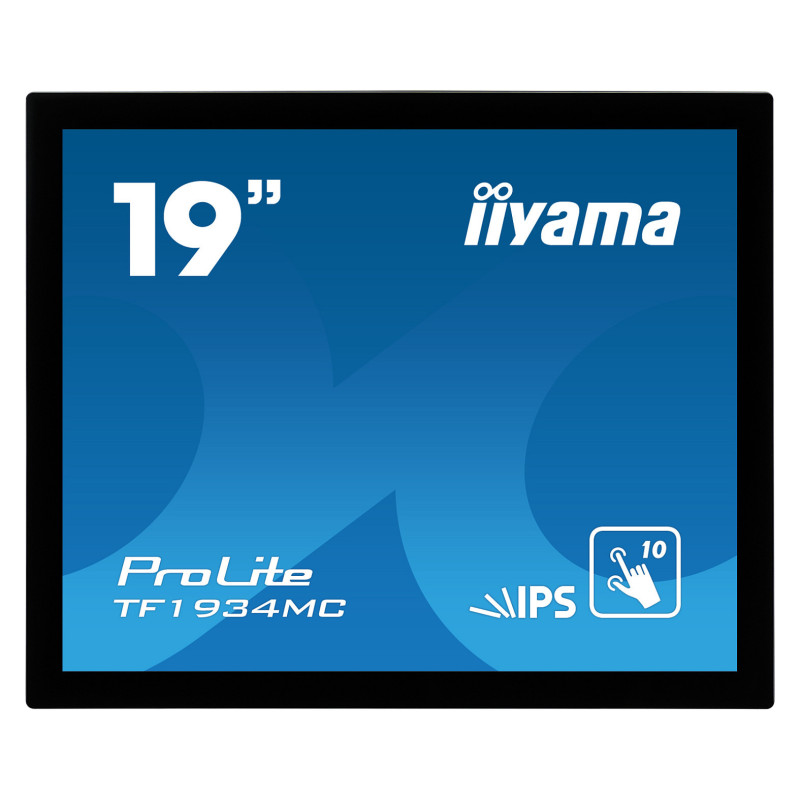

iiyama ProLite TF1934MC-B7X computer monitor

iiyama ProLite TF1934MC-B7X. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 14 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.

Display

Display diagonal: 48.3 cm (19")
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LED
Panel type: IPS
LED backlight: Yes
Backlight type: LED
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 14 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Supported graphics resolutions: 1280 x 1024 (SXGA)
Aspect ratio: 5:4
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.294 x 0.294 mm
Horizontal scan range: 31.4 - 80 kHz
Viewable size, horizontal: 37.6 cm
Viewable size, vertical: 30.1 cm
Viewable size diagonal: 48 cm
Display diagonal (metric): 48 cm

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Palm rejection: Yes

Multimedia

Built-in microphone: No
Built-in camera: No

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 6 mm

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7

Power

Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 21 W
Power consumption (standby): 1.5 W
Power consumption (off): 1.5 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight dimensions

Width (with stand): 416 mm
Depth (with stand): 46.5 mm
Height (with stand): 344 mm
Weight (with stand): 4.4 kg
Width (without stand): 416 mm
Depth (without stand): 46.5 mm
Height (without stand): 344 mm
Weight (without stand): 4.4 kg

Packaging data

Package width: 16.4 mm
Package depth: 1.8 mm
Package height: 13.5 mm

Packaging content

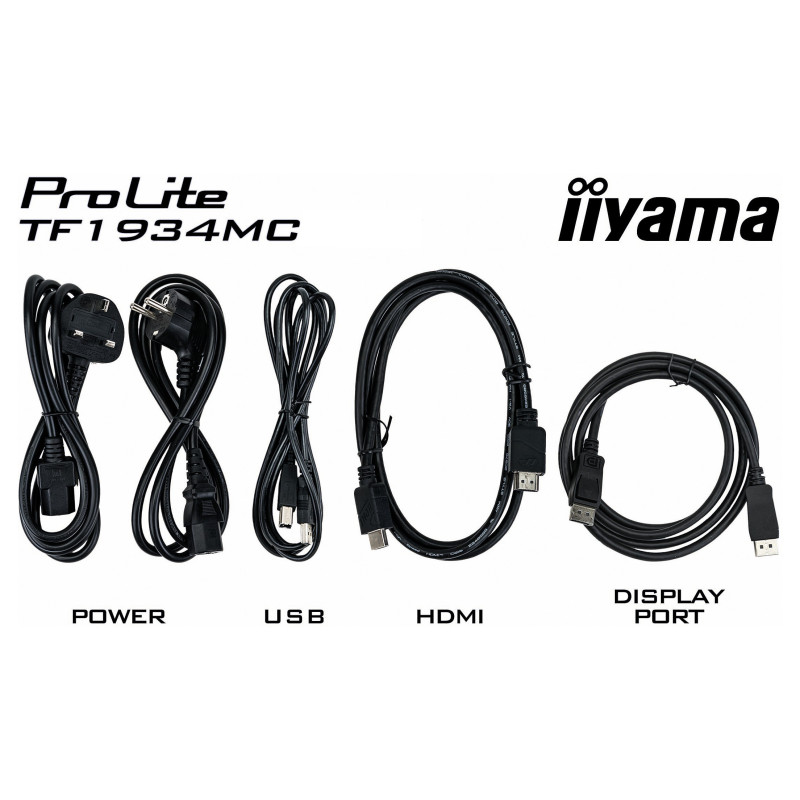

Cables included: AC, USB, HDMI, DisplayPort
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
Display viewable area (HxV): 376.5 x 301.1 mm
Brightness: 315 cd/m²
Packaging content: AC adapter, Touch Panel Driver Disk (CD-ROM)
Active display area (W x H): 376.5 x 301.1 mm
Weight: 4.4 kg
Height: 344 mm
User controls: picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Touch method: stylus, finger, glove (latex)
Width: 416 mm
Depth: 46.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Supplied AC adapter type: AC
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead

Logistics data

Harmonized System (HS) code: 85285210
