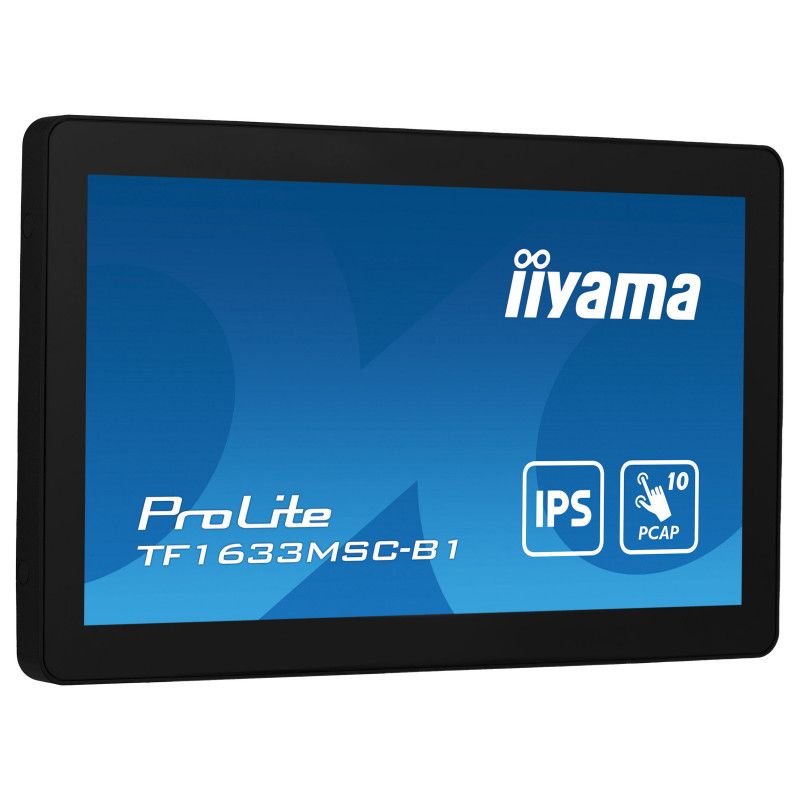

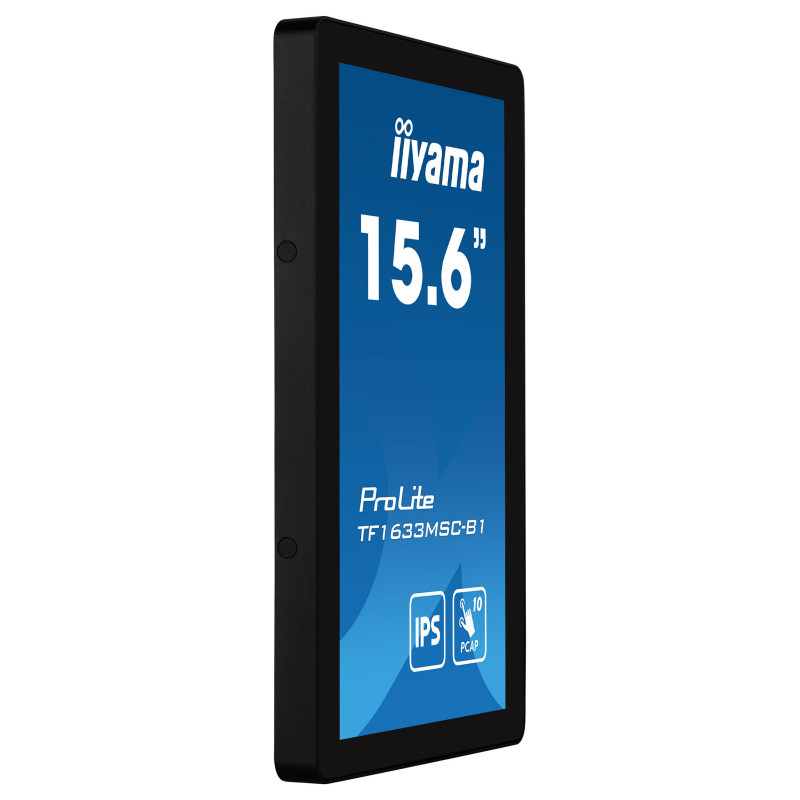

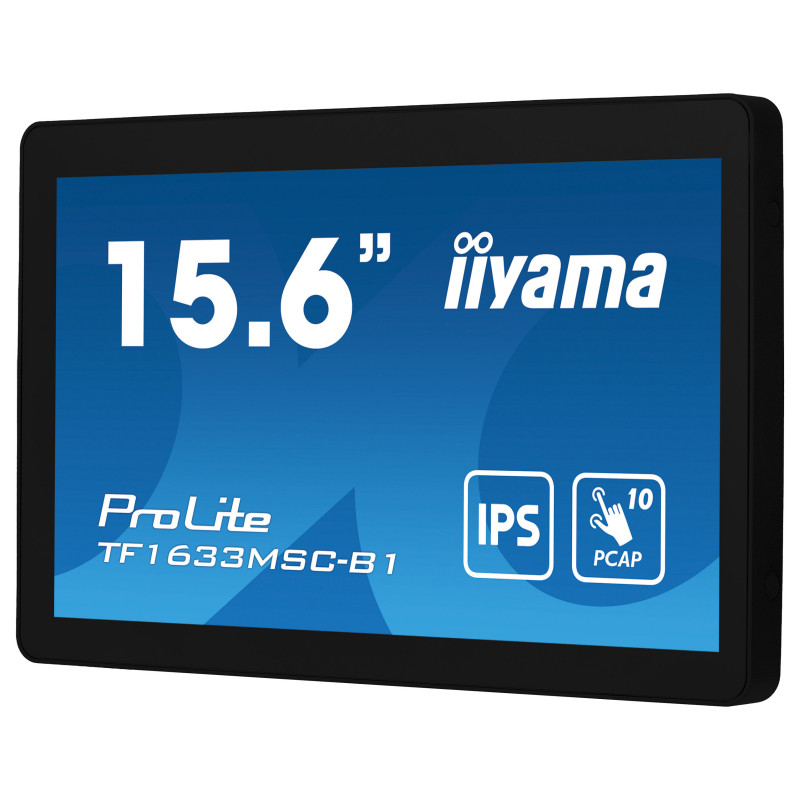

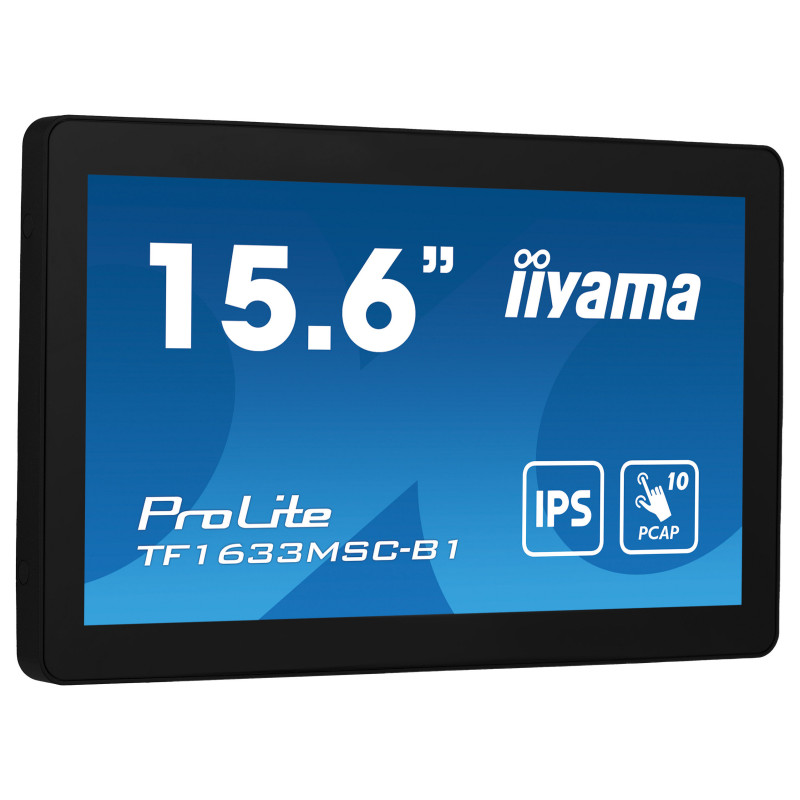

iiyama ProLite TF1633MSC-B1 computer monitor

iiyama ProLite TF1633MSC-B1. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: Black

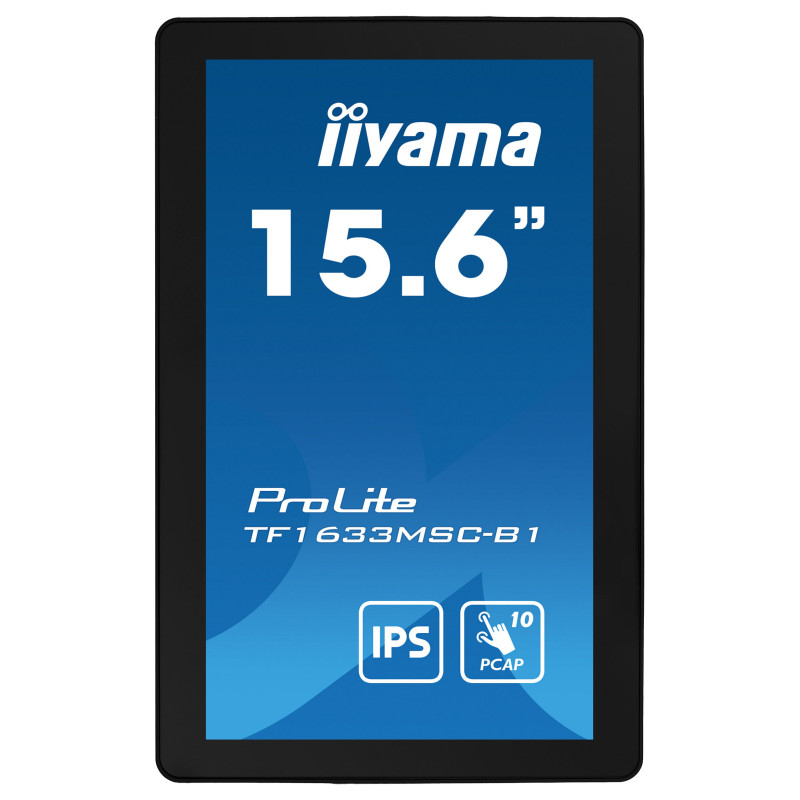

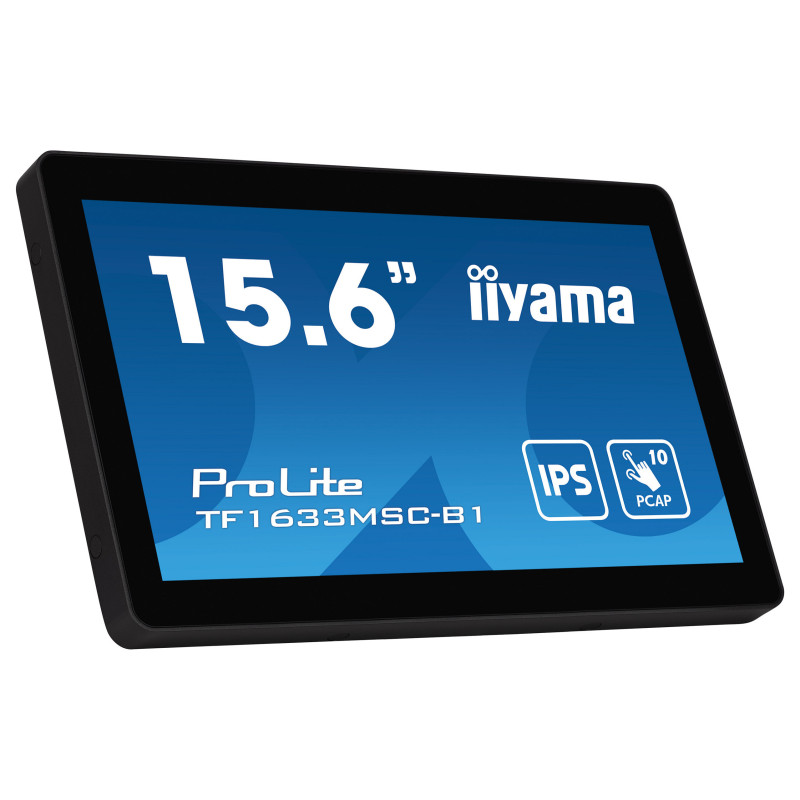

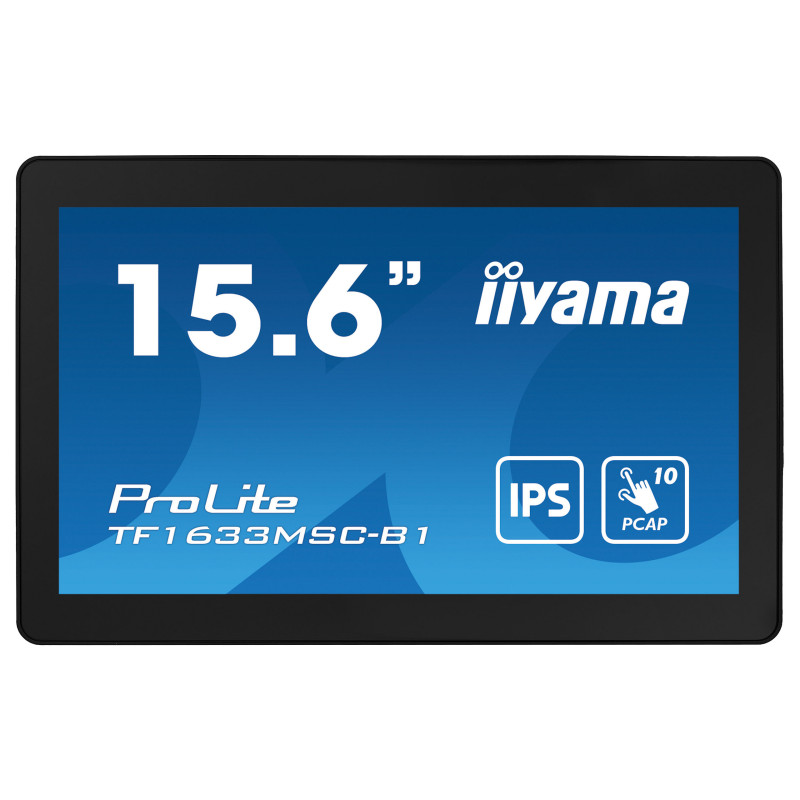

The ProLite TF1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The integrated cable management system hides all the cables. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for kiosk integrators and Instore Retail.

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Panel type: IPS
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (typical): 450 cd/m²
Display brightness: 385 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.179 x 0.179 mm
Horizontal scan range: 30 - 68 kHz
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Display diagonal (metric): 39.5 cm
Feature: DDC/CI

Performance

Feature: Low Blue Light technology
Feature: Palm rejection

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)

Design

Market positioning: Home
Product colour: Black
Front bezel colour: Black

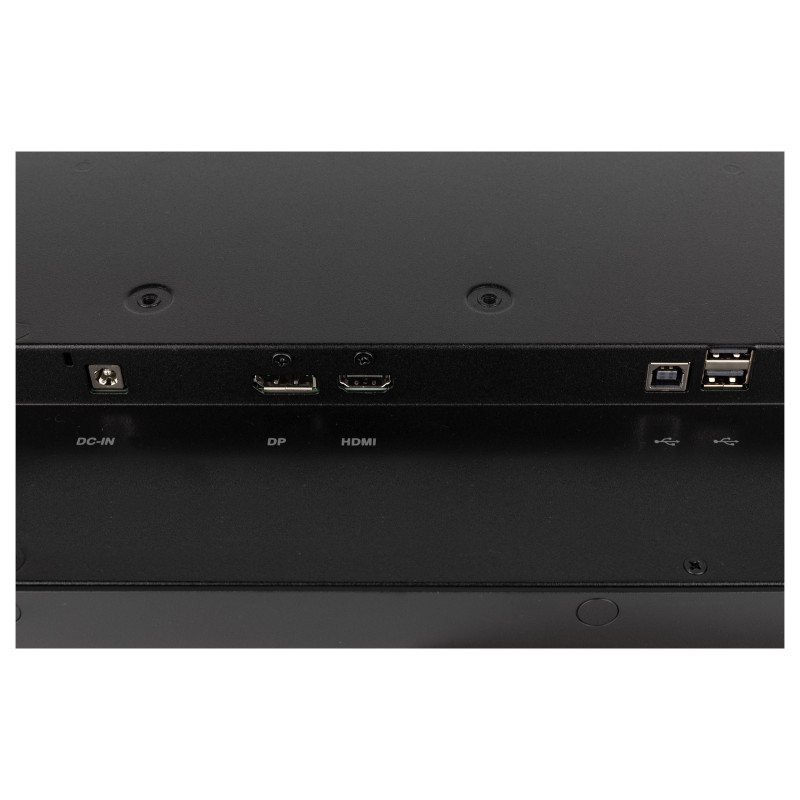

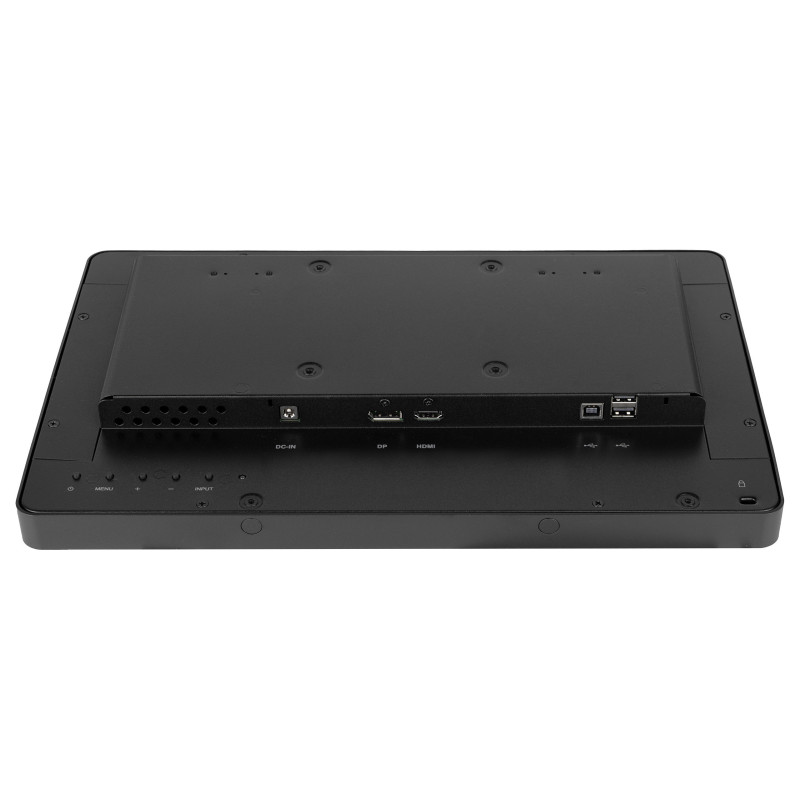

Ports & interfaces

Feature: Built-in USB hub
USB hub version: 2.0
Number of downstream ports: 2
Feature: HDMI
DisplayPorts quantity: 1
Feature: HDCP

Ergonomics

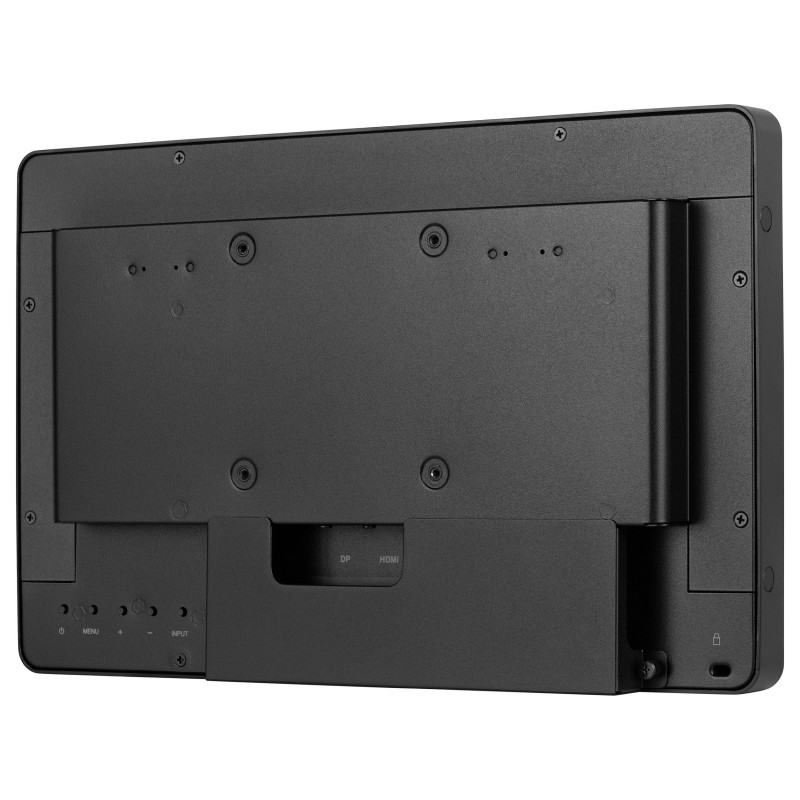

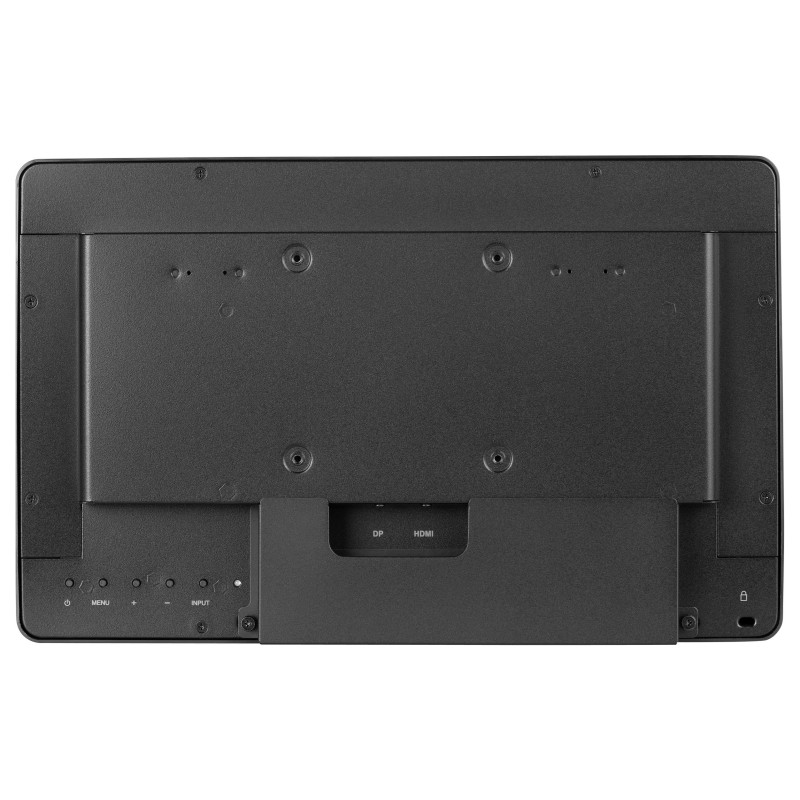

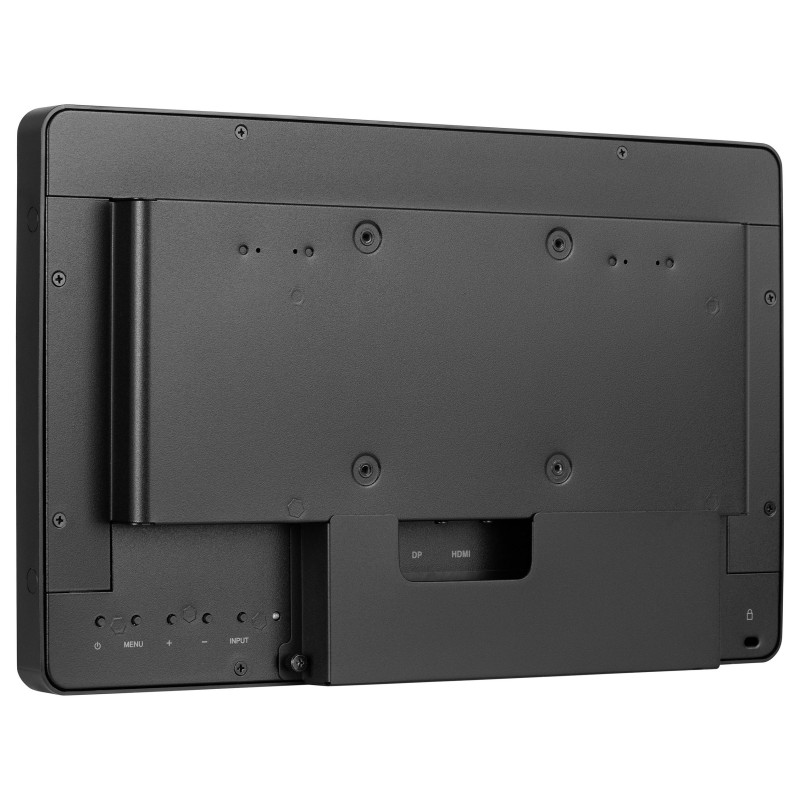

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

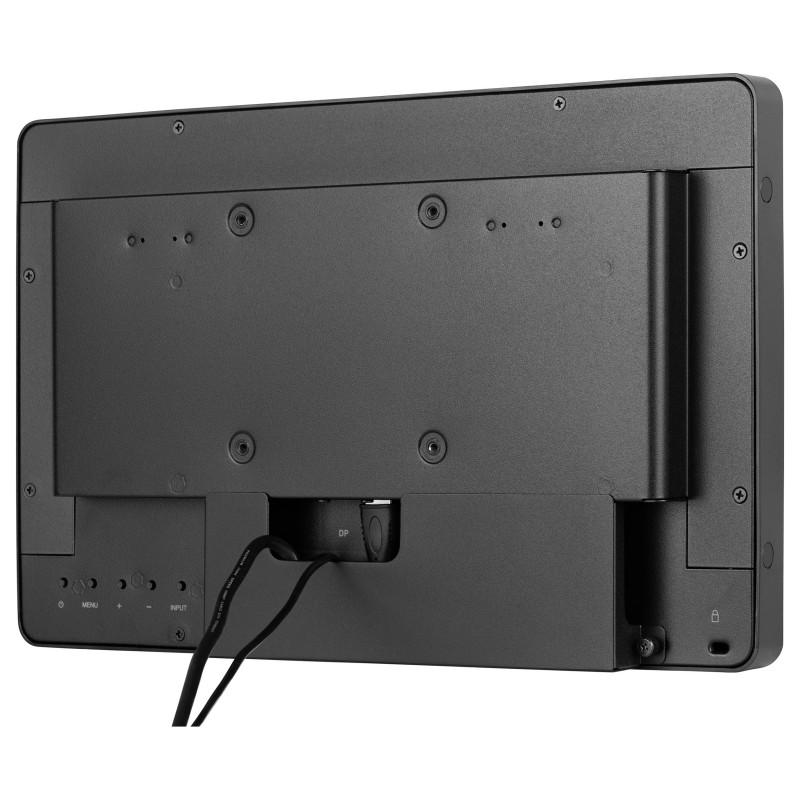

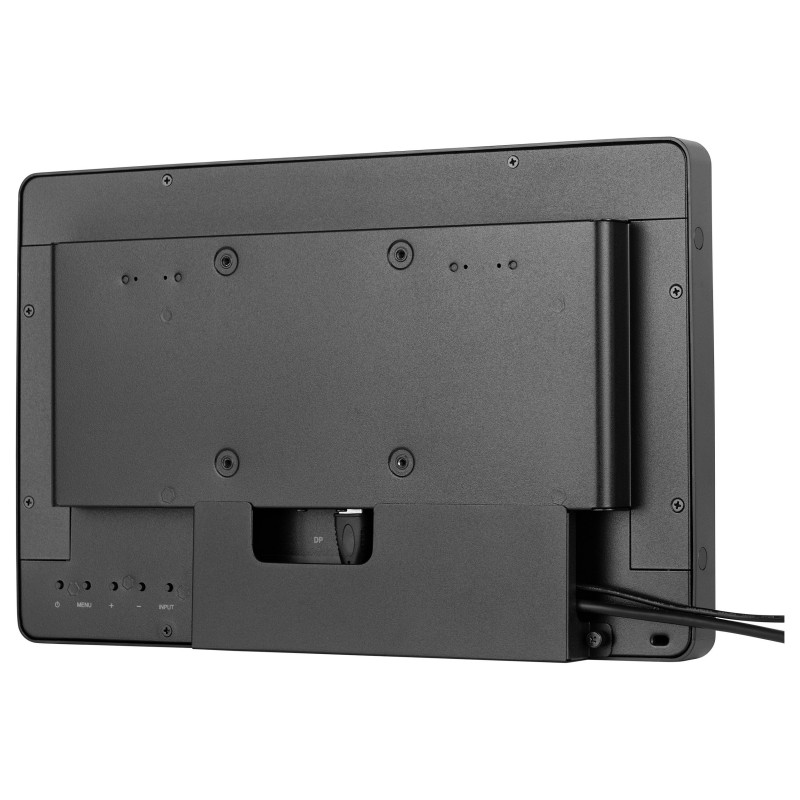

Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 90 - 5°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages: 12

Power

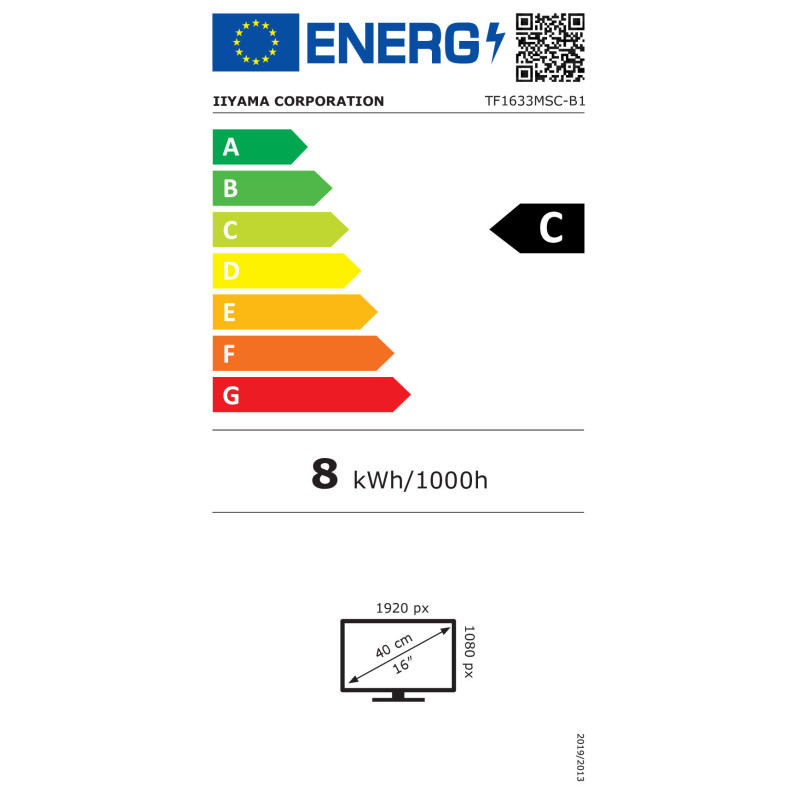

Energy efficiency class (SDR): C
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 7.7 kWh
Power consumption (typical): 12 W
Power consumption (standby): 8 W
Power consumption (off): 0.5 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight & dimensions

Width (with stand): 389 mm
Depth (with stand): 45.5 mm
Height (with stand): 246.5 mm
Weight (with stand): 2 kg
Width (without stand): 389 mm
Depth (without stand): 45.5 mm
Height (without stand): 246.5 mm
Weight (without stand): 2 kg

Packaging data

Package width: 475 mm
Package depth: 169 mm
Package height: 343 mm
Package weight: 3.9 kg
Package type: Box

Packaging content

Cables included: AC, USB, HDMI
Feature: Power adapter included
Feature: Quick start guide

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP54
Feature: AC adapter included
Brightness: 385 cd/m²
Packaging content: AC adapter
Active display area (W x H): 344.2 x 193.6 mm
Touch method: stylus, finger, glove (latex)
USB ports quantity: 2
Weight: 2 kg
Height: 246.5 mm
Width: 389 mm
Depth: 45.5 mm

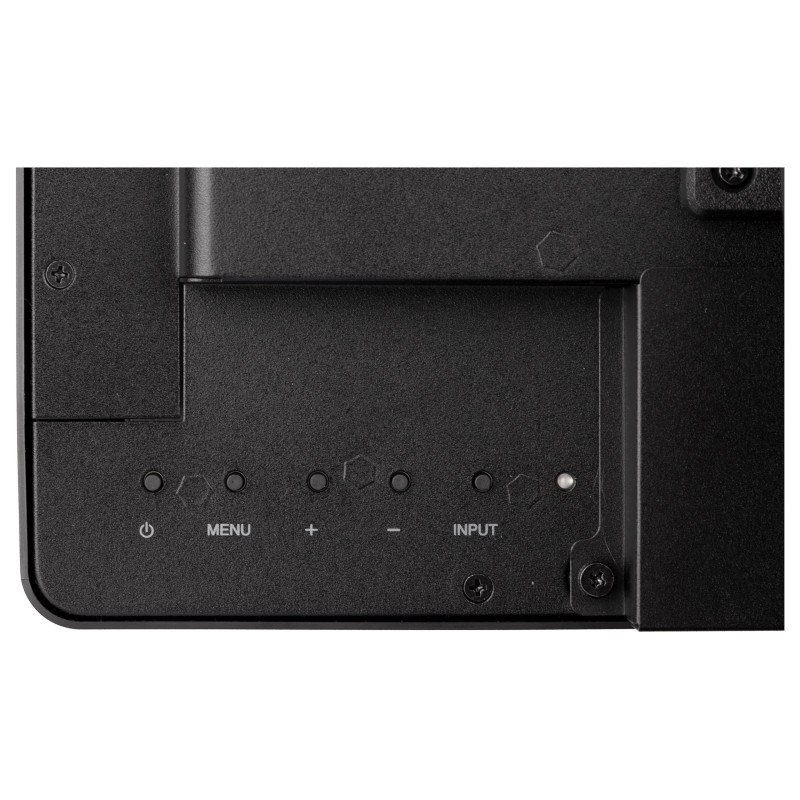

Control panel: Power, Menu, Volume +, Volume -, Input
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Certification: CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA

Technical details

Native refresh rate: 60 Hz
