iiyama ProLite TF1615MC-B1 computer monitor

iiyama ProLite TF1615MC-B1. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black

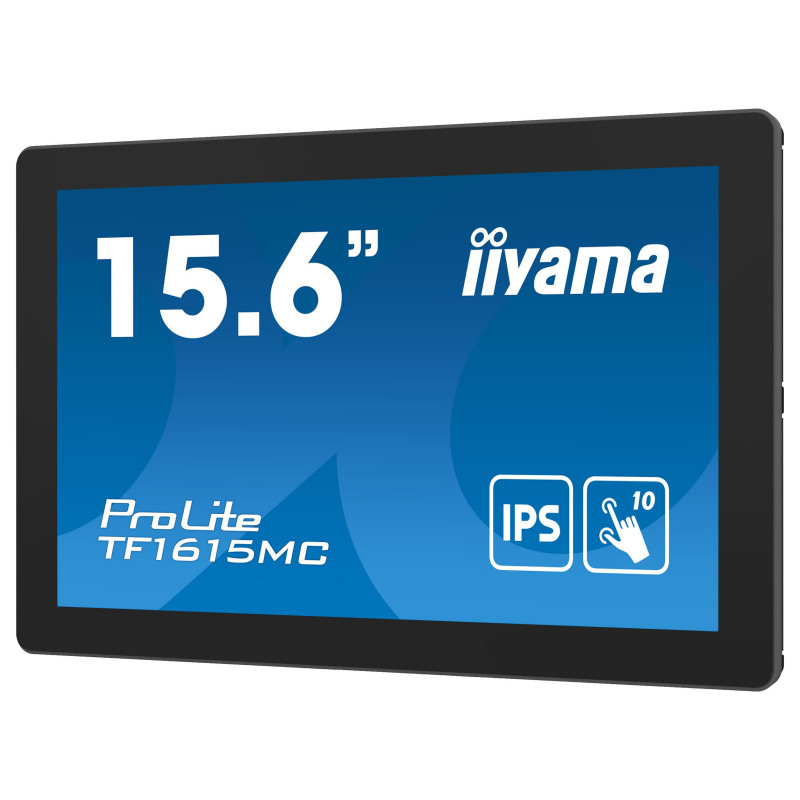

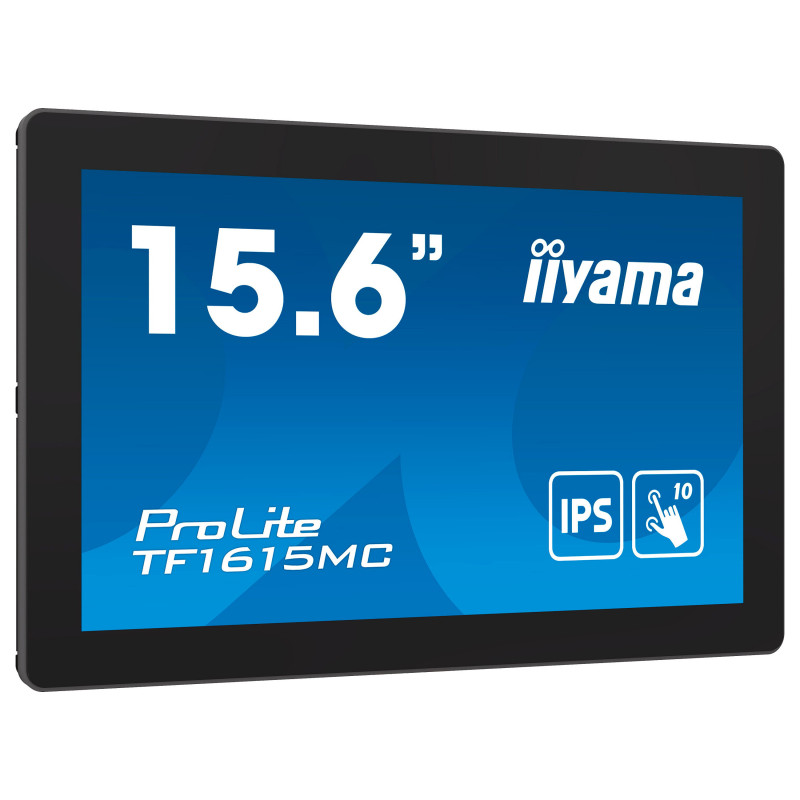

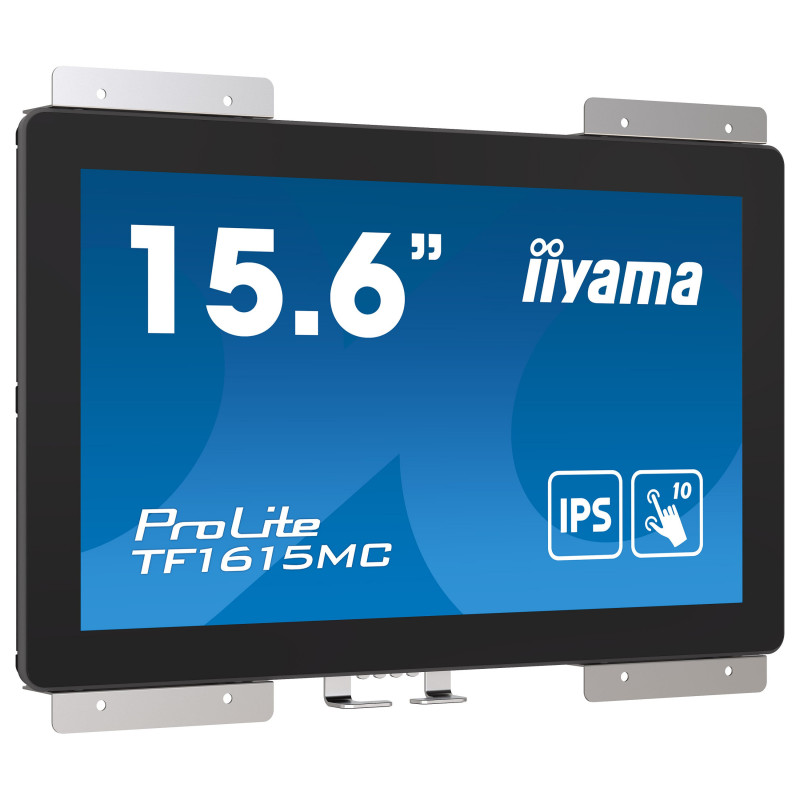

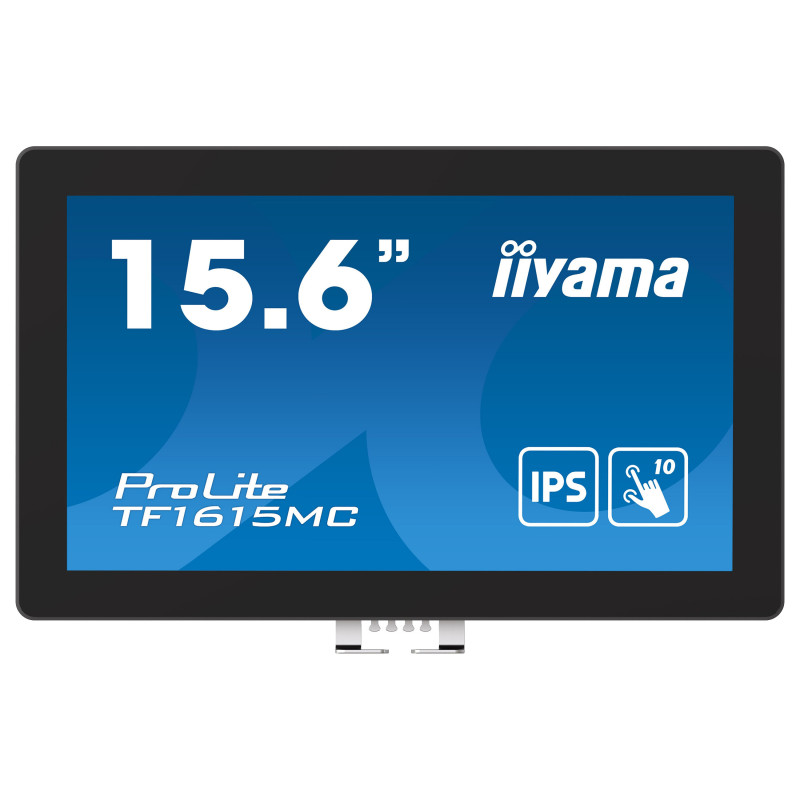

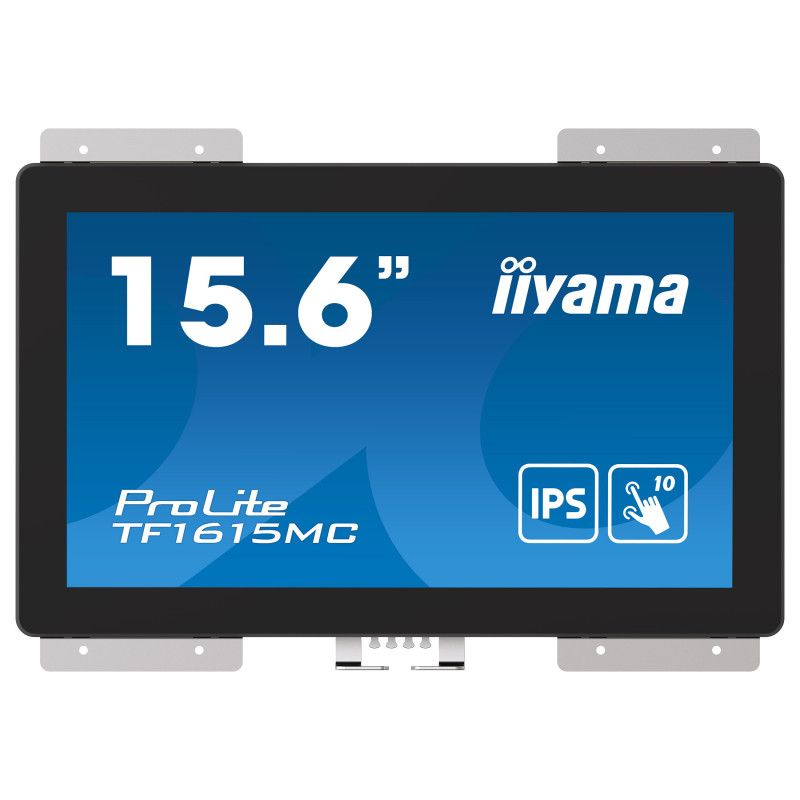

The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Panel type: IPS
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (peak): 450 cd/m²
Display brightness (typical): 450 cd/m²
Display brightness: 405 cd/m²
Response time: 25 ms
Screen shape: Flat
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.17925 x 0.17925 mm
Horizontal scan range: 31.5 - 67.5 kHz
Viewable size, horizontal: 34.5 cm
Viewable size, vertical: 19.5 cm
Display diagonal (metric): 39.5 cm
Surface hardness: 7H

Design

Market positioning: Business
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.3 mm

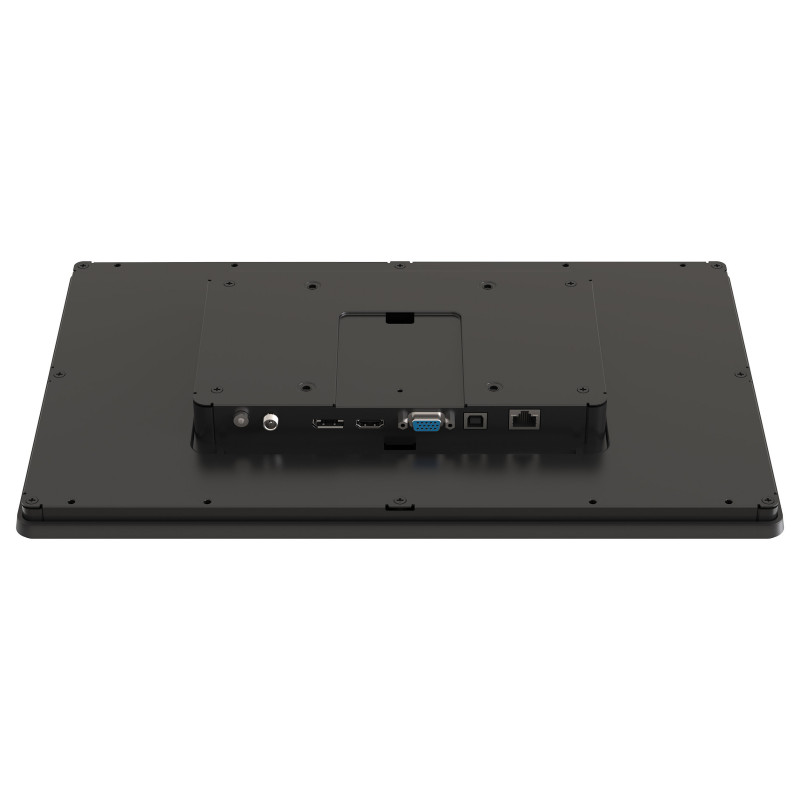

Ports interfaces

Built-in USB hub: Yes
USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
DisplayPorts quantity: 1
Headphone out: Yes
HDCP: Yes

Ergonomics

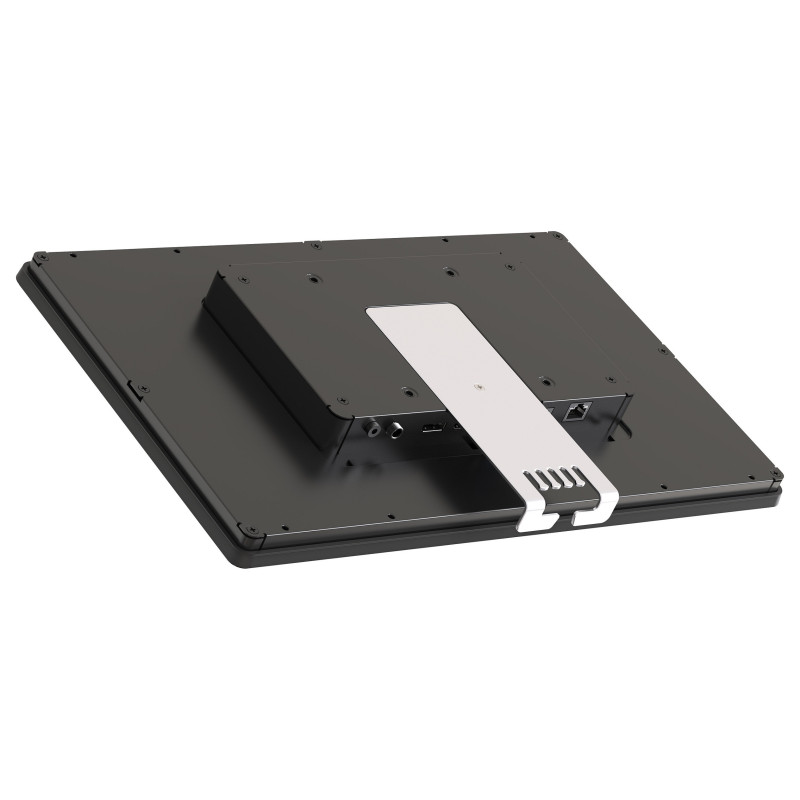

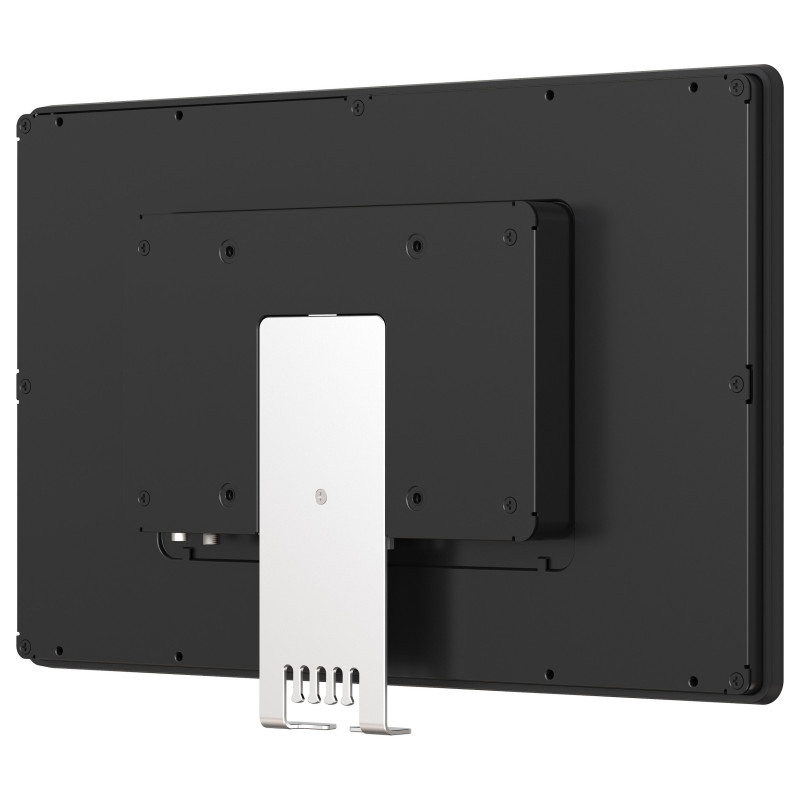

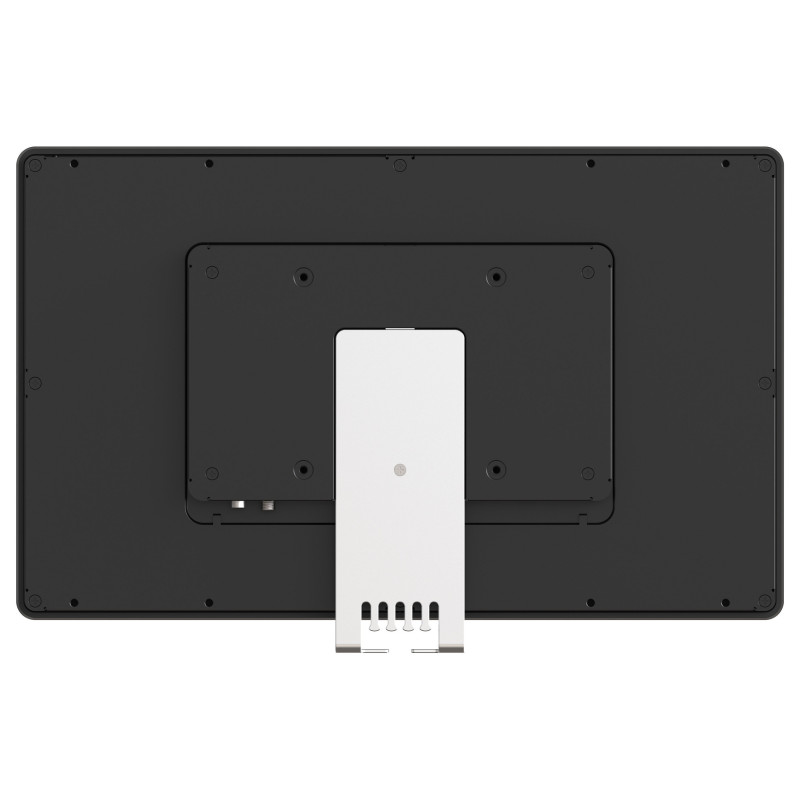

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Power

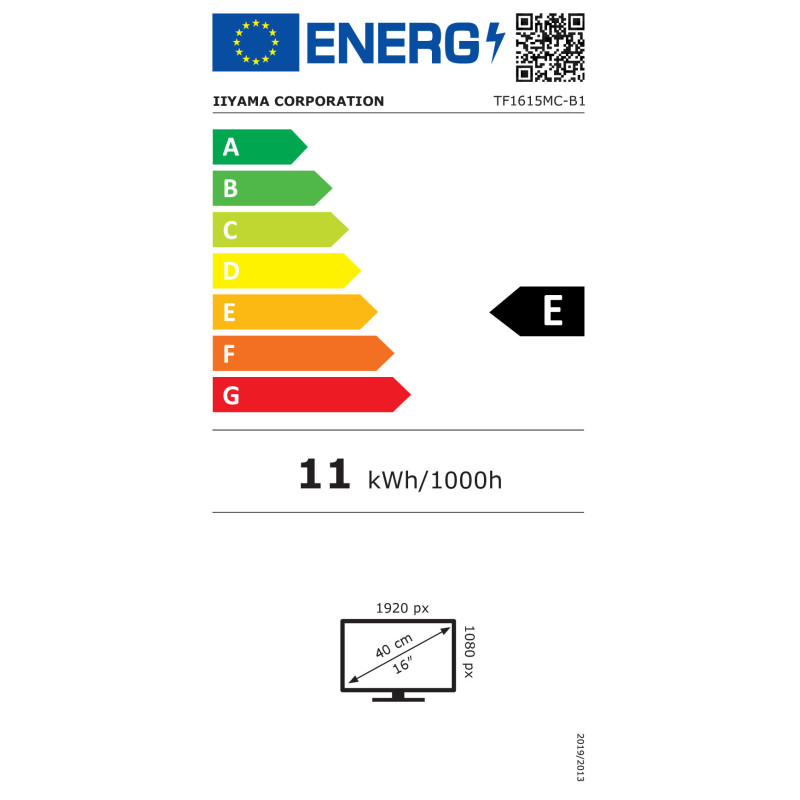

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width (with stand): 398.5 mm
Depth (with stand): 42 mm
Height (with stand): 246 mm
Weight (with stand): 2.5 kg
Width (without stand): 398.5 mm
Depth (without stand): 42 mm
Height (without stand): 246 mm
Weight (without stand): 2.5 kg

Packaging data

Package width: 470 mm
Package depth: 343 mm
Package height: 145 mm
Package weight: 4.3 kg
Package type: Box

Packaging content

Cables included: AC, USB, HDMI, DisplayPort
Power adapter included: Yes
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
User controls: picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Brightness: 405 cd/m²
Packaging content: AC adapter, external control pad
Active display area (W x H): 345.2 x 194.6 mm
Touch method: stylus, finger, glove (latex)
Weight: 2.5 kg
Height: 246 mm
Width: 398.5 mm
Depth: 42 mm
Control panel: menu,scroll up/ brightness, scroll down/ contrast, select, power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
