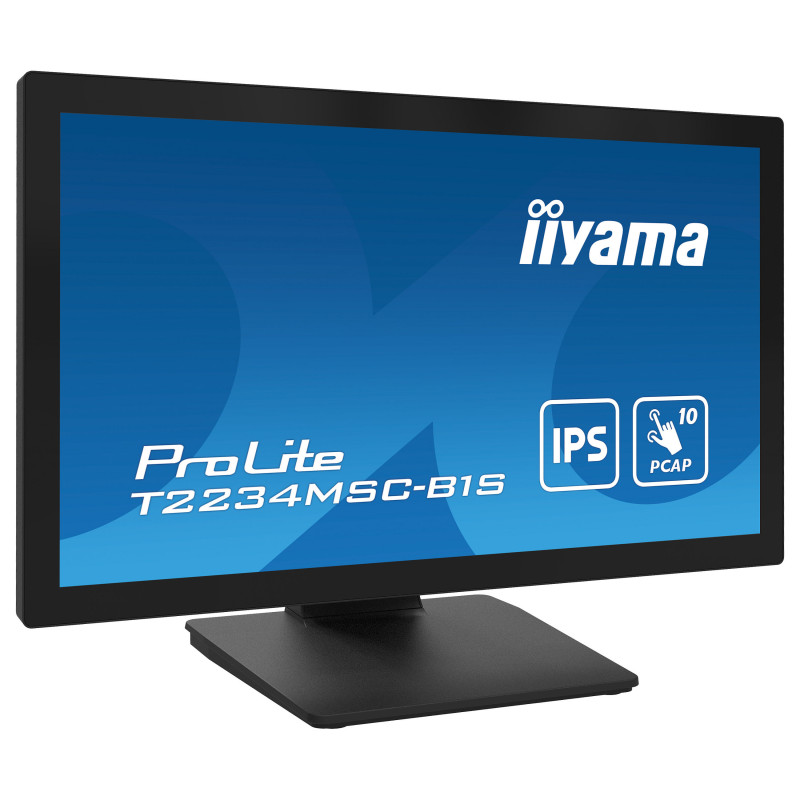

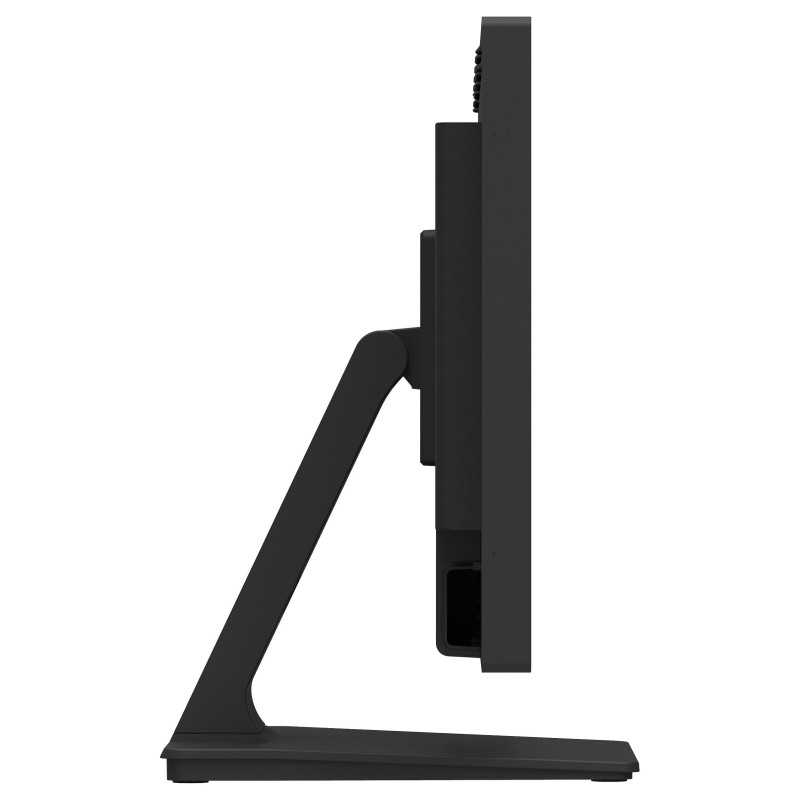

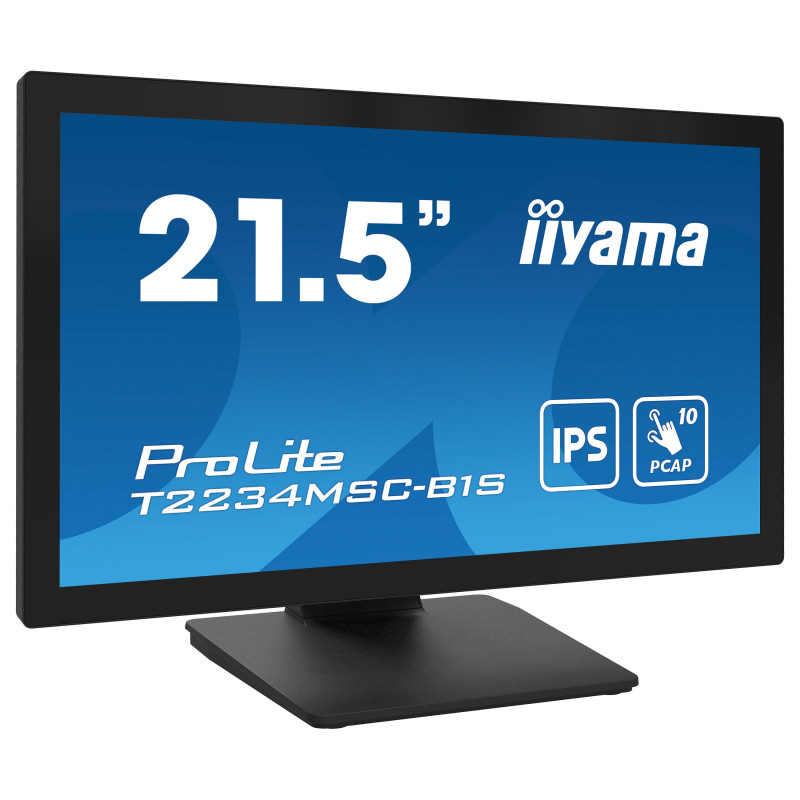

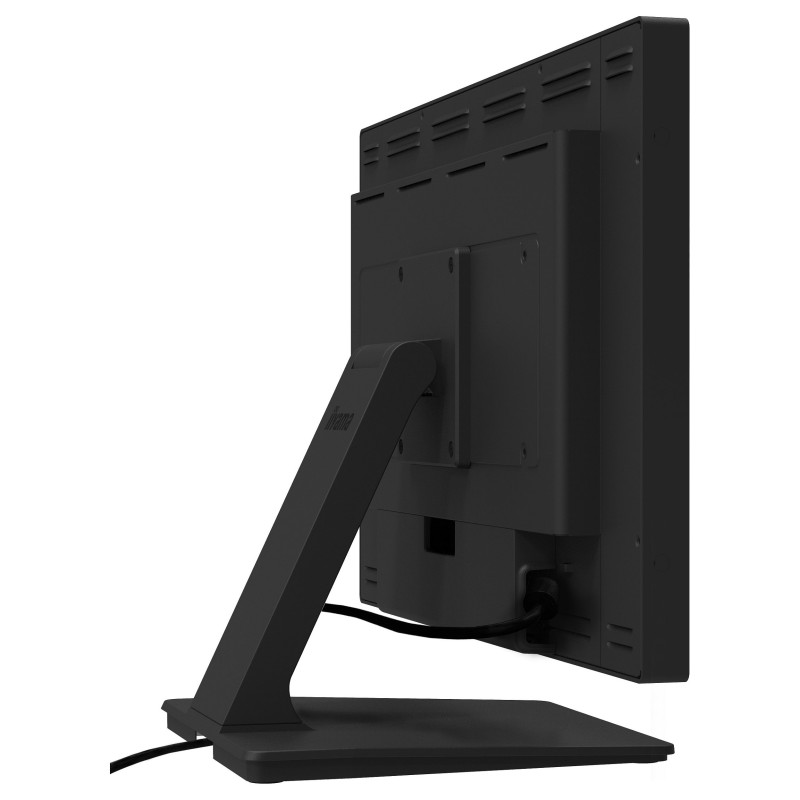

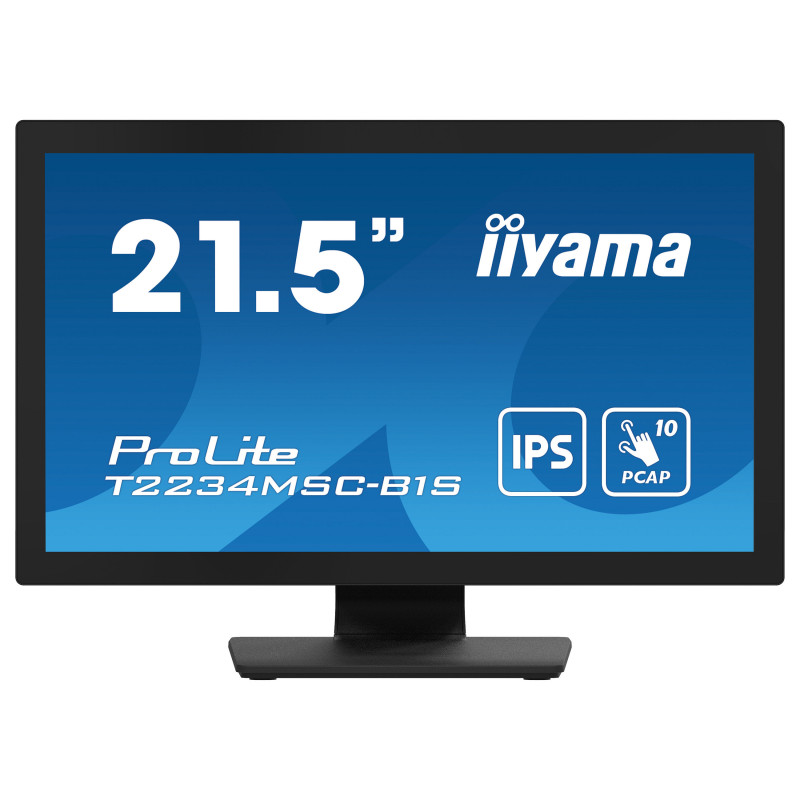

iiyama ProLite T2234MSC-B1S computer monitor

iiyama ProLite T2234MSC-B1S. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
The ProLite T2234MSC-B1S uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Panel type: IPS
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 350 cd/m²
Display brightness (typical): 350 cd/m²
Display brightness: 305 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.247 x 0.247 mm
Horizontal scan range: 30 - 84 kHz
Viewable size, horizontal: 47.6 cm
Viewable size, vertical: 26.8 cm
Display diagonal (metric): 54.6 cm
Surface hardness: 7H

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Palm rejection: Yes

Multimedia

Number of speakers: 2
RMS rated power: 6 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 2.5 mm

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable management: Yes
Height adjustment: No
Tilt adjustment: Yes
Tilt angle range: -5 - 90°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15.5 kWh
Power consumption (typical): 21 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External

Weight dimensions

Width (with stand): 517.5 mm
Depth (with stand): 239.5 mm
Height (with stand): 374 mm
Weight (with stand): 5.9 kg

Packaging content

Cables included: AC, USB, HDMI, DisplayPort, Audio
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
User controls: picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position,Touch switch), option (reset, language, source select, display mode, volume, mute, factory)
Brightness: 305 cd/m²
Packaging content: AC adapter
Touch method: stylus, finger, glove (latex)
Weight: 5.9 kg
Height: 374 mm
Width: 517.5 mm
Depth: 239.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
