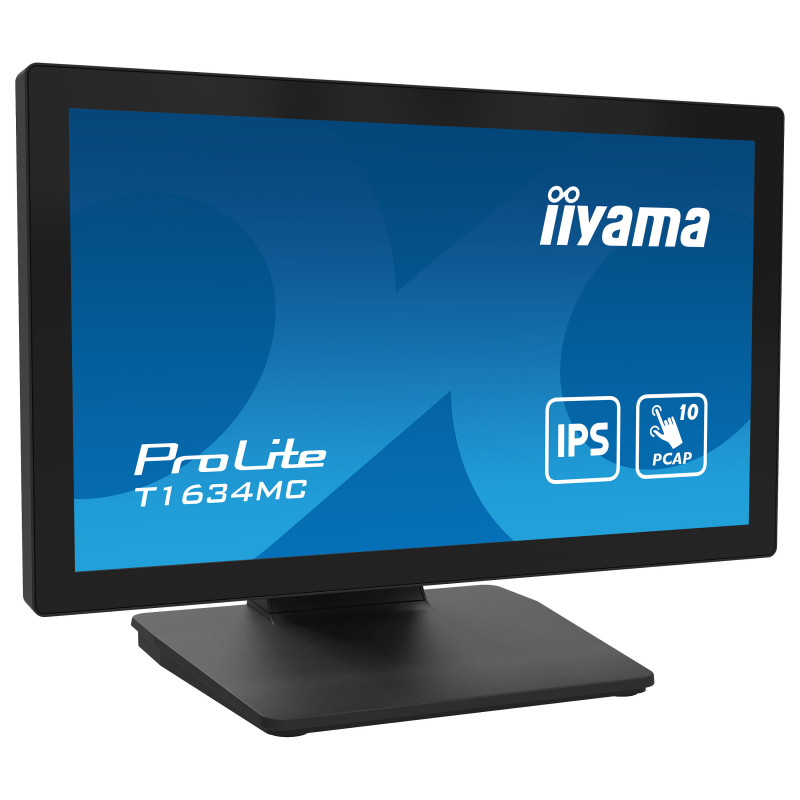

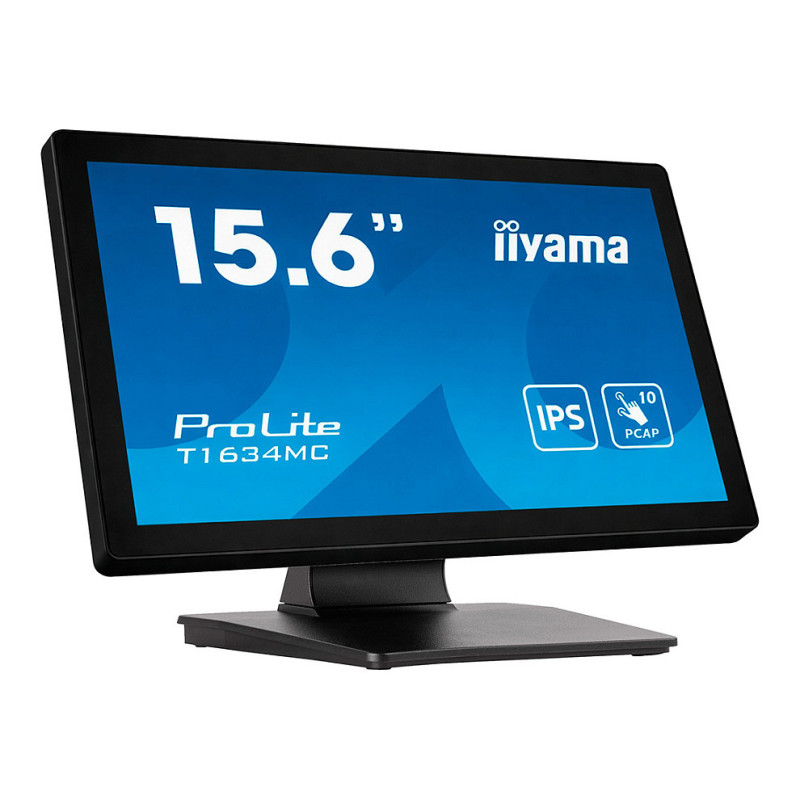

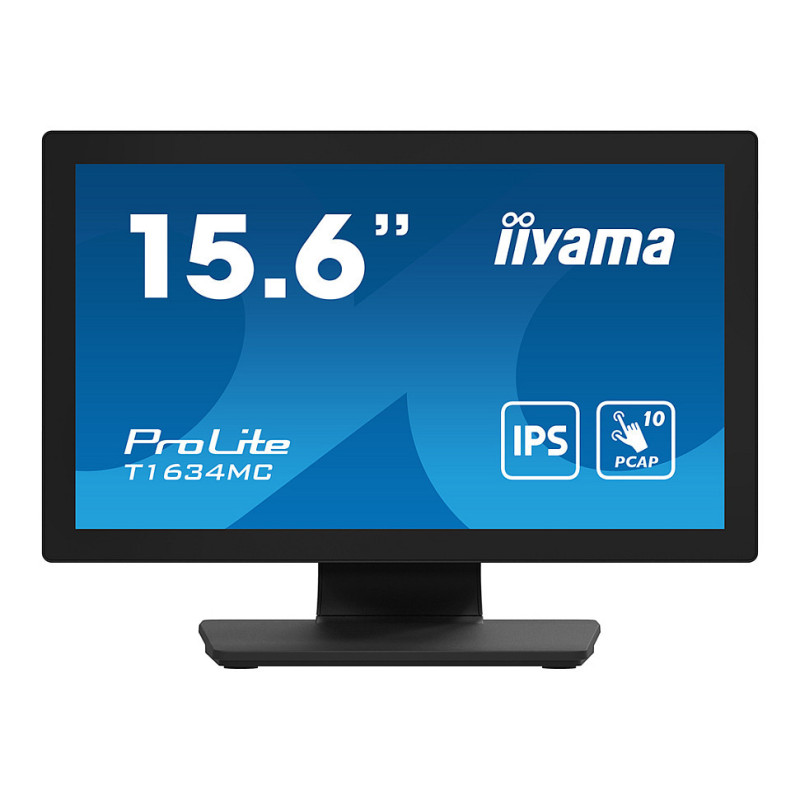

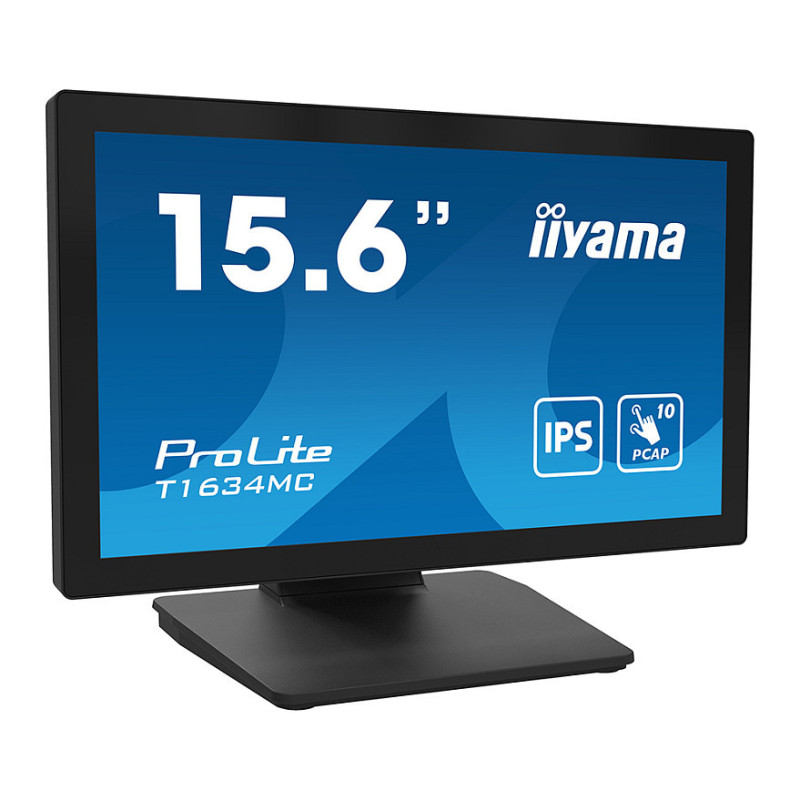

iiyama ProLite T1634MC-B1S computer monitor

iiyama ProLite T1634MC-B1S. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (peak): 450 cd/m²
Display brightness (typical): 450 cd/m²
Display brightness: 405 cd/m²
Response time: 25 ms
Response time measurement type: GTG (Gray to Gray)
Display surface: Matt
Screen shape: Flat
Contrast ratio (typical): 700:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.2 million colours
Response time (fast): 25 ms
Pixel pitch: 0.179 x 0.179 mm
Horizontal scan range: 30 - 84 kHz
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Digital horizontal frequency: 30 - 84 kHz
Display diagonal (metric): 39.5 cm
Surface hardness: 7H
Colour depth: 6 bit
Colour gamut: 90%

Performance

Palm rejection: Yes

Design

Market positioning: Office
Product colour: Black
Front bezel colour: Black
Glass thickness: 2.4 mm

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

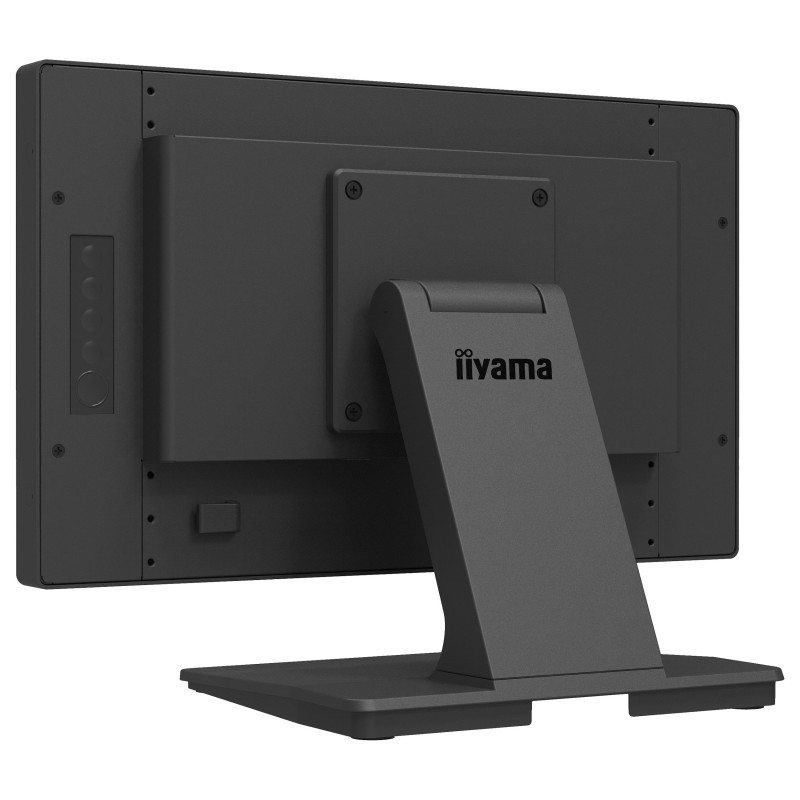

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm

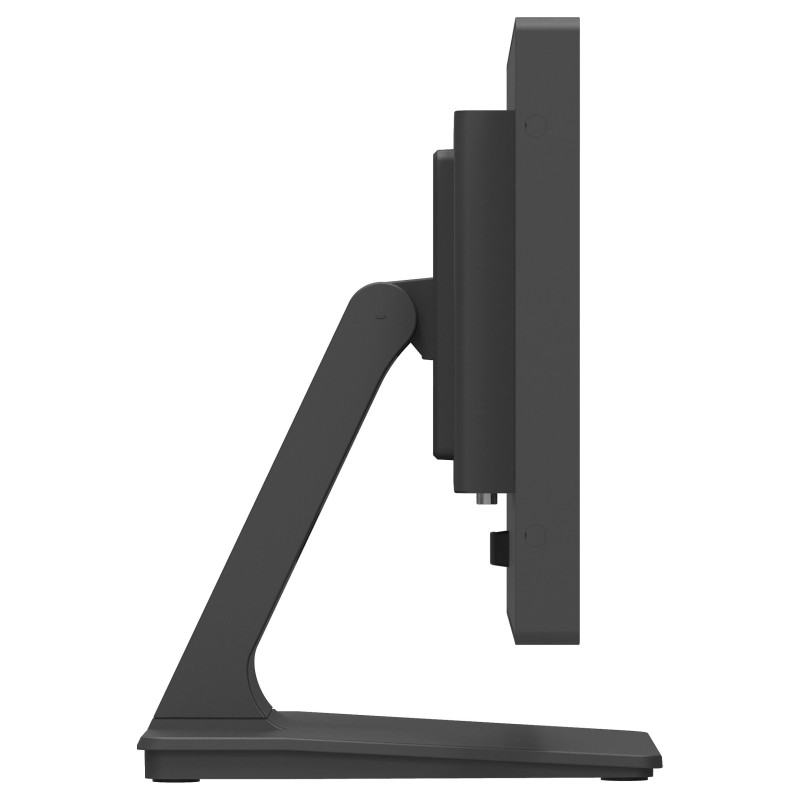

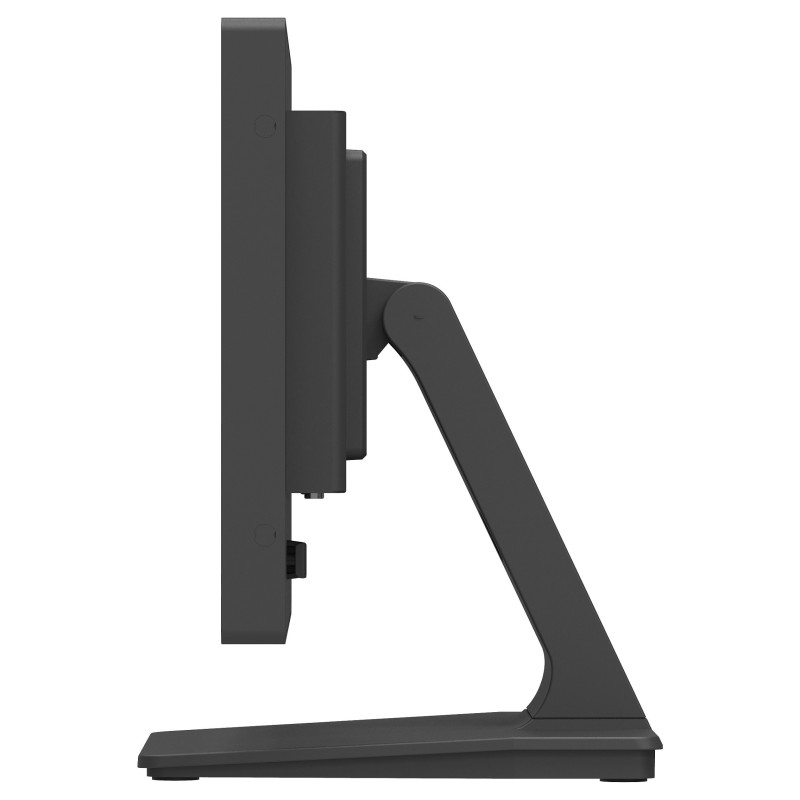

Tilt adjustment: Yes
Tilt angle range: 90 - 5°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 10.1 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight dimensions

Width (with stand): 381 mm
Depth (with stand): 200 mm
Height (with stand): 285.5 mm
Weight (with stand): 3.4 kg

Packaging data

Package width: 445 mm
Package depth: 150 mm
Package height: 355 mm
Package weight: 5.18 kg

Packaging content

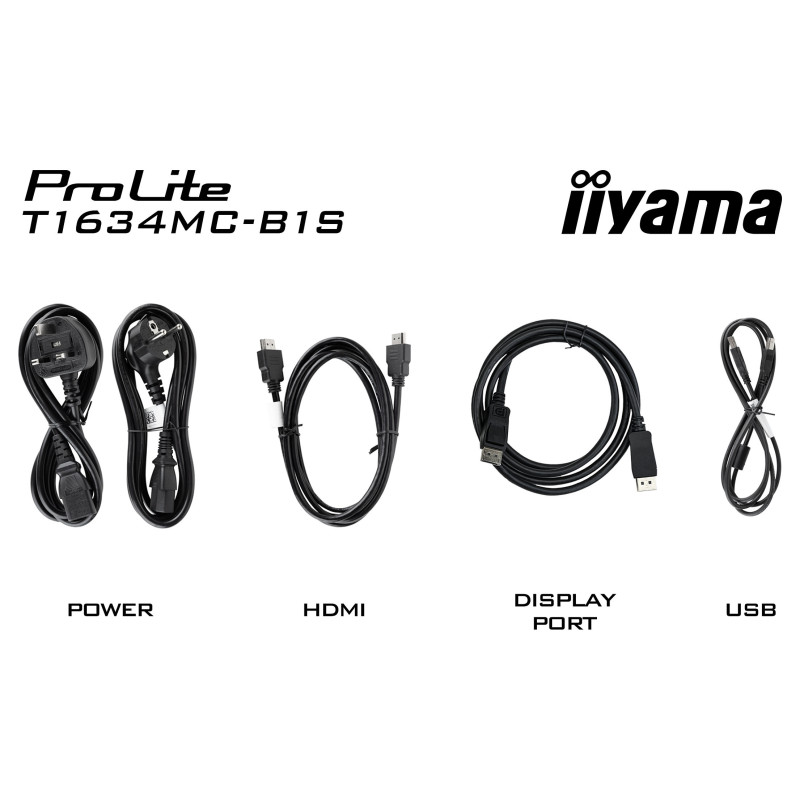

Cables included: AC, USB, HDMI, DisplayPort
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Second display effective viewing area: 344.2 x 193.6 mm
AC adapter included: Yes
User controls: picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Brightness: 405 cd/m²
Packaging content: AC adapter
Active display area (W x H): 344.2 x 193.6 mm
Touch method: stylus, finger, glove (latex)
Weight: 3.4 kg
Height: 285.5 mm
Width: 381 mm
Depth: 200 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
