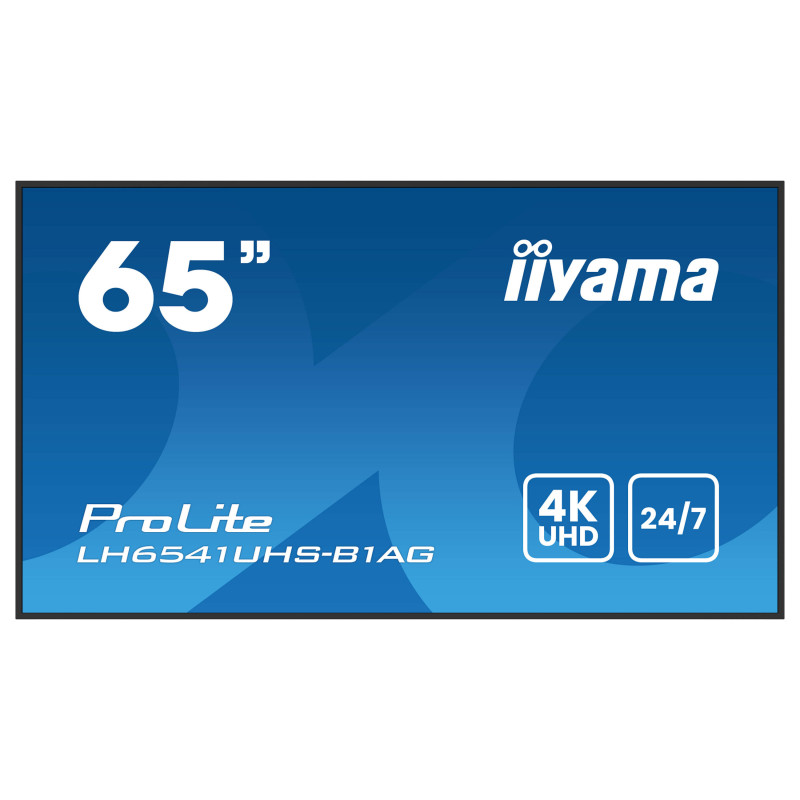

iiyama LH6541UHS-B1AG Signage Display

iiyama LH6541UHS-B1AG. Display diagonal: 163.8 cm (64.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Set in a slim bezel, the iiyama LH6541UHS-B1AG is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness VA panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Display

Panel type: VA
Display diagonal: 163.8 cm (64.5")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.372 x 0.372 mm
Active display area (W x H): 1428.5 x 803.5 mm
Display diagonal (metric): 164 cm
Colour saturation: 72%
Horizontal scan range: 30 - 80 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
USB port: Yes
USB ports quantity: 1
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
RS-232C: Yes
Remote (IR) input: 1
Remote (IR) output: 1

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

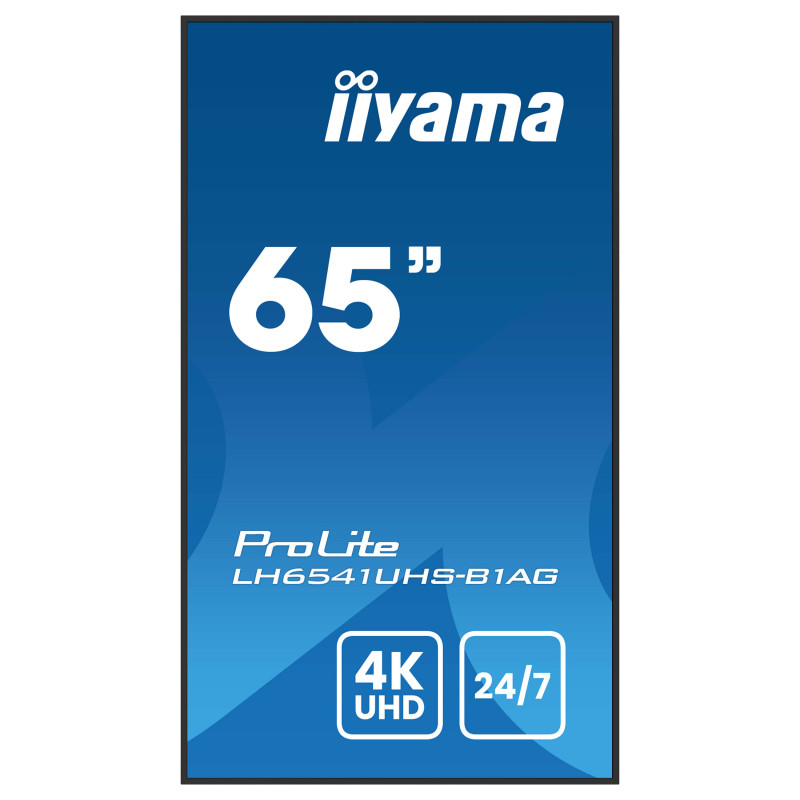

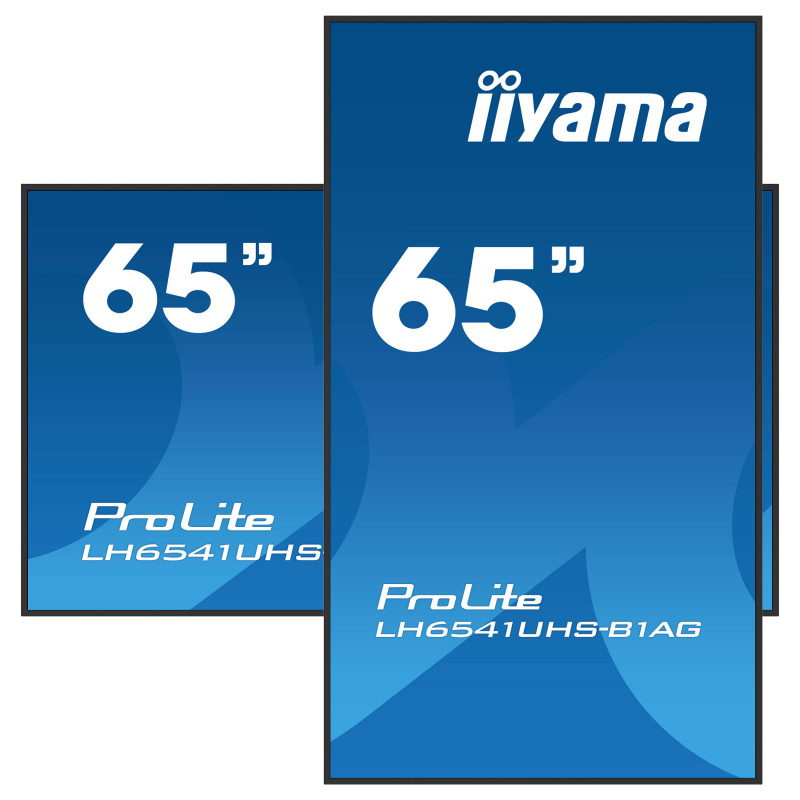

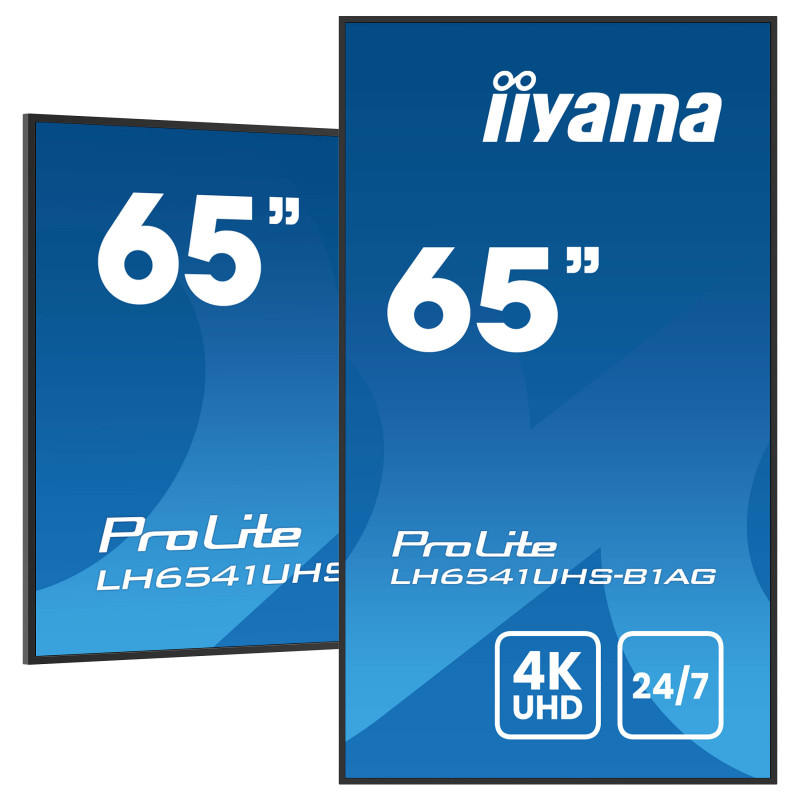

Orientation: Horizontal/Vertical
Product colour: Black

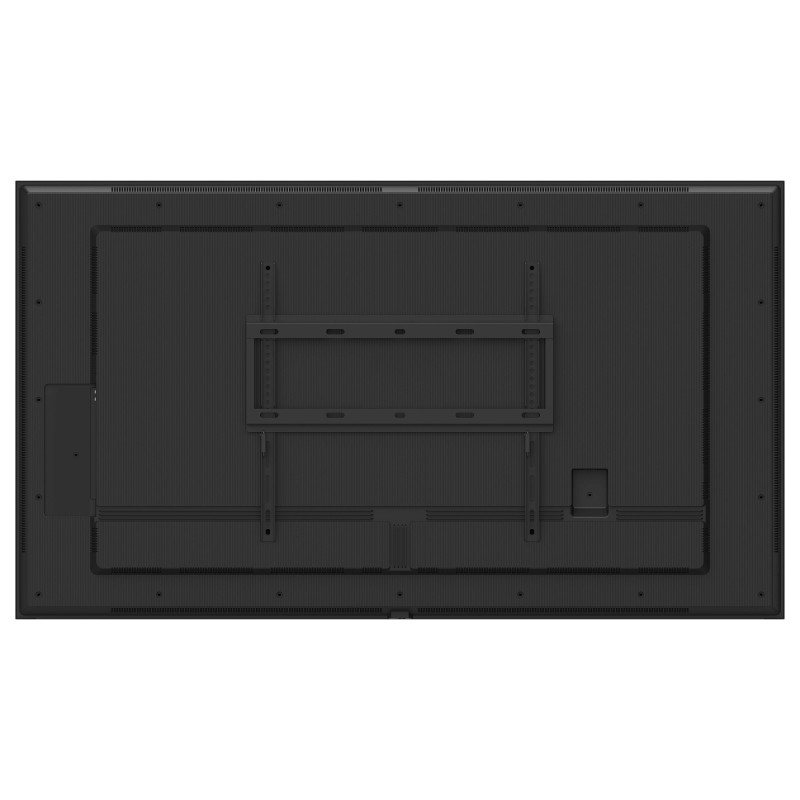

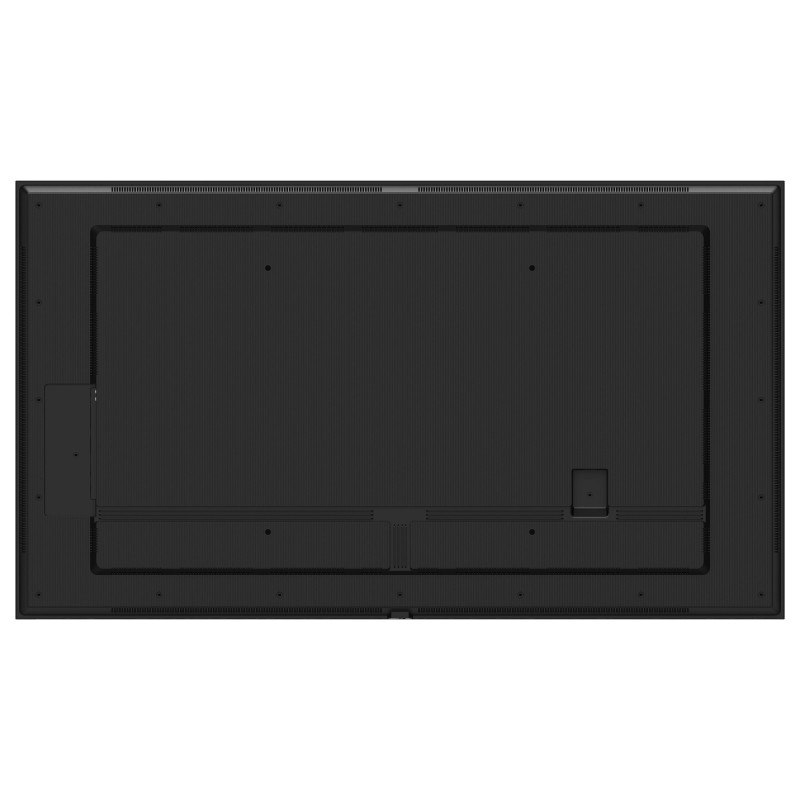

VESA mounting: Yes
Panel mounting interface: 500 x 500 mm
Bezel width (bottom): 1.28 cm
Bezel width (side): 1.28 cm
Bezel width (top): 1.28 cm
Bezel colour: Black
Anti-glare screen: Yes

Performance

Purpose: Universal
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 115 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

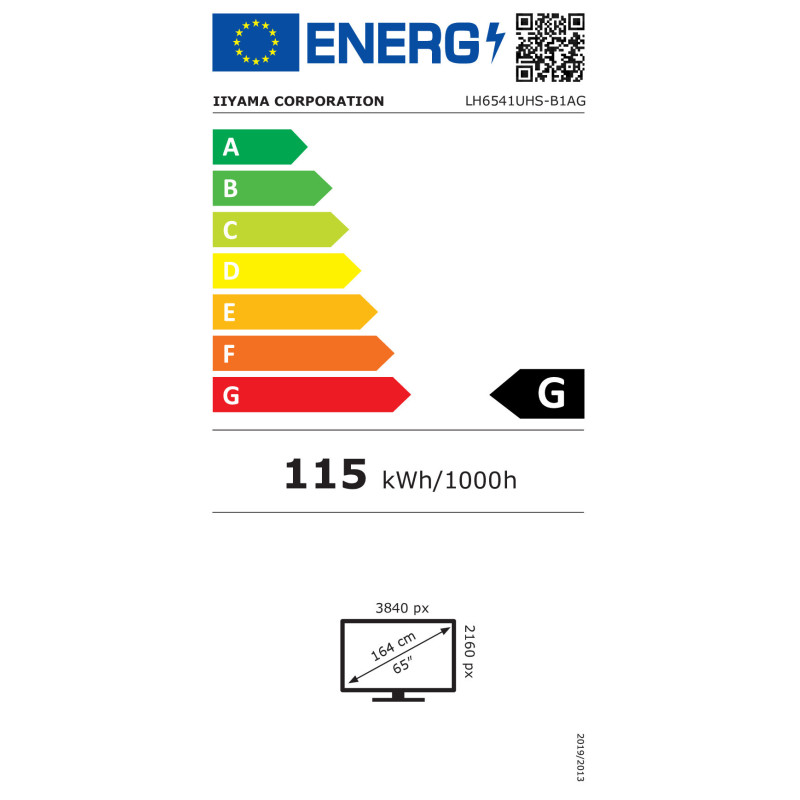

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 115 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Weight dimensions

Display width: 1456.5 mm

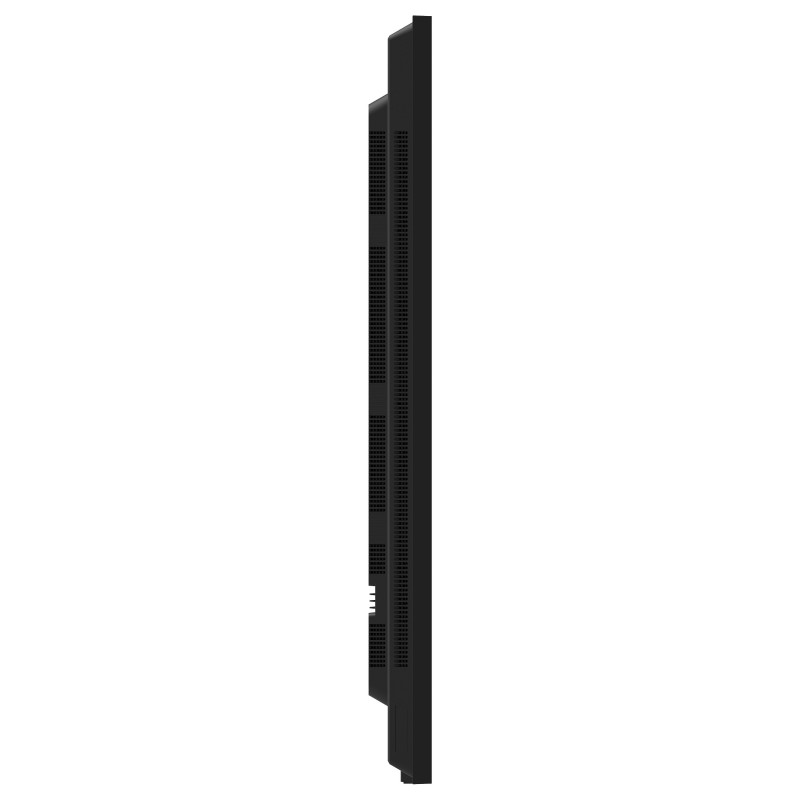

Display depth: 69 mm
Display height: 831.5 mm
Display weight: 17.7 kg
Width: 1456.5 mm
Depth: 69 mm
Height: 831.5 mm
Weight: 17.7 kg

Packaging data

Package width: 1640 mm
Package depth: 164 mm
Package height: 990 mm
Package weight: 25.7 kg

Packaging content

Remote control included: Yes

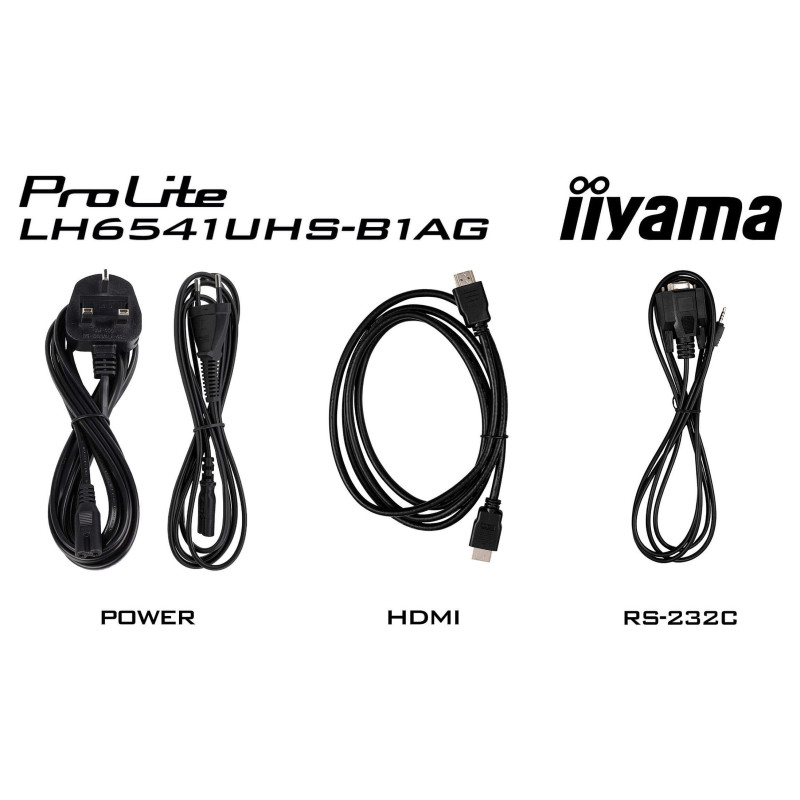

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Ethernet LAN: Yes

Technical details

Playback media: Y
User controls: picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Quick start guide: Yes
Power supply type: Internal
