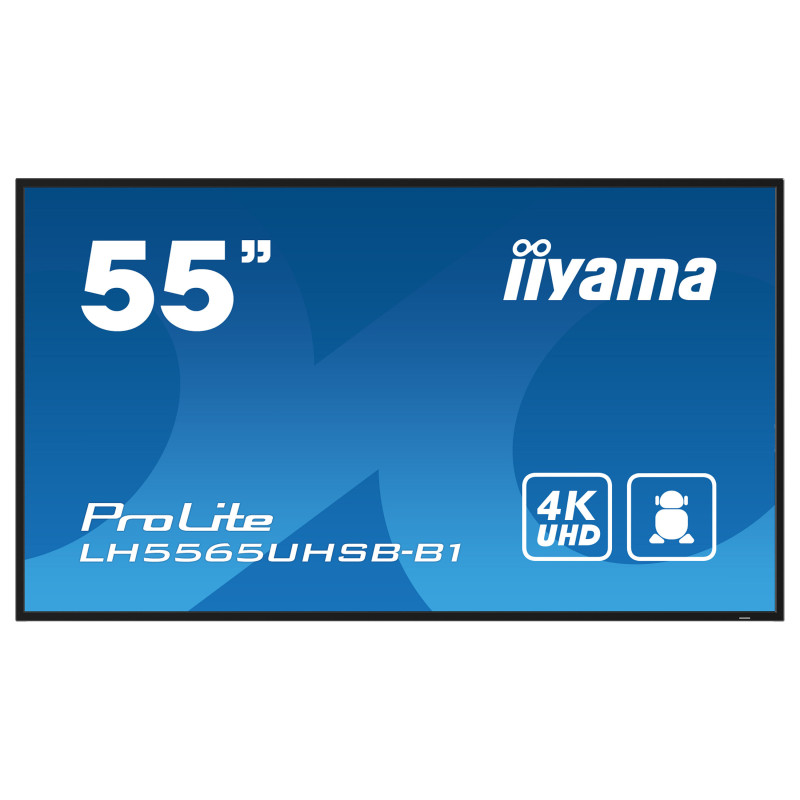

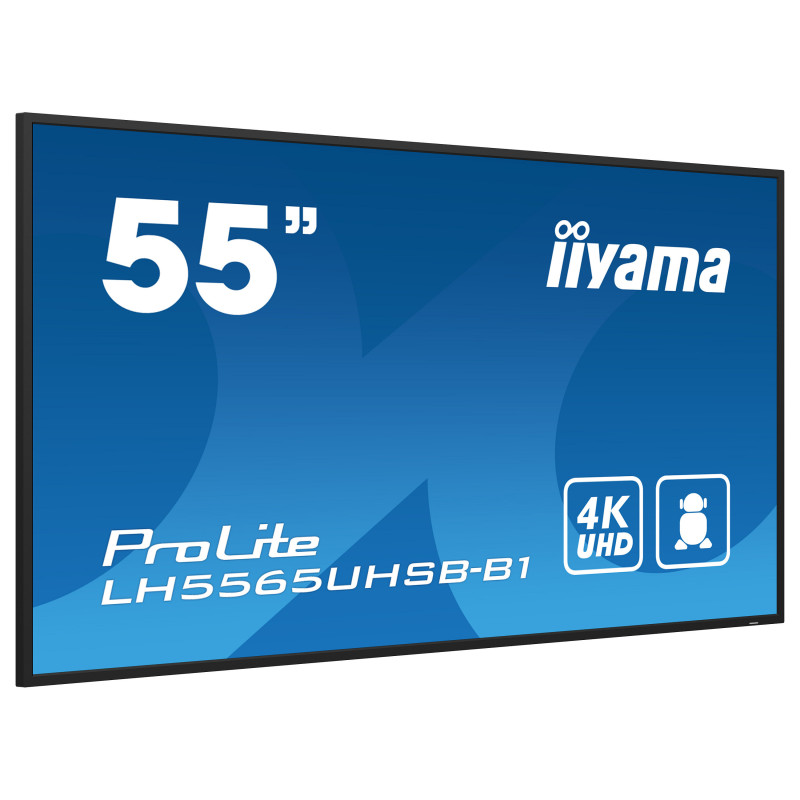

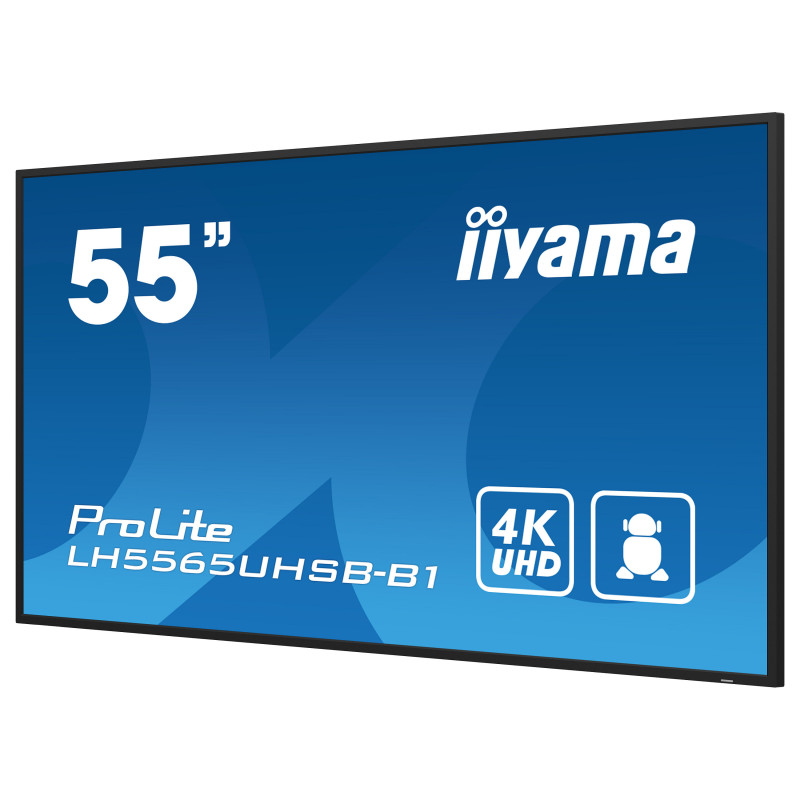

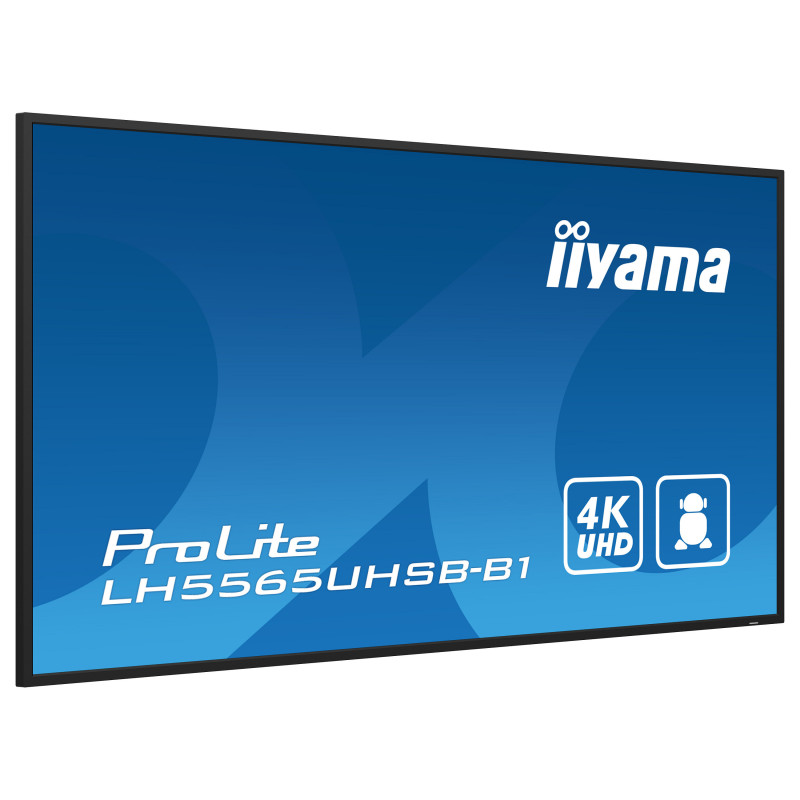

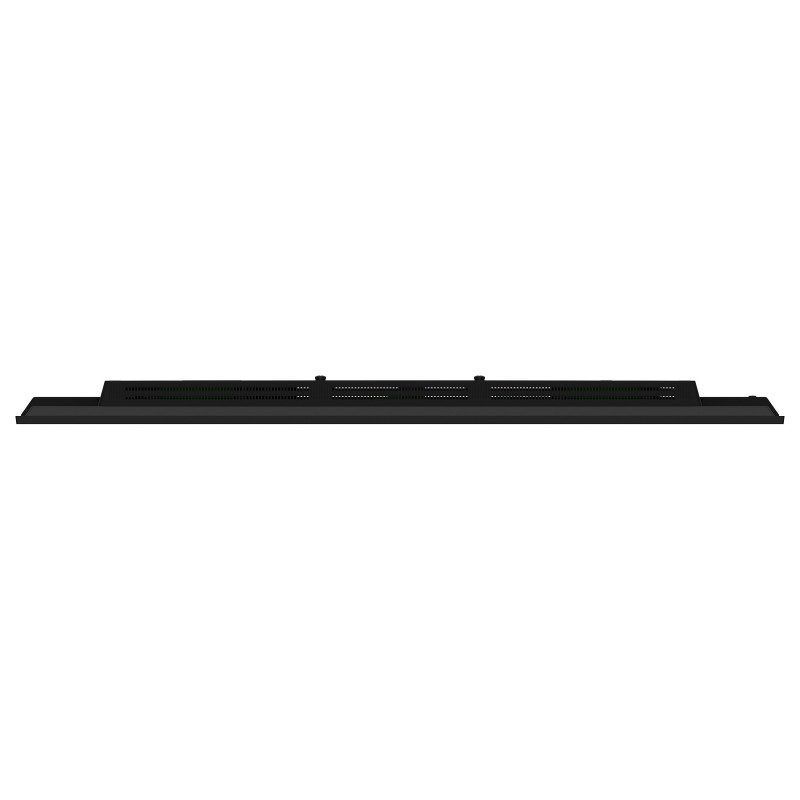

iiyama LH5565UHSB-B1 Signage Display

iiyama LH5565UHSB-B1. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Create dynamic, show stopping content, designed to entice and captivate your audience. The LH5565UHSB vivid-bright display, boasting 800cd/m2, can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry's display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display

Panel type: IPS
Display diagonal: 138.7 cm (54.6")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 800 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1209.6 x 680.4 mm
Display diagonal (metric): 139 cm
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 1%
RGB colour space: NTSC

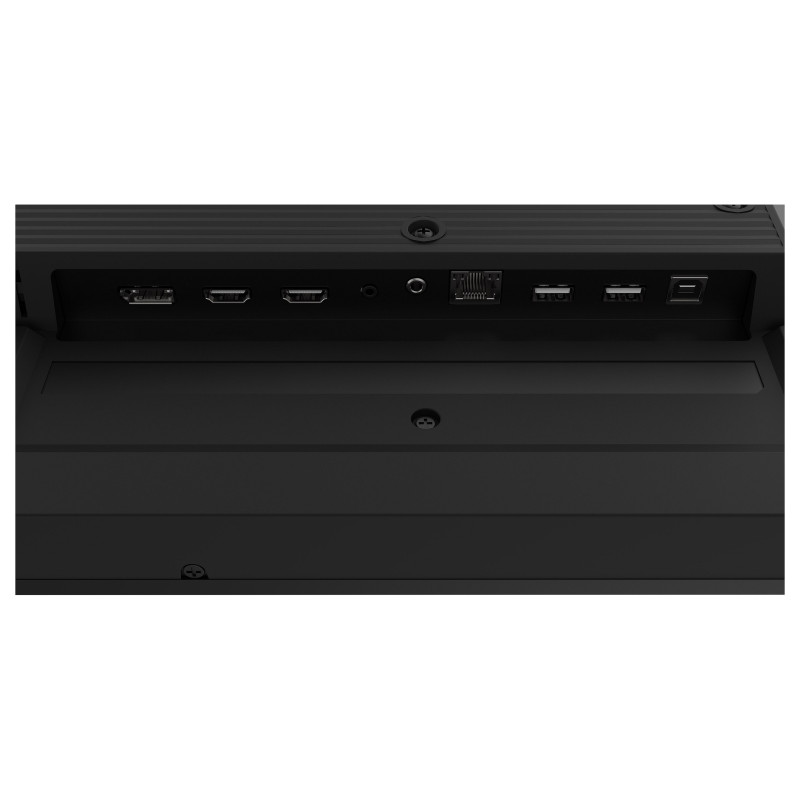

Ports interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Feature: RS-232 interface
Feature: RS-232C
Remote (IR) input: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Kiosk design

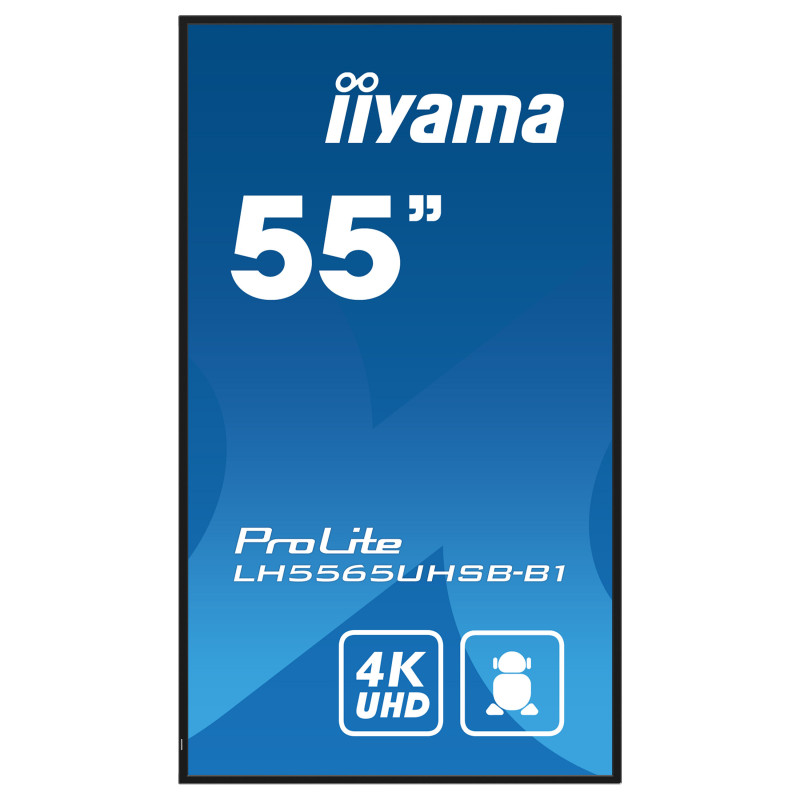

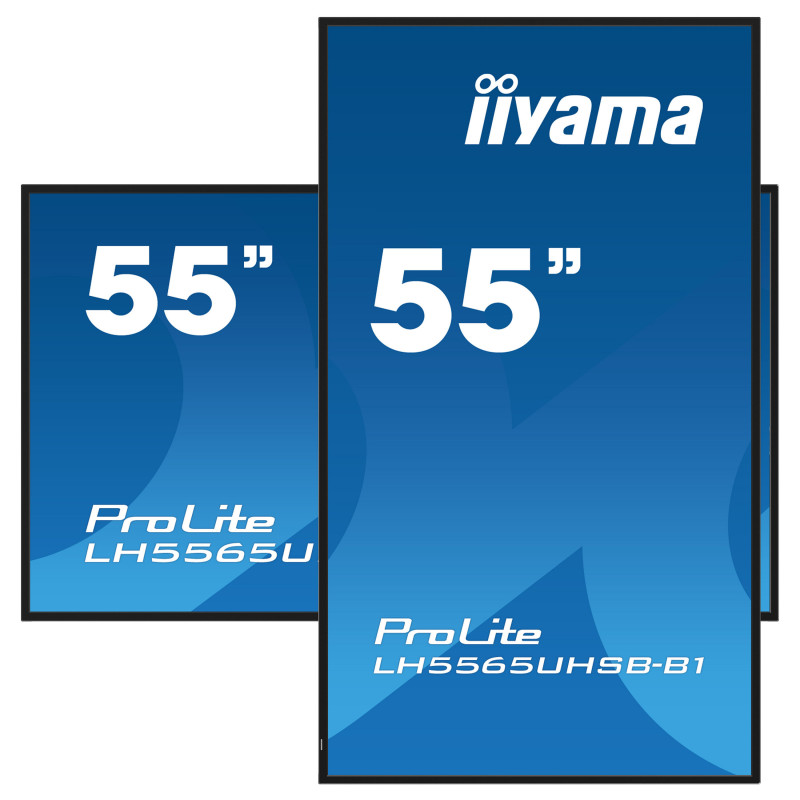

Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.49 cm
Bezel width (side): 1.49 cm
Bezel width (top): 1.49 cm
Bezel colour: Black

Performance

Purpose: Commercial
Feature: On Screen Display (OSD)
Number of OSD languages: 8
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 78 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

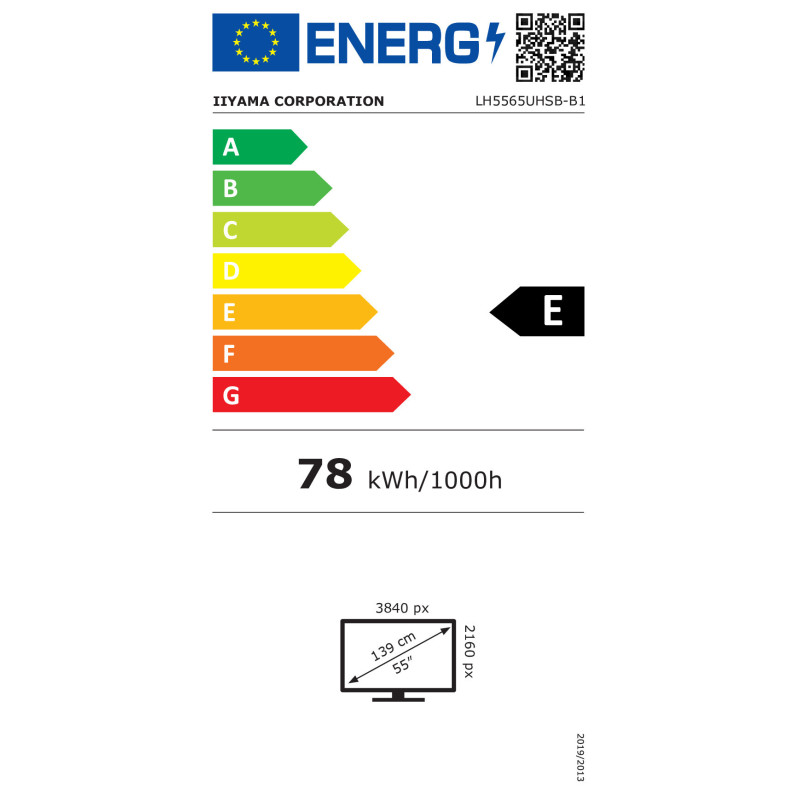

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 77.7 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A73
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11

Weight dimensions

Display width: 1237.5 mm
Display depth: 55 mm
Display height: 710 mm
Display weight: 14.6 kg
Width: 1237.5 mm
Depth: 55 mm
Height: 710 mm
Weight: 14.6 kg

Packaging data

Package width: 1386 mm
Package depth: 130 mm
Package height: 845 mm
Package weight: 19.8 kg

Packaging content

Feature: Remote control included

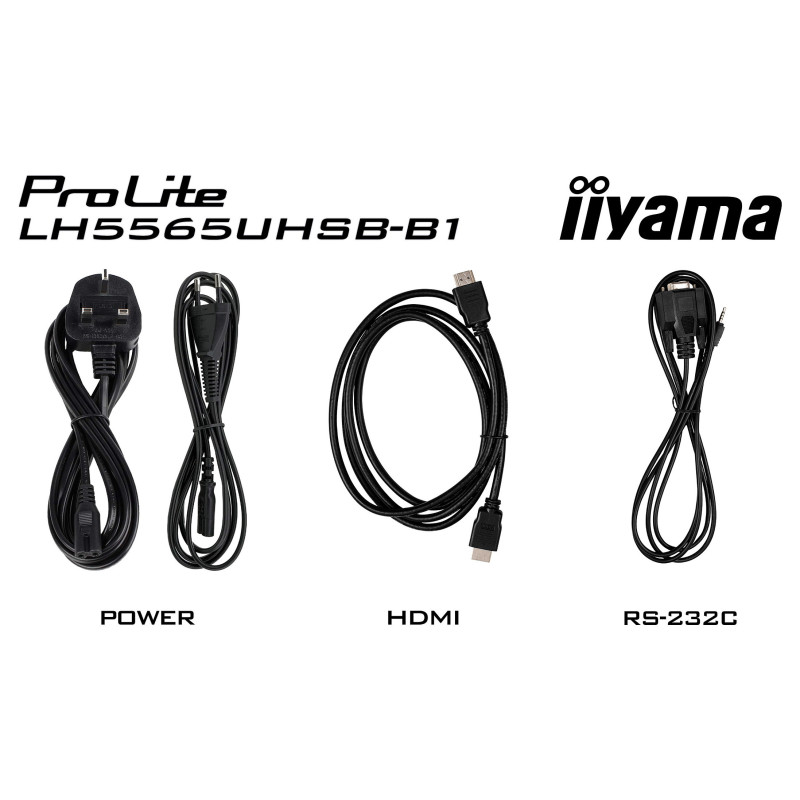

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -20 - 60%
Storage temperature (T-T): -20 - 60 °C

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)

Technical details

Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CE, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
