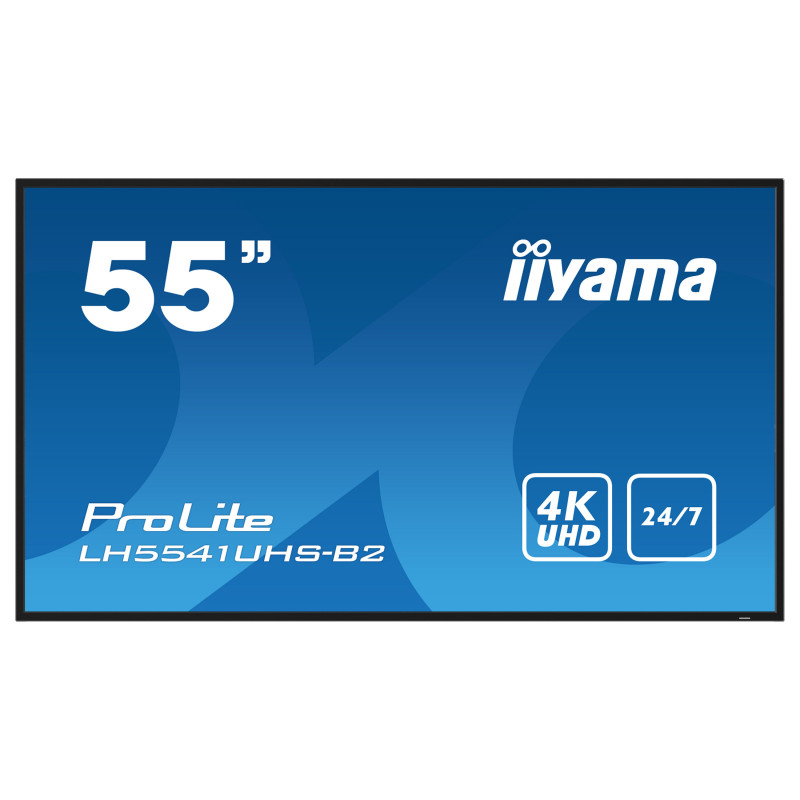

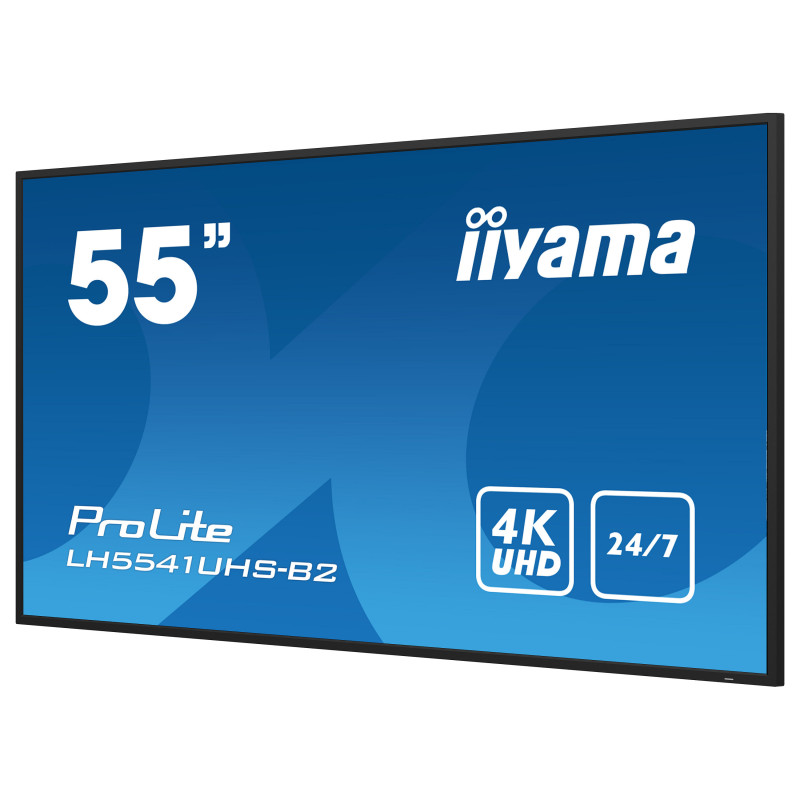

iiyama LH5541UHS-B2 Signage Display

iiyama LH5541UHS-B2. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Set in a slim bezel, the iiyama LH5541UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Display

Panel type: IPS
Display diagonal: 138.7 cm (54.6")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.3155 x 0.3155 mm
Active display area (W x H): 1209.6 x 680.4 mm
Display diagonal (metric): 139 cm
Horizontal scan range: 30 - 83 kHz
Native refresh rate: 60 Hz
Haze rate: 1%

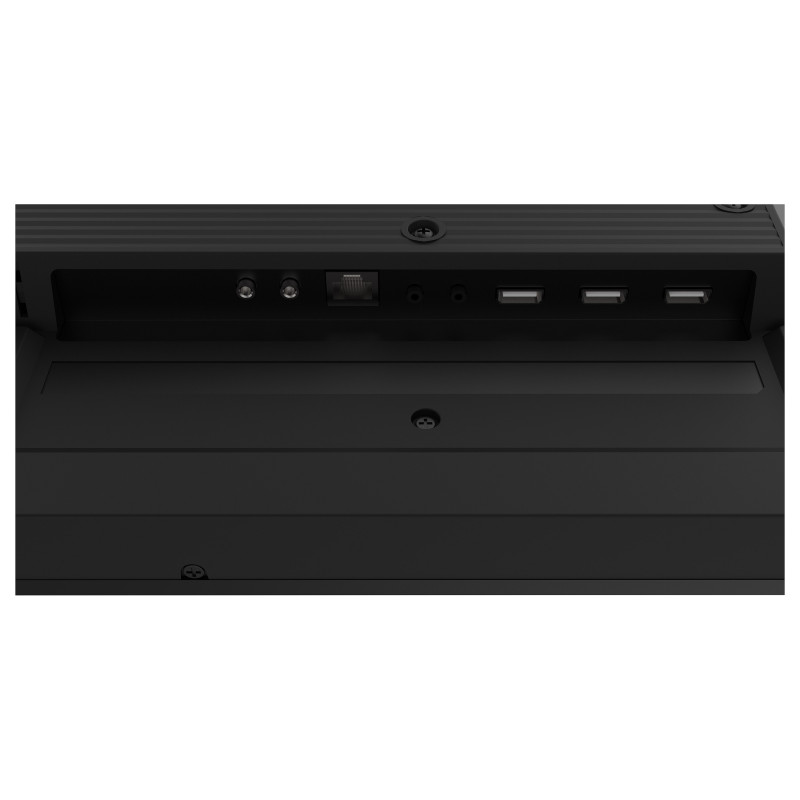

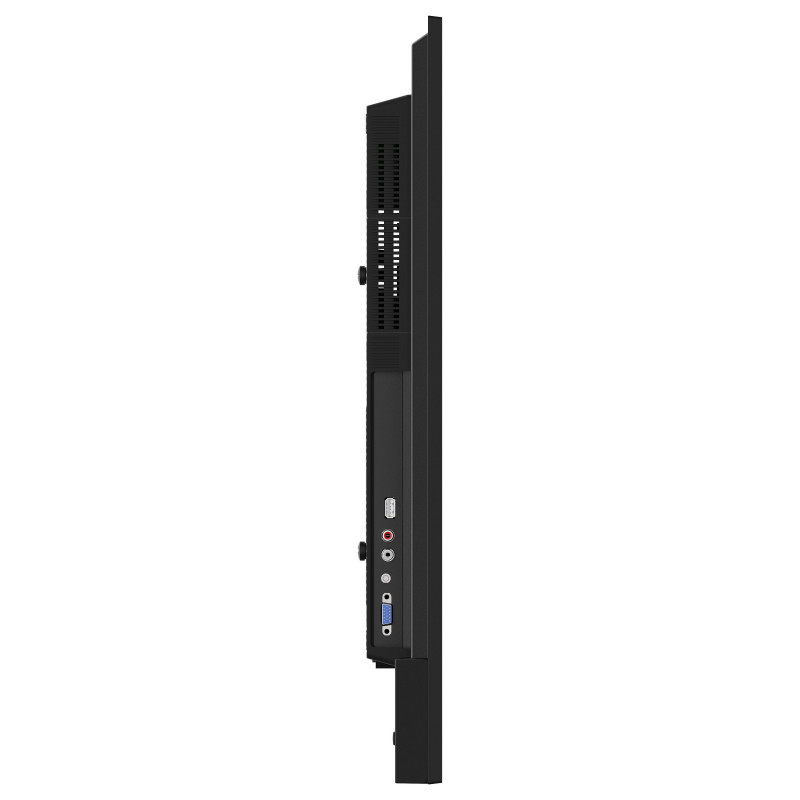

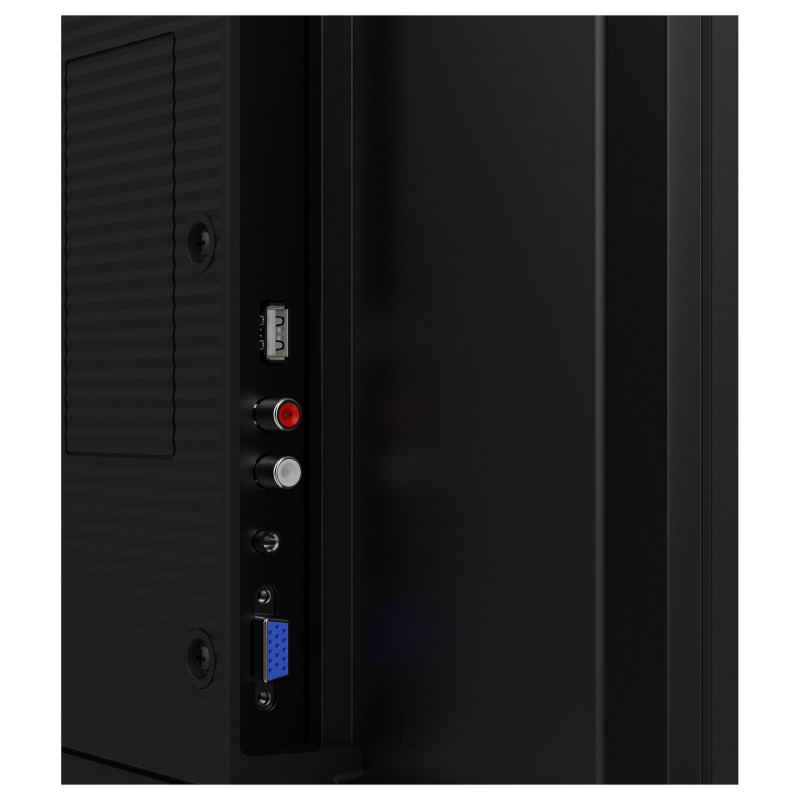

Ports & interfaces

HDMI ports quantity: 3
Feature: DVI port
VGA (D-Sub) input ports: 1
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: PC Audio in
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Kiosk design
Placement supported: Indoor

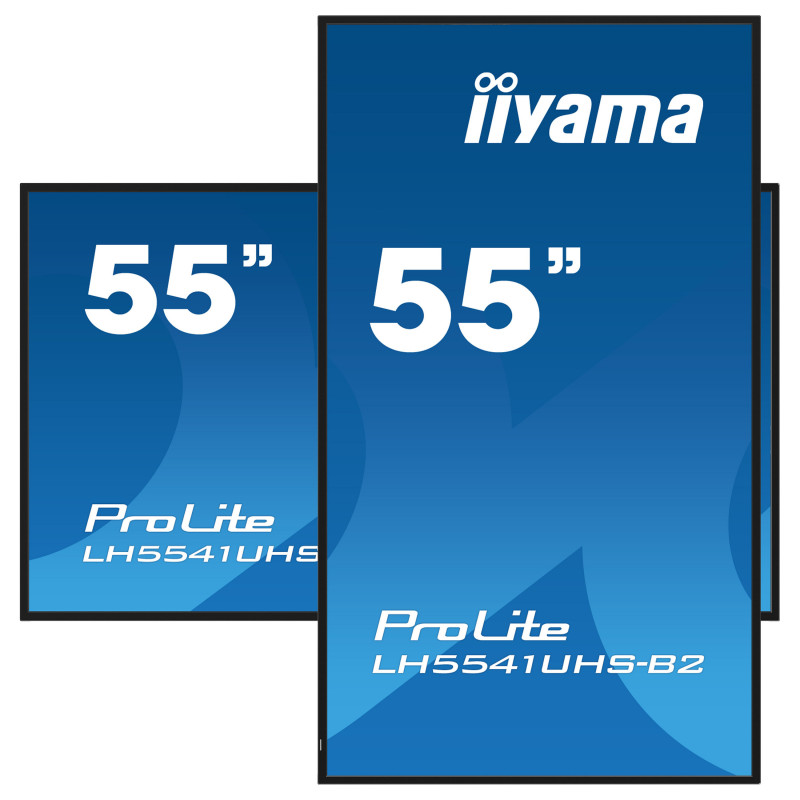

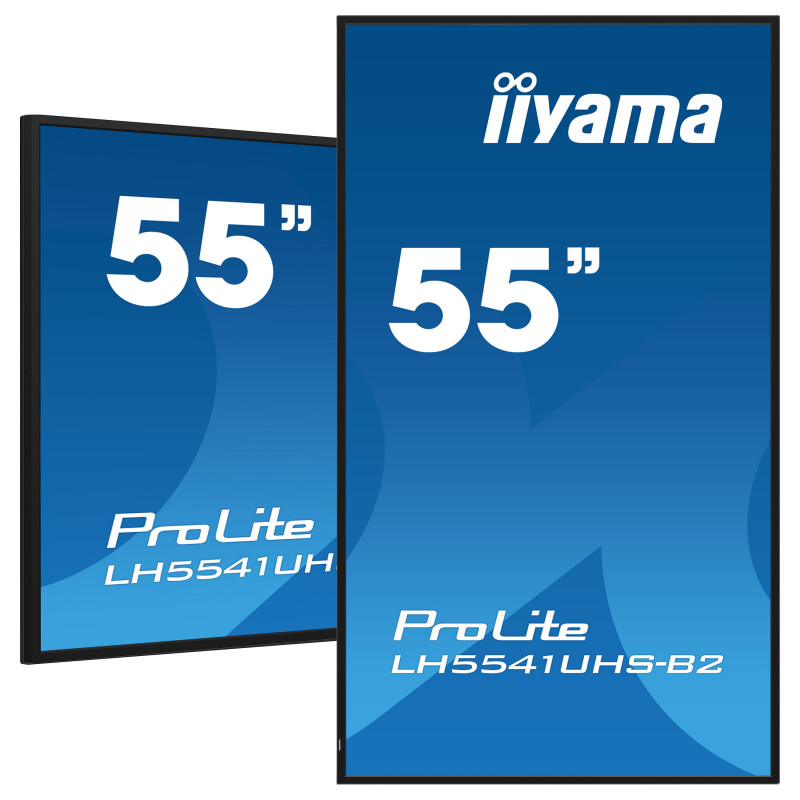

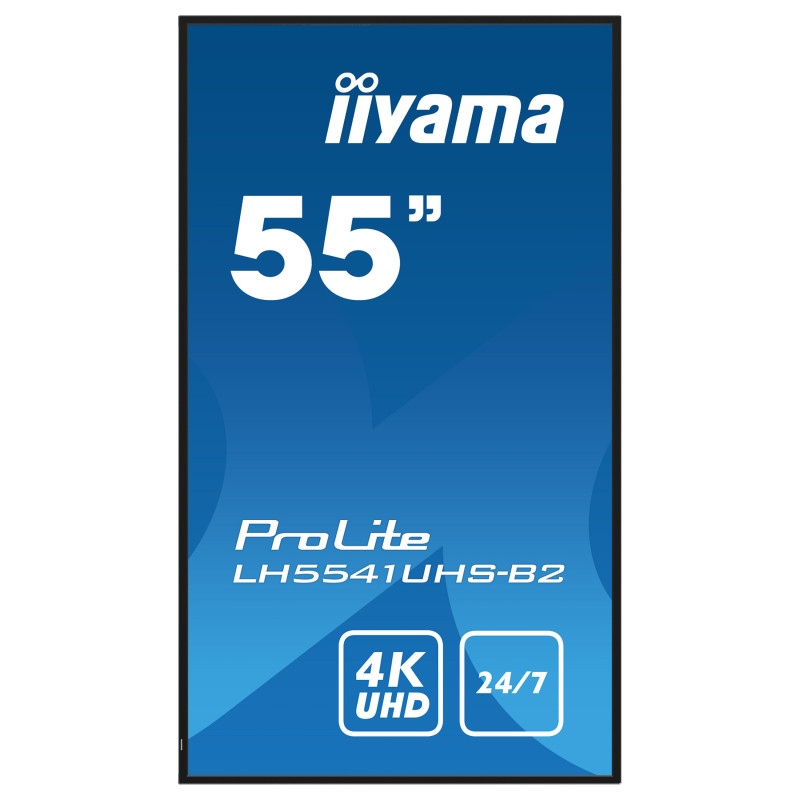

Orientation: Horizontal/Vertical
Product colour: Black

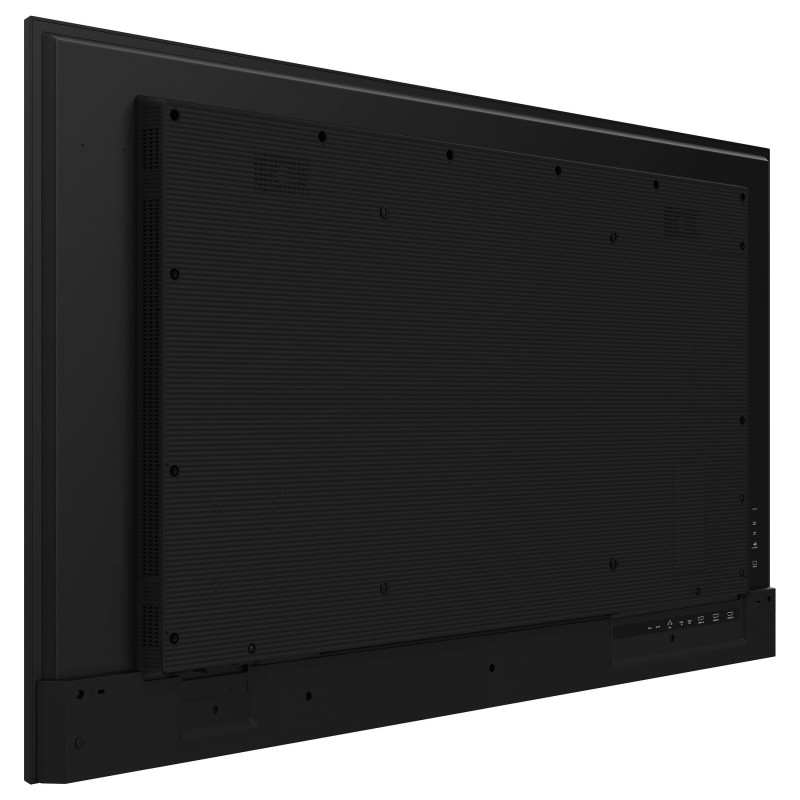

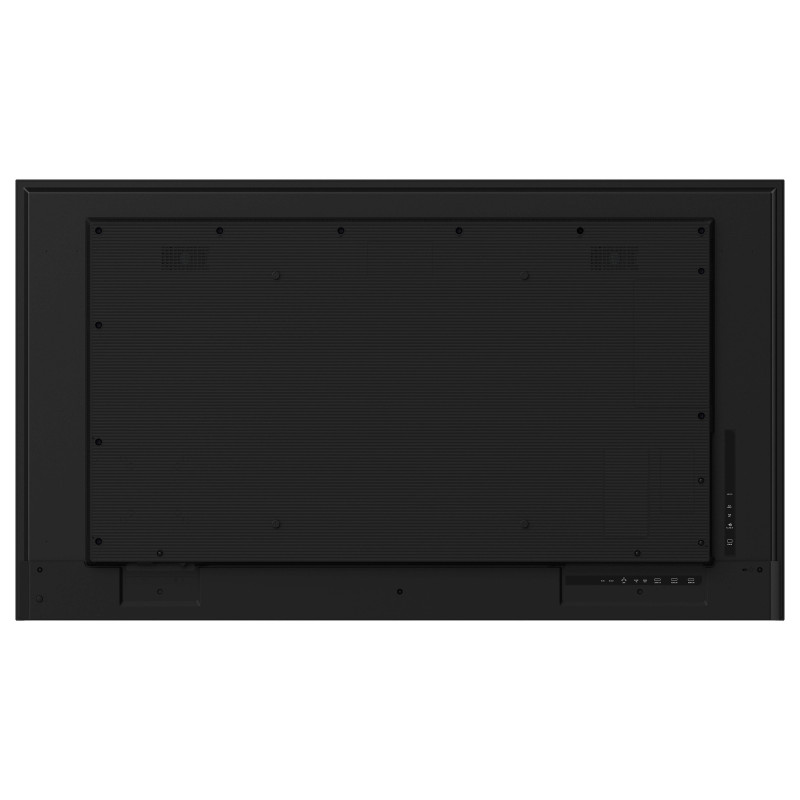

Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.55 cm
Bezel width (side): 1.4 cm
Bezel width (top): 1.4 cm
Bezel colour: Black

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 11
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 139 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 139 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Feature: Built-in processor
Processor model: V810
Internal memory: 2 GB
Internal storage capacity: 16 GB

Weight & dimensions

Display width: 1237.5 mm
Display depth: 55 mm
Display height: 710 mm
Display weight: 14.3 kg
Width: 1237.5 mm
Depth: 55 mm
Height: 710 mm
Weight: 14.3 kg

Packaging data

Package width: 1386 mm
Package depth: 130 mm
Package height: 845 mm

Packaging content

Feature: Remote control included
Feature: Batteries included

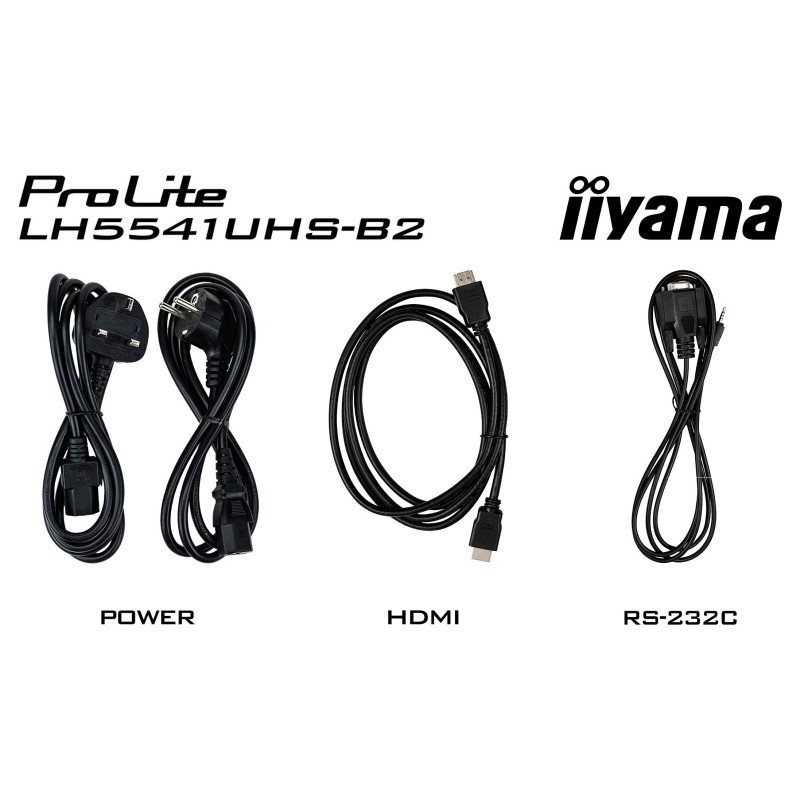

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN

Technical details

Feature: Audio in (mini jack)
Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
Feature: Cable management
Housing material: Metal
