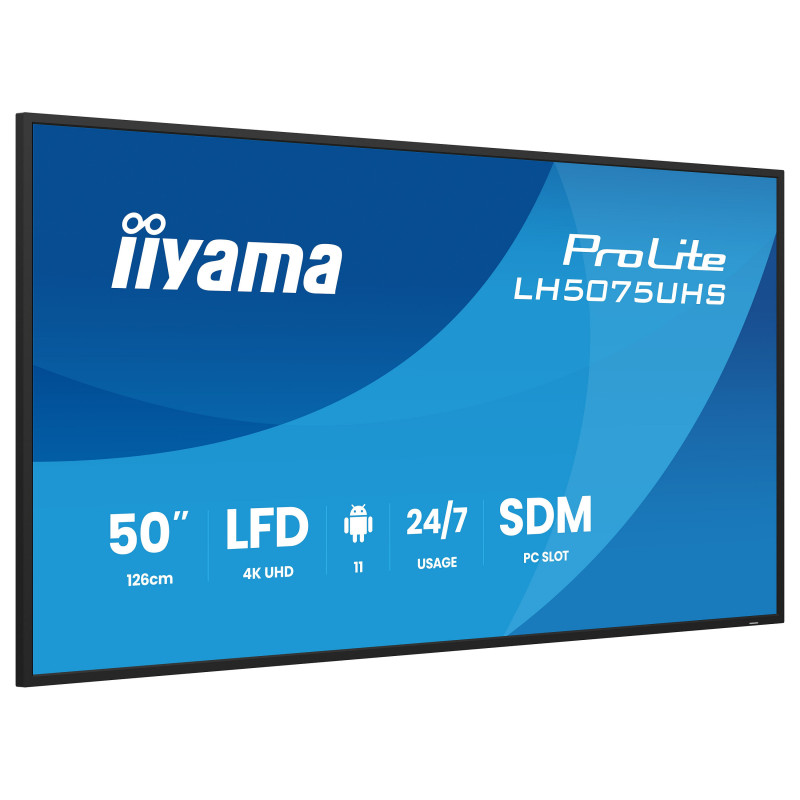

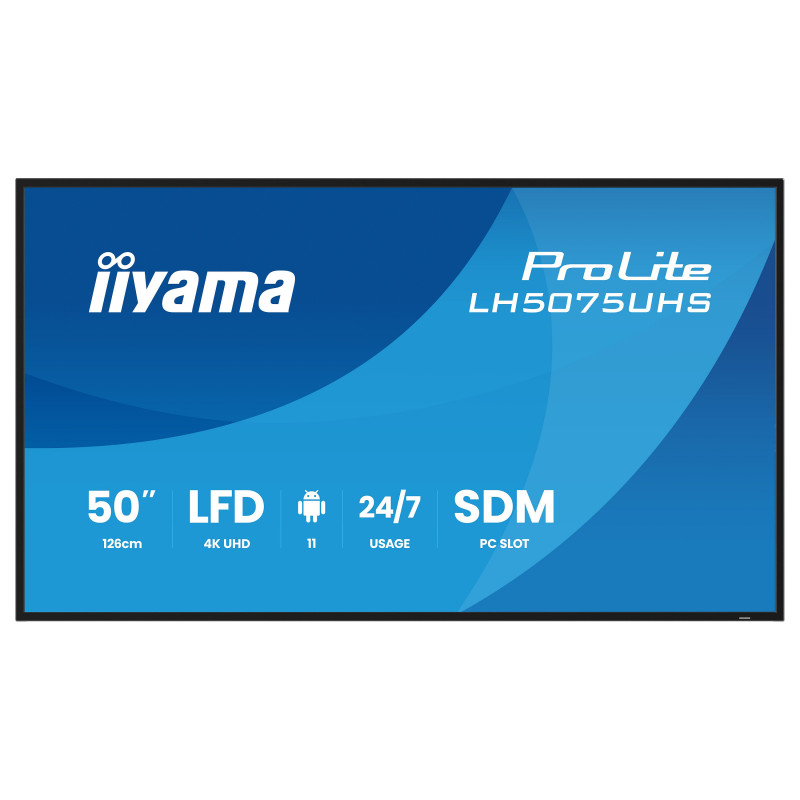

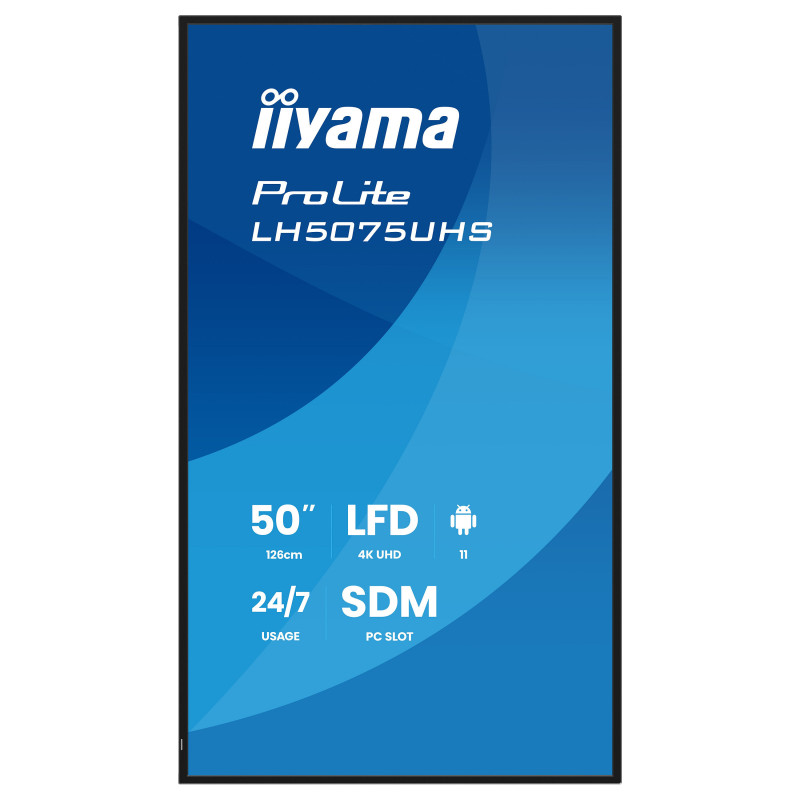

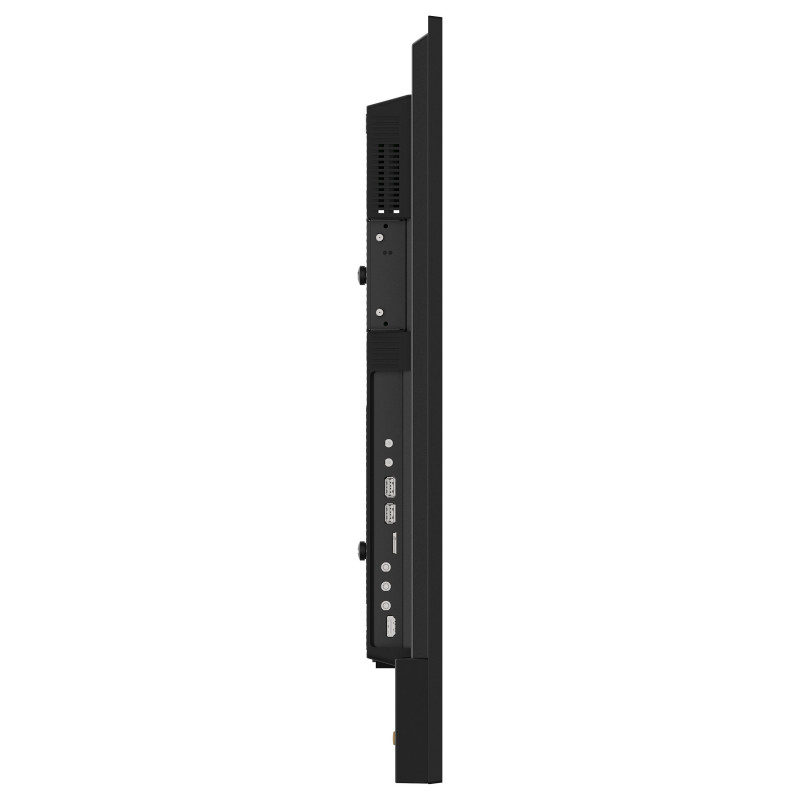

iiyama LH5075UHS-B2AG Signage Display

iiyama LH5075UHS-B2AG. Product design: Digital signage flat panel. Display diagonal: 125.7 cm (49.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5075UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry's display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. Now the display is also offering DP-Out from any input. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display

Panel type: VA
Display diagonal: 125.7 cm (49.5")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 9.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.285 x 0.285 mm
Active display area (W x H): 1095.8 x 616.4 mm
Display diagonal (metric): 125.7 cm
Maximum frame rate: 60 fps
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
RGB colour space: sRGB

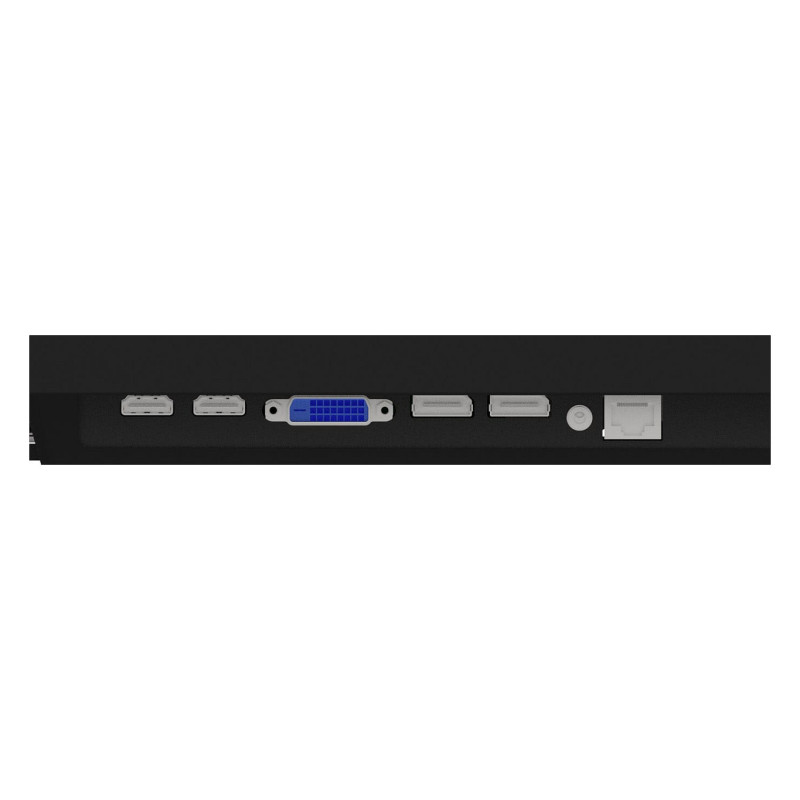

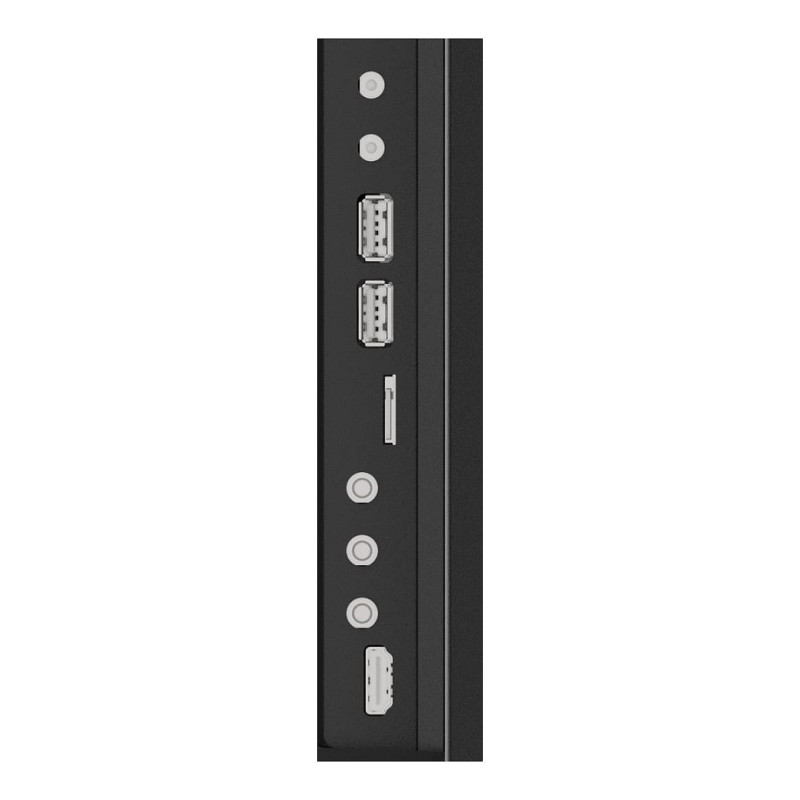

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPorts out: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) out: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: Audio Return Channel (ARC)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor

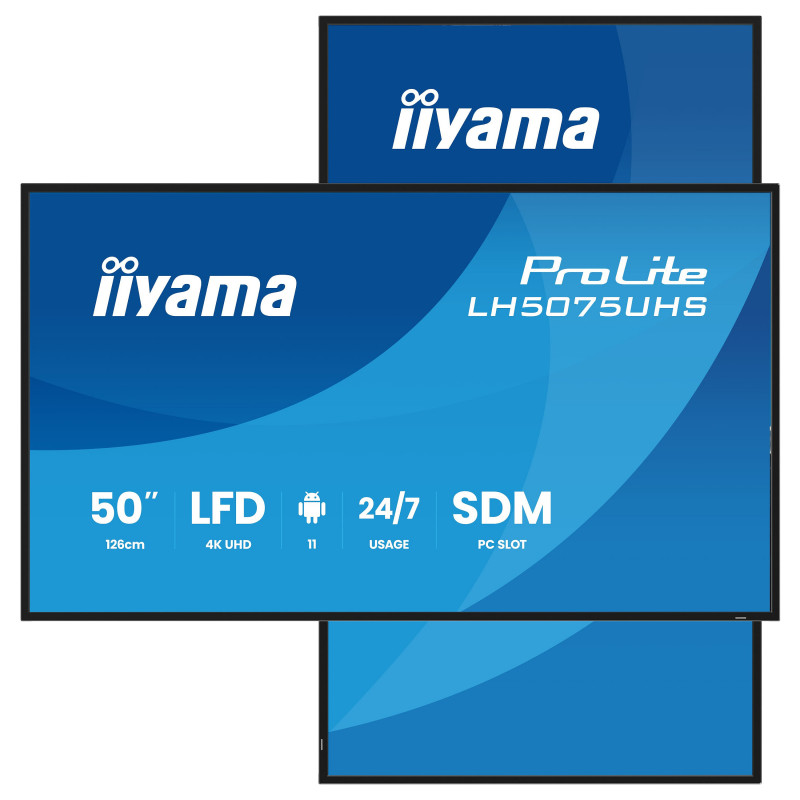

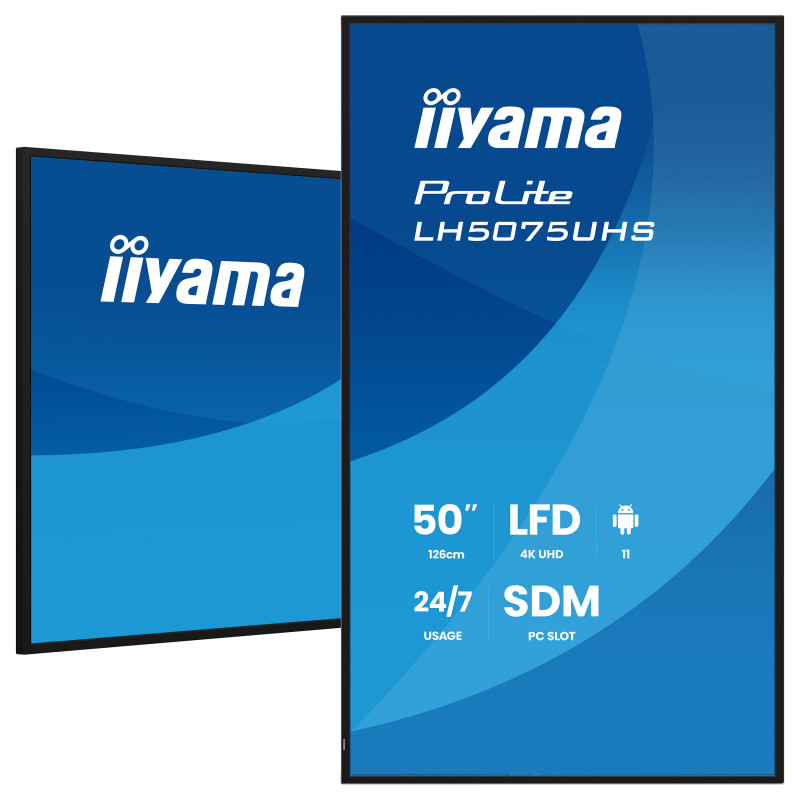

Orientation: Horizontal/Vertical
Product colour: Black

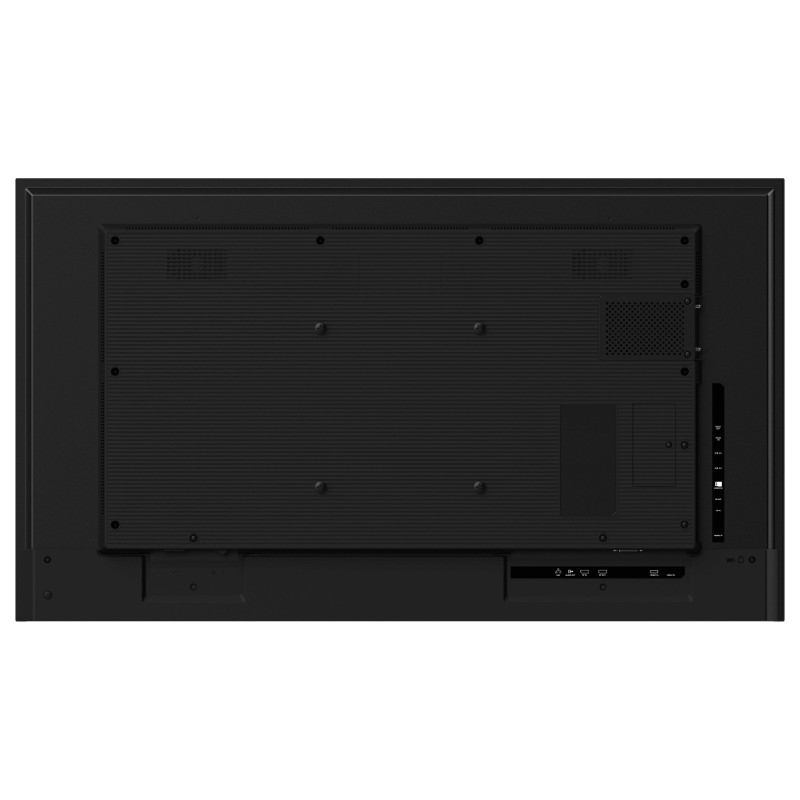

Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.35 cm
Bezel width (side): 1.32 cm
Bezel width (top): 1.35 cm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 15
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 112 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 110 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Operating system version: 11

Weight dimensions

Display width: 1122.7 mm

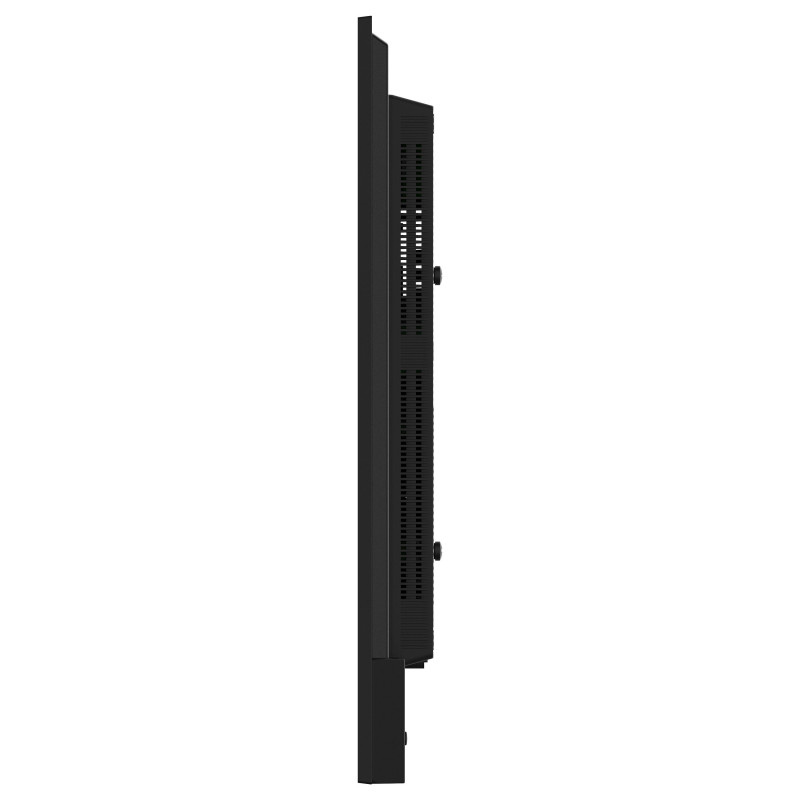

Display depth: 55 mm
Display height: 643.6 mm
Display weight: 11.8 kg
Width: 1122.7 mm
Depth: 55 mm
Height: 643.6 mm
Weight: 11.8 kg

Packaging data

Package width: 1261 mm
Package depth: 132 mm
Package height: 761 mm
Package weight: 16.2 kg

Packaging content

Feature: Remote control included
Feature: Batteries included

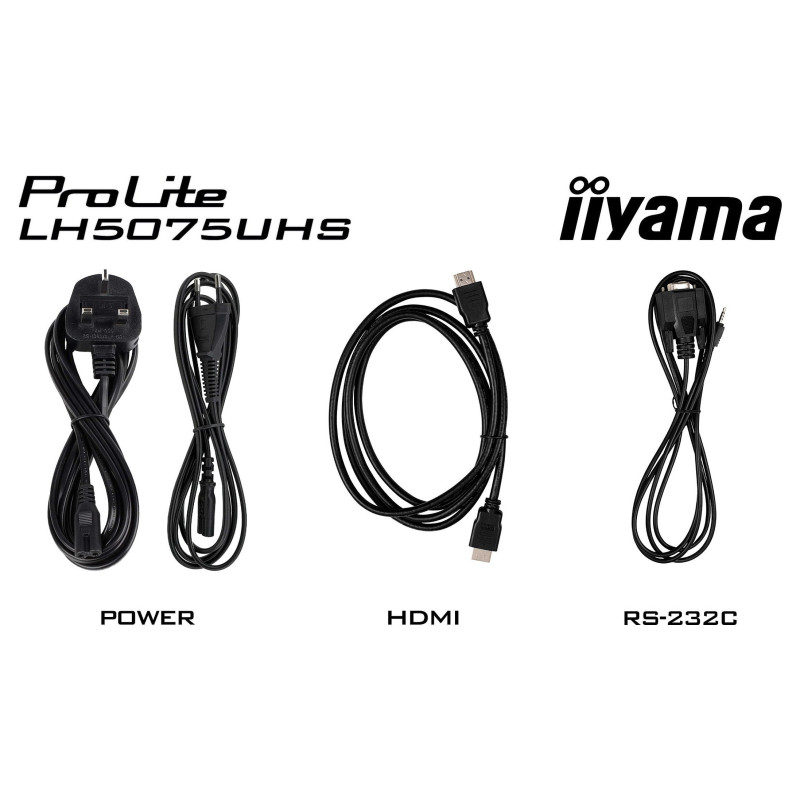

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)

Technical details

Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
Housing material: Metal
