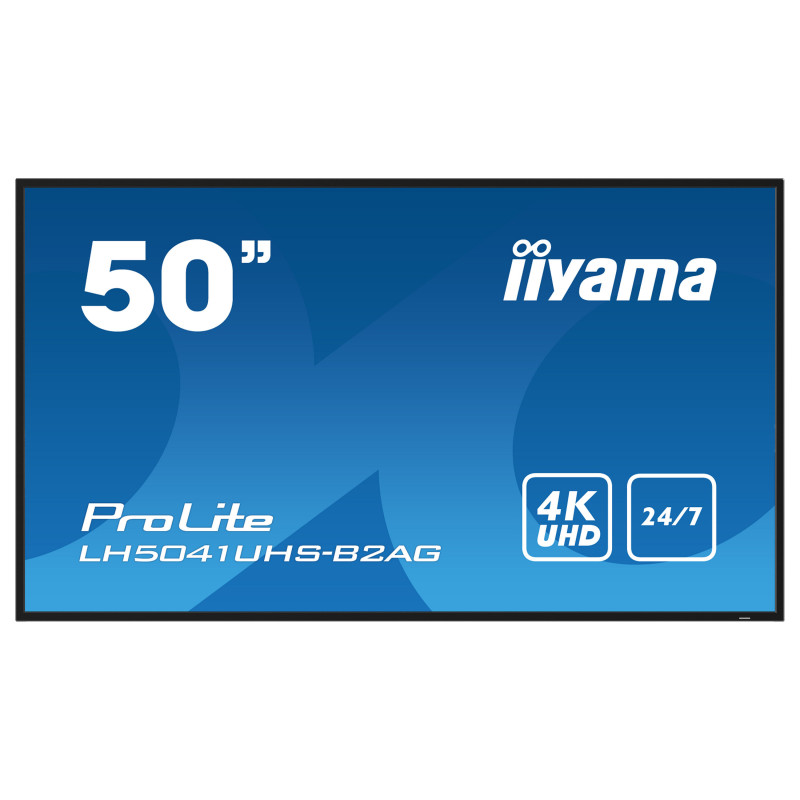

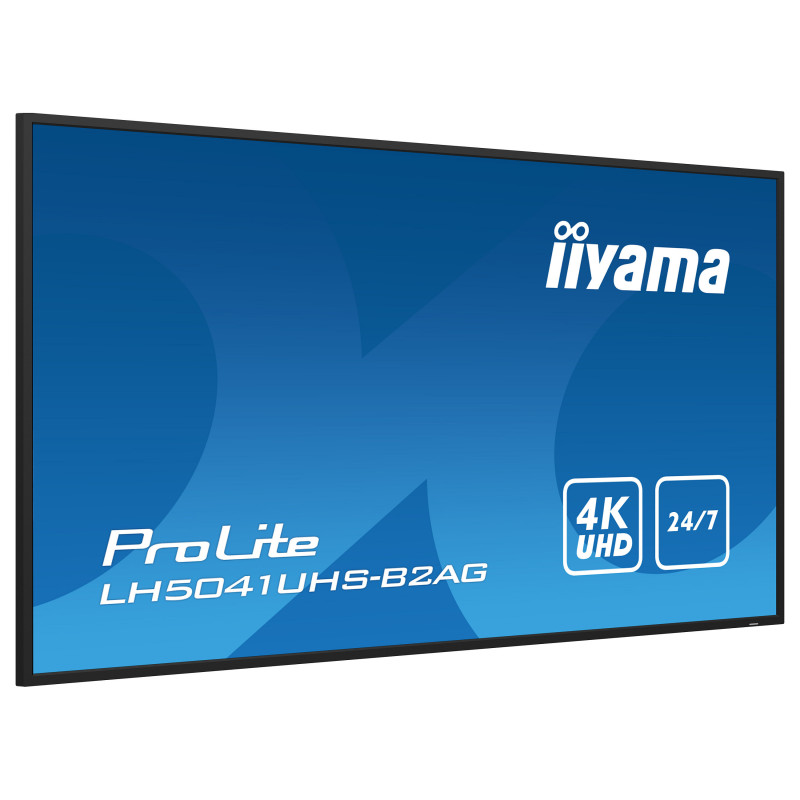

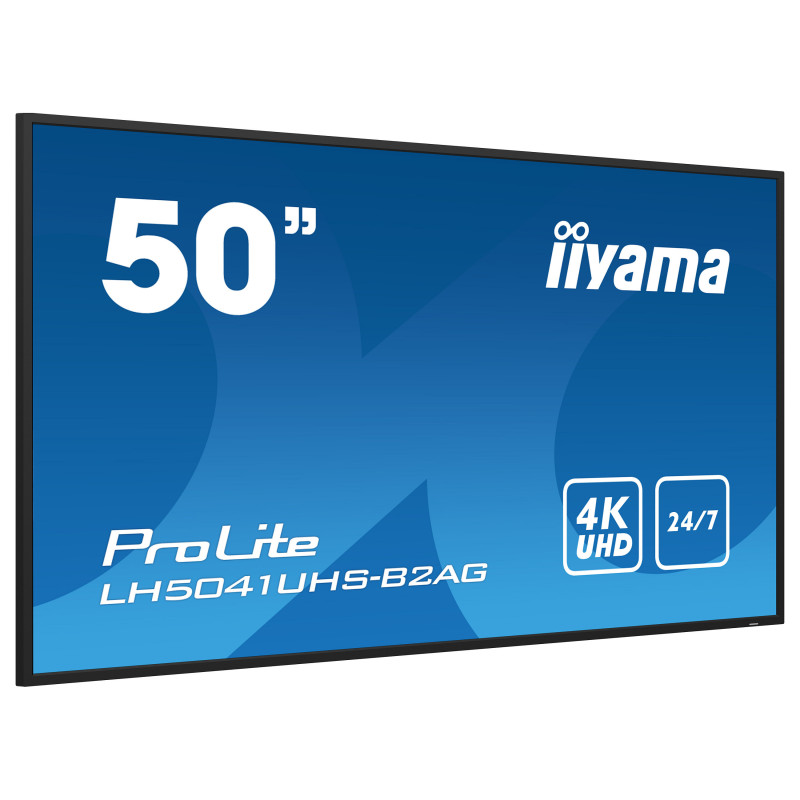

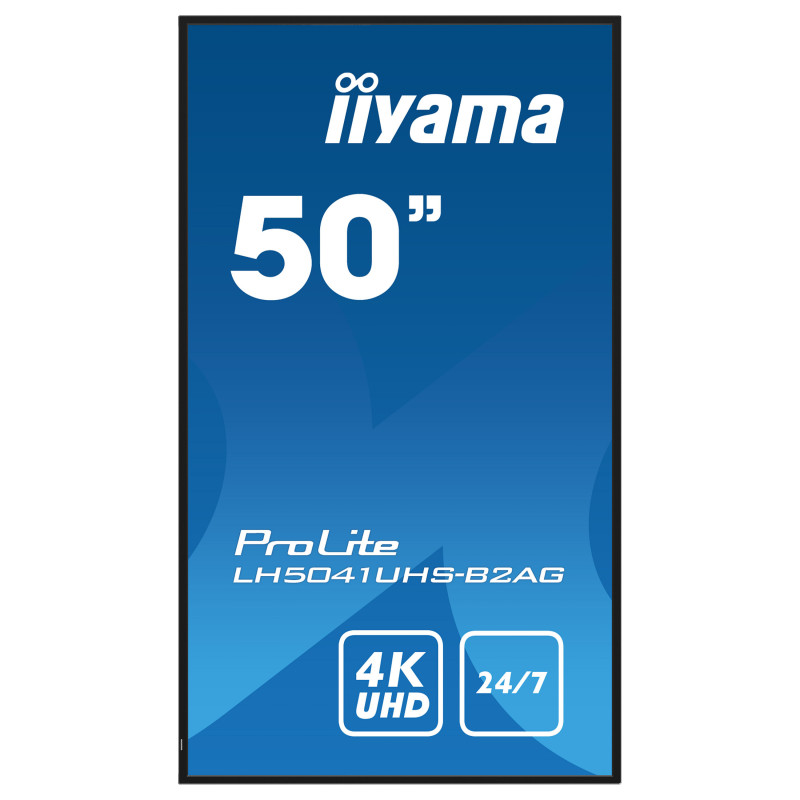

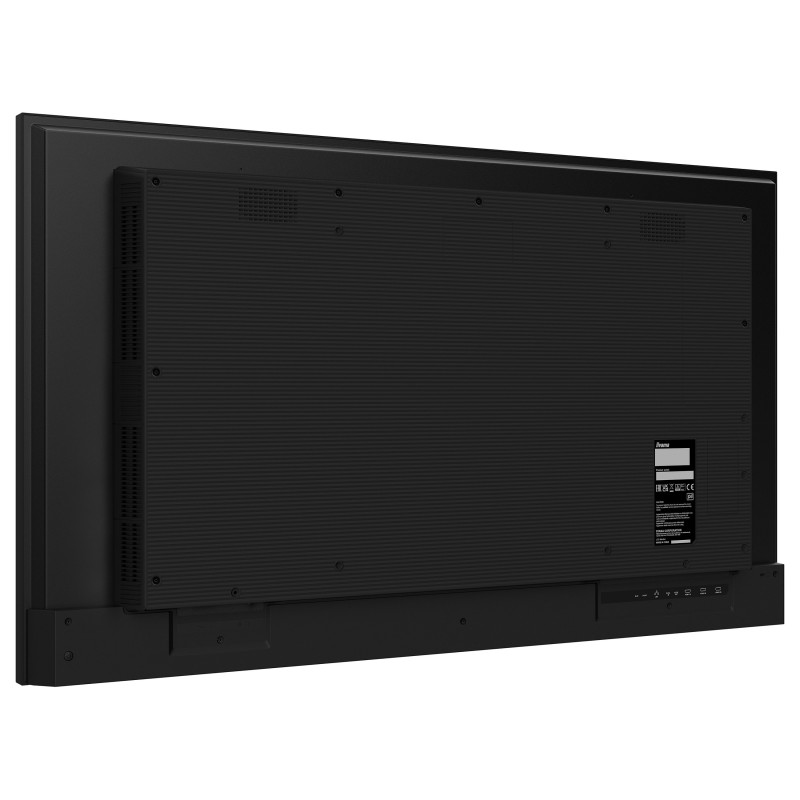

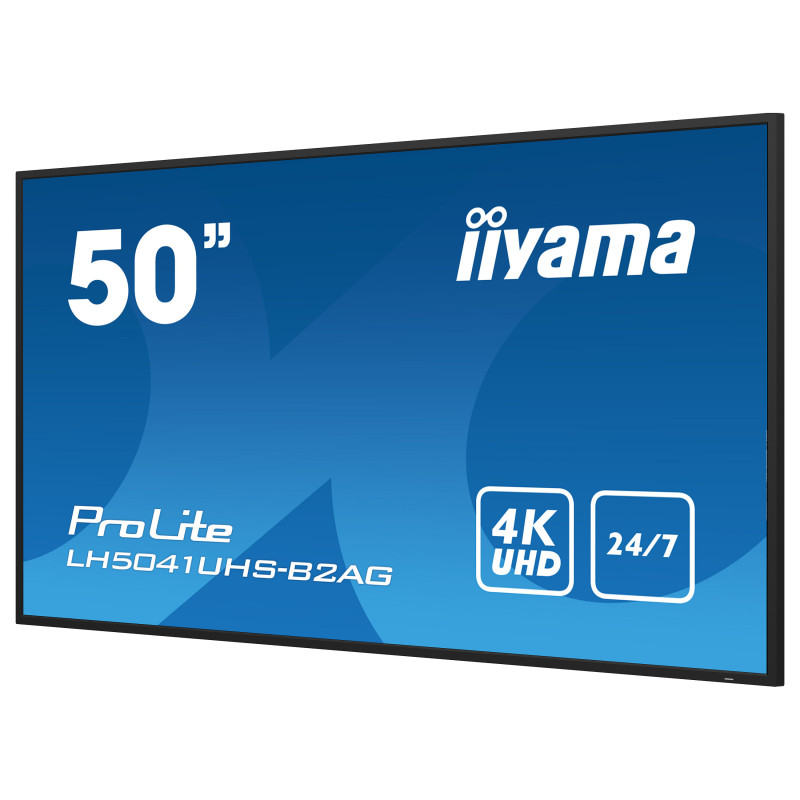

iiyama LH5041UHS-B2AG Signage Display

iiyama LH5041UHS-B2AG. Product design: Digital signage flat panel. Display diagonal: 127 cm (50"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Set in a slim bezel, the iiyama LH5041UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. The 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Display

Panel type: VA
Display diagonal: 127 cm (50")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 9.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.285 x 0.285 mm
Active display area (W x H): 1096 x 616.4 mm
Display diagonal (metric): 125.7 cm
Horizontal scan range: 30 - 80 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

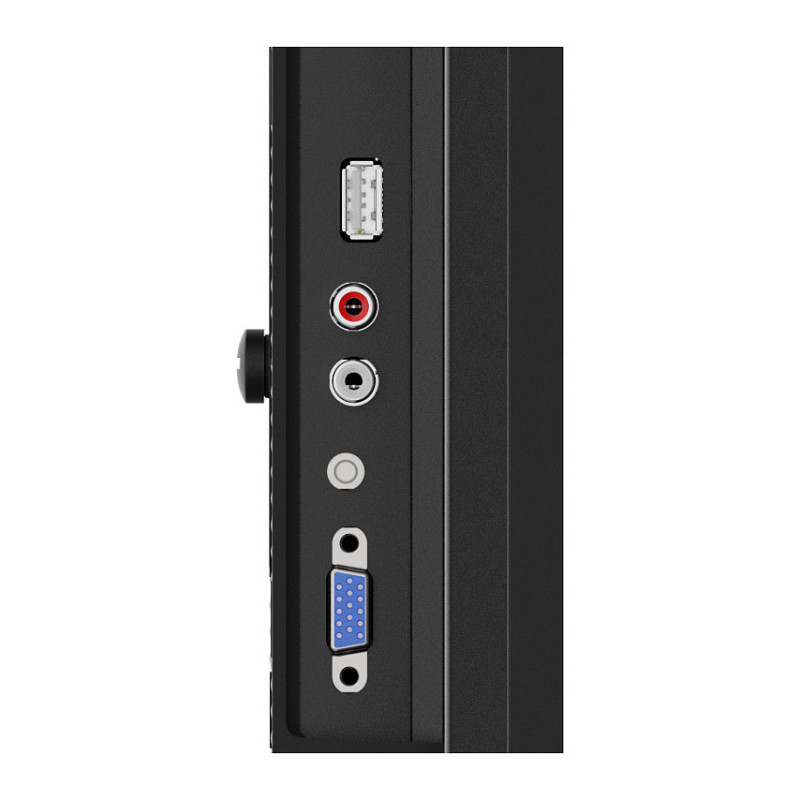

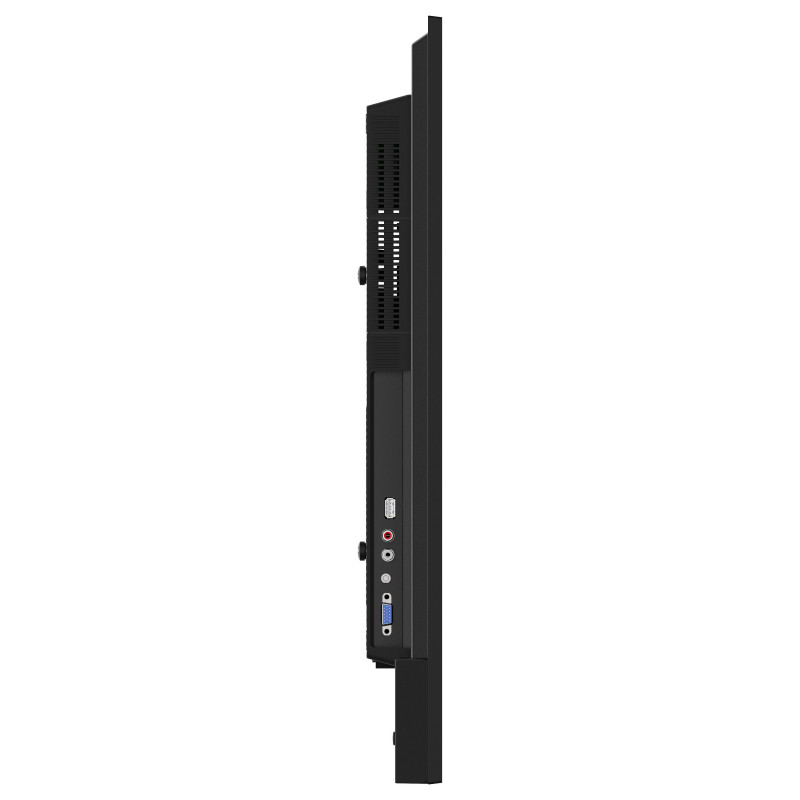

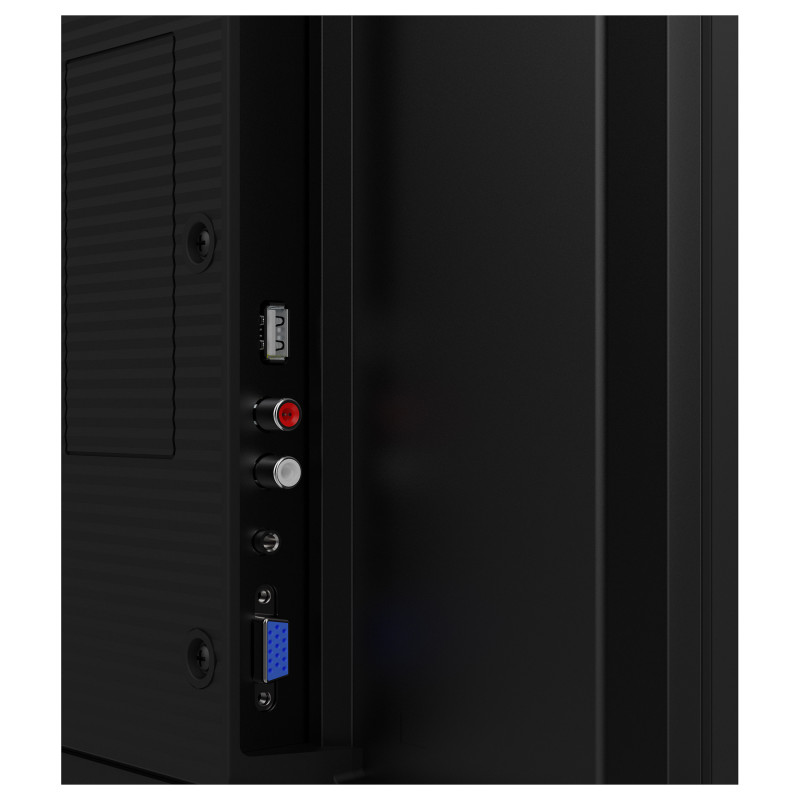

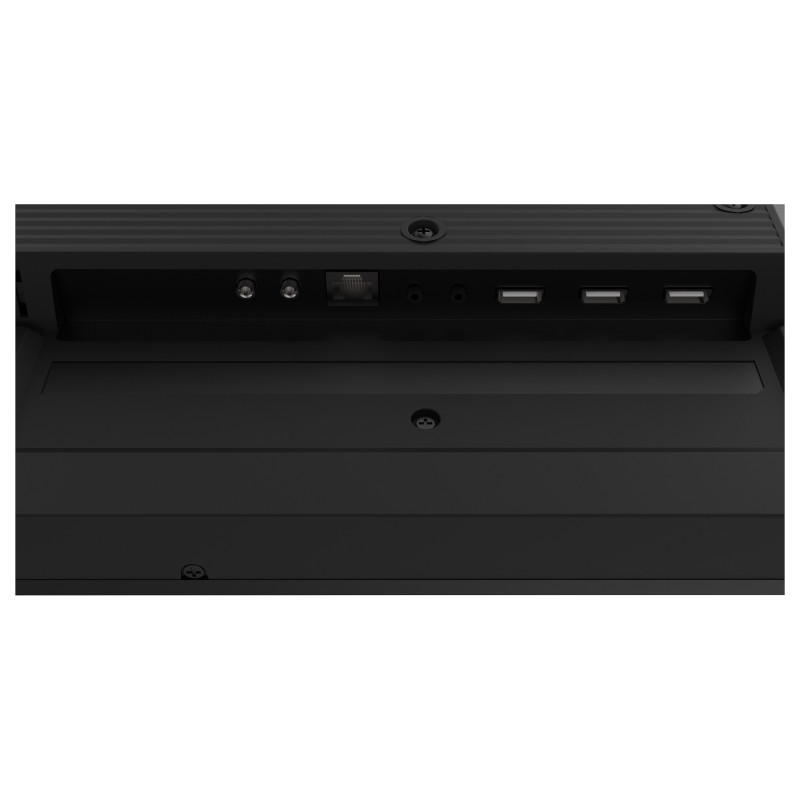

Ports & interfaces

HDMI ports quantity: 3
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 1
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Feature: RS-232 interface
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor

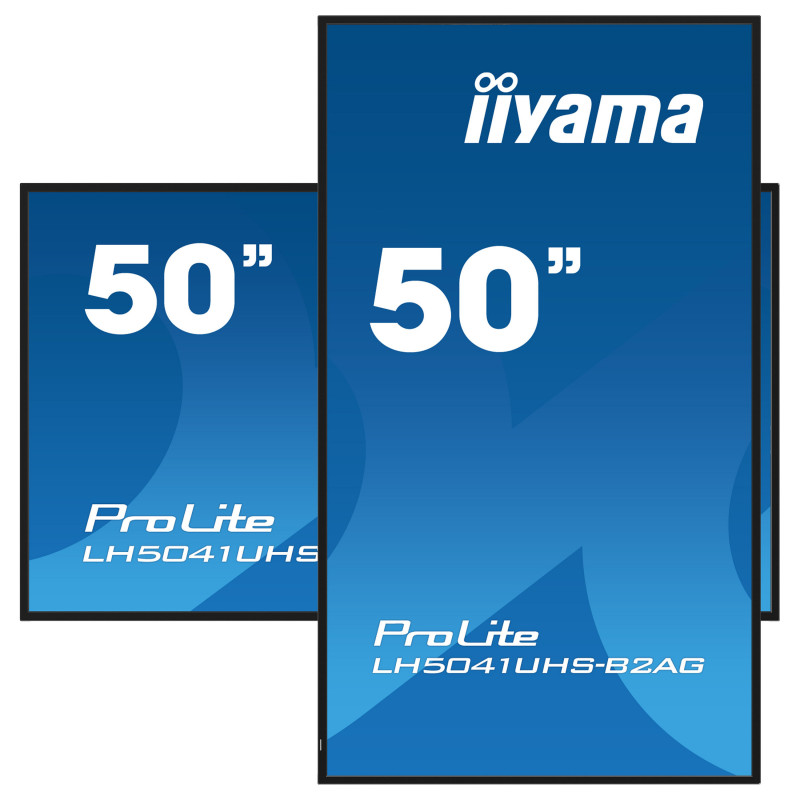

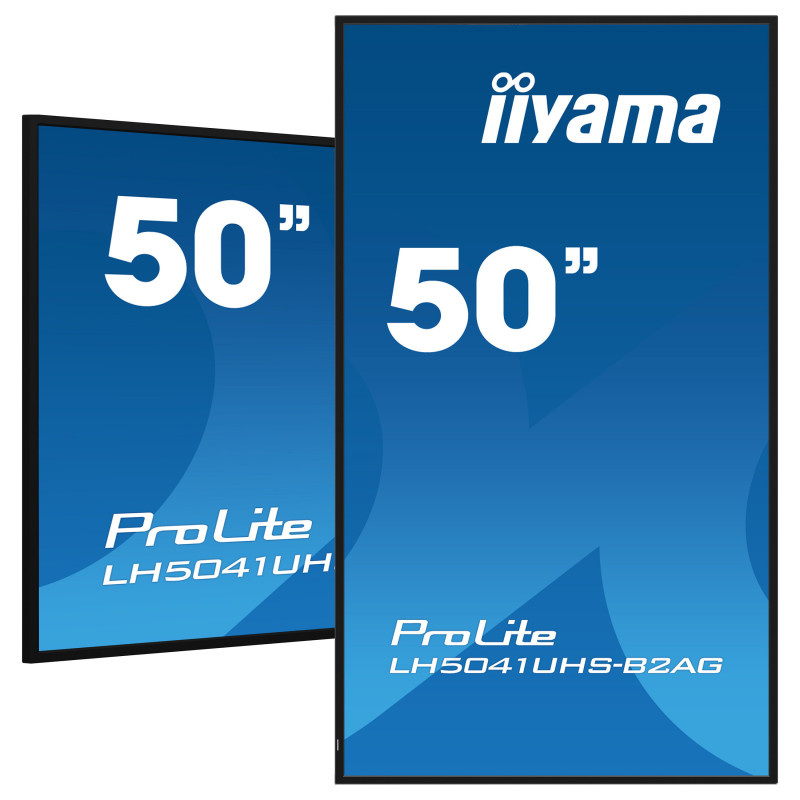

Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.49 cm
Bezel width (side): 1.39 cm
Bezel width (top): 1.39 cm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Commercial
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 115 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

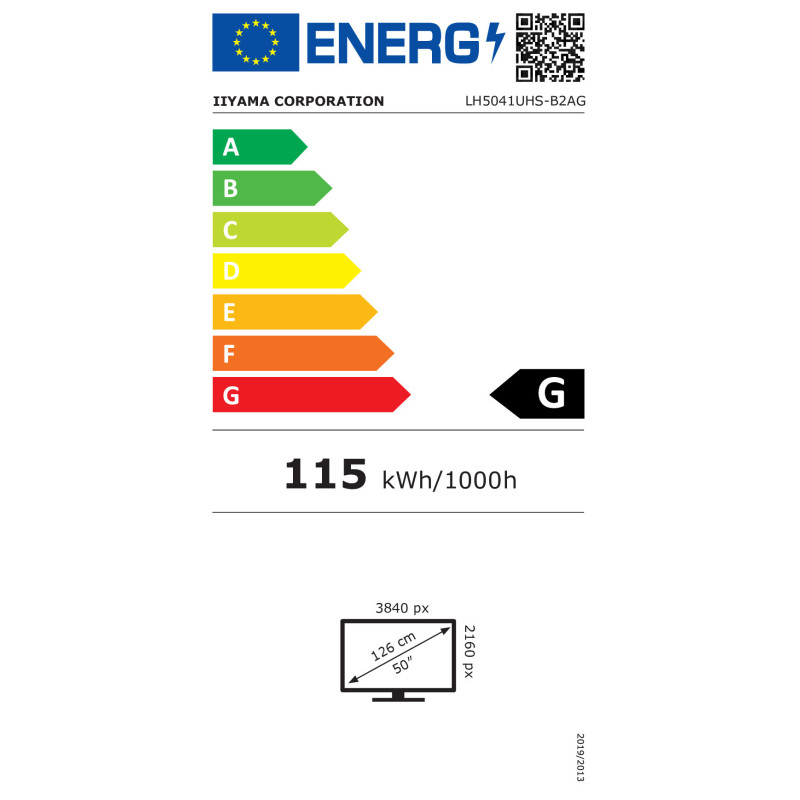

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 115 kWh
AC input voltage: 100 - 250 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Weight & dimensions

Display width: 1122.5 mm
Display depth: 55 mm
Display height: 643.5 mm
Display weight: 11.1 kg
Width: 1122.5 mm
Depth: 55 mm
Height: 643.5 mm
Weight: 11.1 kg
Width (with stand): 1122.5 mm
Depth (with stand): 55 mm
Height (with stand): 643.5 mm
Weight (with stand): 11.1 kg

Packaging data

Package width: 1261 mm
Package depth: 132 mm
Package height: 761 mm

Packaging content

Feature: Remote control included

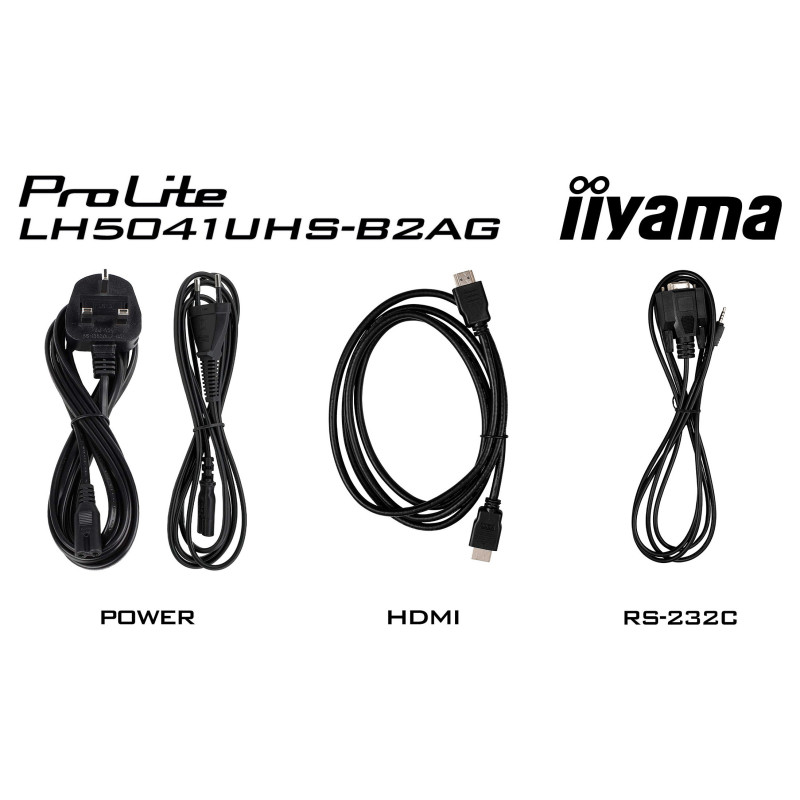

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -20 - 60%

Certificates

Certification: CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA

Network

Feature: Ethernet LAN

Technical details

Feature: Audio in (mini jack)
Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CE, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
Feature: Cable management
