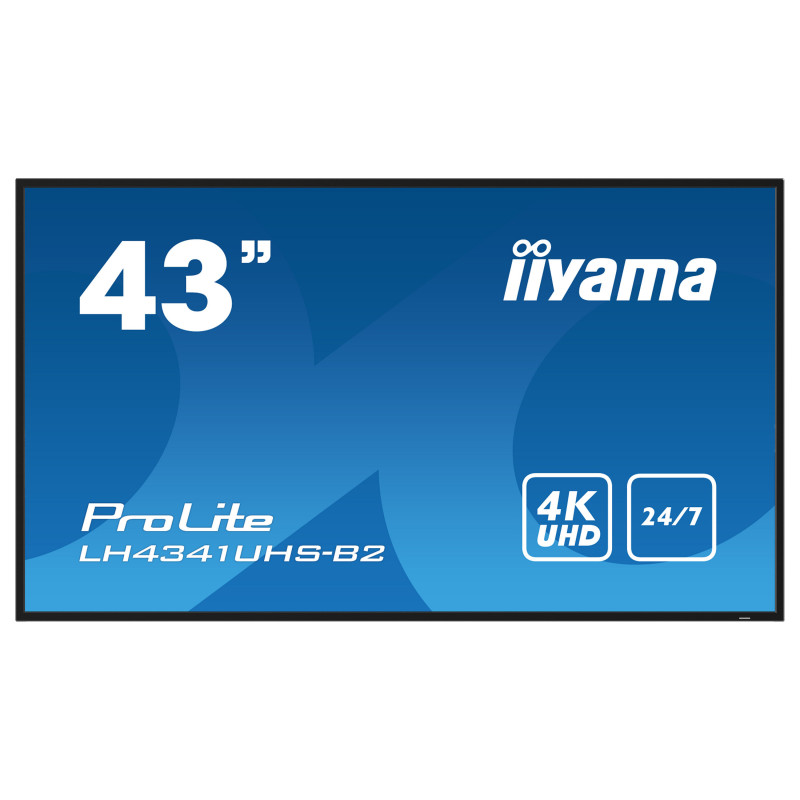

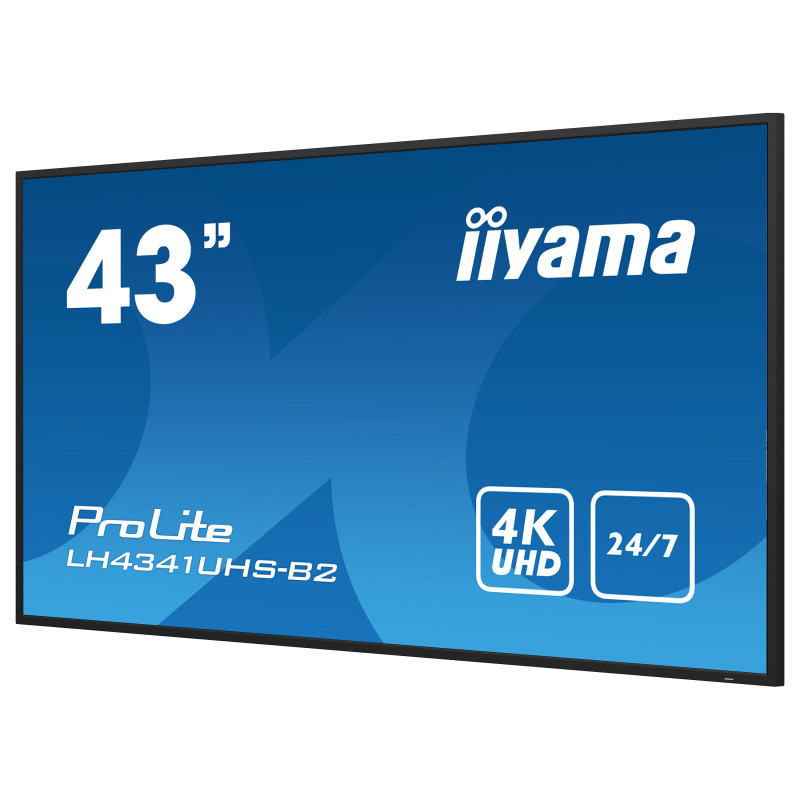

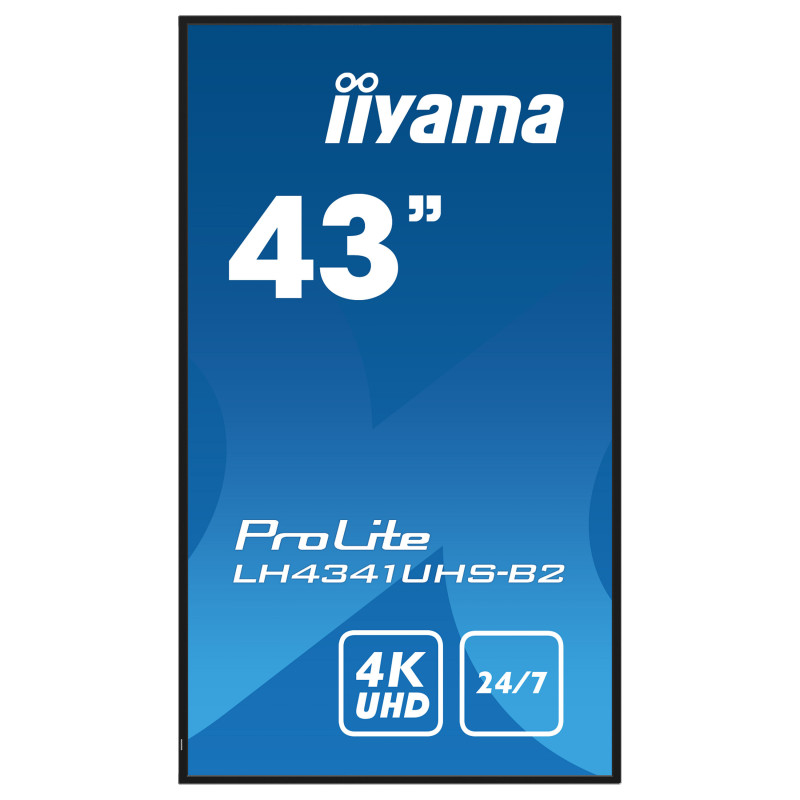

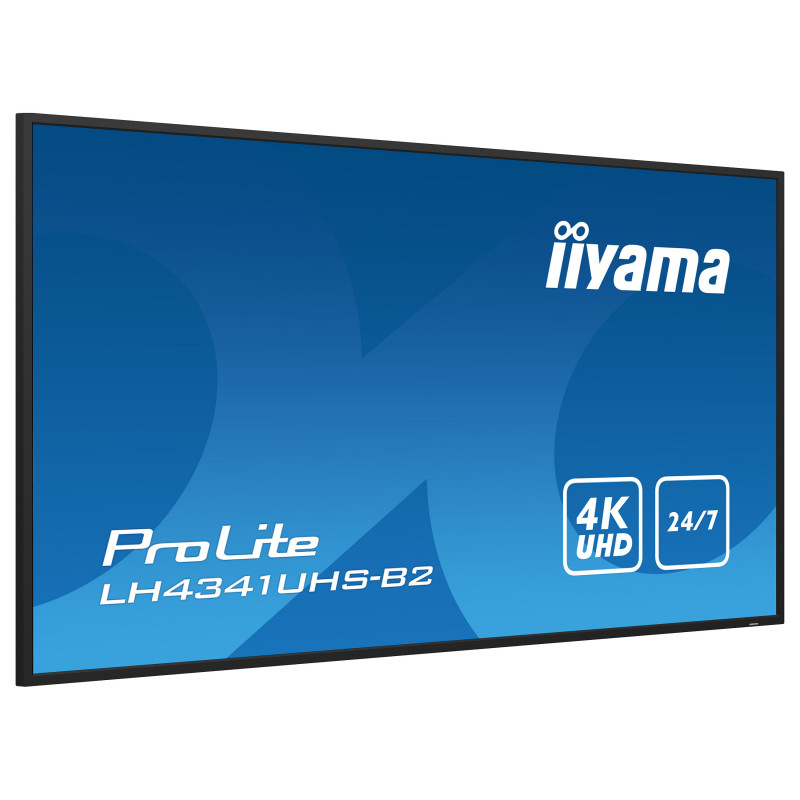

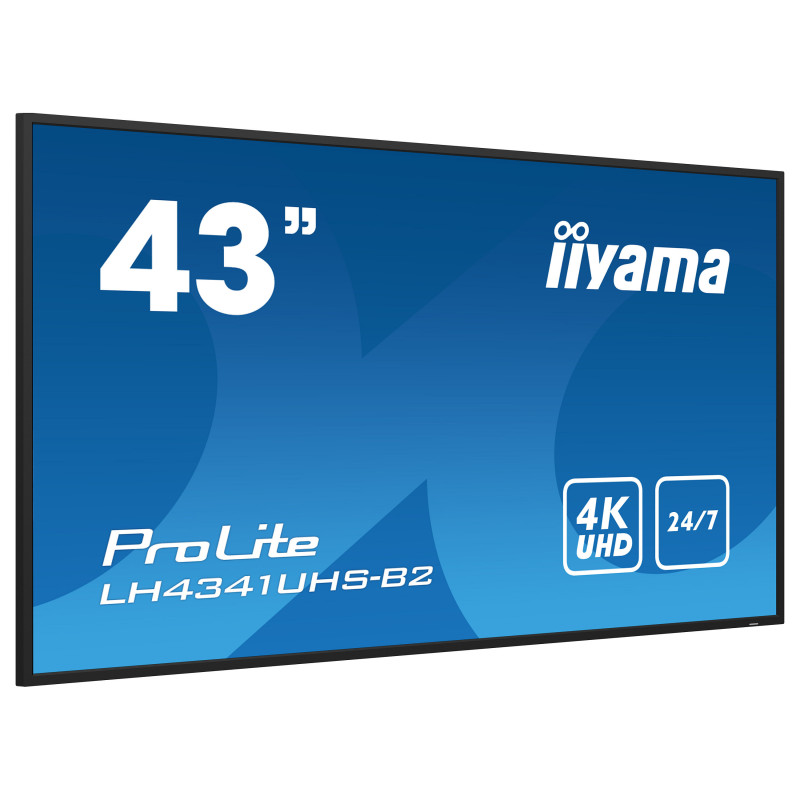

iiyama LH4341UHS-B2 Signage Display

iiyama LH4341UHS-B2. Display diagonal: 108 cm (42.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: Android 8.0
Set in a slim bezel, the iiyama LH4341UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Display

Panel type: IPS
Display diagonal: 108 cm (42.5")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Active display area (W x H): 941.2 x 529.4 mm
Display diagonal (metric): 108 cm
Horizontal scan range: 30 - 80 kHz
Native refresh rate: 60 Hz
Haze rate: 1%

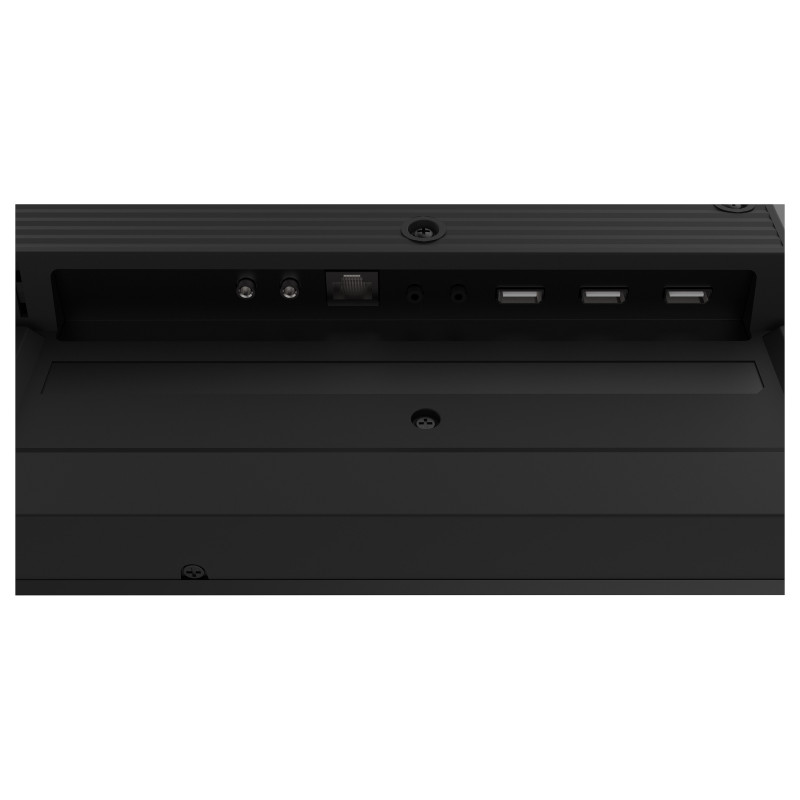

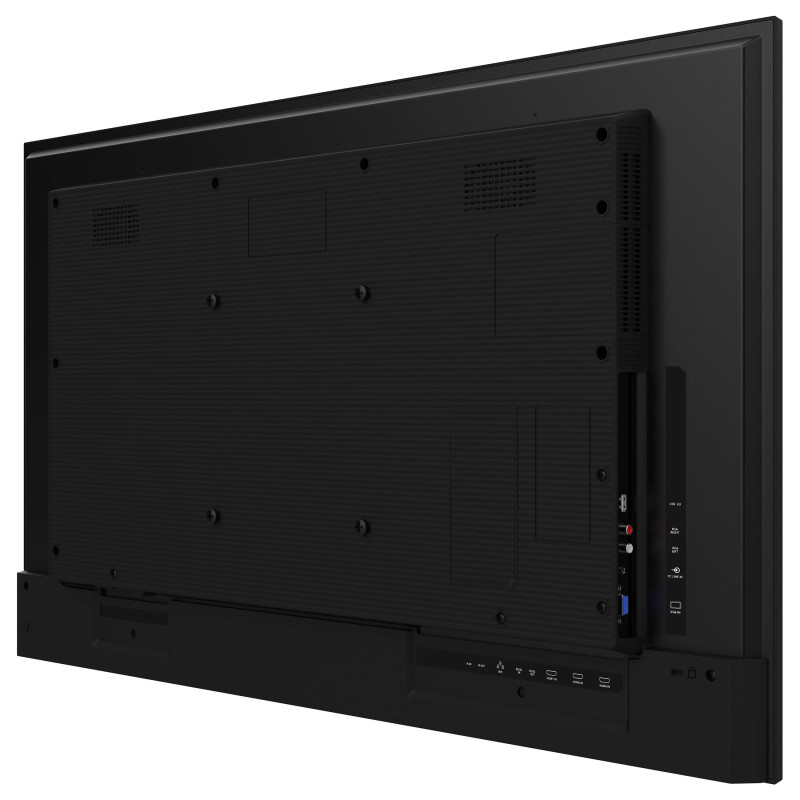

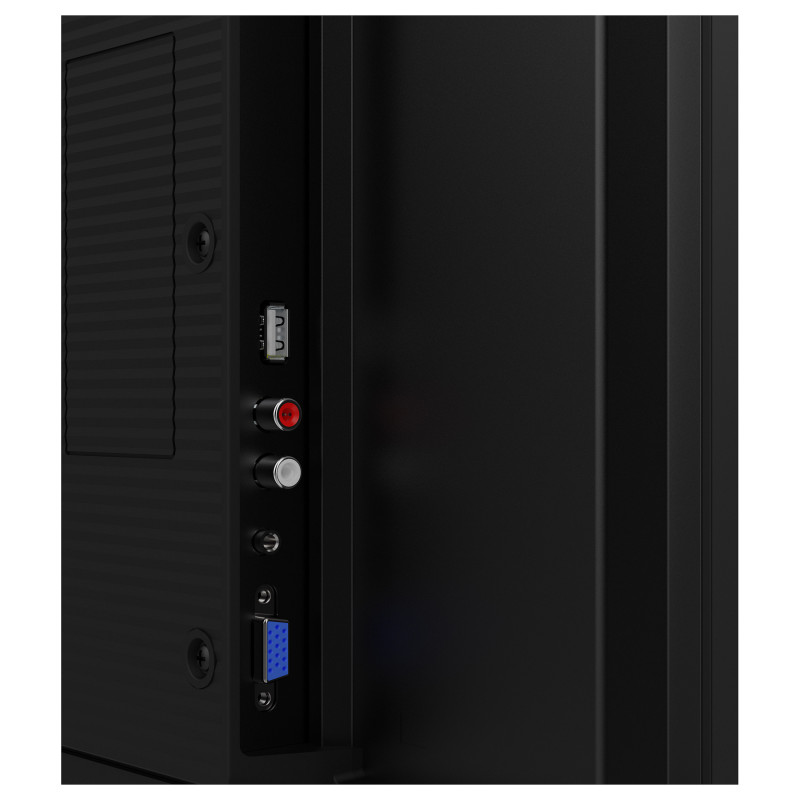

Ports interfaces

HDMI ports quantity: 3
DVI port: Yes
USB port: Yes
USB ports quantity: 1
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports: 1
PC Audio in: Yes
RS-232C: Yes
Remote (IR) input: 1
Remote (IR) output: 1

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Placement supported: Indoor

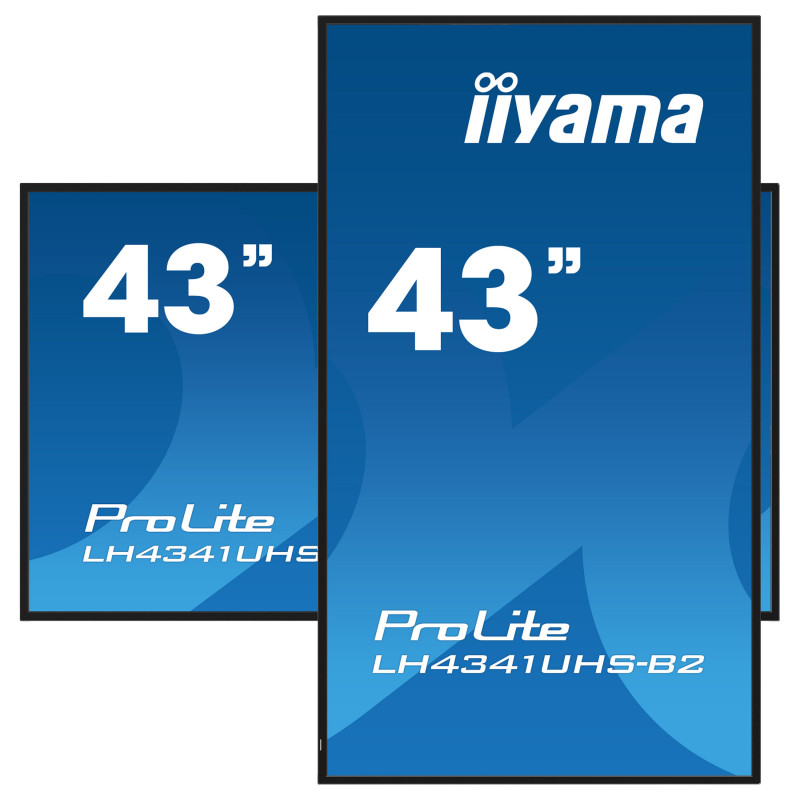

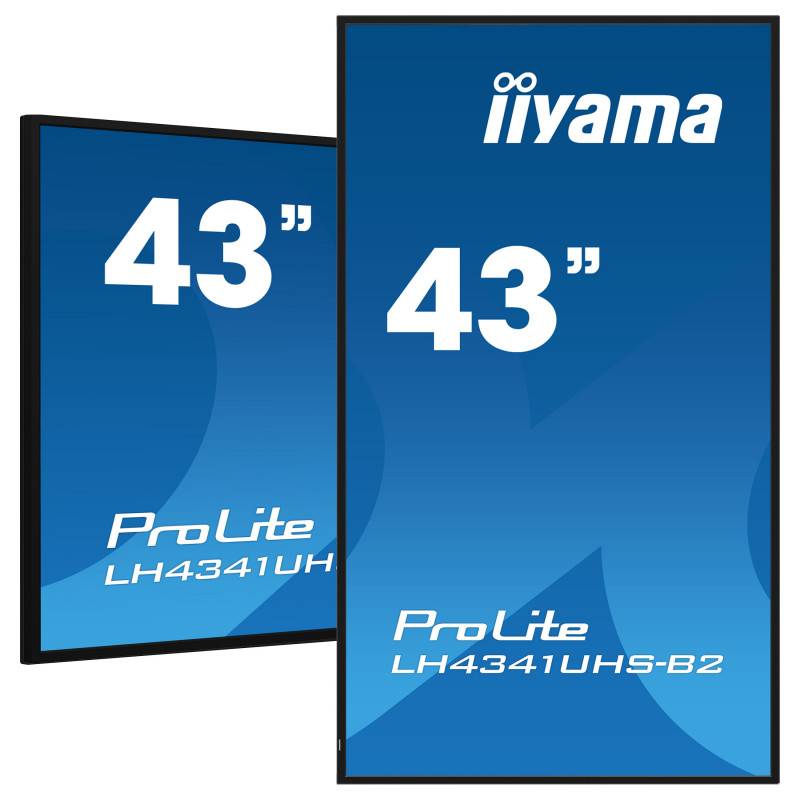

Orientation: Horizontal/Vertical

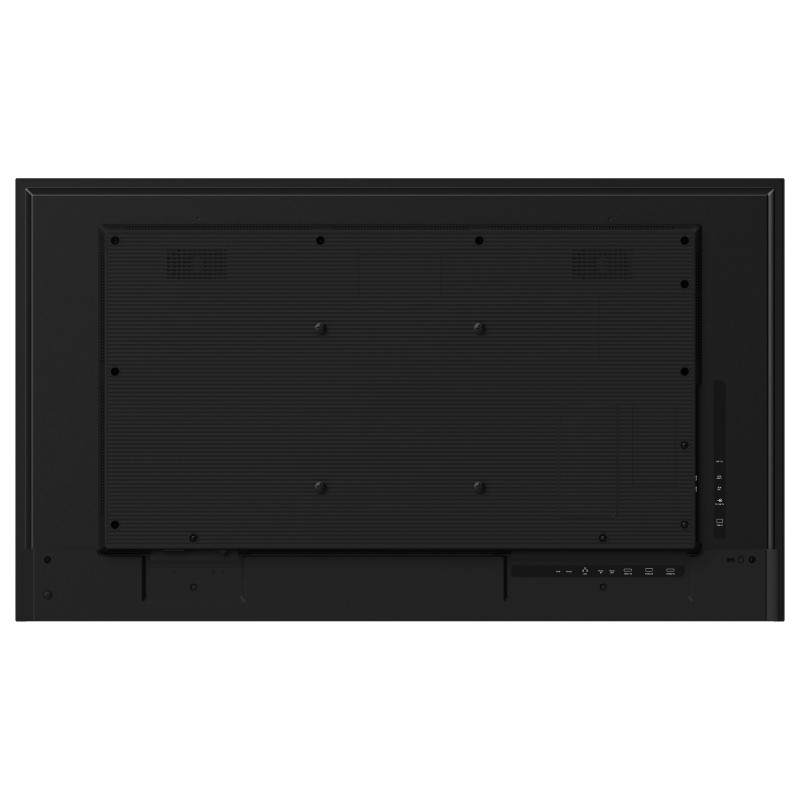

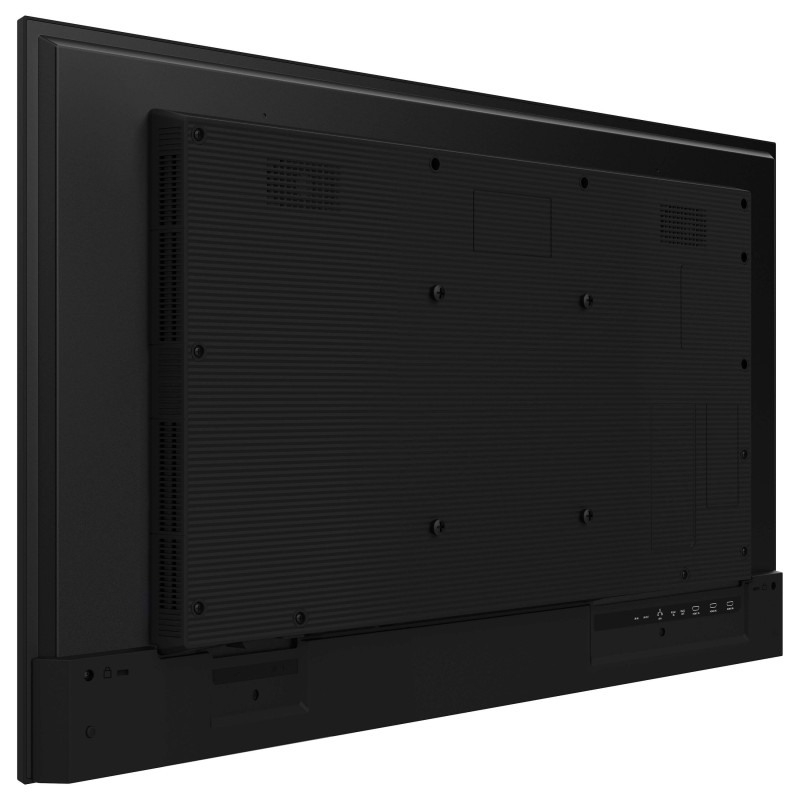

VESA mounting: Yes
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.4 cm
Bezel width (side): 1.35 cm
Bezel width (top): 1.4 cm
Bezel colour: Black

Performance

Purpose: Universal
On Screen Display (OSD): Yes
Number of OSD languages: 11
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 107 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 107 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: Yes
Built-in processor: Yes
Processor model: V810
Internal memory: 2 GB
Internal storage capacity: 16 GB
Operating system installed: Android 8.0

Weight dimensions

Display width: 968 mm
Display depth: 54 mm
Display height: 557.5 mm
Display weight: 8.9 kg
Width: 968 mm
Depth: 54 mm
Height: 557.5 mm
Weight: 8.9 kg

Packaging data

Package width: 1075 mm
Package depth: 127 mm
Package height: 683 mm

Packaging content

Remote control included: Yes
Batteries included: Yes

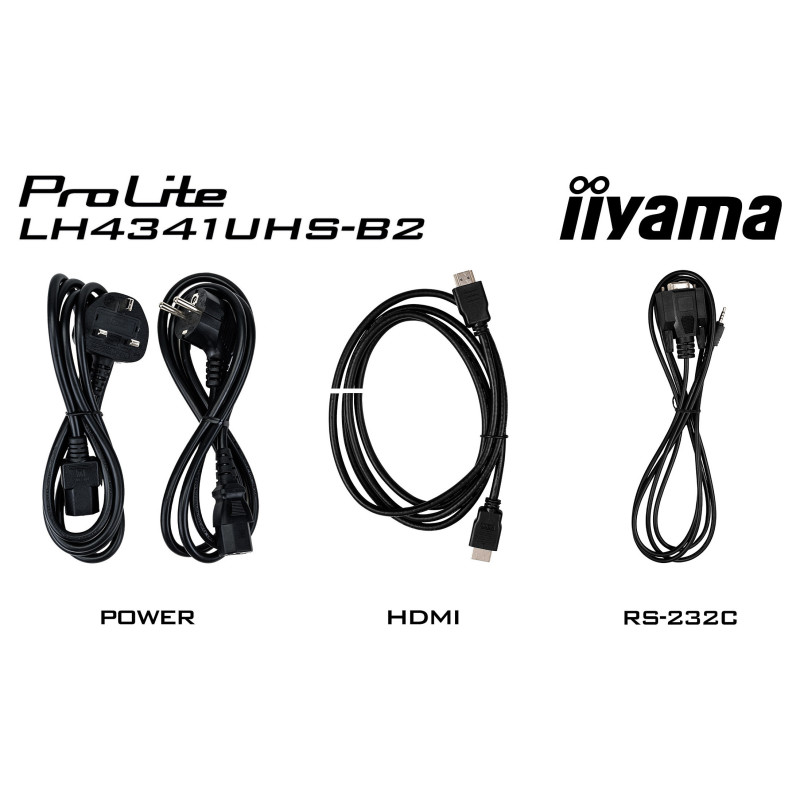

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH

Logistics data

Harmonized System (HS) code: 85285210

Network

Ethernet LAN: Yes
Wi-Fi: No

Technical details

Audio in (mini jack): Yes
Playback media: Y
User controls: picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Quick start guide: Yes
Power supply type: Internal
Cable management: Yes
Housing material: Metal
