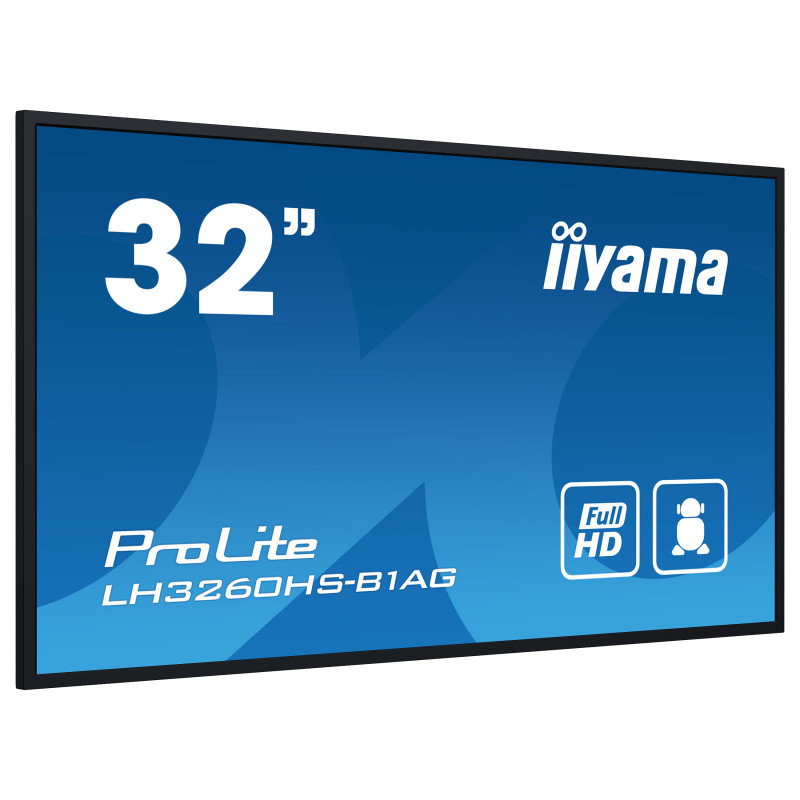

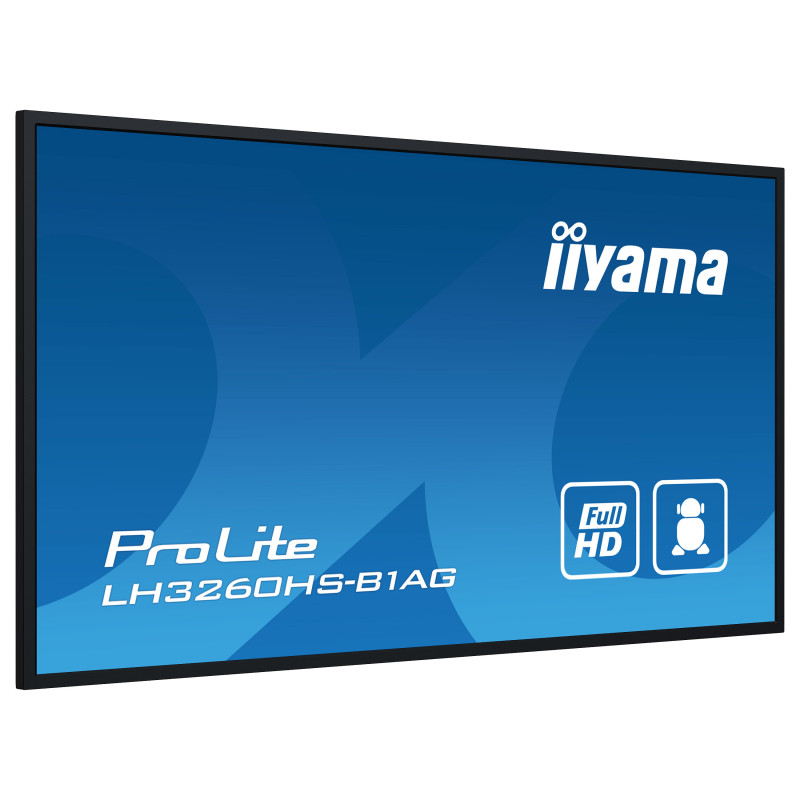

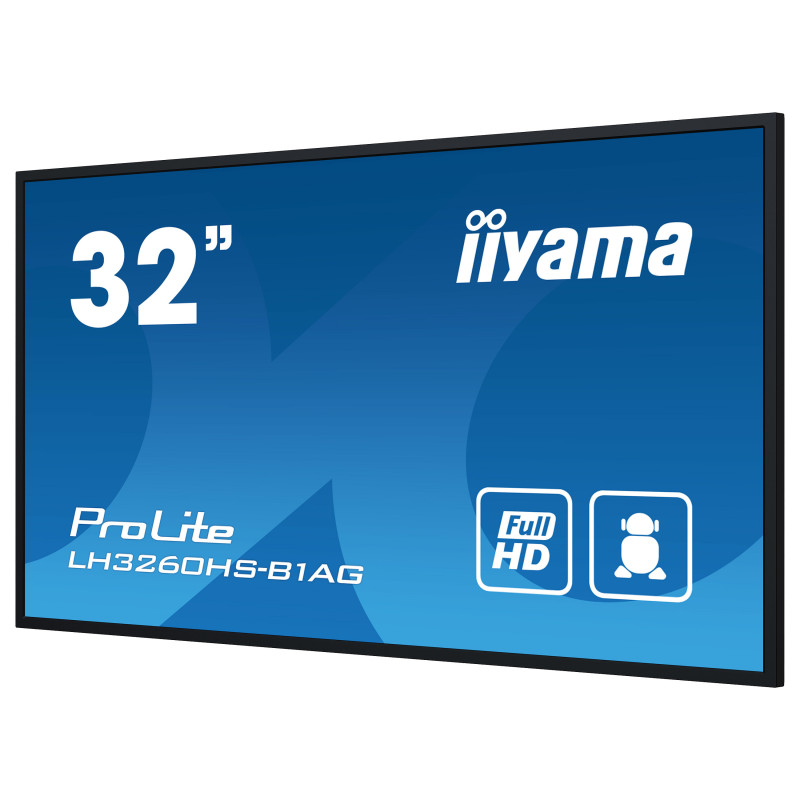

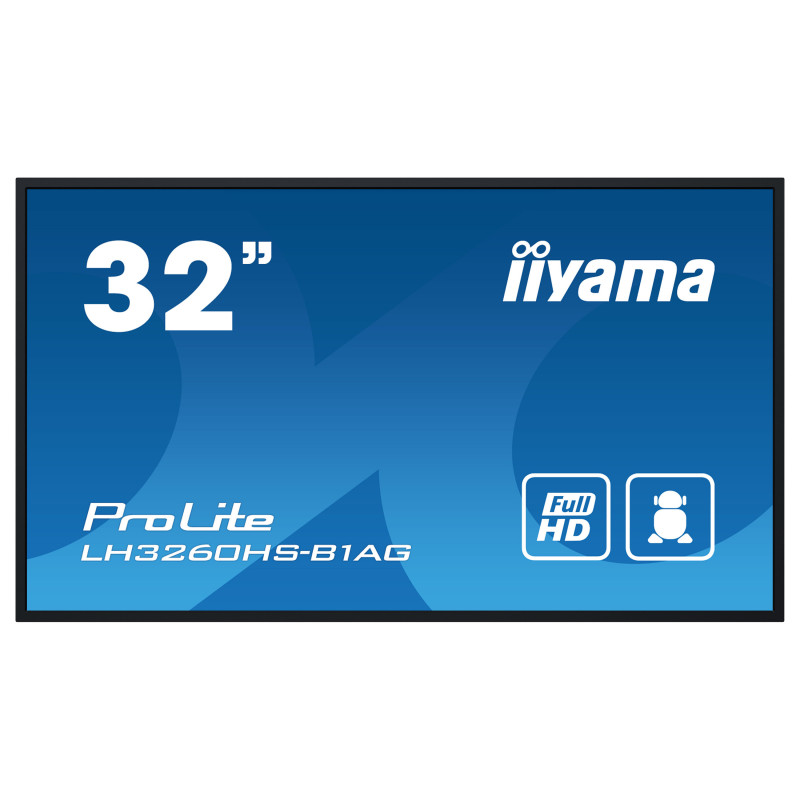

iiyama LH3260HS-B1AG Signage Display

iiyama LH3260HS-B1AG. Product design: Digital A-board. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Elevate your visual communication with the LH3260HS-B1AG and unlock the new possibilities for your business. This 500cd/m2 high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage2 content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH3260HS-B1AG will undoubtedly captivate your audience and leave a lasting impression.

Display

Panel type: VA
Display diagonal: 80 cm (31.5")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.364 x 0.364 mm
Active display area (W x H): 698.4 x 392.85 mm
Display diagonal (metric): 80 cm
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 3H

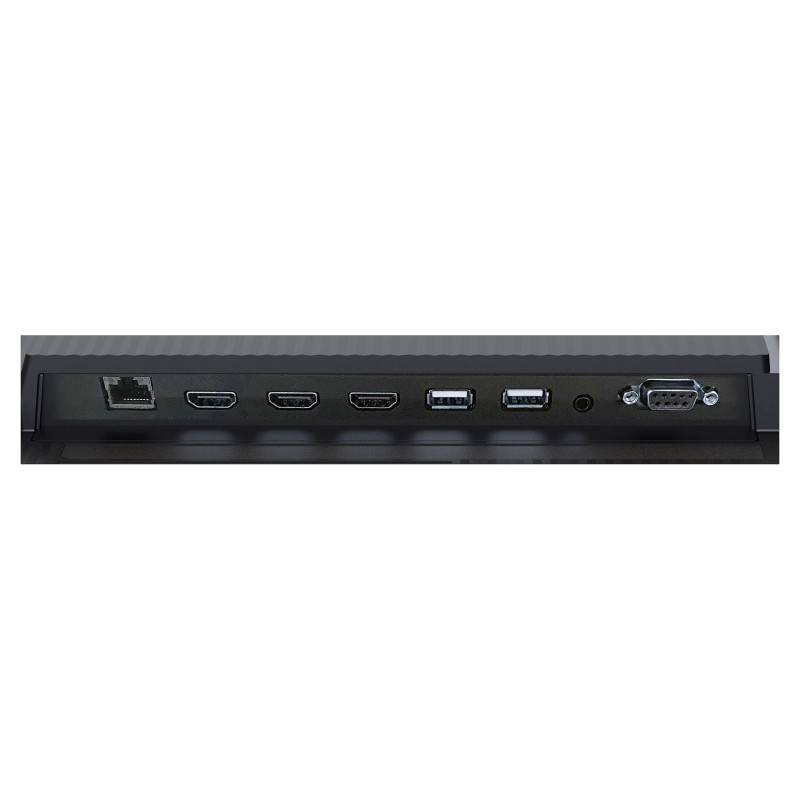

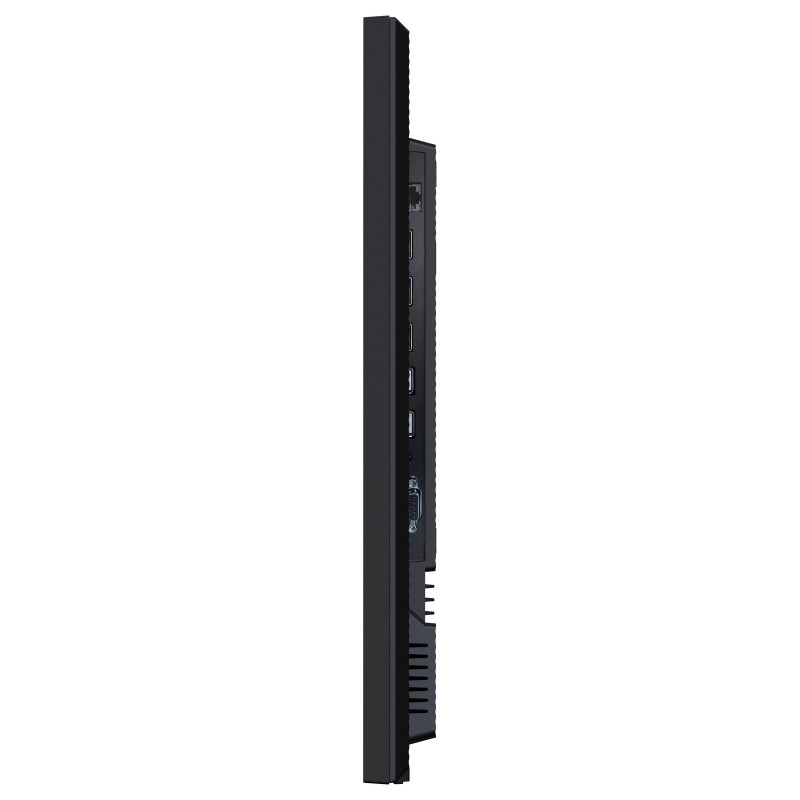

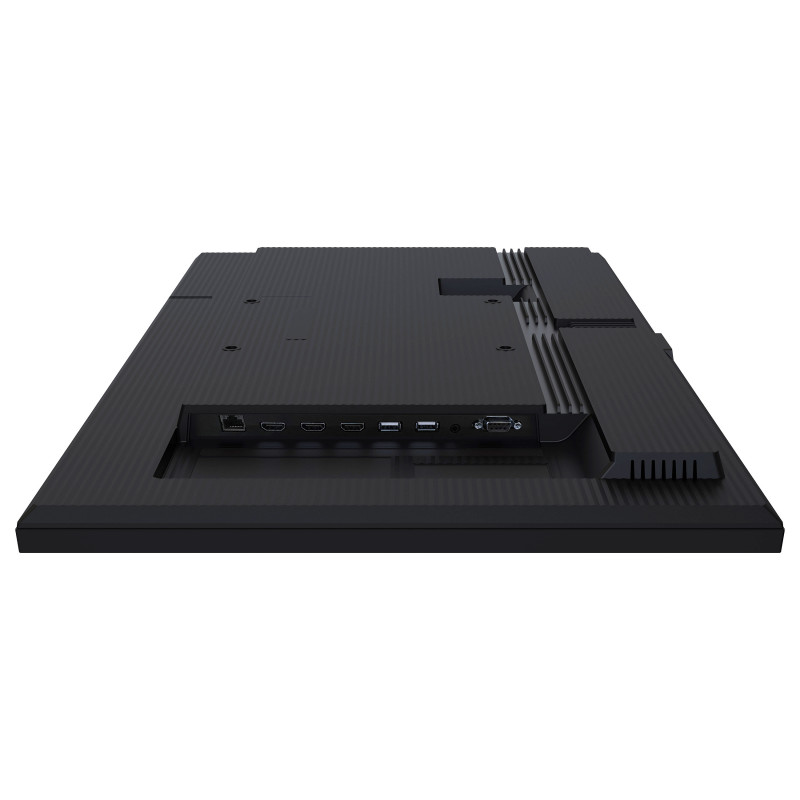

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232C
Remote (IR) input: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital A-board
Placement supported: Indoor

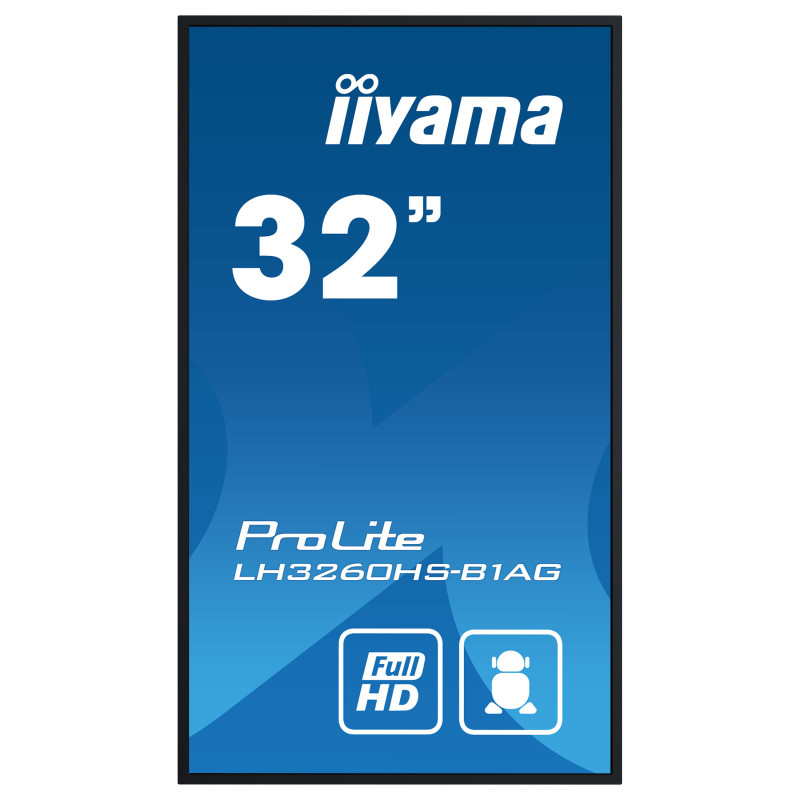

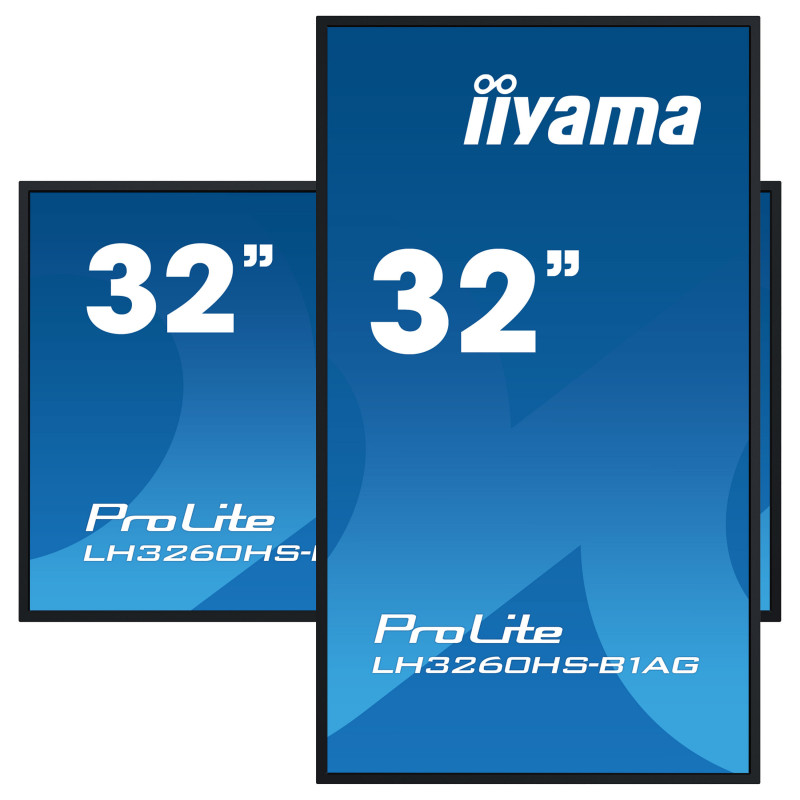

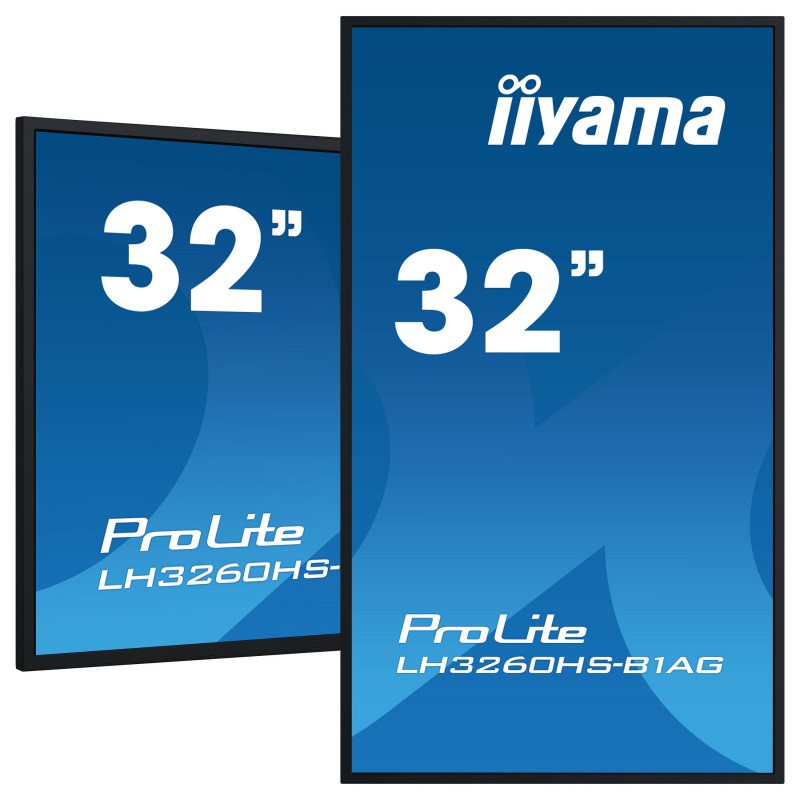

Orientation: Horizontal/Vertical
Product colour: Black

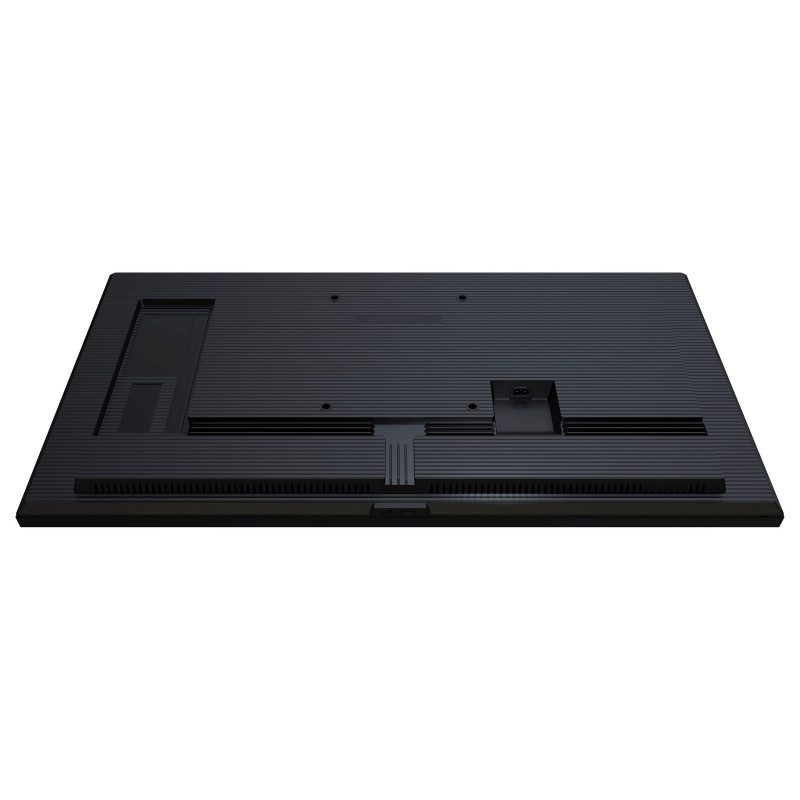

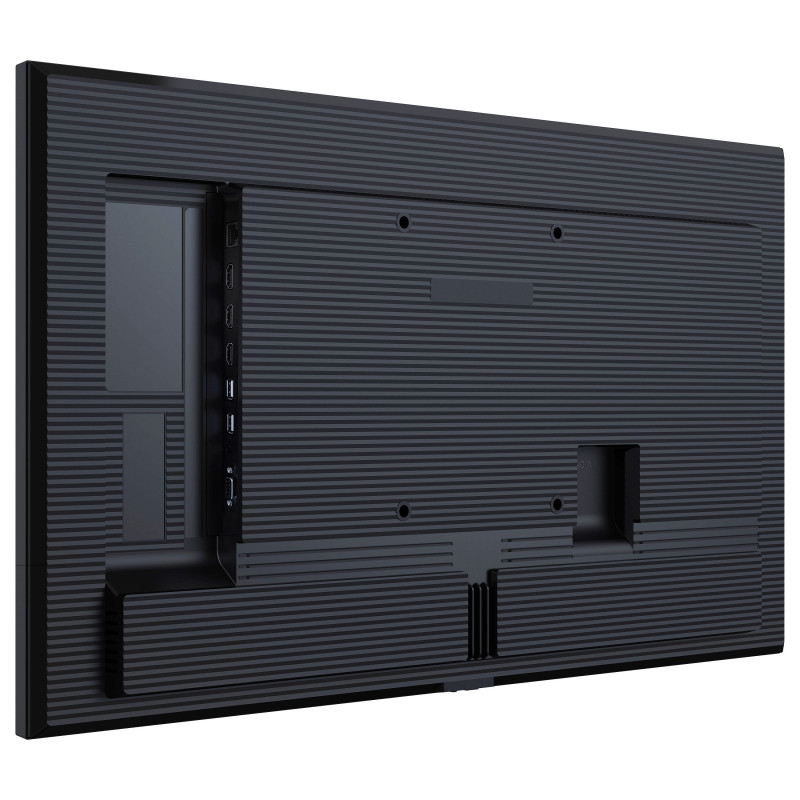

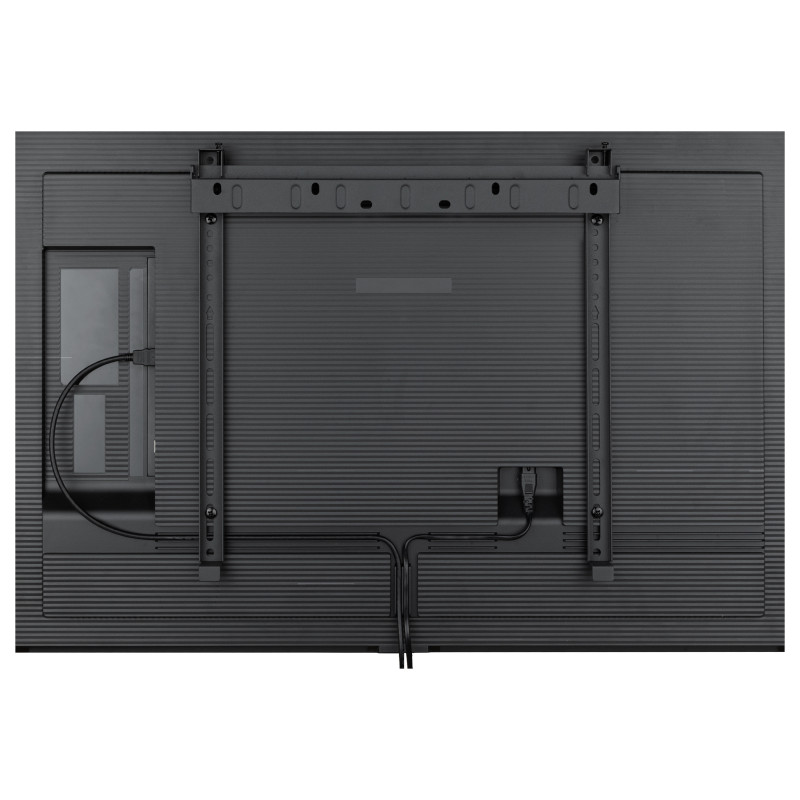

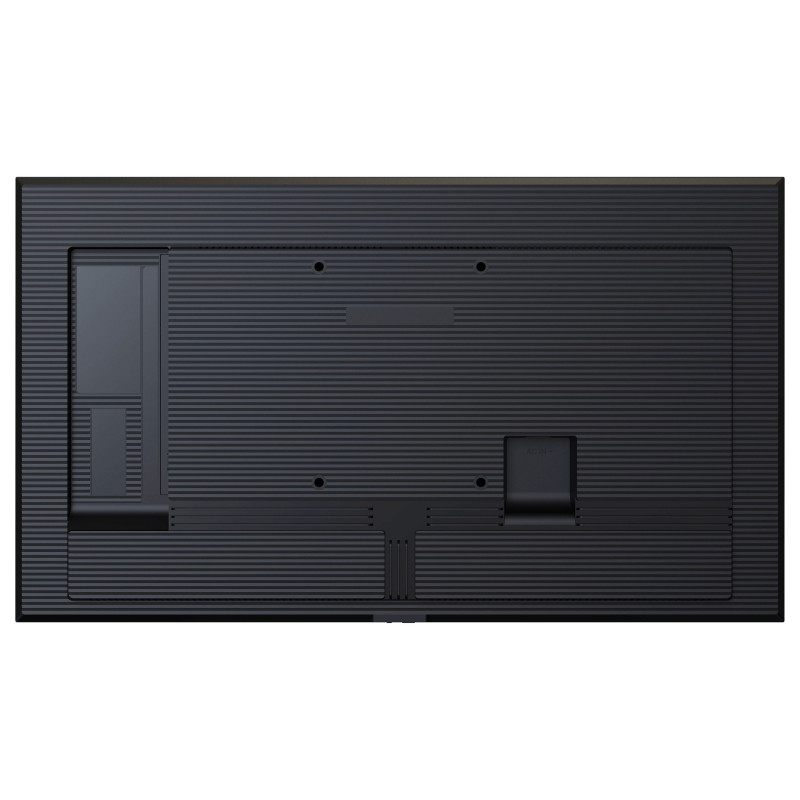

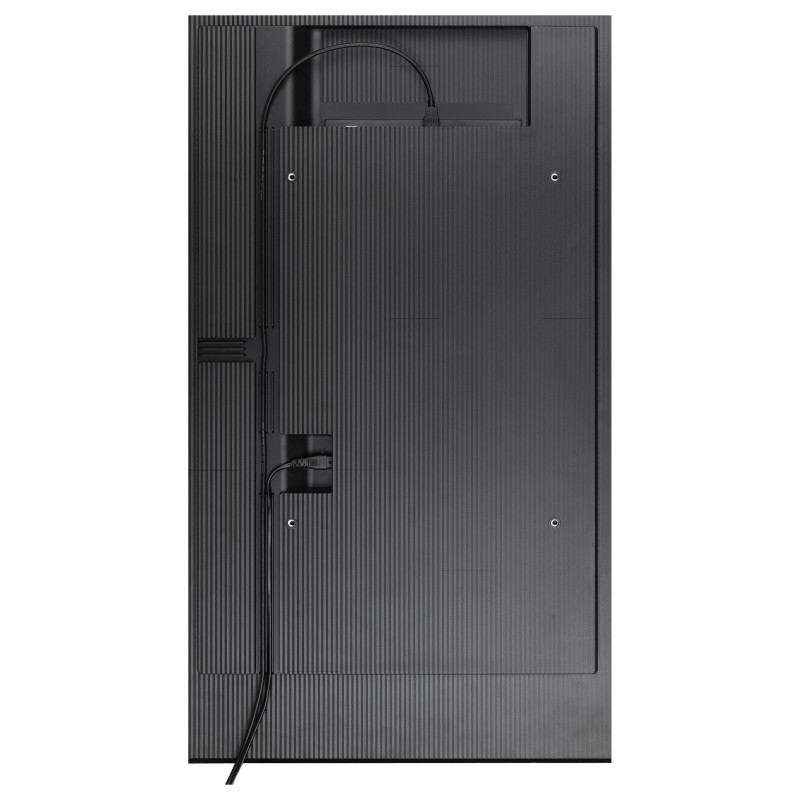

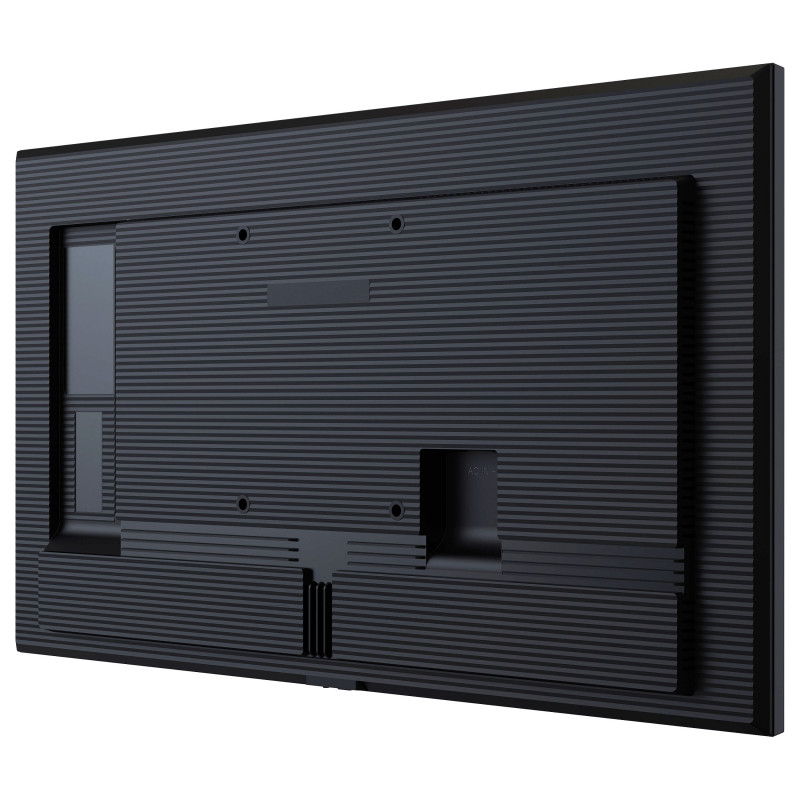

Feature: VESA mounting
Panel mounting interface: 150 x 200 mm
Bezel width (bottom): 9 mm
Bezel width (side): 9 mm
Bezel width (top): 9 mm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 40 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

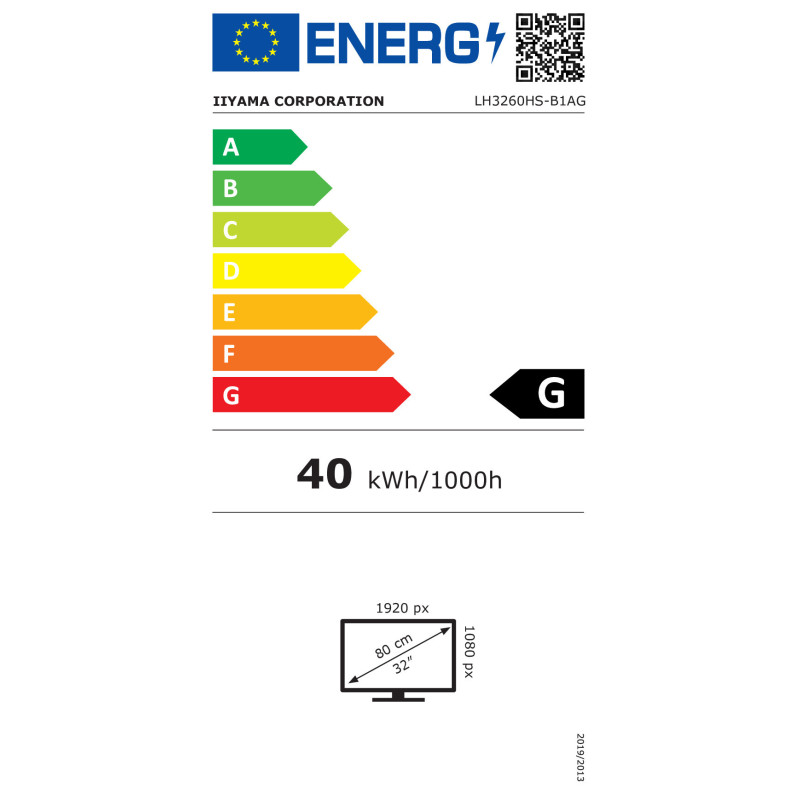

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 39.5 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Computer system

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: A53
Processor architecture: ARM Cortex-A53
Processor cores: 4
Internal memory: 2 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 16 GB
Operating system installed: Android 11

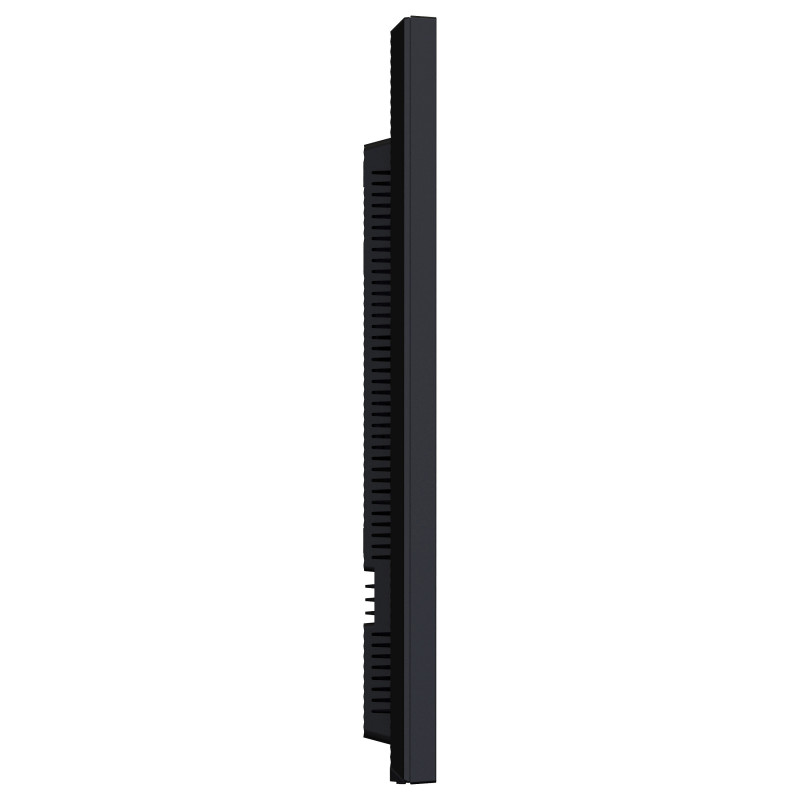

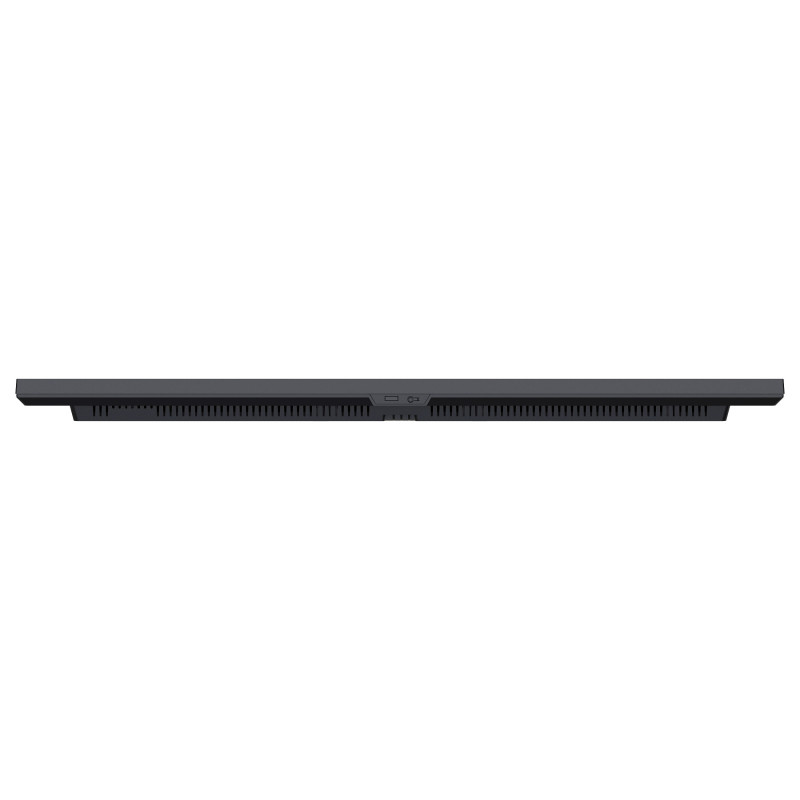

Weight dimensions

Display width: 724.6 mm
Display depth: 40 mm
Display height: 419.8 mm
Display weight: 5.4 kg
Width: 724.6 mm
Depth: 40 mm
Height: 419.8 mm
Weight: 5.4 kg

Packaging data

Package width: 795 mm
Package depth: 115 mm
Package height: 520 mm
Package weight: 7.3 kg

Packaging content

Feature: Remote control included
Feature: Batteries included

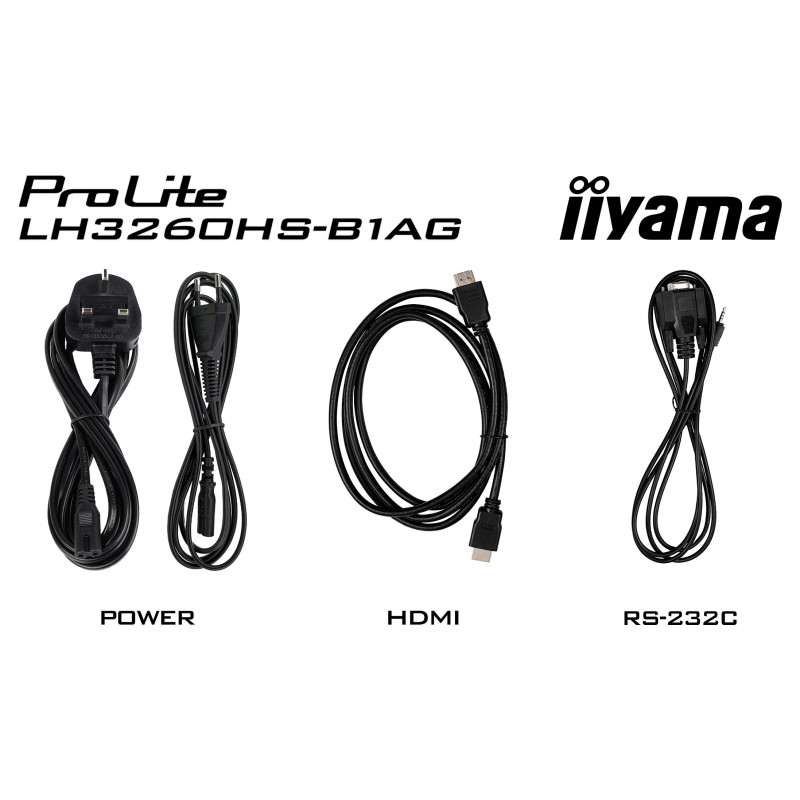

Cables included: AC, HDMI, RS-232
Feature: Mounting kit

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certifications: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)

Technical details

Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
