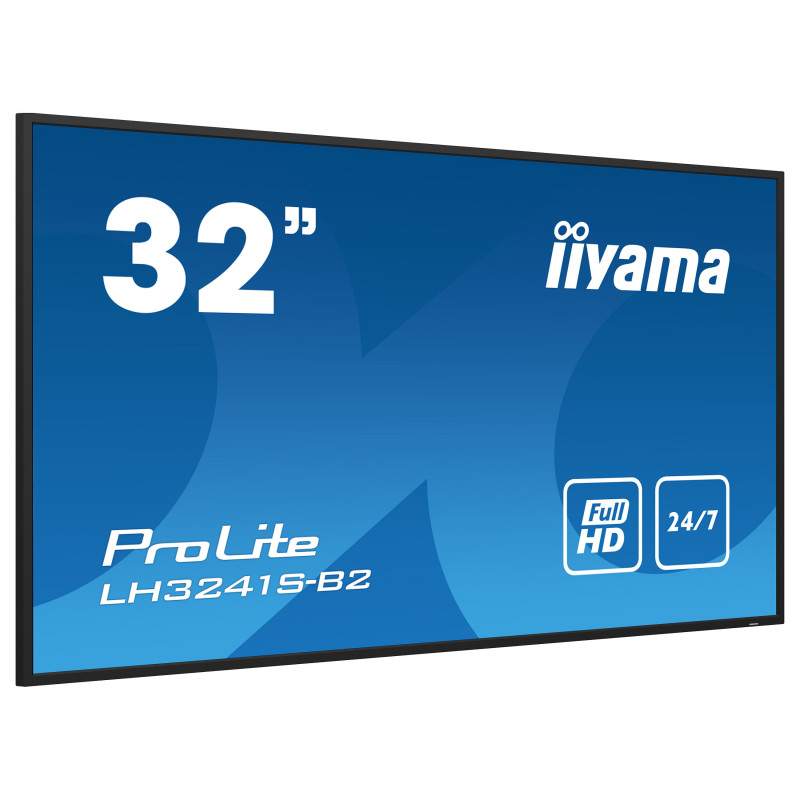

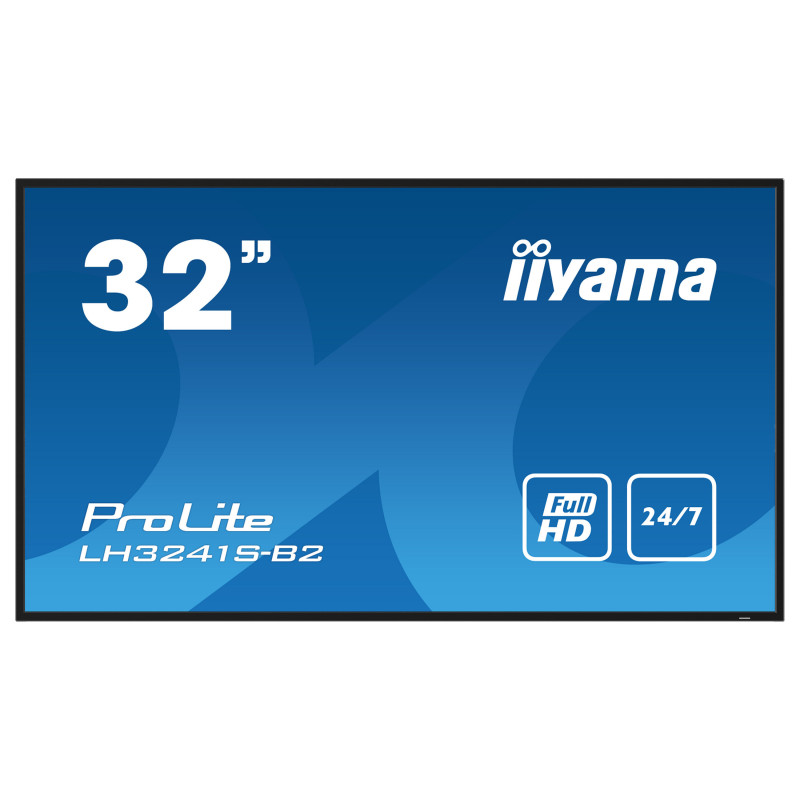

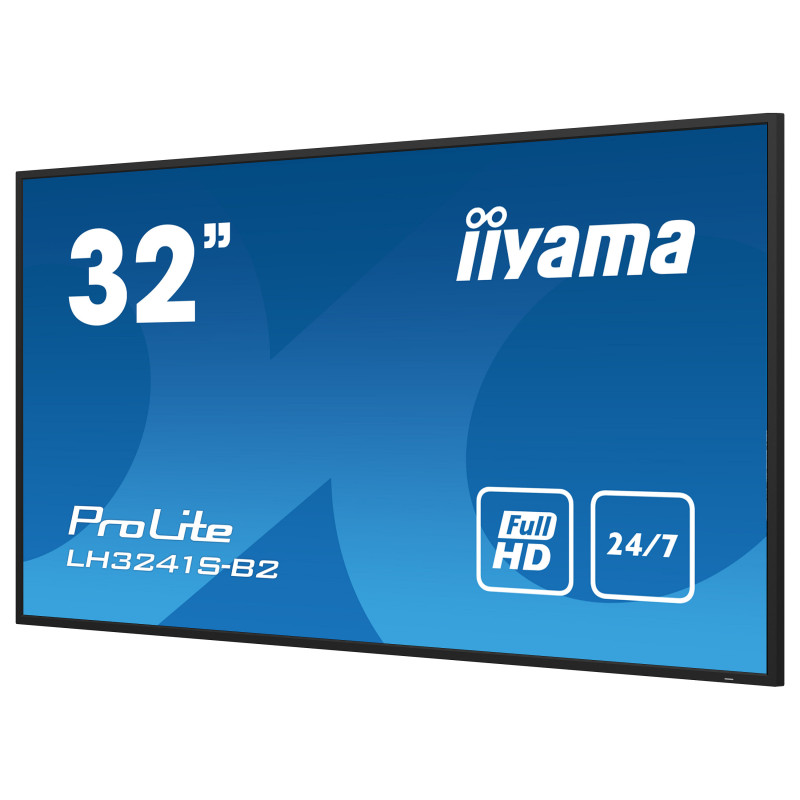

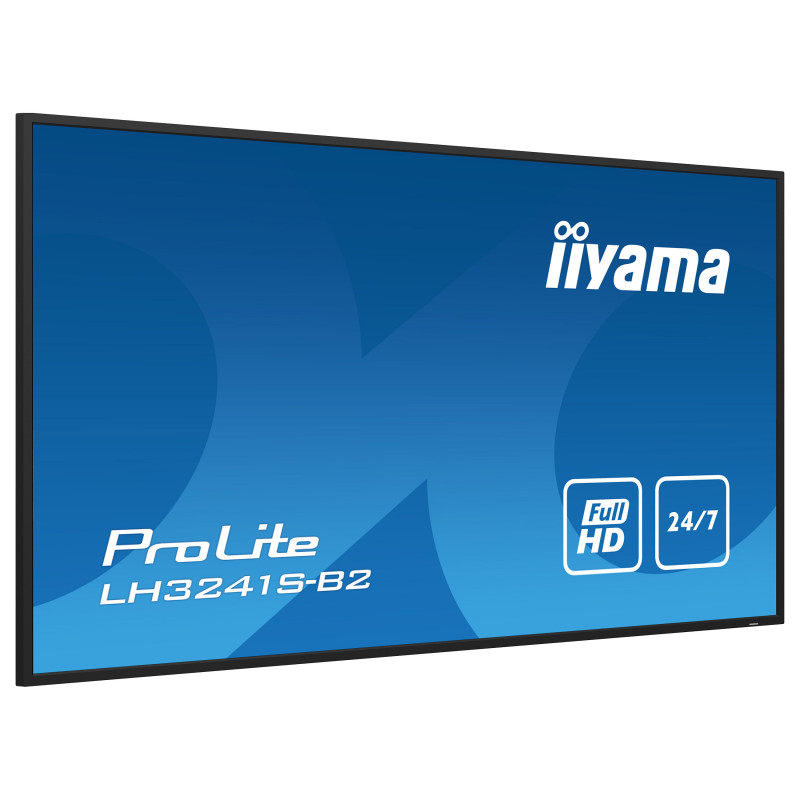

iiyama LH3241S-B2 Signage Display

iiyama LH3241S-B2. Product design: Kiosk design. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 350 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black
Set in a slim bezel, the iiyama LH3241S is a professional digital signage display offering 24/7 operating time in landscape and portrait orientation. This Full HD and fanless IPS display guarantees great viewing from all angles, high brightness and exceptional colour clarity. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Display

Panel type: IPS
Display diagonal: 80 cm (31.5")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 350 cd/m²
HD type: Full HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.364 x 0.364 mm
Active display area (W x H): 698.4 x 392.9 mm
Display diagonal (metric): 80 cm
Horizontal scan range: 30 - 80 kHz
Native refresh rate: 60 Hz
Haze rate: 1%

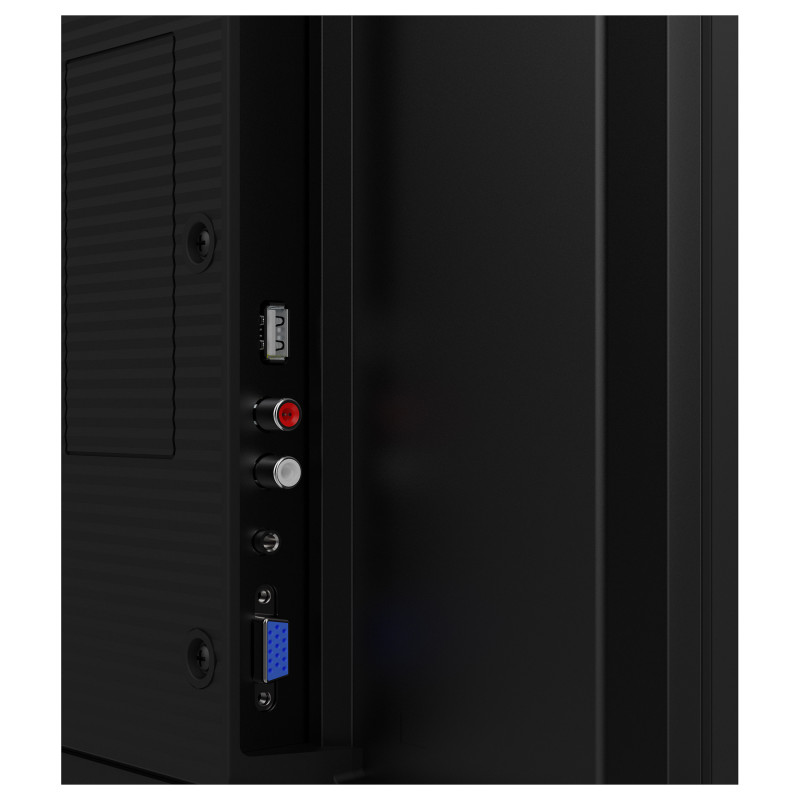

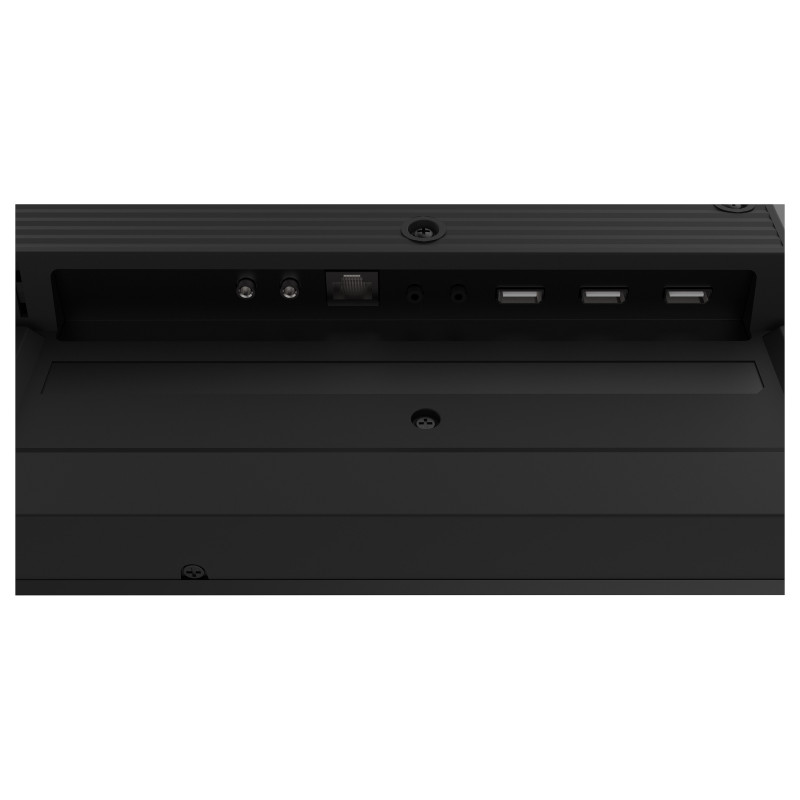

Ports interfaces

HDMI ports quantity: 3
DVI port: No
VGA (D-Sub) input ports: 1
USB port: Yes
USB ports quantity: 1
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Number of speaker outputs: 1
RS-232C: Yes
Remote (IR) input: 1
Remote (IR) output: 1

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Kiosk design
Placement supported: Indoor

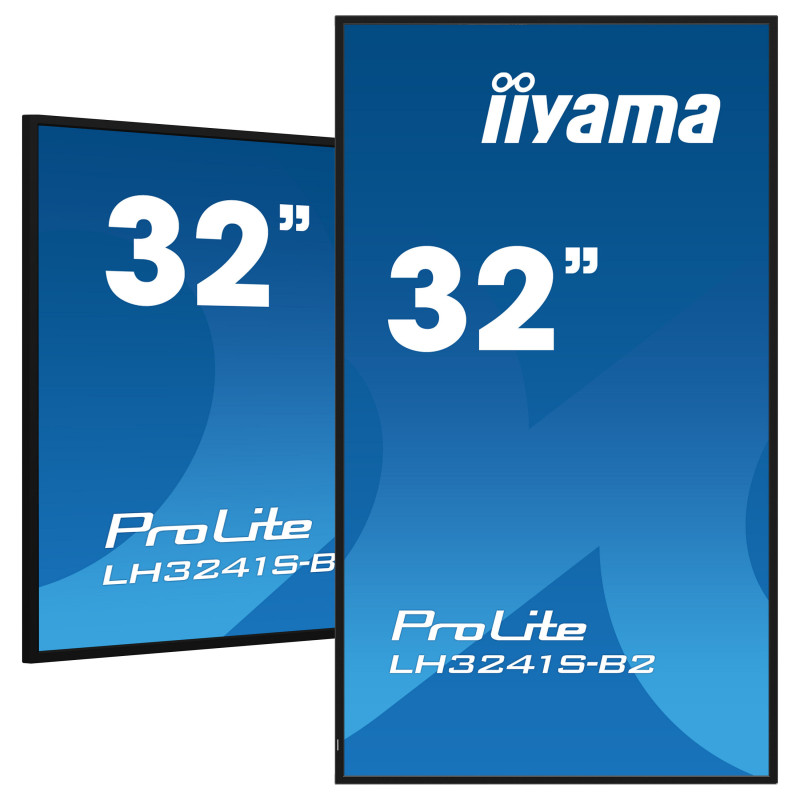

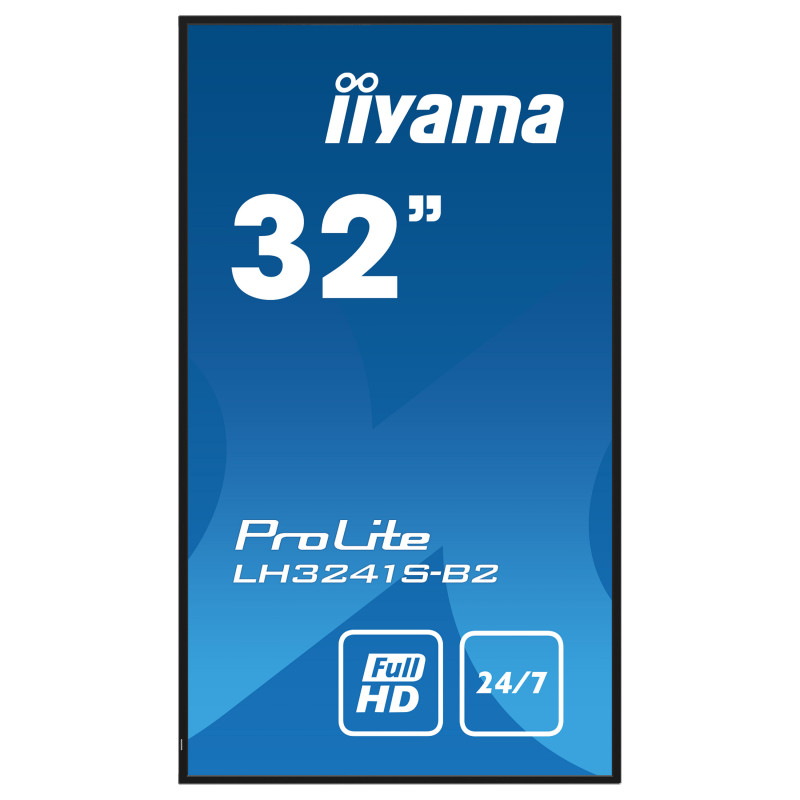

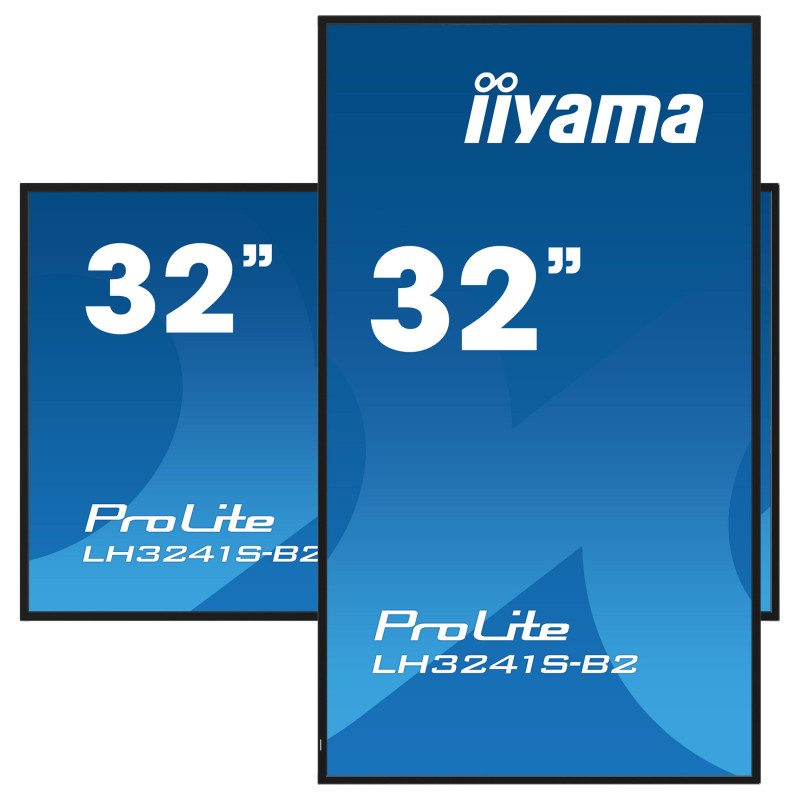

Orientation: Horizontal/Vertical
Product colour: Black

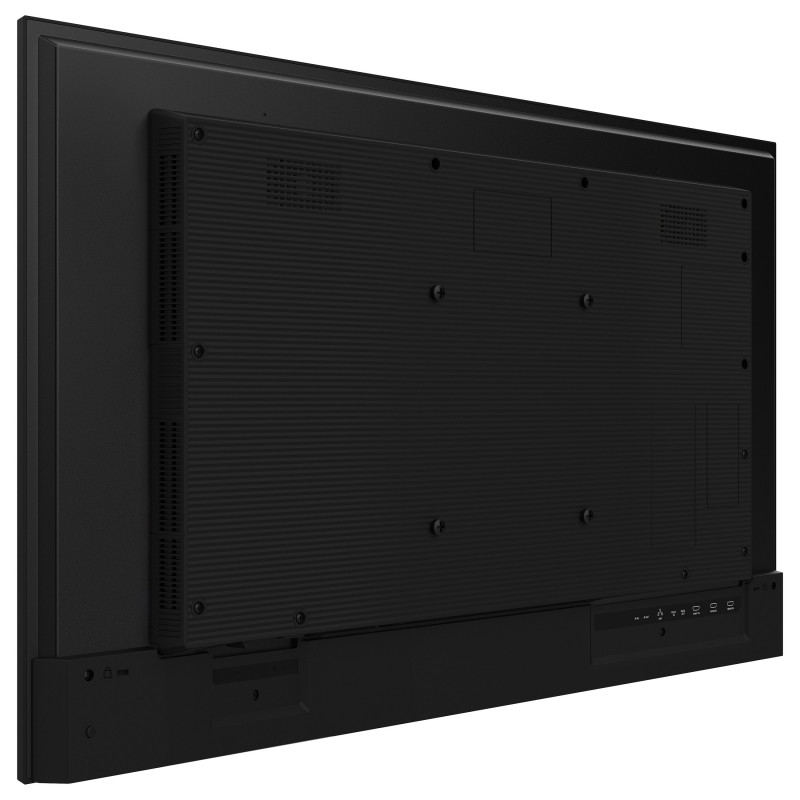

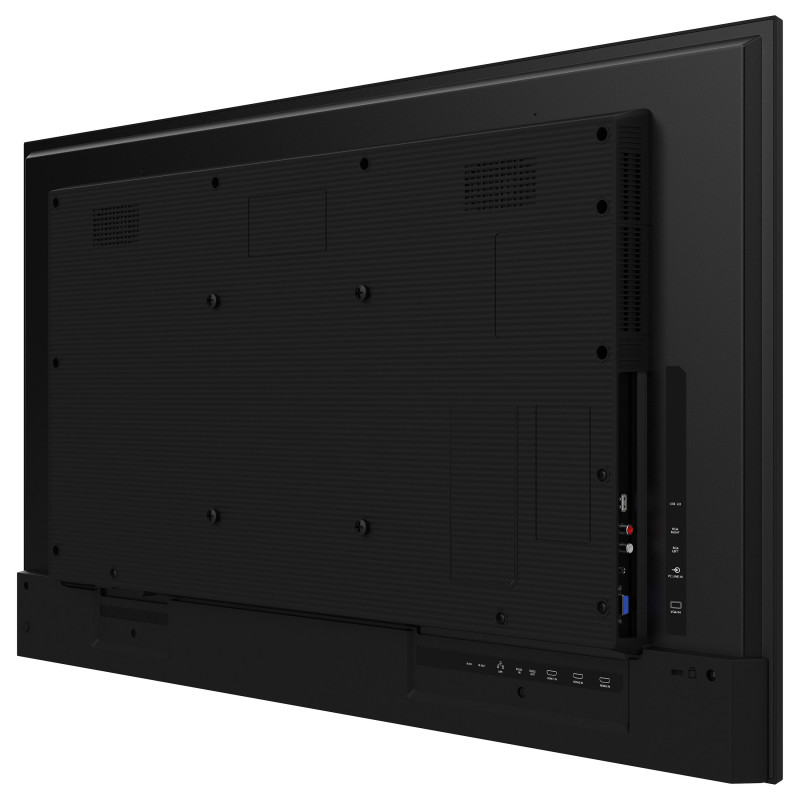

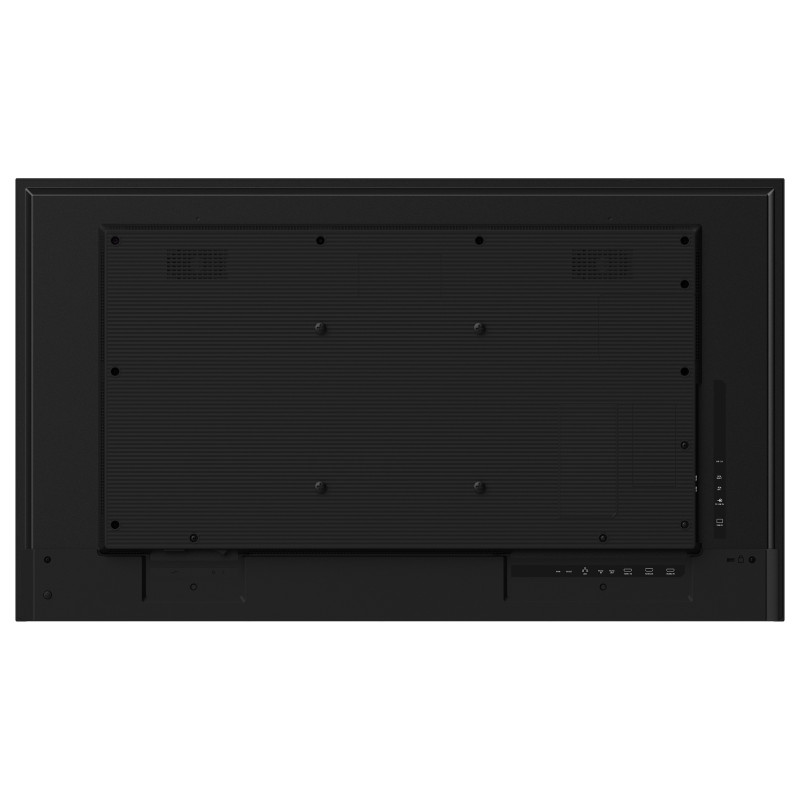

VESA mounting: Yes
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 7.5 cm
Bezel width (side): 1.48 cm
Bezel width (top): 1.4 cm
Bezel colour: Black

Performance

Purpose: Commercial
On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 39 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

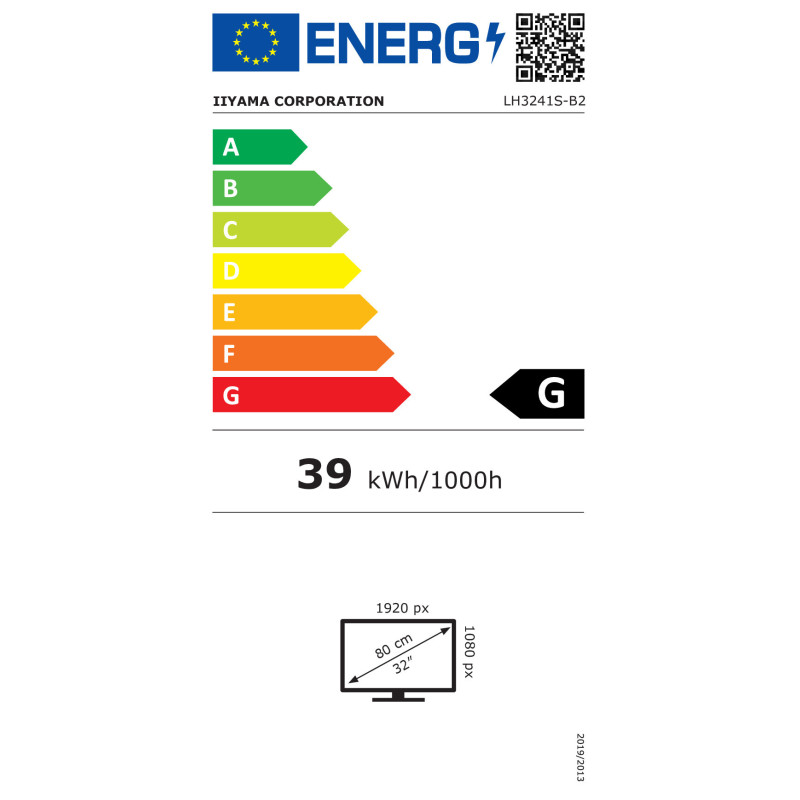

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 39.2 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: No
Built-in processor: No

Weight dimensions

Display width: 725.5 mm
Display depth: 54 mm
Display height: 422 mm
Display weight: 5.1 kg
Width: 725.5 mm
Depth: 54 mm
Height: 422 mm
Weight: 5.1 kg

Packaging data

Package width: 824 mm
Package depth: 119 mm
Package height: 554 mm

Packaging content

Remote control included: Yes

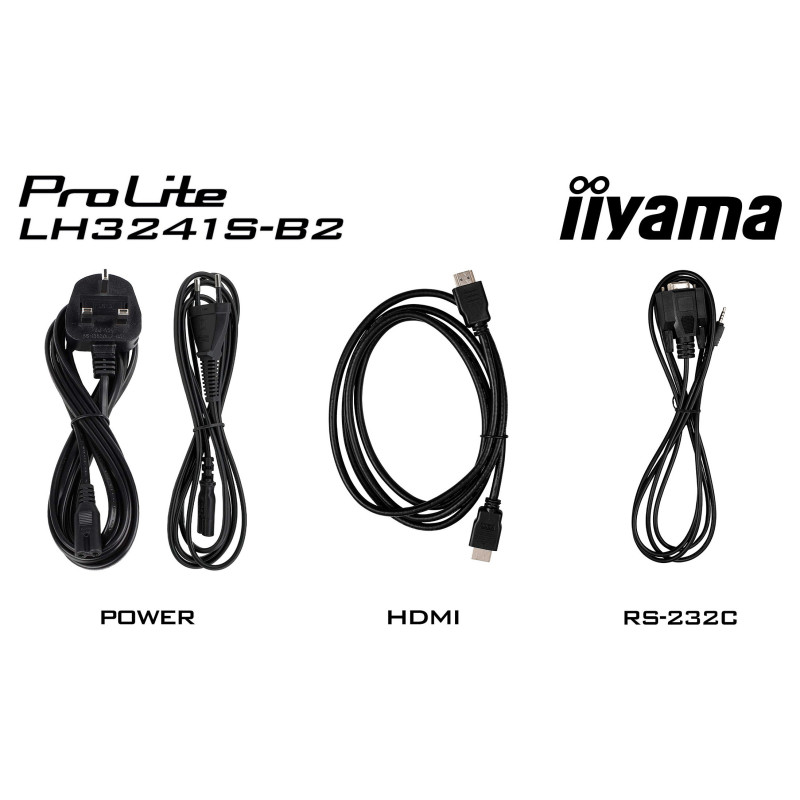

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -20 - 60%
Storage temperature (T-T): -20 - 60 °C

Network

Ethernet LAN: Yes
Wi-Fi: No

Technical details

Audio in (mini jack): Yes
Playback media: Y
User controls: picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)
Sustainability certificates: ErP
Compliance certificates: CE, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Quick start guide: Yes
Power supply type: Internal
Cable management: Yes
