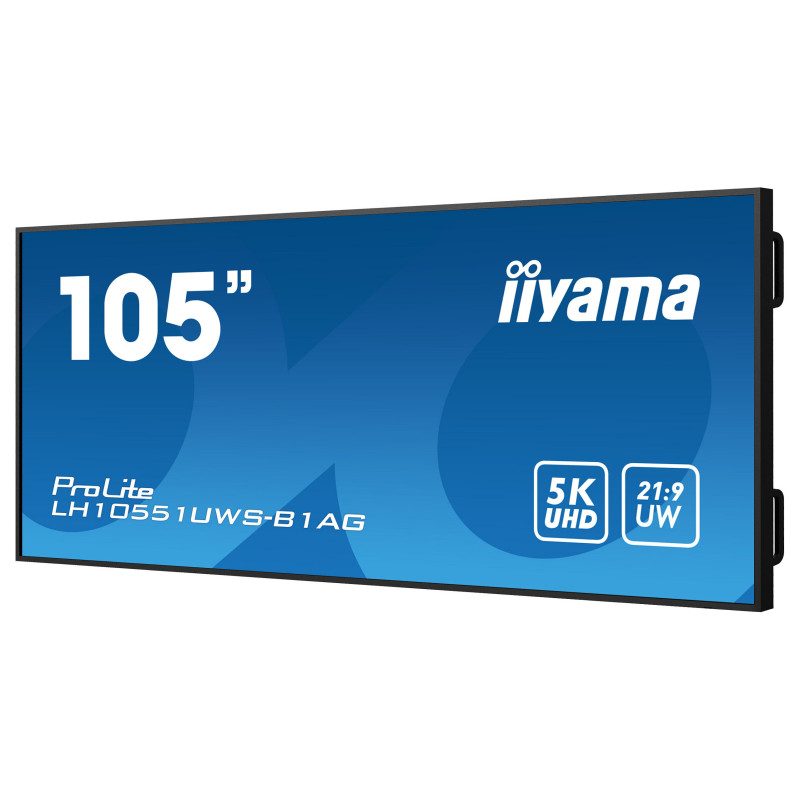

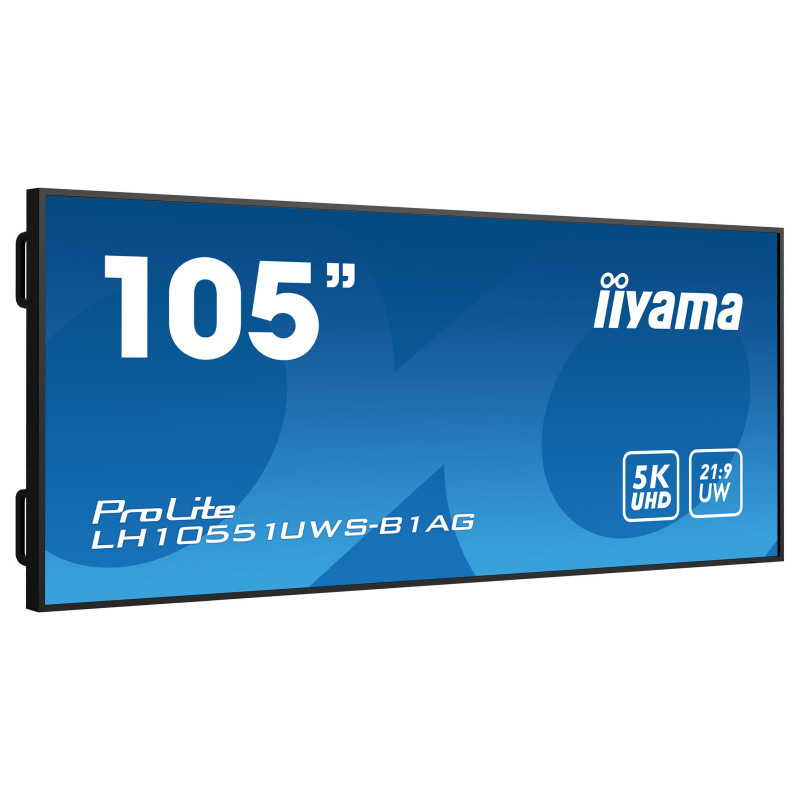

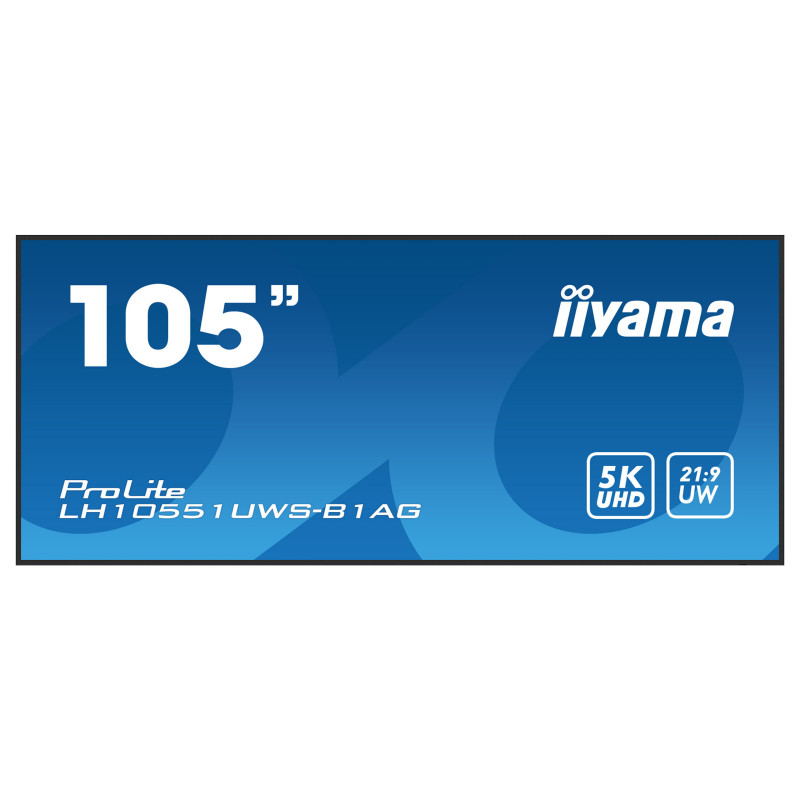

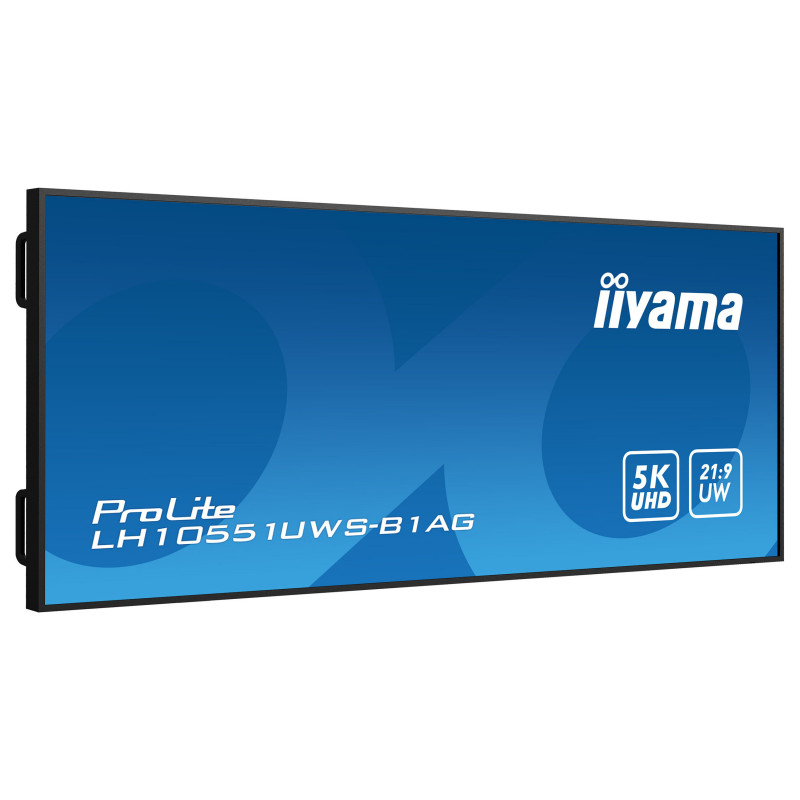

iiyama LH10551UWS-B1AG Signage Display

iiyama LH10551UWS-B1AG. Product design: Digital signage flat panel. Display diagonal: 2.66 m (104.7"), Display technology: LED, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: UltraWide 5K HD. Operating hours (hours/days): 24/7. Product colour: Black

Experience a true 21:9 Panoramic Ultra-Wide view for all your content with the jaw dropping 105" displays of iiyama. This super sleek thin bezel design display shows vibrant and larger than life imagery and videos using 5KUW resolution to make the difference. Whether installed in mission critical control room facilities or vibrant digital signage for high end retail spaces, this iiyama 105" large format display offers businesses an easy and effective solution to help capture their audience's attention. Designed to perform in continual, around the clock environments, the LH10551UWS-B1AG can be installed and utilised in landscape and portrait orientation to create the most stimulating imagery in any space.

Display

Panel type: IPS
Display diagonal: 2.66 m (104.7")
Display technology: LED
Display resolution: 5120 x 2160 pixels
Display brightness: 500 cd/m²
HD type: UltraWide 5K HD
Native aspect ratio: 21:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.479 x 0.479 mm
Active display area (W x H): 2450 x 1033.6 mm
Display diagonal (metric): 265.9 cm
Horizontal scan range: 30 - 140 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 2.0
HDMI input ports quantity: 1
DisplayPorts quantity: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 4
USB version: 2.0
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232C
Feature: OPS module slot

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor

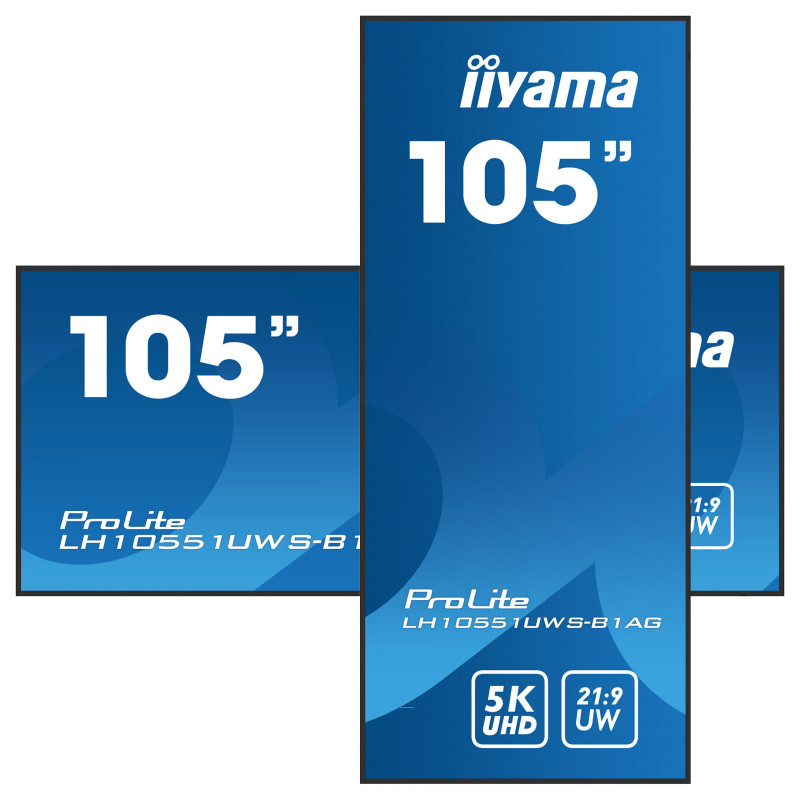

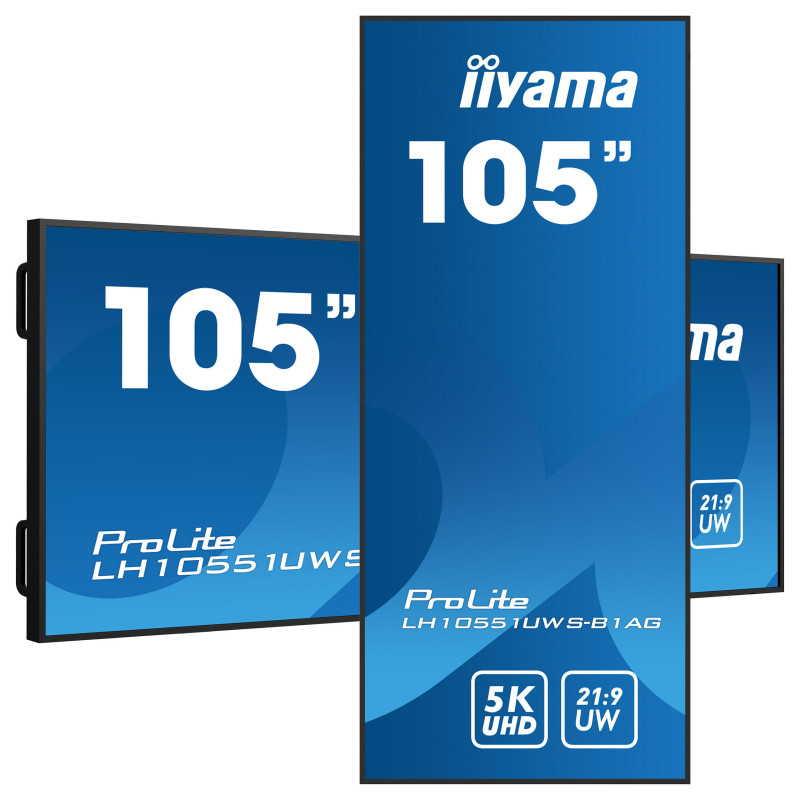

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting

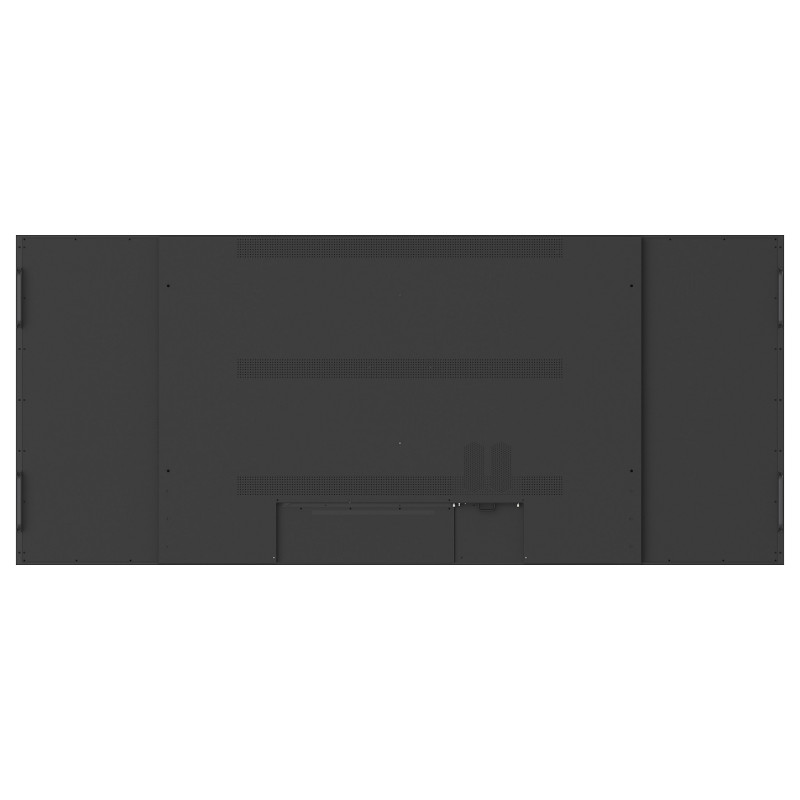

Panel mounting interface: 1500 x 600 mm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 247 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 247 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Weight & dimensions

Display width: 2487.4 mm
Display depth: 99.1 mm
Display height: 1070.6 mm
Display weight: 60.1 kg
Width: 2487.4 mm
Depth: 99.1 mm
Height: 1070.6 mm
Weight: 60.1 kg

Packaging data

Package width: 2683 mm
Package depth: 339 mm
Package height: 1407 mm
Package weight: 88.7 kg

Packaging content

Feature: Remote control included
Feature: Batteries included

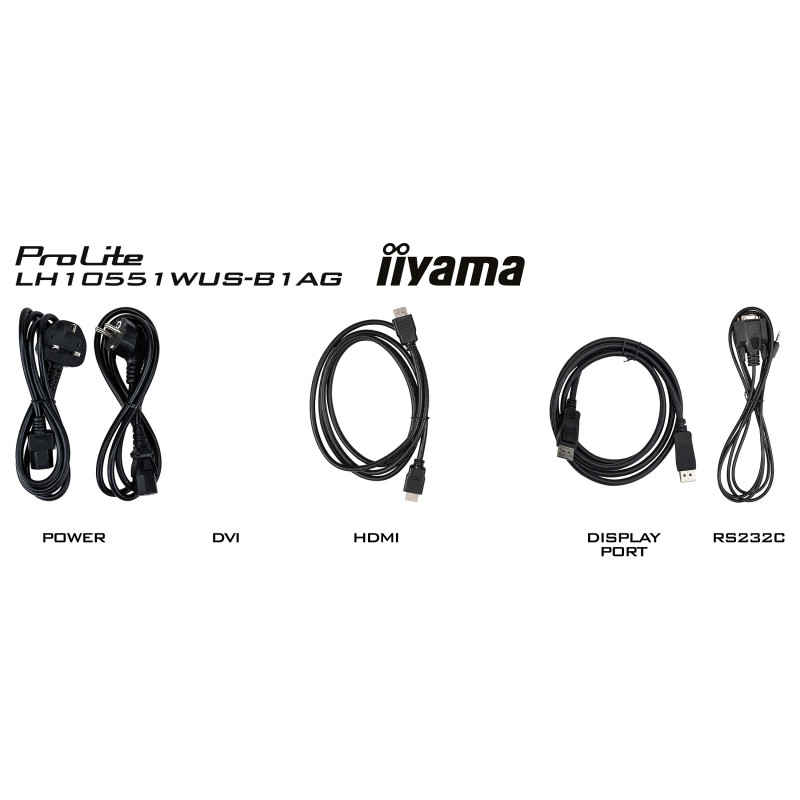

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Feature: Ethernet LAN

Technical details

Feature: Daisy Chain DisplayPort
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
Feature: Plug and Play
