iiyama LE9864UHS-B1AG Signage Display

iiyama LE9864UHS-B1AG. Product design: Digital signage flat panel. Display diagonal: 2.49 m (98"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

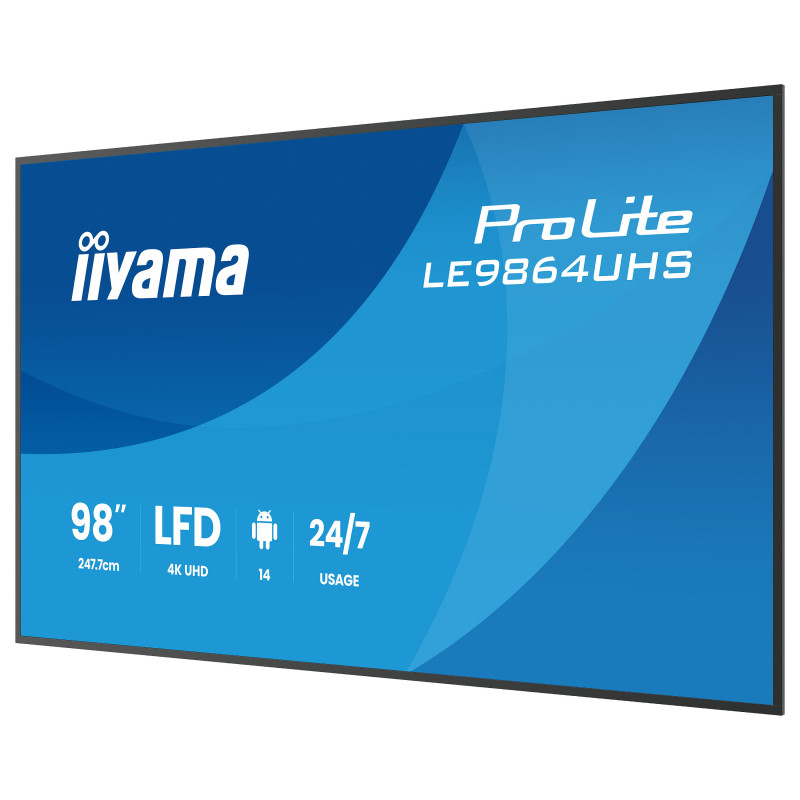

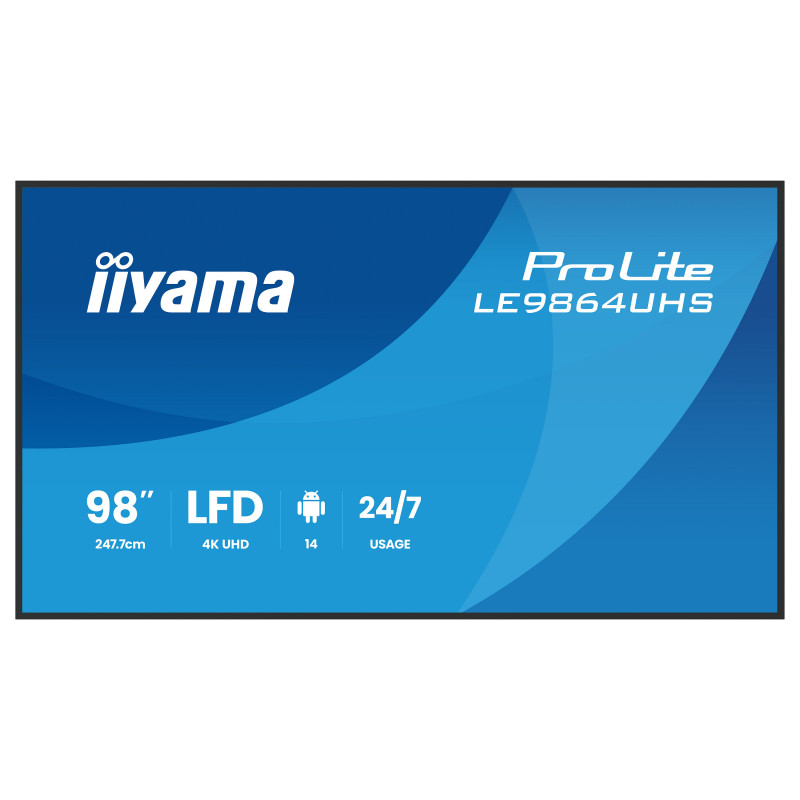

The ProLite LE9864UHS-B1AG is a 98" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS) and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness.

Display

Panel type: VA
Display diagonal: 2.49 m (98")
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.487 x 0.487 mm
Active display area (W x H): 2158.8 x 1214.4 mm
Display diagonal (metric): 247.7 cm
Number of displays: 1
Horizontal scan range: 57 - 62 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

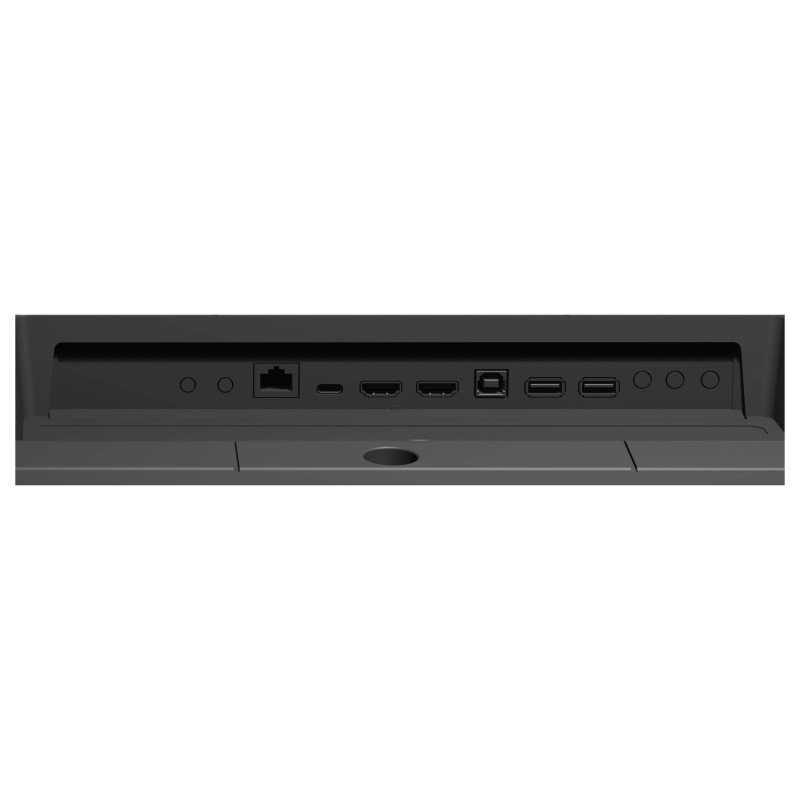

Ports interfaces

HDMI ports quantity: 2
HDMI version: 2.0
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Audio Return Channel (ARC)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

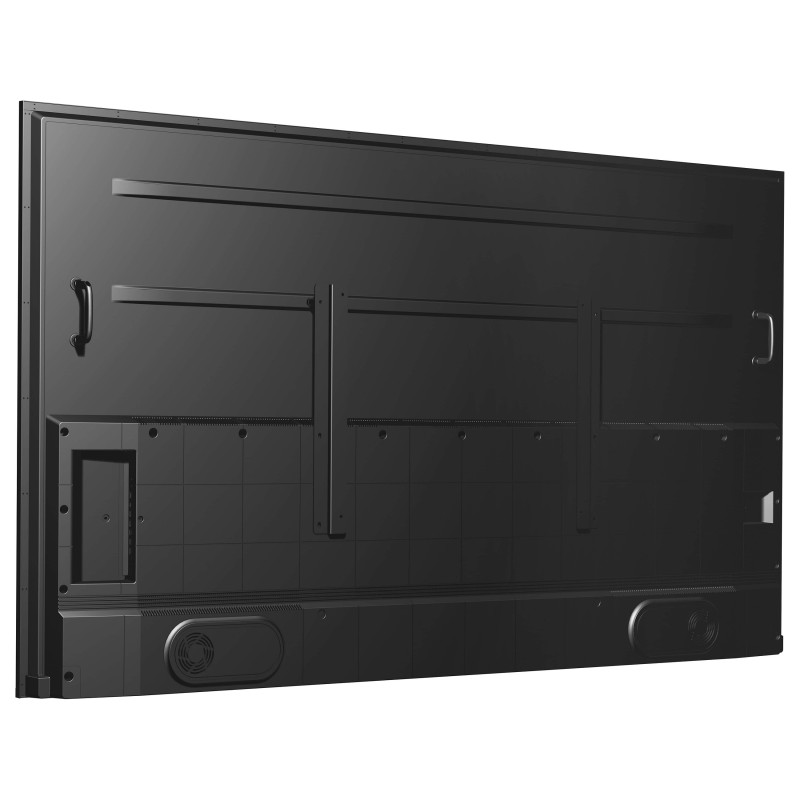

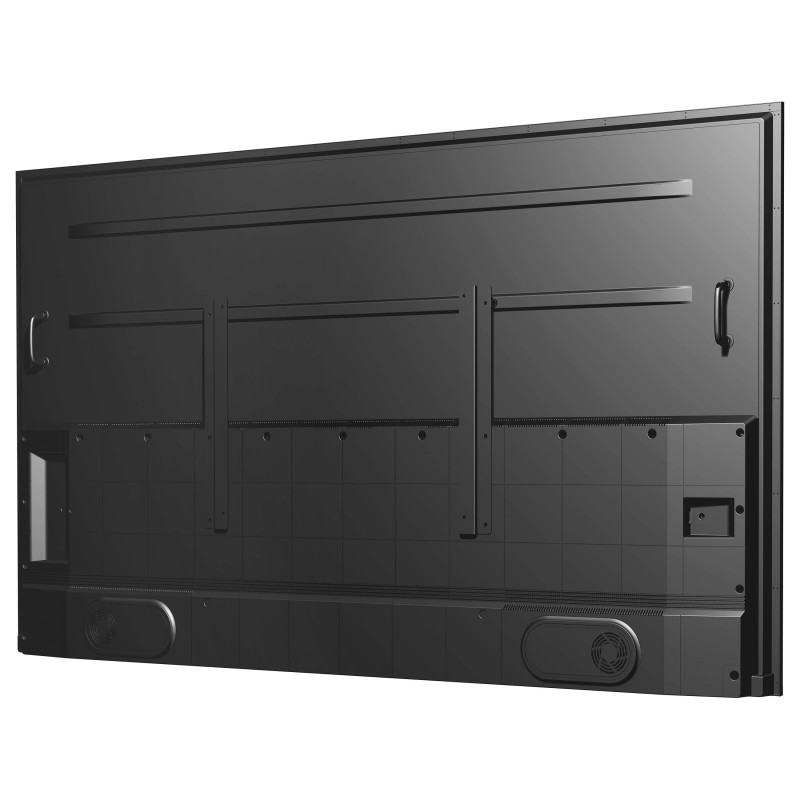

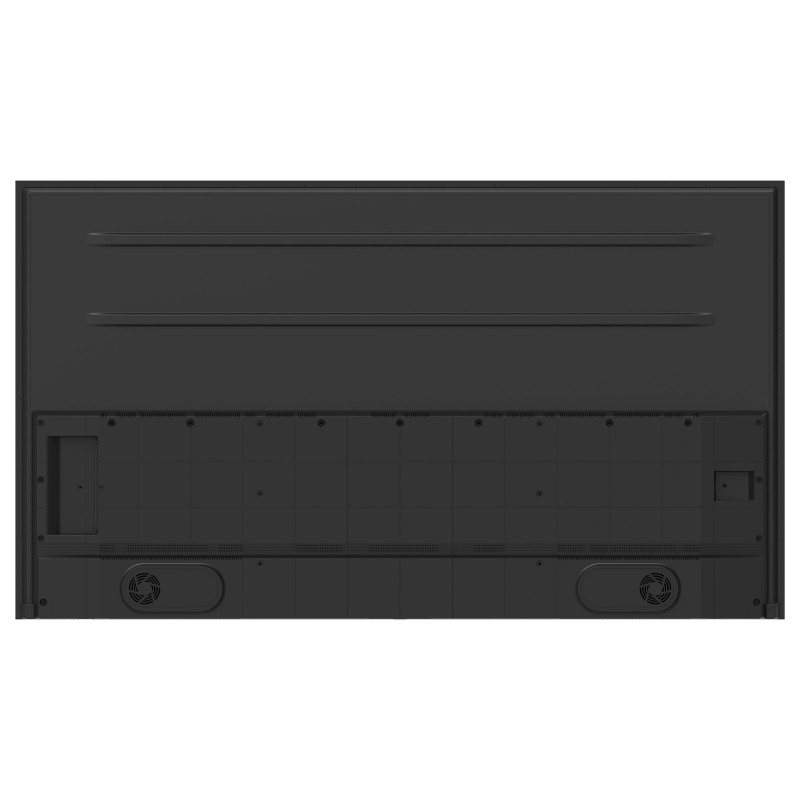

Feature: VESA mounting
Panel mounting interface: 700 x 500 mm
Bezel width (bottom): 2 cm
Bezel width (side): 2 cm
Bezel width (top): 2 cm
Bezel colour: Black
Feature: Anti-glare screen
Mounting type: Wall

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 15
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.0
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 388 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 388 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Feature: Built-in processor
Processor architecture: ARM Cortex-A73
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14

Weight dimensions

Display width: 2202 mm
Display depth: 110.5 mm
Display height: 1257.7 mm
Display weight: 61 kg
Width: 2202 mm
Depth: 110.5 mm
Height: 1257.7 mm
Weight: 61 kg

Packaging data

Package width: 2390 mm
Package depth: 280 mm
Package height: 1500 mm
Package weight: 77.9 kg

Packaging content

Feature: Remote control included

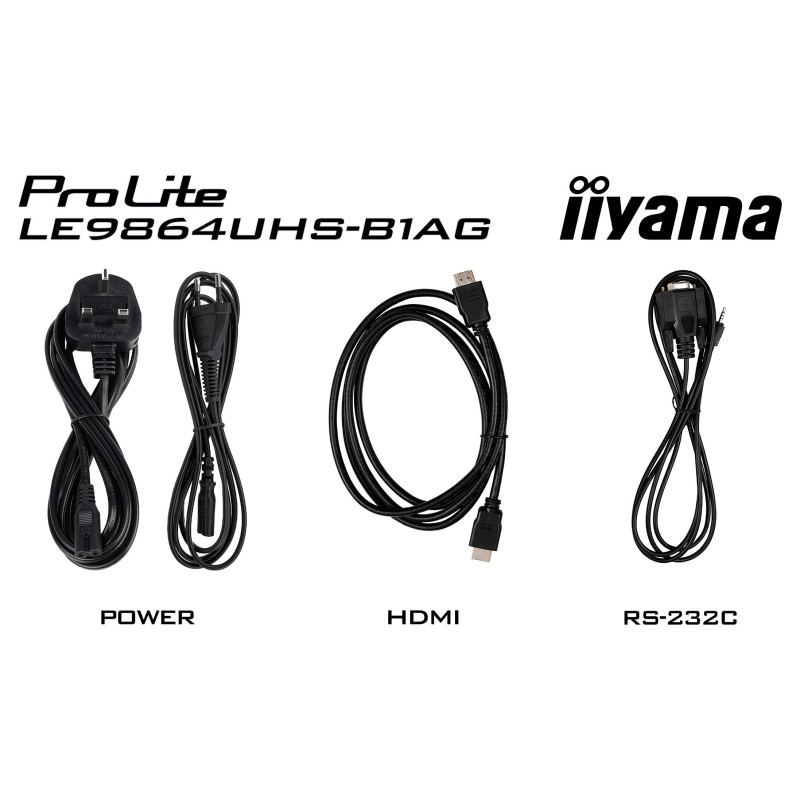

Cables included: AC, HDMI, RS-232
Feature: Mounting kit

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Technical details

Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
