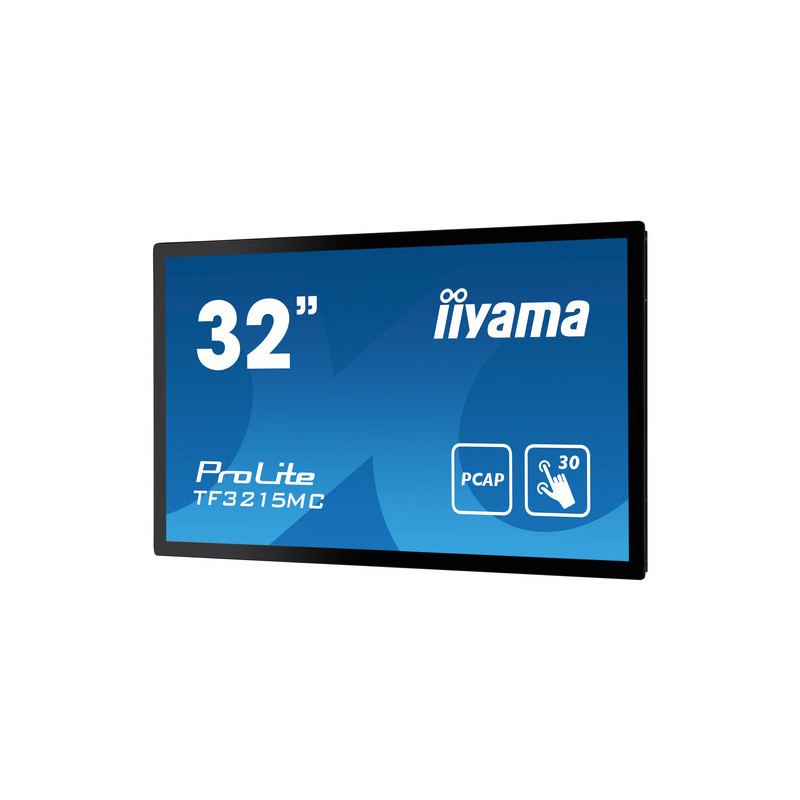

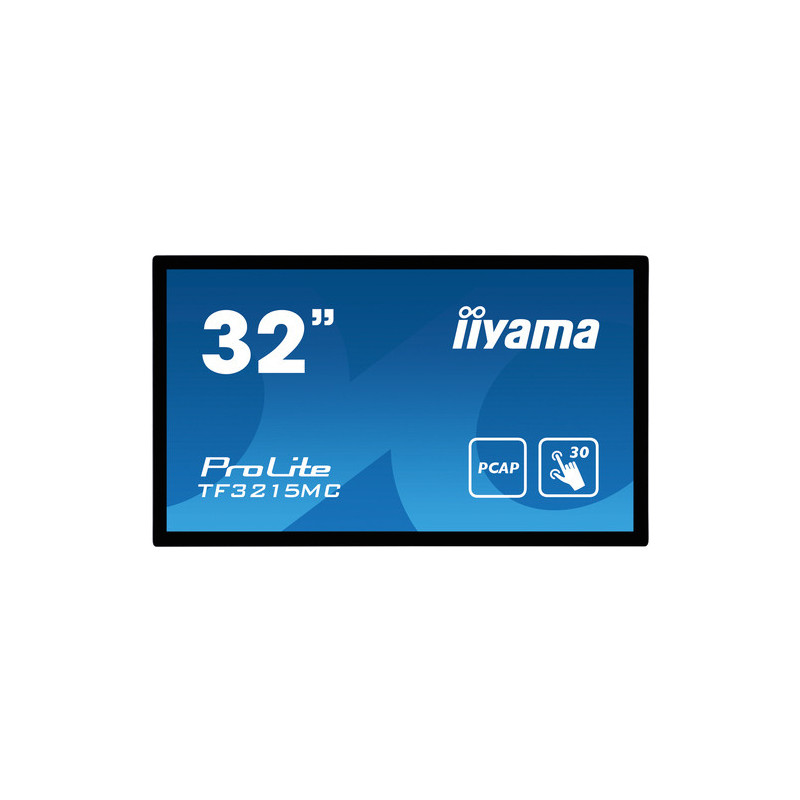

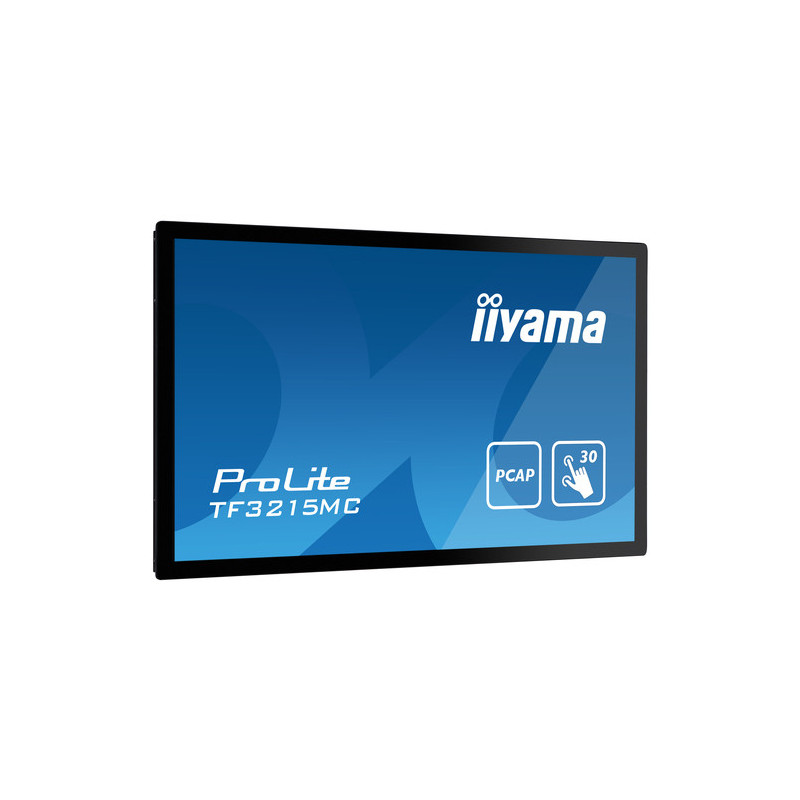

IIYAMA 80.0cm (31.5") TF3215MC-B2 16:9 M-Touch HDMI+DP+USB
IIYAMA 80.0cm (31.5") TF3215MC-B2 16:9 M-Touch HDMI+DP+USB
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
ProLite TF3215MC-B2 with 30-bodovou touch technology PCAP is a monitor with an open frame and an edge-to-edge design.
Thanks to this completely frameless glass surface, it guarantees high durability and resistance to scratches,
is also ideal for kiosk systems and public applications with high travázkou.
* Dotyková technology - kapacitná
* Foam Seal
* Dôkaz testom pádu gule
* Touch the glass
* 24/7
Parameter Display
Design: Open Frame
Diagonal: 31.5", 80cm
Panel: VA
Backlighting: LED
Native resolution: 1920 x 1080 (2.1 megapixel Full HD)
Side by side: 16:9
They: 460 okrem dotykového panela
Static contrast: 3000:1 okrem dotykového panela
Light transmittance: 92%
Response time: 8ms
Viewing angles: 178°/178°
Color range: 16.7mln 8bit
Point spacing: 0,3637mm
Color: černá
Touch
Touch technology: projective capacitive
Body touch: 30 (HID, requires podorovaný OS)
Method of touch: finger, glove (latex),
Touch interface: USB
Functions
Special features: touch through-glass
Glass thickness: 3mm
Glass hardness: 7H
Water and dust protection: IP65(front)
Konektory/Rozhrania/Ovládanie
*Analog input ports: VGA x1
*Digital input ports: HDMI x1, DisplayPort x1
*HDCP: Áno
Mechanical Information
Wall mounting: 200 x 200 mm

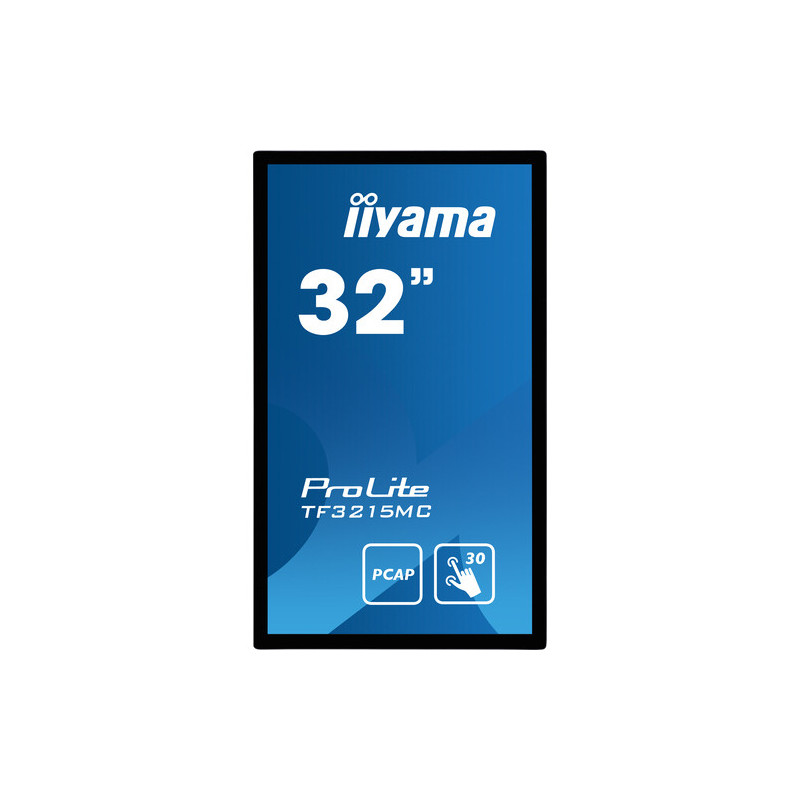

Orientation: horizontal, vertical
Power supply
Power source: interný, AC 100 - 240V, 50/60Hz
Spot requirement [W]: 32
Package contents:
*Káble: napájácí, USB, HDMI
*Príručky: uzvojský manual, inštrukcie bezborekce
*Kryt kabel: Áno
Dimensions
Dimensions (WxHxD): 739.5 x 434 x 61mm
Weight: 10kg
Warranty: 3 roky
| Next | |
|---|---|
| Paint | Black |
| Wall mounting | Yes |
| VESA mounting dimensions (mm) | 200x200 |
| VESA standard | Yes |
| Warranty (years) | 3 |
| Graphic outputs | |
| HDMI connector | Yes |
| DVI connector | No |
| VGA connector (D-Sub) | Yes |
| Model design | |
| Model | TF3215MC-B2 |
| Model line | iiyama ProLite |
| Pivot | Yes |
| Operating hours | 24/7 |
| How to use | Commercial/Educational |
| Stojan s adjustable height | No |
| Multimedia | |
| Total speaker power (W) | No |
| Repro | No |
| Webcam | No |
| Connection | |
| Adaptive-Sync | No |
| DP/mini DP (count) | 1 |
| FreeSync | No |
| G-Sync | No |
| DisplayPort connector | Yes |
| Connector RJ45 | No |
| SCART connector | No |
| USB connector | Yes |
| USB-C connector | No |
| Dimensions, weight, load capacity | |
| Exact weight (kg) | 10 |
| Dimensions (w x h x d mm) | 739.5 x 434 x 61 |
| Weight range (kg) | from 5.1 to 10 |
| Sila | |
| Spot power (W) | 32 |
| Tried energy efficiency | F |
| Source | Internal |
| Show | |
| Flicker-free | No |
| Display - touch | Yes |
| Display - jas (cd/m2=nits) | 460 |
| Display - type | LCD VA/PVA/MVA |
| Response time (ms) | 8 |
| Color depth | 16.7 million |
| Image format | Widescreen - 16:9 |
| Contrast (static) | 3,000:1 |
| Resolutions | 1920x1080 (Full HD) |
| Resolution - standard | Full HD |
| Dot pitch (mm) | 0.3637 |
| Diagonal (") | 31.5 |
| Eye view (vertical/horizontal) | 178/178 |
| Curved monitor | No |
