IIYAMA 39.5cm (15,6") TW1623AS-B3P 16:9 Skārienekrāns ar M-HDMI Andr.
IIYAMA 39.5cm (15,6") TW1623AS-B3P 16:9 Skārienekrāns ar M-HDMI Andr.
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days

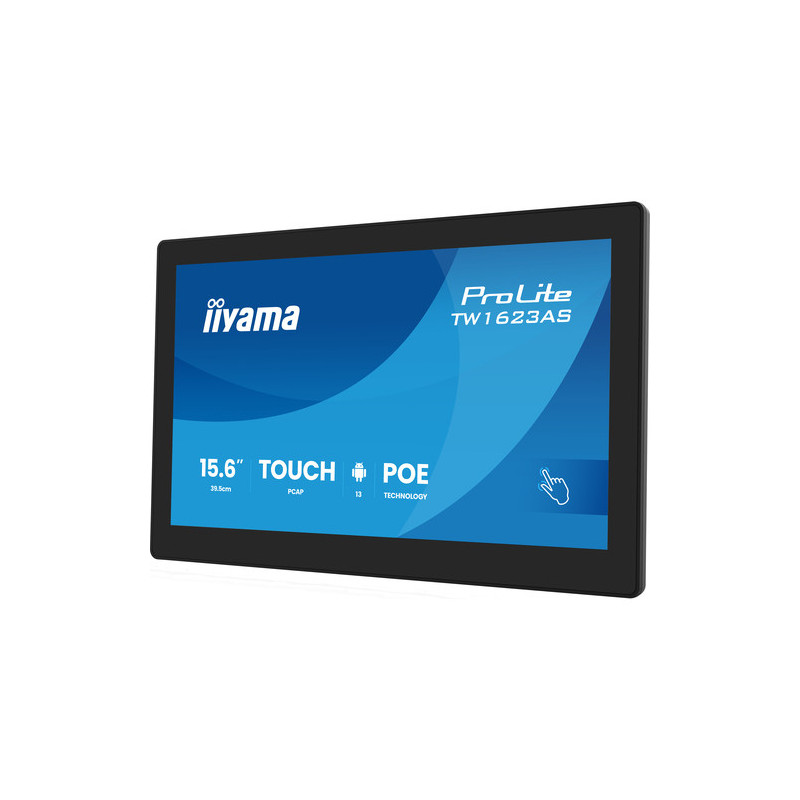

ProLite TW1623AS-B3P is smart an intuitive 15.6" touch panel computer, designed for high-traffic environments, such as meeting rooms, information centers or reception areas. Its 10-bodová PCAP touch technology guarantees smooth and accurate interaction. It is equipped with the Android 13 operating system and powerful hardware, which allows simple installation of applications directly on the device - an idea for a solution type "all in one". Thanks to Power over Ethernet (PoE) technology, power supply and data transmission are made with a single cable, which simplifies installation and reduces the number of other cables. Screen type: Edge to edge glass/ IPS Panel Technology, LED
Backlighting: LED
Diagonal [inch]: 15.6", 39.5 cm
Resolutions: 1920 x 1080 (2 megapixel HD)
Pitch [mm]: 0.1792
Refresh rate [Hz]: 60
Side by side: 16:9
Display surface: Matný, spručová úprava proti odleskom a odtlačkom prstov
They [cd/m2]: 450 cd/m2/ 385 cd/m2 (okrem dotykového panel)
Contrast: 1000:1 (okrem dotykového panel)
Response [ms]: 30 (GTG)
Pozorovache uhly (Horizontál/Vertikál): 170°/170° (85°/85° right/left, 85°/85° hore/dole)
Number of colors: 16.7 million (8bit)
Speakers: 2 x 2W
Connectors:
*HDMI x1 (mini HDMI, 1920x1080 @60Hz)
*Mini jack x1 (Audio Out)
*USB x3
*RJ45 (LAN) x1 (PoE - IEEE802.3at/30W)
*Microphone x1_
*HDCP
*WiFi: IEEE802.11a//b/g/n/ac
*Bluetooth: 5.2
Touch
*Touchscreen technology: projective capacitive
*Touchpointy: 10 (HID, iba s podorovaným OS)
*Touch method: finger, glove (latex)
*Touch interface: USB
Power supply: DC 12 V (externý adapter)
Spot requirement [W]: 9 (typical)
Stand By mode [W]: 0.5

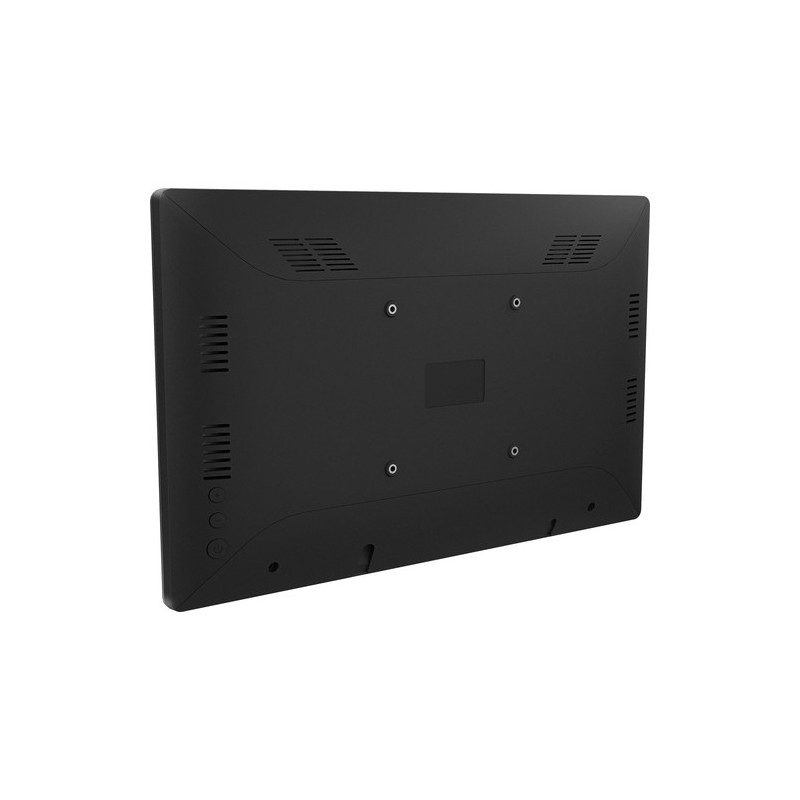

Wall mounting: VESA 100 x 100 mm
Ergonomics: Orientation: horizontal, vertical, face-up
Color: Čierna, matná
Dimensions: 387 x 244 x 30.5 mm
Weight [kg]: 1.5 kg
Package contents:
*Používetaľský manuál
*Inštrukcie bezorbečnost
*AC adapter
*Interchangeable plugs (EU/UK)
*Kryt kável
Warranty: 36 months.
| Next | |
|---|---|
| Paint | No |
| Wall mounting | Yes |
| VESA mounting dimensions (mm) | do 2 |
| VESA standard | Yes |
| Warranty (years) | iiyama ProLite |
| Graphic outputs | |
| HDMI connector | Yes |
| DVI connector | No |
| VGA connector (D-Sub) | No |
| Model design | |
| Model | TW1623AS-B3P |
| Model line | Black |
| Pivot | Yes |
| Operating hours | 24/7 |
| How to use | Commercial/Educational |
| Multimedia | |
| Total speaker power (W) | 4 |
| Repro | Yes |
| Webcam | No |
| Connection | |
| Adaptive-Sync | No |
| DP/mini DP (count) | 16.7 million |
| FreeSync | No |
| G-Sync | No |
| Component video | No |
| Composite video | No |
| DisplayPort connector | No |
| Connector RJ45 | Yes |
| SCART connector | No |
| USB connector | Yes |
| USB-C connector | No |
| Dimensions, weight, load capacity | |
| Exact weight (kg) | 1.5 |
| Dimensions (w x h x d mm) | 387 x 244 x 30.5 |
| Weight range (kg) | Full HD |
| Sila | |
| Spot power (W) | 100x100 |
| Source | External |
| Show | |
| Display - touch | Yes |
| Display - surface | Matte |
| Display - type | LCD IPS/PLS/WVA |
| Response time (ms) | 30 |
| Color depth | 9 |
| Image format | Widescreen - 16:9 |
| Contrast (static) | 1,000:1 |
| Refresh rate (Hz) | 60 |
| Resolutions | 1920x1080 (Full HD) |
| Resolution - standard | 3 |
| Dot pitch (mm) | 0.1792 |
| Diagonal (") | 15.6 |
| Eye view (vertical/horizontal) | 170\170 |
| Curved monitor | No |
