iiyama TW1625LASC-B3PNR meeting room display

iiyama TW1625LASC-B3PNR. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, Display technology: LED. Housing colour: Black, Panel mounting interface: 75 x 75 mm, Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA. Processor manufacturer: ARM, Processor family: ARM Rockchip, Operating system installed: Android. Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b. Width: 397 mm, Depth: 28.5 mm, Height: 256 mm

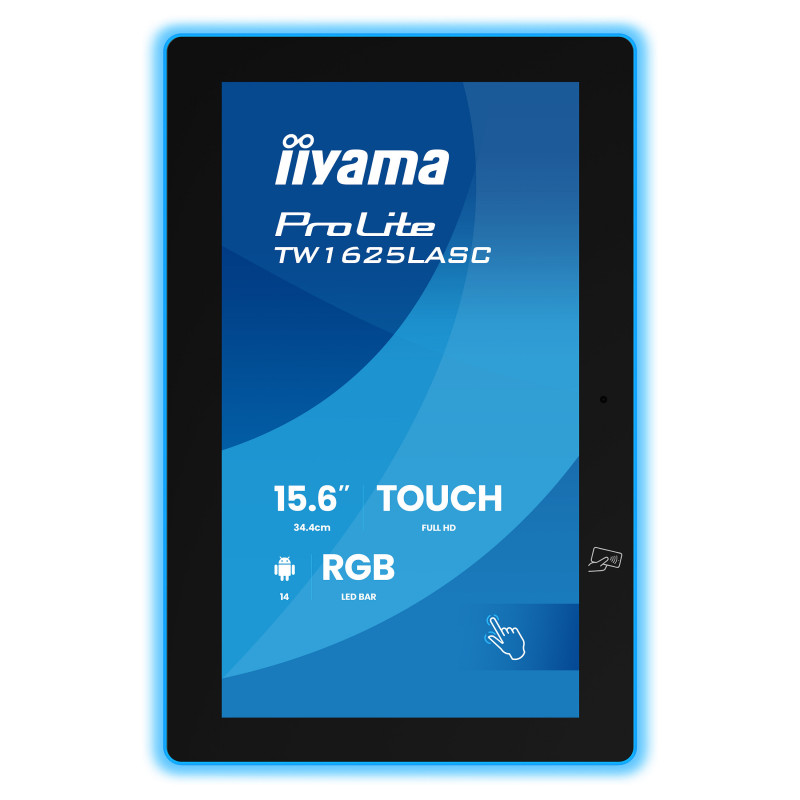

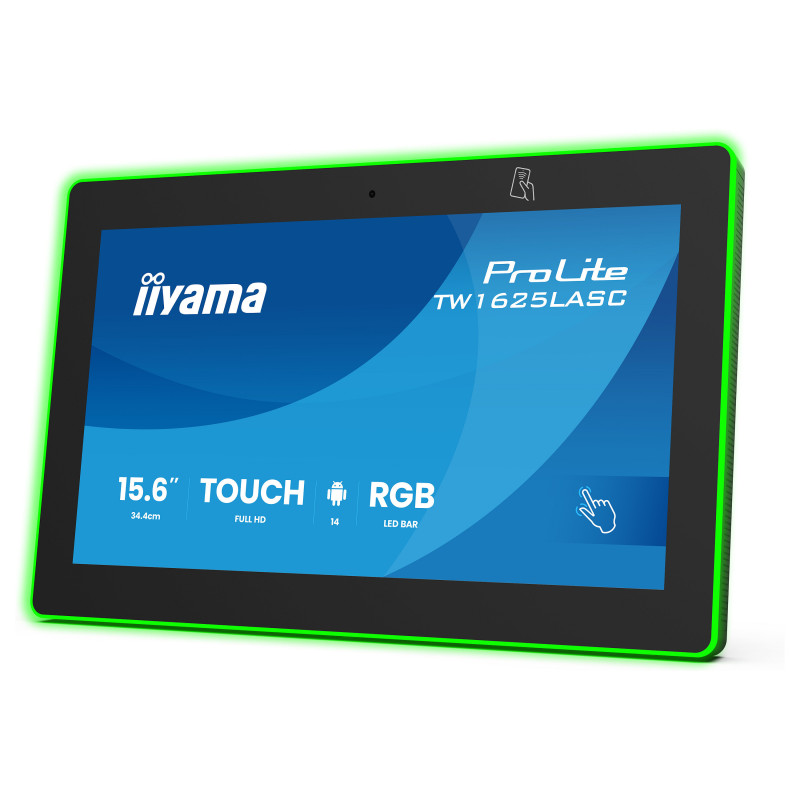

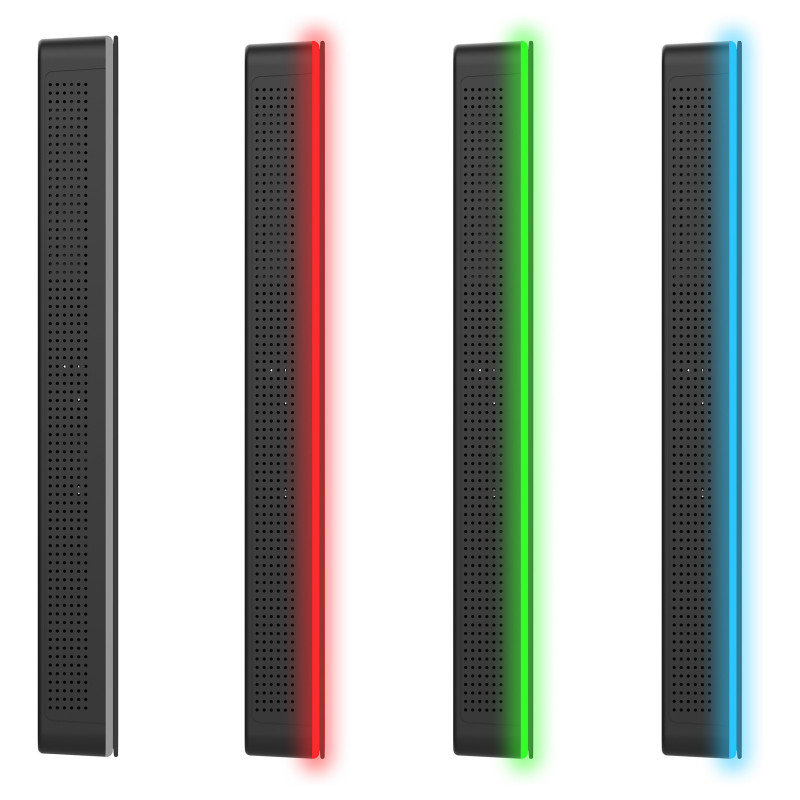

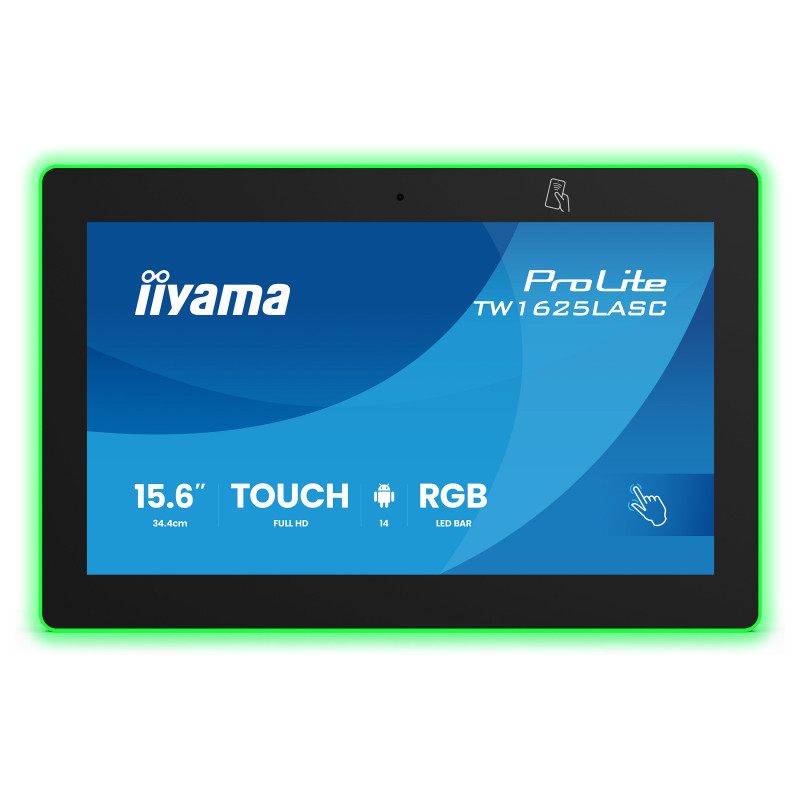

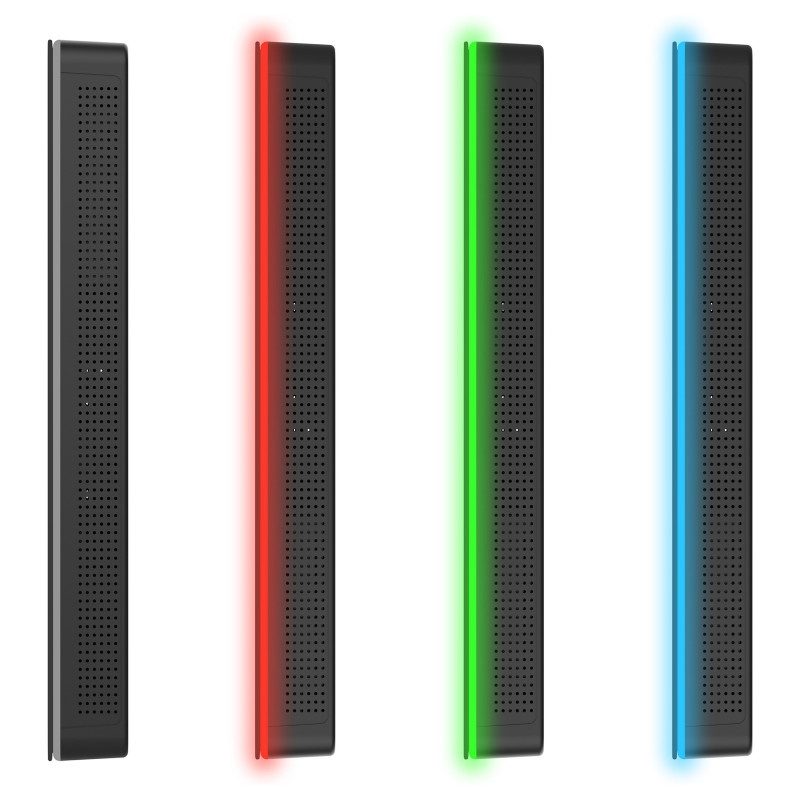

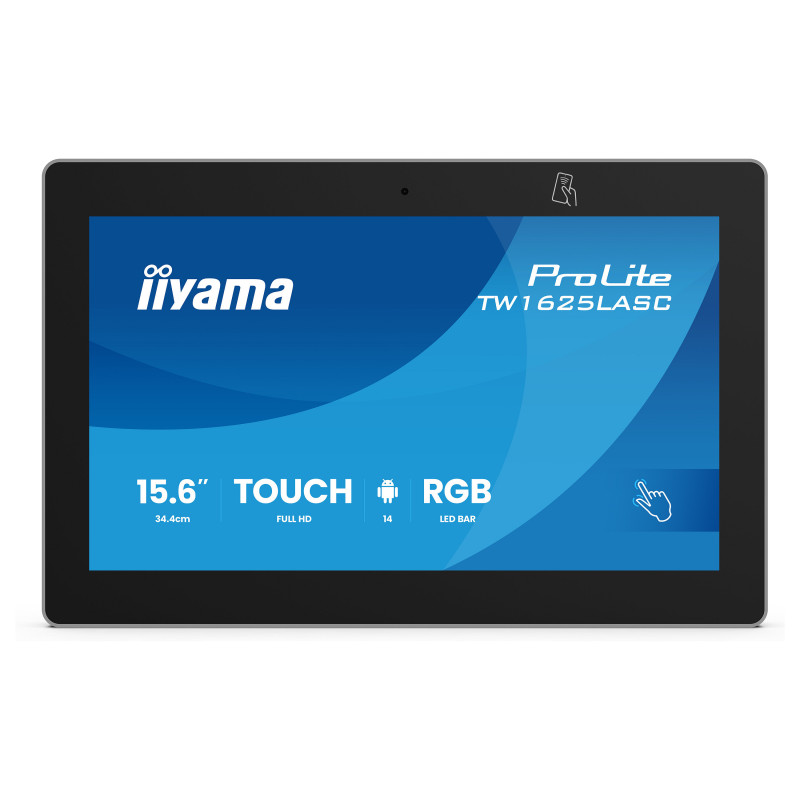

The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. The integrated NFC/RFID reader enables contactless interaction with compatible tags or devices - ideal for quick check-in to rooms, employee authentication or triggering automated actions such as starting a presentation. The RGB LED bar integrated into the bezel shows the availability of rooms at a glance. With a built-in 5MP camera, microphone, and speakers, the TW1625LASC-B3PNR delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage2 , iiyama's Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
Display technology: LED
Feature: LED backlight
Pixel pitch: 0.1792 x 0.1792 mm
Response time: 20 ms
Display brightness: 390 cd/m²
Contrast ratio (typical): 1000:1
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Feature: Fingerprint resistant

Design

Housing colour: Black

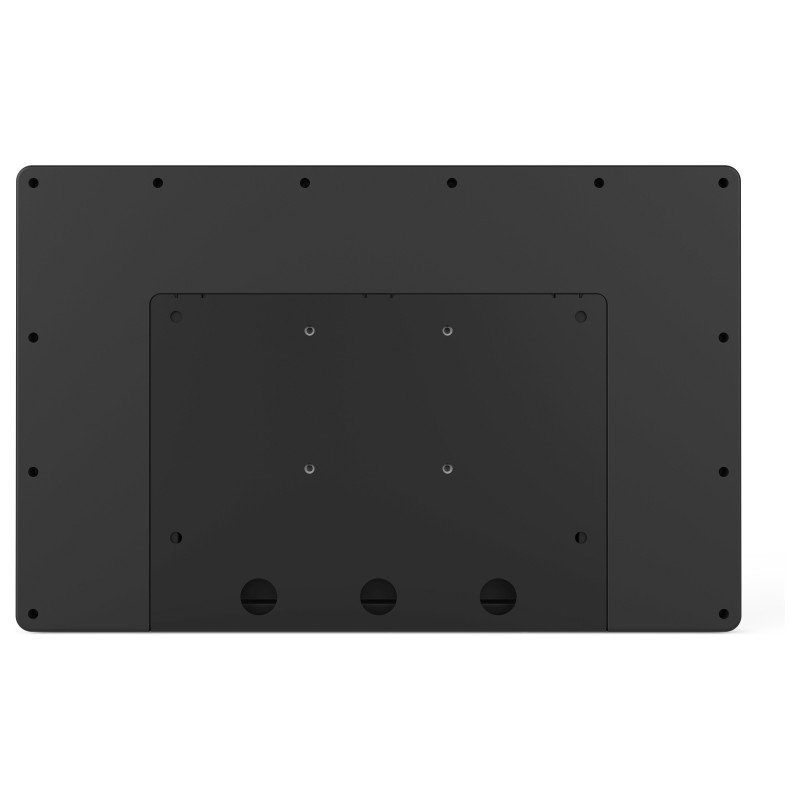

Feature: VESA mounting

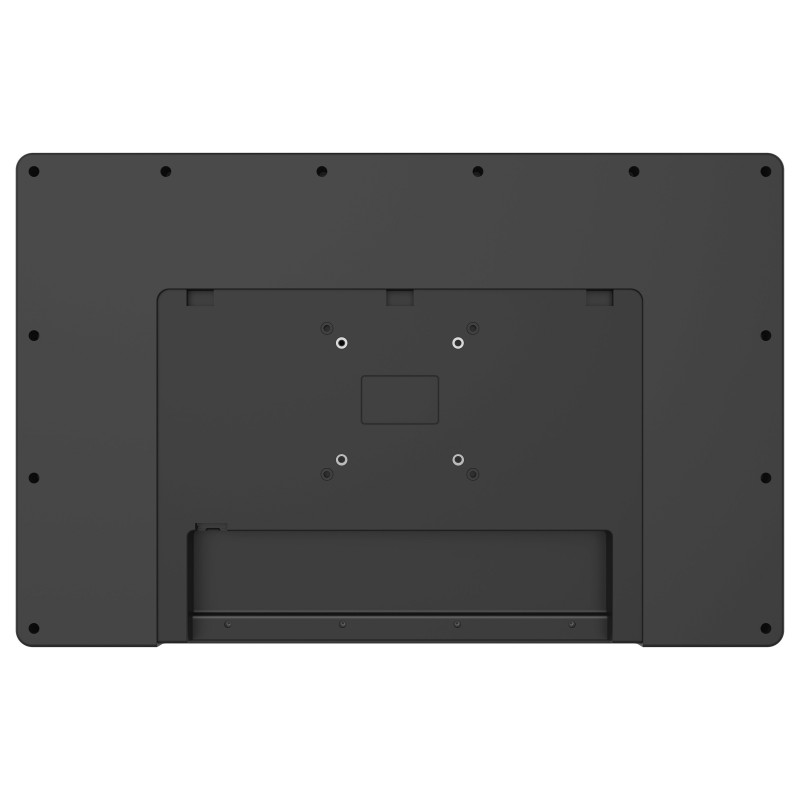

Panel mounting interface: 75 x 75 mm
Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Performance

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Rockchip
Processor cores: 8
Operating system installed: Android

Audio

Feature: Built-in speaker(s)
Number of speakers: 2

Camera

Feature: Built-in camera

Network

Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Feature: Bluetooth
Bluetooth version: 5.3
Feature: Ethernet LAN

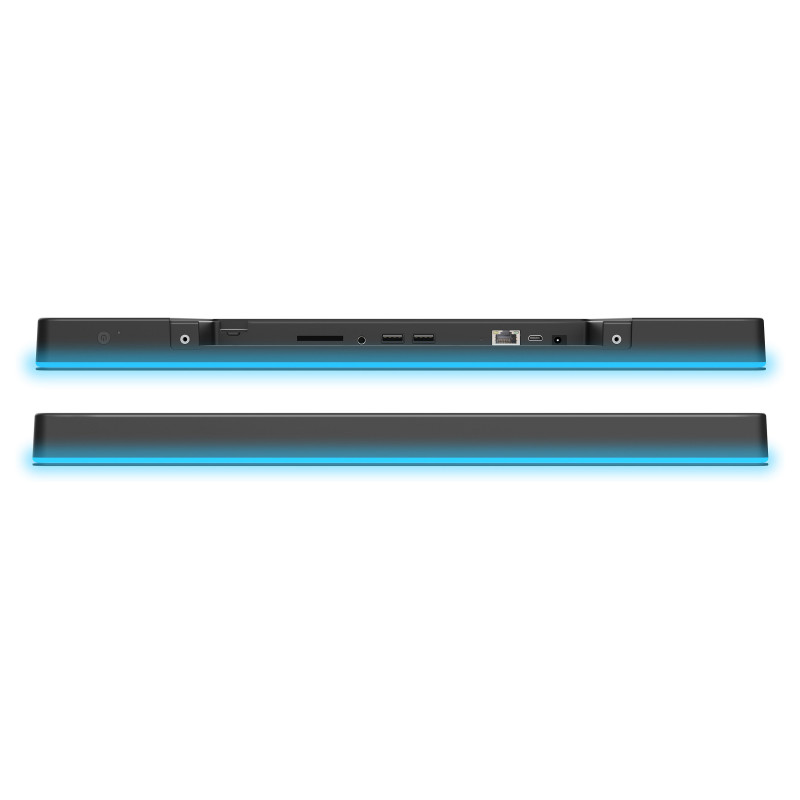

Ports & interfaces

Feature: USB port

Weight & dimensions

Width: 397 mm
Depth: 28.5 mm
Height: 256 mm
Weight: 2 kg

Packaging data

Package width: 495 mm
Package depth: 75 mm
Package height: 305 mm
Package weight: 3 kg

Packaging content

Feature: Quick start guide

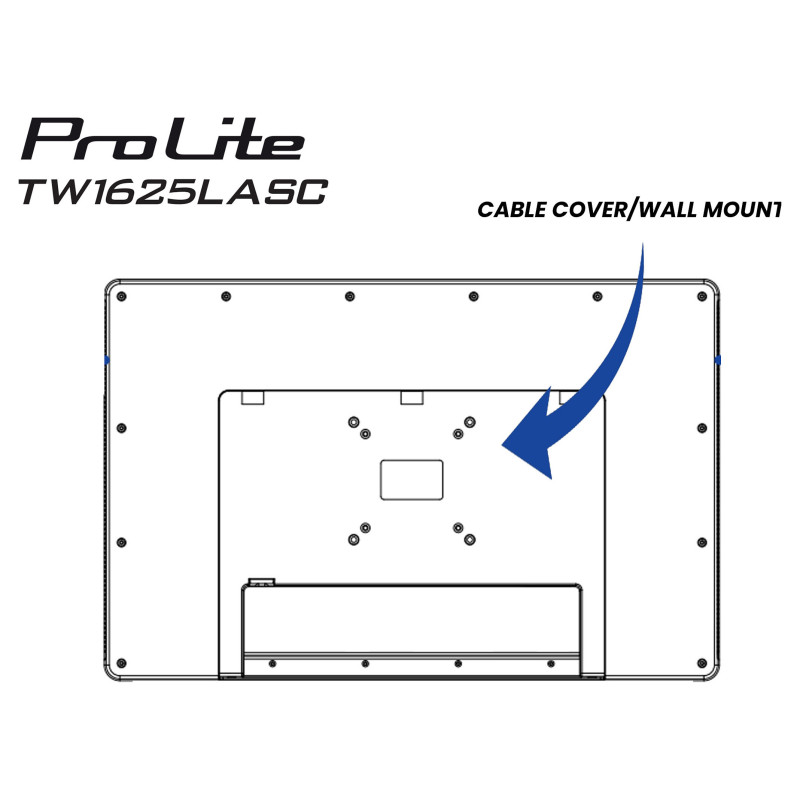

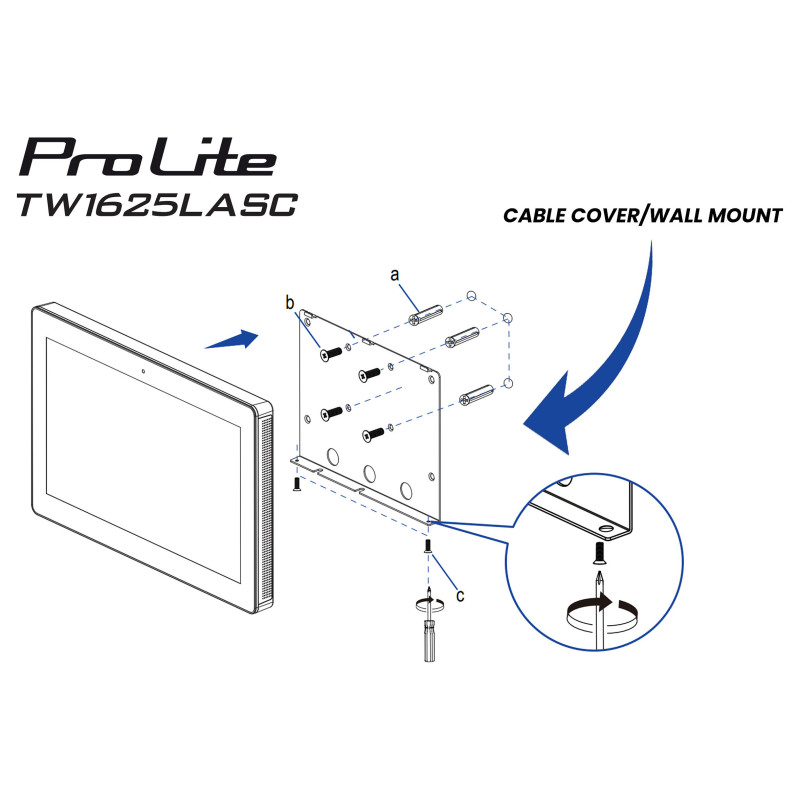

Packaging content: AC adapter, interchangeable plugs (EU/UK), cable cover/wall mount

Sustainability

Sustainability certificates: ErP

Technical details

Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
