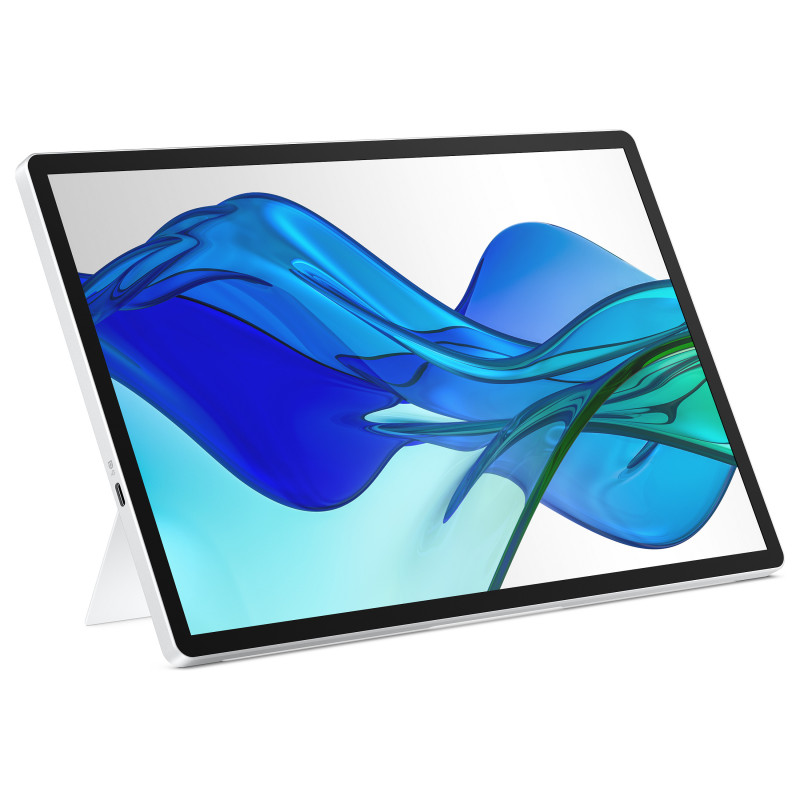

HP Series 5 Pro WQXGA Portable Monitor - 514pn computer monitor

HP Series 5 Pro 14 inch WQXGA Portable Monitor - 514pn. Display diagonal: 35.6 cm (14"), Display resolution: 2560 x 1600 pixels, HD type: WQXGA, Display technology: LCD, Display surface: Matt, Response time: 7 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Product colour: Silver

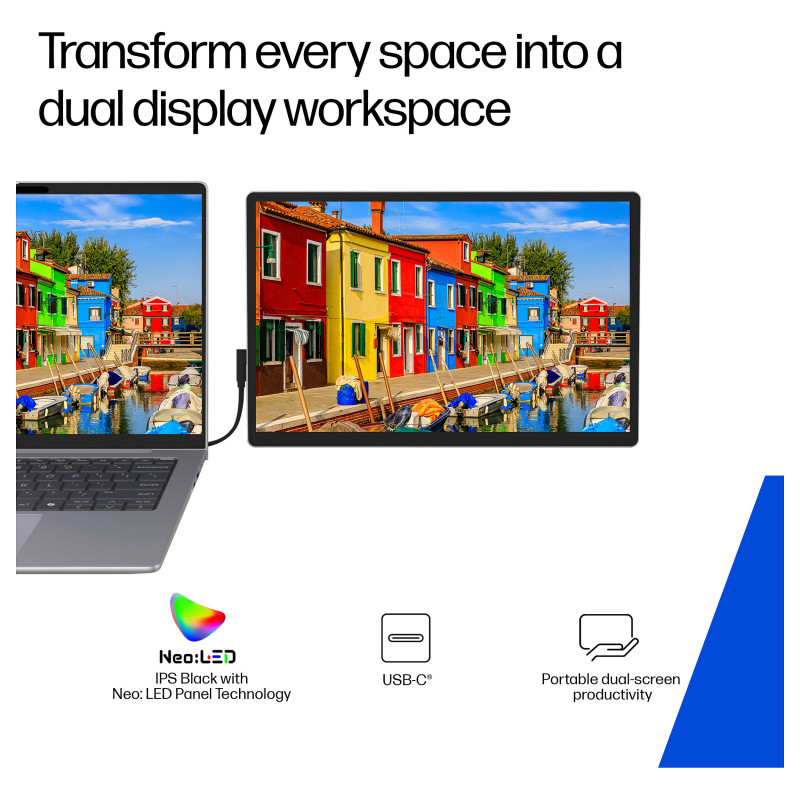

Transform every space into a dual display workspace
Take your dual screen setup anywhere and stay productive on the go without sacrificing picture quality with the HP Series 5 Pro 14" Portable Monitor. Breakthrough Neo:LED delivers stunning visuals in a feather-light frame to fit any space, making it the perfect sidekick for your notebook.

Display

Display diagonal: 35.6 cm (14")
Display resolution: 2560 x 1600 pixels
HD type: WQXGA
Native aspect ratio: 16:10
Display technology: LCD
Panel type: IPS Black
Feature: LED backlight
Backlight type: Edge LED
Display brightness (typical): 400 cd/m²
Display brightness: 400 cd/m²
Response time: 7 ms
Response time measurement type: GTG (Gray to Gray)
Display surface: Matt
Feature: Anti-glare screen
Screen shape: Flat
Aspect ratio: 16:10
Contrast ratio (typical): 2000:1
Contrast ratio (dynamic): 10000000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1178 x 0.1178 mm
Pixel density: 216 ppi
Horizontal scan range: 31 - 124 kHz
Vertical scan range: 50 - 75 Hz
Viewable size, horizontal: 30.1 cm
Viewable size, vertical: 18.8 cm
Display diagonal (metric): 35.6 cm
Haze rate: 25%
Surface hardness: 3H
Colour depth: 8 bit
Colour gamut standard: sRGB
Colour gamut: 100%
sRGB coverage (typical): 100%
Display bezel technology: Narrow Border

Performance

Feature: Fast charging
Feature: Flicker-free technology
Feature: Low Blue Light technology
HP segment: Business

Design

Market positioning: Business
Product colour: Silver
Colour name: Silver
Feet colour: Silver

Ports & interfaces

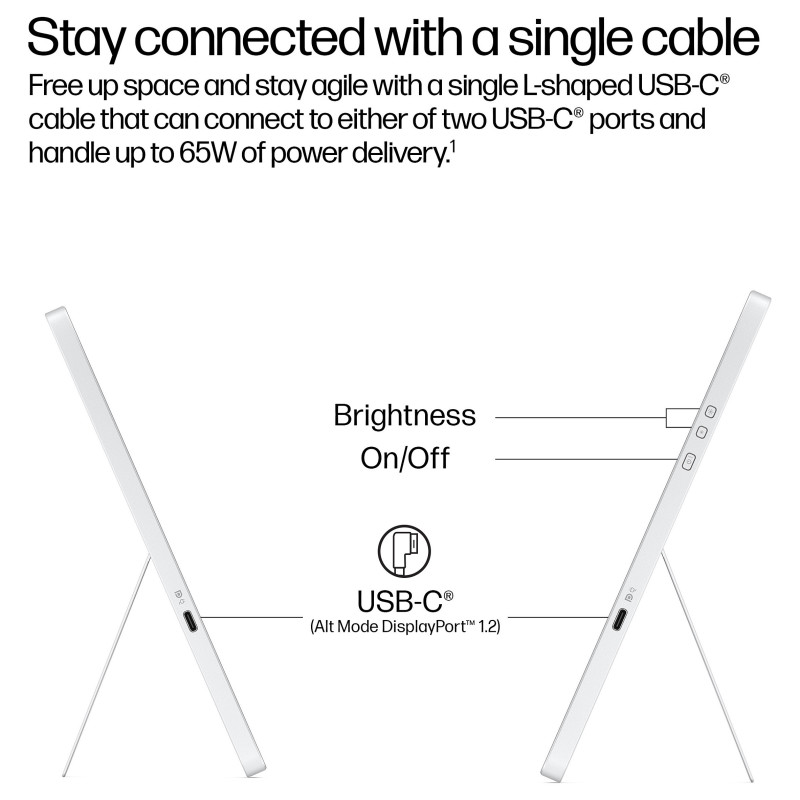

USB Type-C downstream ports quantity: 2
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 65 W
Feature: HDCP

Ergonomics

Feature: Tilt adjustment
Tilt angle range: 18.8 - 46.2°
Feature: On Screen Display (OSD)

Power

Energy efficiency class (SDR): B
Energy efficiency class (HDR): B
Energy consumption (SDR) per 1000 hours: 5.6 kWh
Power consumption (typical): 7 W
Power consumption (standby): 0.5 W
Power consumption (max): 13 W
Power consumption (off): 0.3 W
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 5000 m
Non-operating altitude: 0 - 12192 m

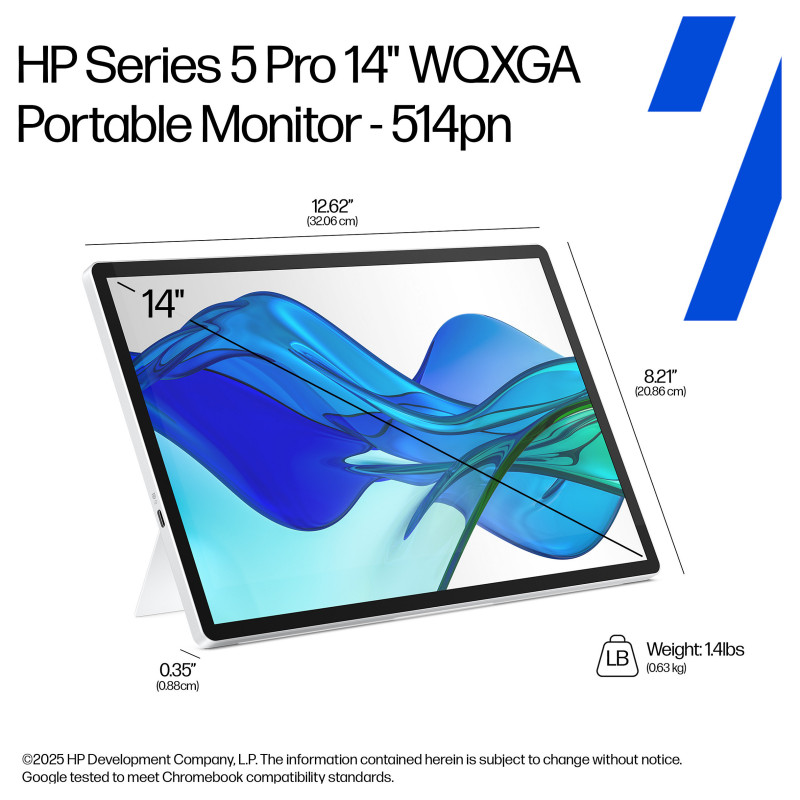

Weight & dimensions

Width (with stand): 320.6 mm
Depth (with stand): 8.8 mm
Height (with stand): 208.6 mm
Weight (with stand): 630 g

Packaging data

Package width: 398 mm
Package depth: 60 mm
Package height: 278 mm
Package weight: 1.27 kg
Package type: Box
Feature: Warranty card

Packaging content

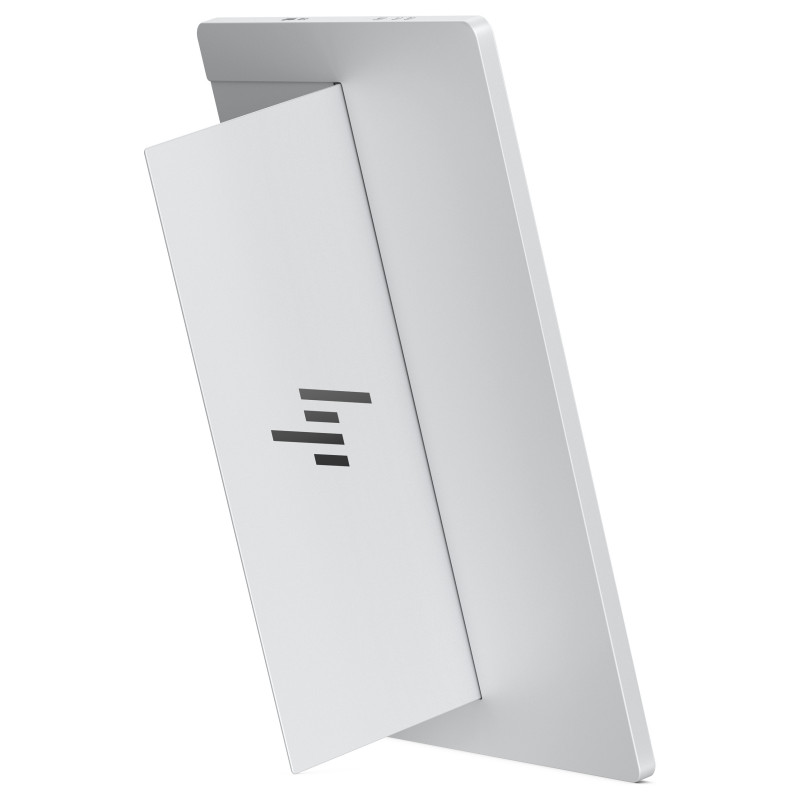

Feature: Stand included
Cables included: USB Type-C to USB Type-C
Feature: Quick start guide
Bundled software: HP Display Center; HP Client Management Script Library

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT

Carbon footprint

Total carbon footprint (kg of CO2e): 200
Carbon emissions, manufacturing (kg of CO2e): 156
Carbon emissions, logistics (kg of CO2e): 3
Carbon emissions, end-of-life (kg of CO2e): 2
Total carbon emissions, w/o use phase (kg of CO2e): 36

Other features

Country of origin: China, Vietnam
UNSPSC-code: 43211902
Packaging content: Monitor; Warranty card; Quick Setup Poster; 1 USB Type-C to Type-C cable; Hard screen cover
Weight: 630 g
Compliance certificates: CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Manufacturer warranty: HP three-year limited warranty
Supplied AC adapter type: 198990467832
Certification: BIS; BSMI; CB; CCC; CE; cTUVus; EAC; FCC; ISO 9241-307; KC; KCC; NOM; TUV/GS; VCCI; Vietnam MEPS; WEEE; ISC; ICE; UAE; NRCS

Technical details

General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
