HP Series 5 Pro 24 inch WUXGA Monitor - 524pn computer monitor

HP Series 5 Pro 24 inch WUXGA Monitor - 524pn. Display diagonal: 61 cm (24"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

Reimagine what work looks like
Get more out of your workday with the HP Series 5 Pro 24" WUXGA Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.

Display

Display diagonal: 61 cm (24")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Native aspect ratio: 16:10
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: Edge LED
Display brightness (typical): 350 cd/m²
Display brightness: 350 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Display surface: Matt
Feature: Anti-glare screen
Screen shape: Flat
Aspect ratio: 16:10
Contrast ratio (typical): 1500:1
Contrast ratio (dynamic): 10000000:1
Maximum refresh rate: 100 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.27 x 0.27 mm
Pixel density: 94 ppi
Horizontal scan range: 30 - 130 kHz
Vertical scan range: 50 - 100 Hz
Viewable size, horizontal: 51.8 cm
Viewable size, vertical: 32.4 cm
Display diagonal (metric): 61 cm
Haze rate: 25%
Surface hardness: 3H
Colour depth: 8 bit
Colour gamut standard: sRGB
Colour gamut: 100%
sRGB coverage (typical): 100%
Display bezel technology: Micro-Edge

Performance

Feature: Flicker-free technology
Feature: Low Blue Light technology
HP segment: Business

Design

Market positioning: Business
Product colour: Black
Colour name: Jet black
Feet colour: Silver, Black

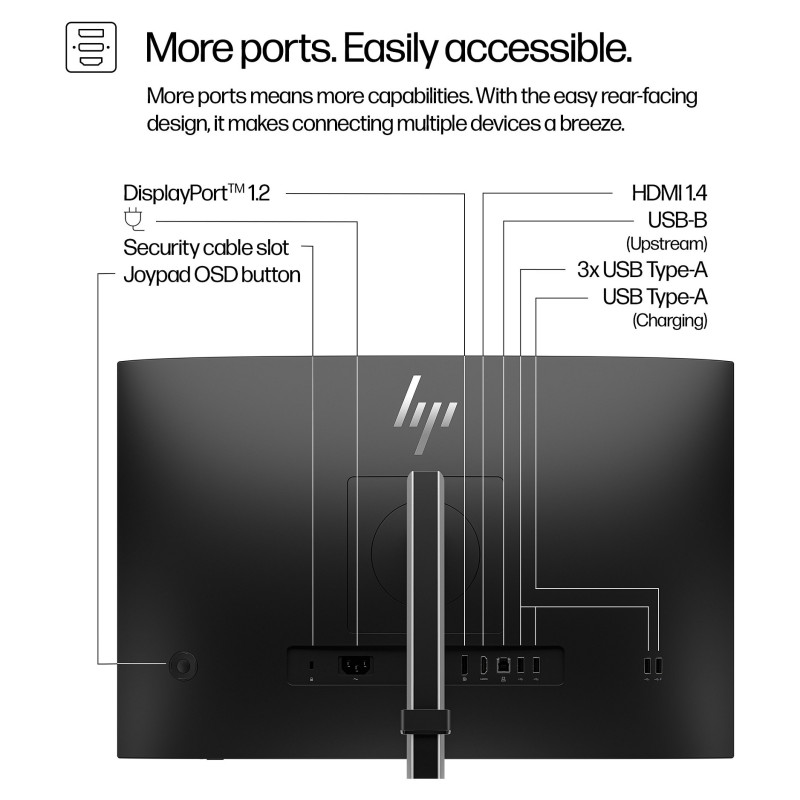

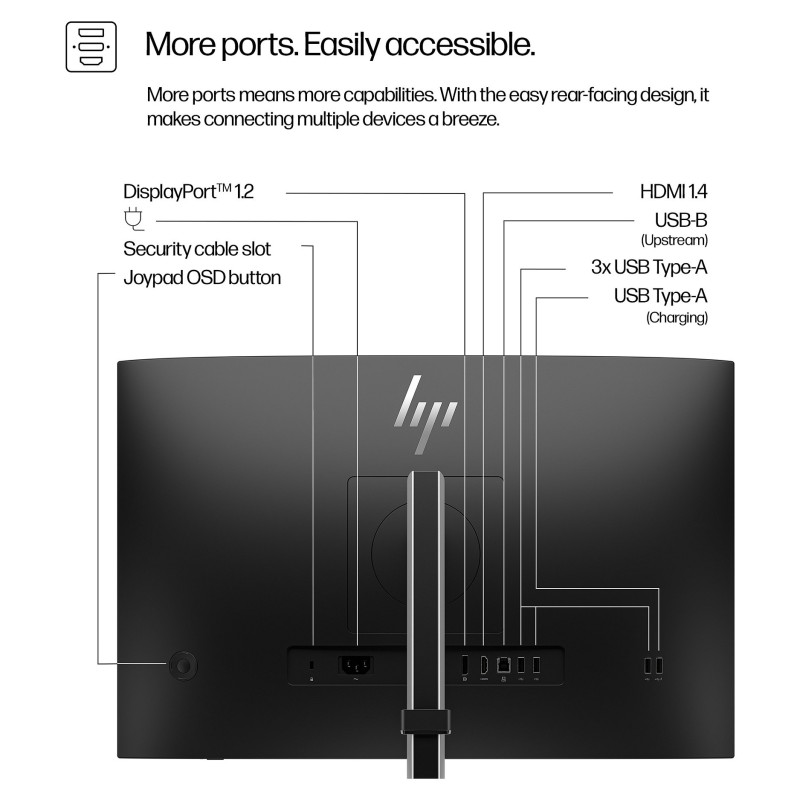

Ports & interfaces

Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort out version: 1.2
DisplayPort version: 1.2
Feature: HDCP

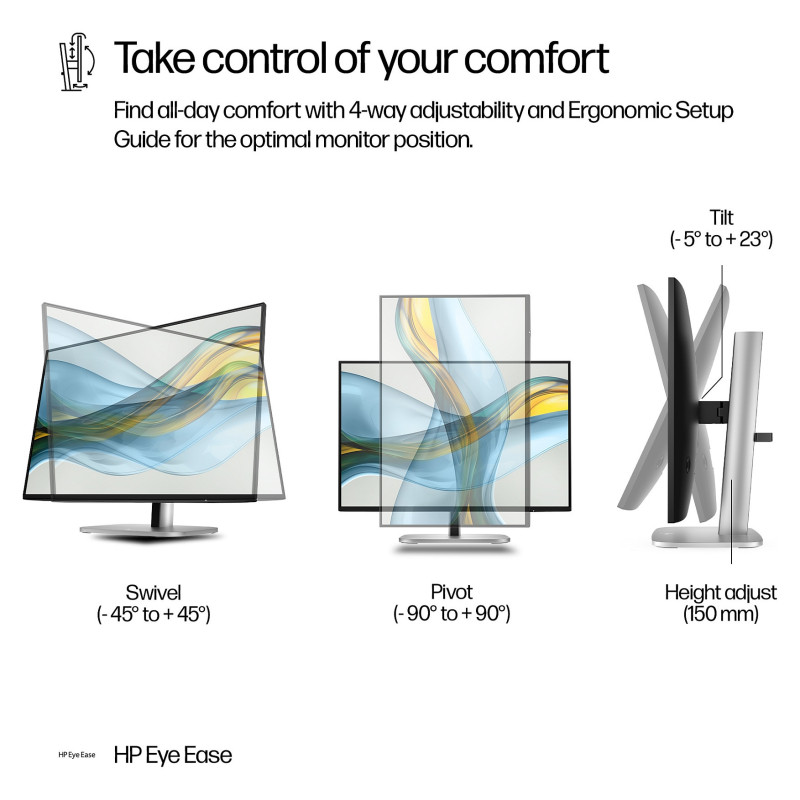

Ergonomics

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot

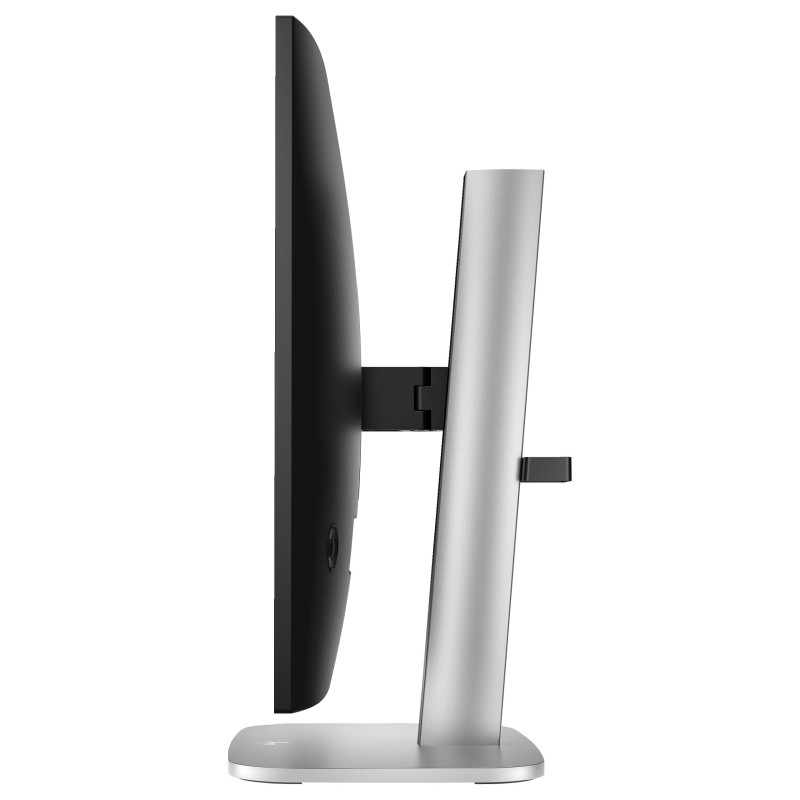

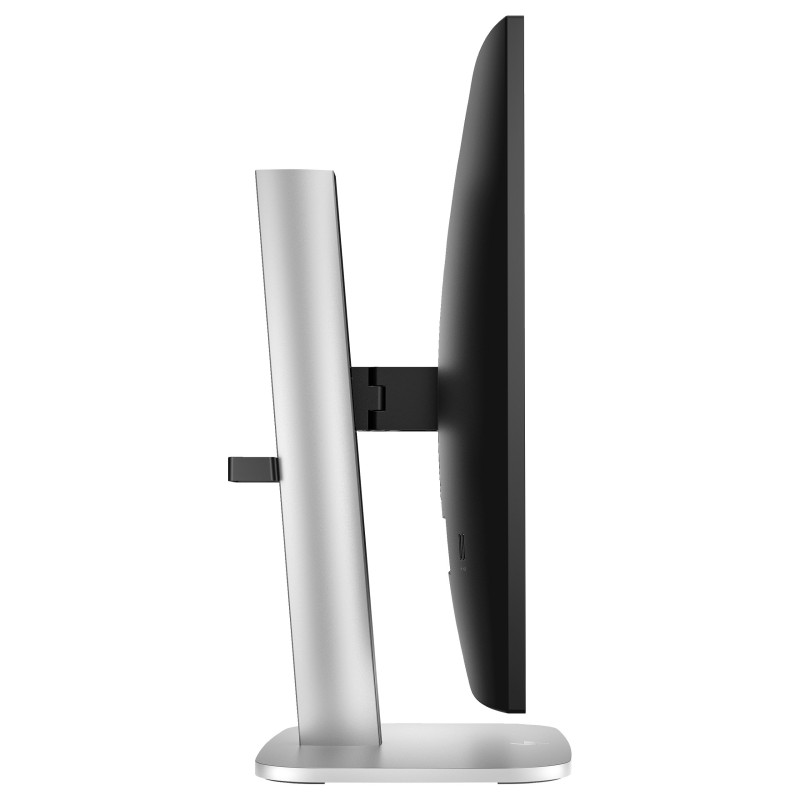

Feature: Height adjustment
Adjustable height (max): 15 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: -45 - 45°
Feature: Tilt adjustment
Tilt angle range: -5 - 23°
Feature: On Screen Display (OSD)

Power

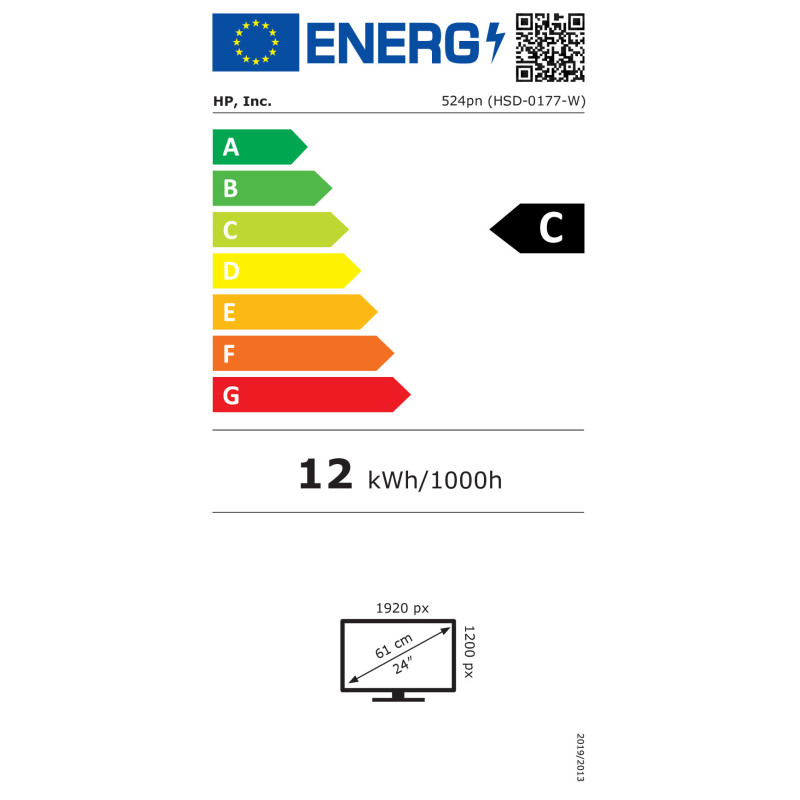

Energy efficiency class (SDR): C
Energy efficiency class (HDR): C
Energy consumption (SDR) per 1000 hours: 12 kWh
Power consumption (typical): 22 W
Power consumption (standby): 0.5 W
Power consumption (max): 58 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 5000 m
Non-operating altitude: 0 - 12192 m

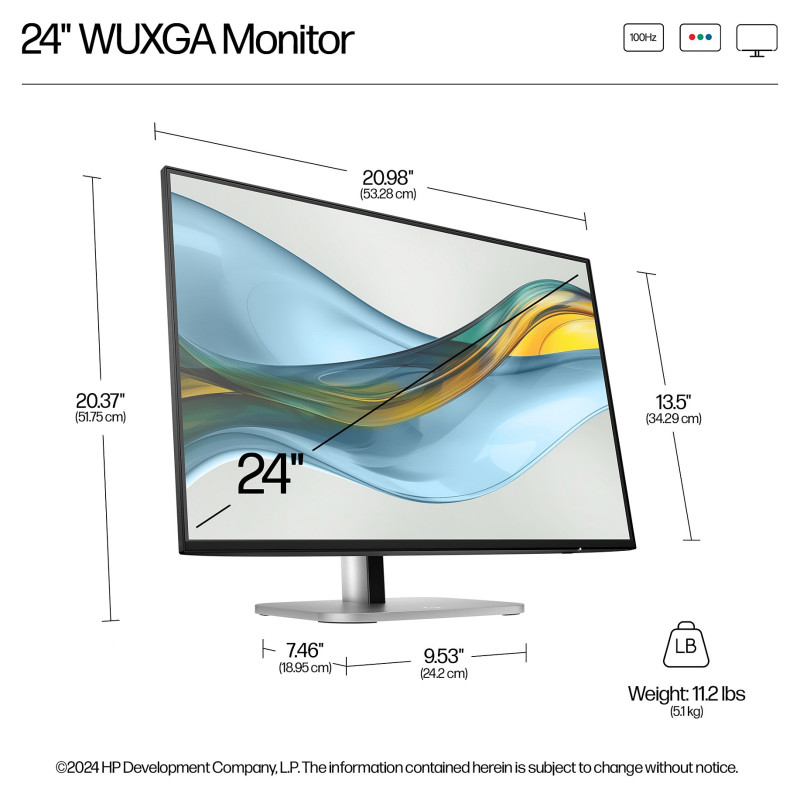

Weight & dimensions

Width (with stand): 532.8 mm
Depth (with stand): 189.5 mm
Height (with stand): 517.5 mm
Weight (with stand): 5.1 kg
Width (without stand): 532.8 mm
Depth (without stand): 47 mm
Height (without stand): 342.9 mm

Packaging data

Package width: 621 mm
Package depth: 140 mm
Package height: 411 mm
Package weight: 7.4 kg
Package type: Box
Feature: Warranty card

Packaging content

Cables included: HDMI, DisplayPort, USB Type-A to USB Type-B, AC
Feature: Quick start guide
Bundled software: HP Display Center; HP Client Management Script Library

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT, TCO

Other features

Country of origin: China, Vietnam
UNSPSC-code: 43211902
Packaging content: Monitor; DisplayPort™ cable; HDMI cable; Warranty card; USB Type-B to A cable; Quick Setup Poster; AC power cord
Weight: 5.1 kg
Compliance certificates: CECP, GS mark, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Manufacturer warranty: HP three-year limited warranty
Supplied AC adapter type: (ABB) 197961404999; (ABU) 197961405026, 197961404999, 197961405026

Technical details

General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
