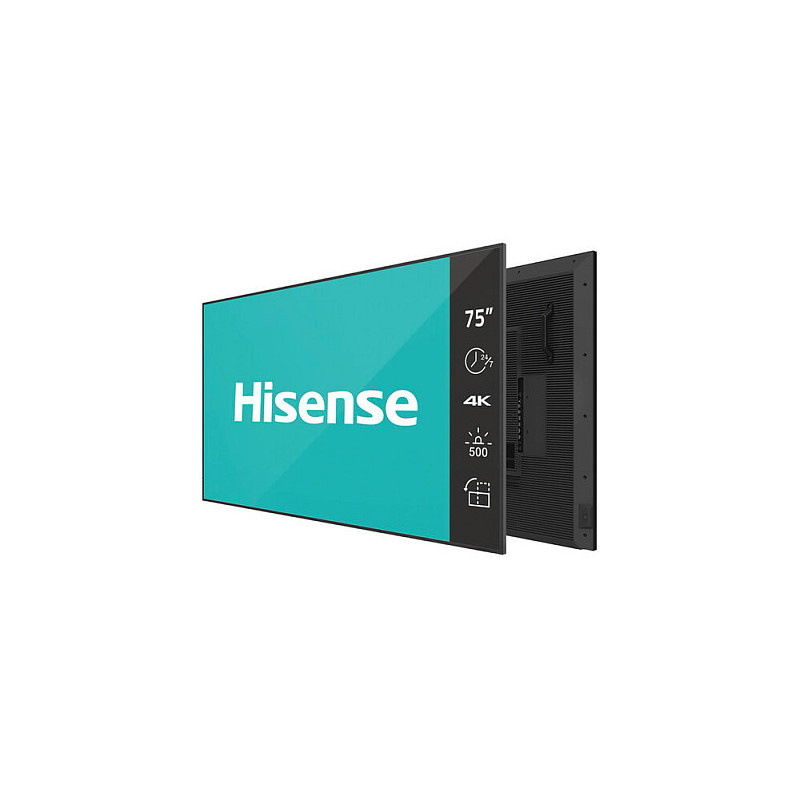

Hisense 75DM66D Signage Display

Hisense 75DM66D. Display diagonal: 190.5 cm (75"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by conecting a series of displays to a single video output.

Smart Power

A built-in ambient light sensor automatically adjusts the screen brightness according to current light conditions. This display is Energy Star certified to help you protect the environment and save costs.

Wireless Screen Sharing

Everthing you need for screen sharing solutions. ScreenShare is a in house built-in screen sharing application that enables the screen sharing wirelessly and seemlessly from anywhere and from any devices.

Mobile Device Management

VisionInfo is a cloud-based device managemet software that offers end-to-end device management and control through all devices. It is a powerful, effective and easy to use tool to control your devices at anytime from anywhere.

Conformal Coating

Electronic components are completely protected from the environmental factors like moisture, dust, salt, chemicals, temperature changes and mechanical abrasion.

Clean Cable Solution

The integrated cable holder hides cables and keeps the back of the display tidy and uncluttered. This reduces visual distractions that can get in the way of your viewing experience.

Anti-glare Coating

All displays offer higher haze panels that help reduce reflections without adversley affecting the image quality. Anti-glare coatings can also improve the perceived contrast of the display.

Narrow Bezel

With a narrow bezel and symmetrical design, the display can be easily integrated into any environment. All terminals face outwards, ensuring the display hangs flush against the wall which saves space and facilitates installation.

Android 11

Android 11 works to keep your data safe and secure. With Android 11, you have more control over what information apps can and can't access. Devices that work better together, enhance your messaging, audio and multitasking experiences.

Quick Installation and Easy Maintenance

Full front installation, maintenance, save the installation space. Also supporting multiple installations, wall-mounting, hanging, which can meet the demands of various environments.

Display

Panel type: ADS
LED backlighting type: Direct-LED
Display diagonal: 190.5 cm (75")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display diagonal (metric): 189 cm
Rated lifetime: 50000 h
Native refresh rate: 60 Hz
Haze rate: 25%

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 2
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPorts in: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A
USB 2.0 Type-B ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm

Performance

Purpose: Commercial
On Screen Display (OSD) languages: Arabic, Simplified Chinese, German, English, Spanish, French, Indonesian, Italian, Norwegian, Polish, Russian, Swedish, Thai
Operating hours (hours/days): 24/7
International Protection (IP) code: IP5X

Power

Power consumption (typical): 175 W
Power consumption (standby): 0.2 W
Power consumption (max): 265 W

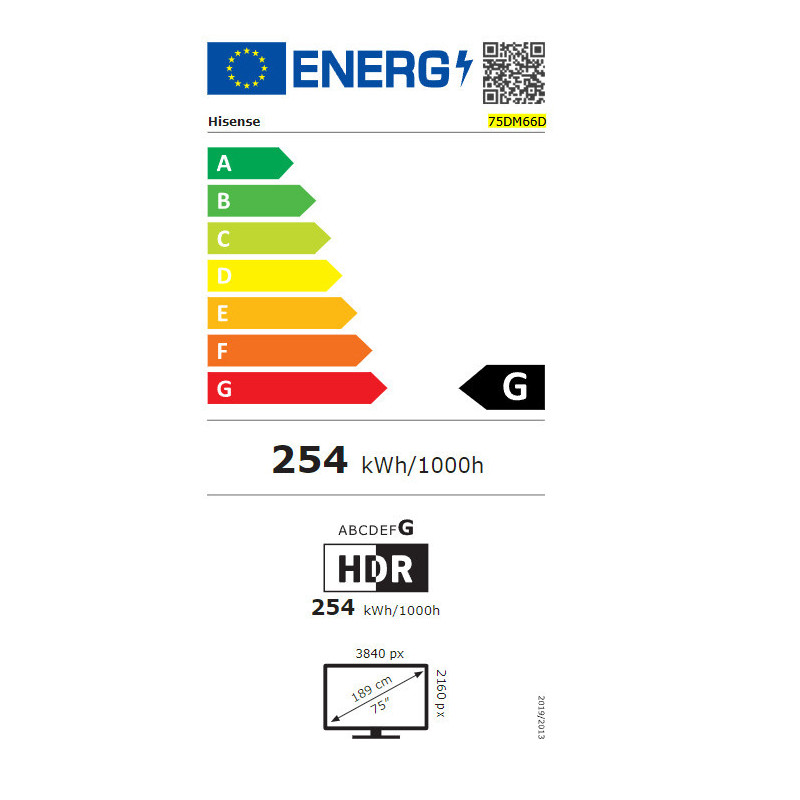

Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 253.8 kWh
Energy consumption (HDR) per 1000 hours: 254.2 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A55
Processor cores: 4
Internal memory: 3 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11

Weight & dimensions

Display width: 1675.3 mm
Display depth: 63.7 mm
Display height: 955.1 mm
Display weight: 29 kg

Packaging data

Package width: 1850 mm
Package depth: 211 mm
Package height: 1150 mm
Package weight: 41.6 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Feature: Power adapter included
Cables included: RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Certificates

Certification: CCC/CB/CE/FCC/cTUVus/UKCA/CEC/ERP

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Technical details

Sustainability certificates: ENERGY STAR

Other features

Power supply type: Internal
