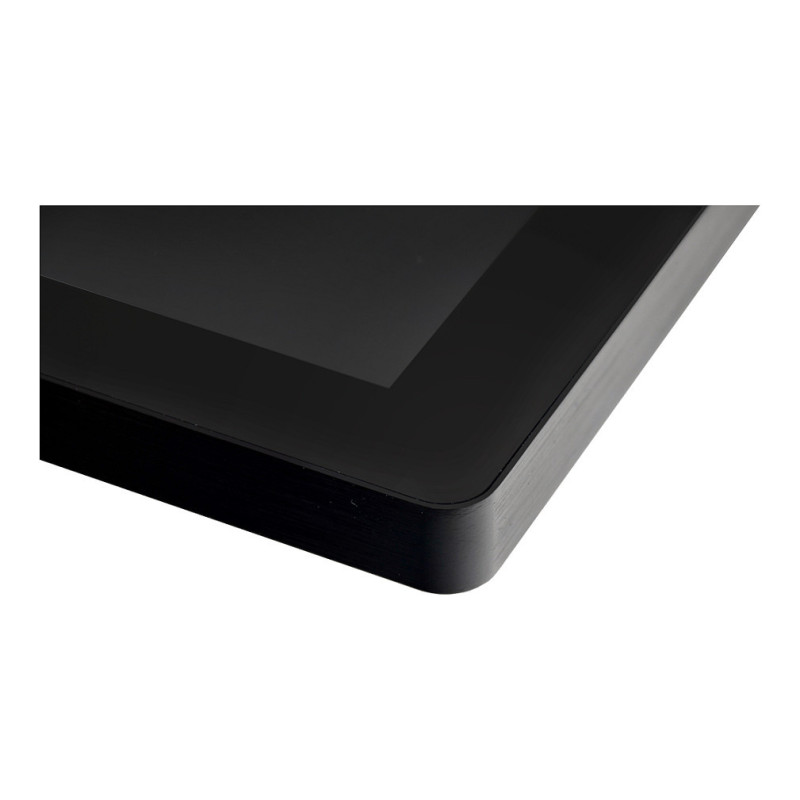

Hannspree Open Frame HO 225 HTB

Hannspree Open Frame HO 225 HTB. Product design: Totem design. Display diagonal: 54.6 cm (21.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black

- 1920 x 1080 WUXGA Resolution Full HD 1080p

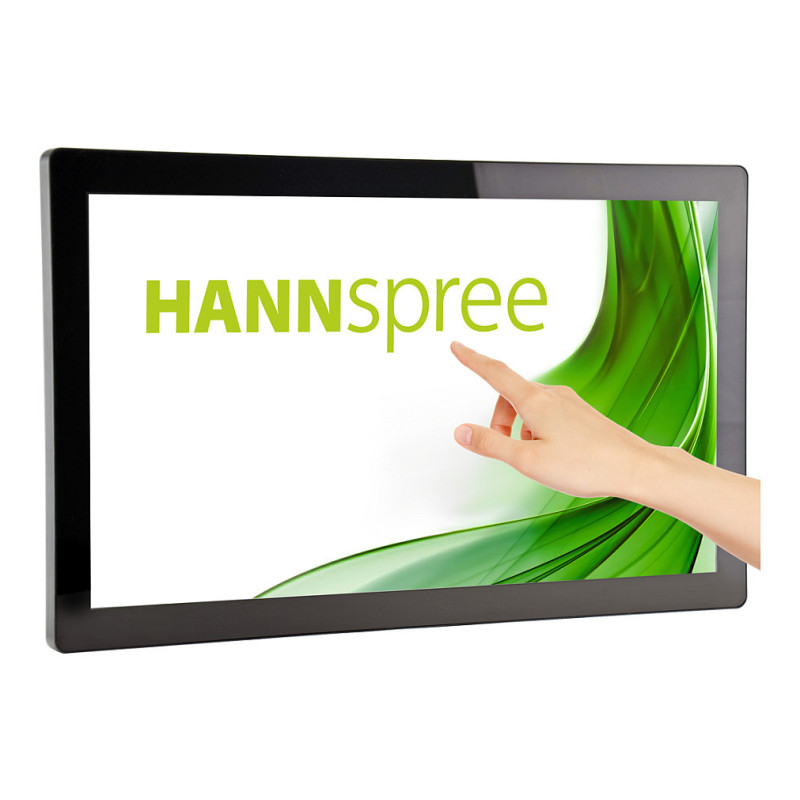

- 10-Point Touch P-Cap Technology
- 178° / 178° Ultra Wide Viewing Angle
- Tripple Input; HDMI + DVI-D + VGA
- High Contrast Ratio 3000:1
- 300cd/m2 High Brightness
- 24/7 Operating
- 50000 Hours Backlight Lifetime
- 12 Volt External Power Supply
- Multiple Mounting Options
- 7H Toughened Hard Panel Surface
- Low Power Consumption & Multi-Video Modes
- Slim Profile with Narrow Edges

Open Frame solutions for the amusement and entertainment sectors in a variety of sizes.

With the support of highly experienced, vertical manufacturing capabilities, our Open Frame monitor business is designed to provide a cost effective, "one stop solution" for project requirements. We already supply Open Frame solutions for a number of large gaming tenders
across Europe.

Choose from standard or touch screen high performance displays ranging from 19" up to 27" and the right aspect ratio to best fit your application.

Offering a completely flexible, personal service HannsG by Hannspree delivers customised solutions to fulfil the specific demands of both OEMs and System Integrators.

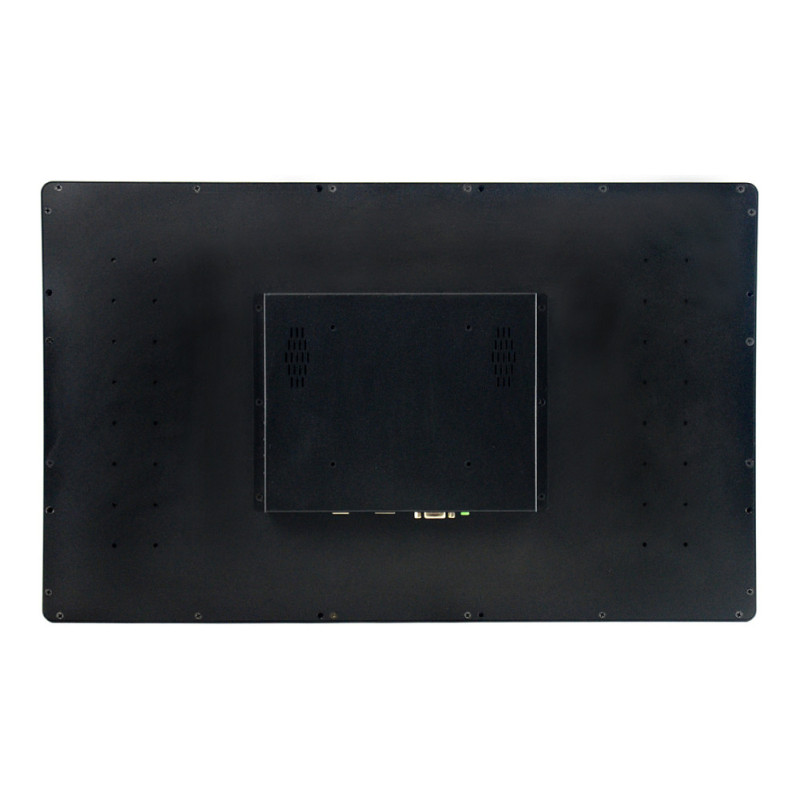

Our display supports rear and VESA mount for multiple mounting options and together with integrated brackets provides the benefits of easy installation, and flexibility for different applications.

Display

Display diagonal: 54.6 cm (21.5")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
HD type: Full HD
Feature: Touchscreen
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 18 ms
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 10000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.24795 x 0.24795 mm
Active display area (W x H): 476 x 268 mm
Display diagonal (metric): 54.6 cm
Panel life: 30000 h
Horizontal scan range: 31.5 - 80 kHz
Vertical scan range: 60 - 75 Hz
Hardness: 6H
Transparency: 85%
Native refresh rate: 60 Hz

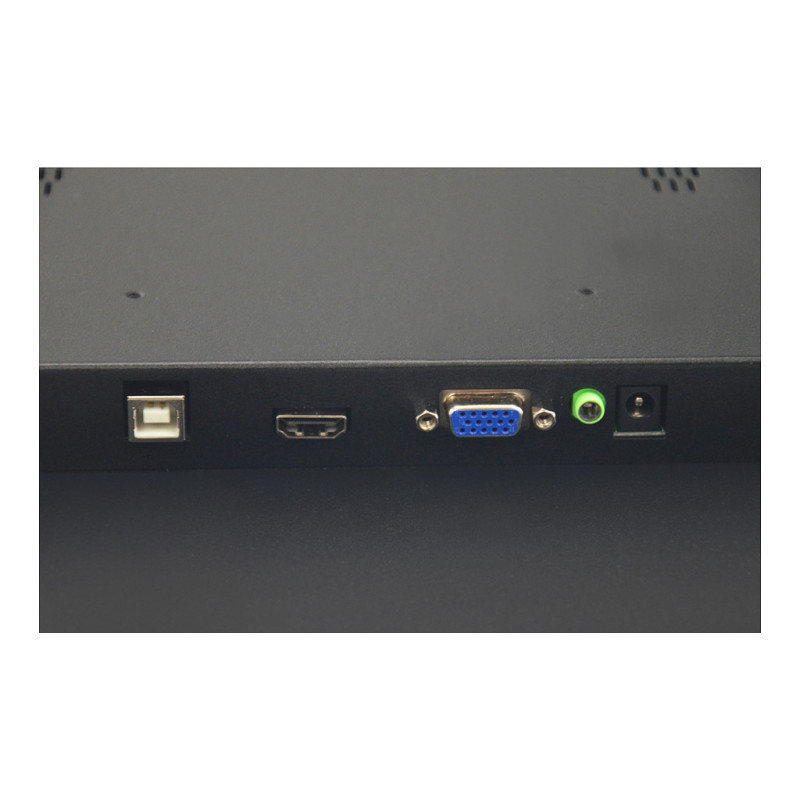

Ports & interfaces

HDMI ports quantity: 1
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 1
Feature: PC Audio in

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 3 W

Design

Product design: Totem design
Placement supported: Indoor
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

Performance

Feature: On Screen Display (OSD)
Number of OSD languages: 8
Operating hours (hours/days): 24/7
International Protection (IP) code: IP65

Power

Power consumption (typical): 13.94 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 20 kWh
Feature: External power adapter
Energy efficiency scale: A to G

Weight & dimensions

Display width: 526.8 mm
Display depth: 44 mm
Display height: 324.6 mm
Display weight: 5.1 kg

Packaging data

Package width: 603 mm
Package depth: 88 mm
Package height: 415 mm
Package weight: 6.3 kg

Packaging content

Cables included: AC, HDMI, USB
Feature: Warranty card

Certificates

Certification: CE

Logistics data

Harmonized System (HS) code: 85285210

Technical details

Sustainability certificates: RoHS
Compliance certificates: RoHS

Other features

Feature: Quick start guide
Feature: Glass protection
Power supply type: External
