Elo Touch Solutions E155645 Signage Display

Elo Touch Solutions E155645. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, HD type: Full HD, Touchscreen. Product colour: Black

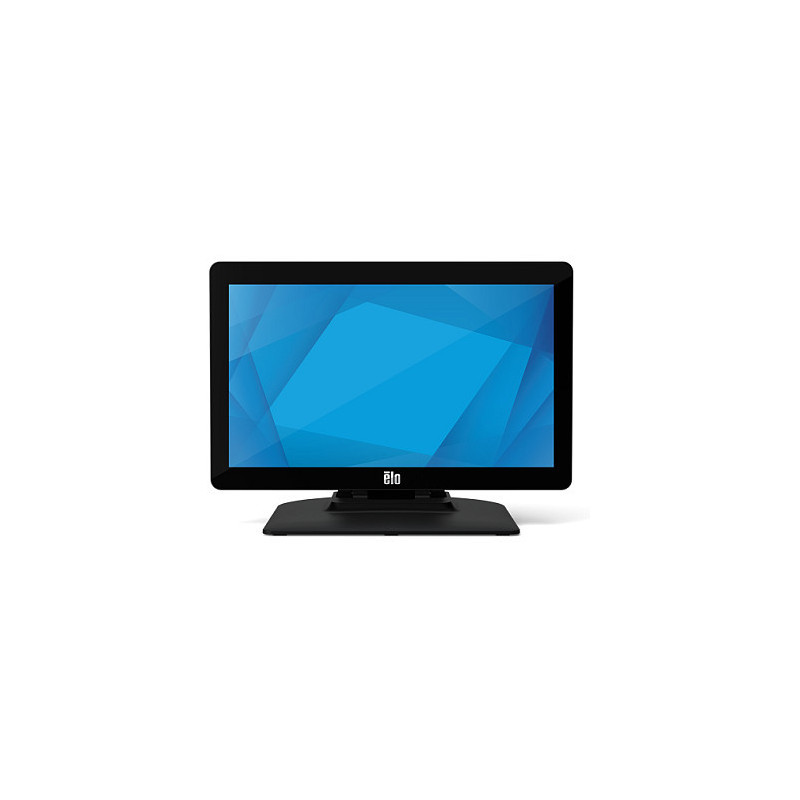

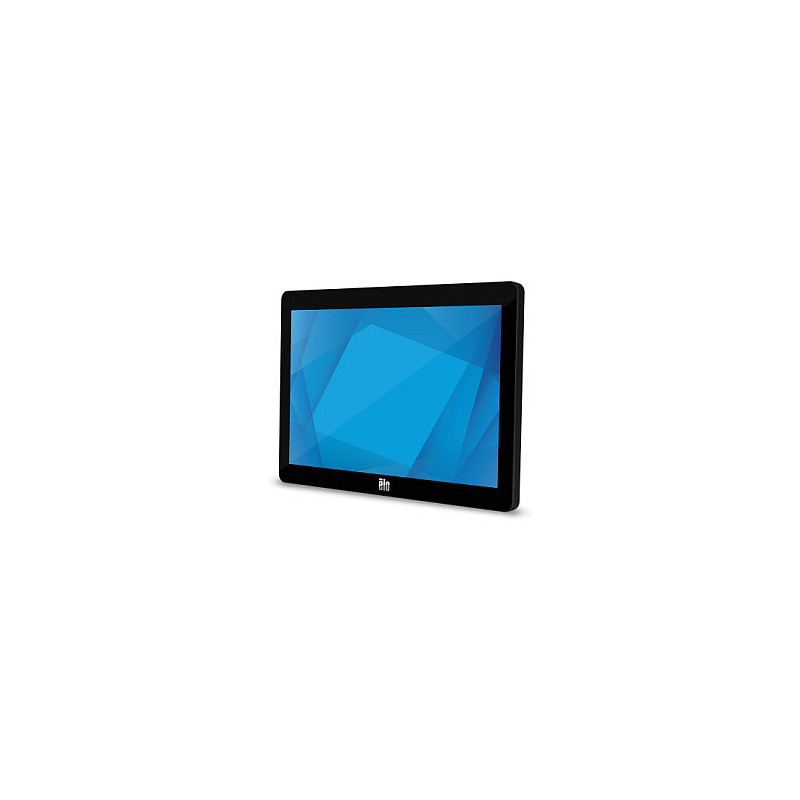

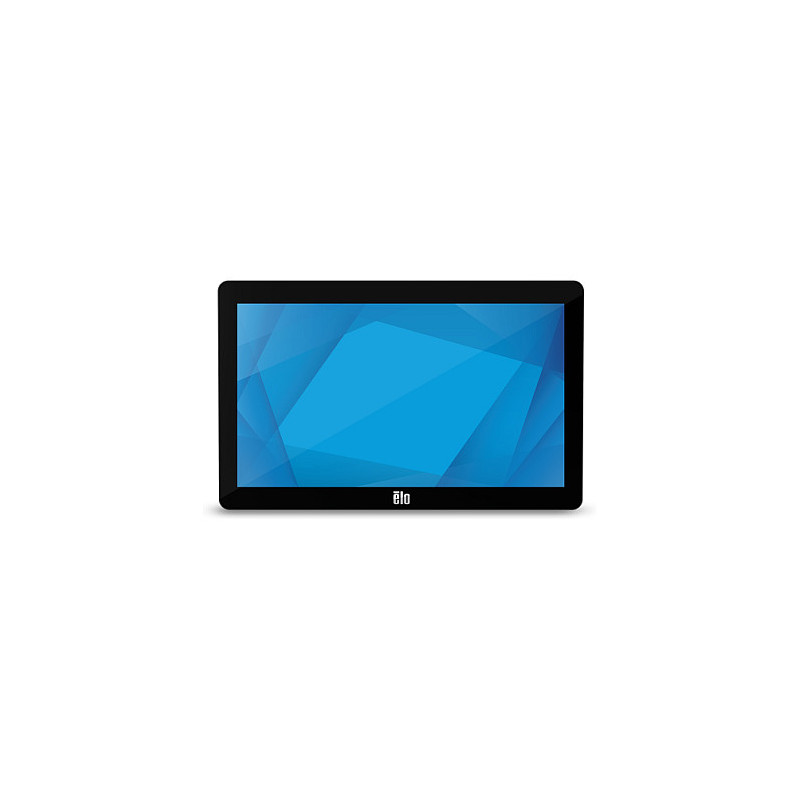

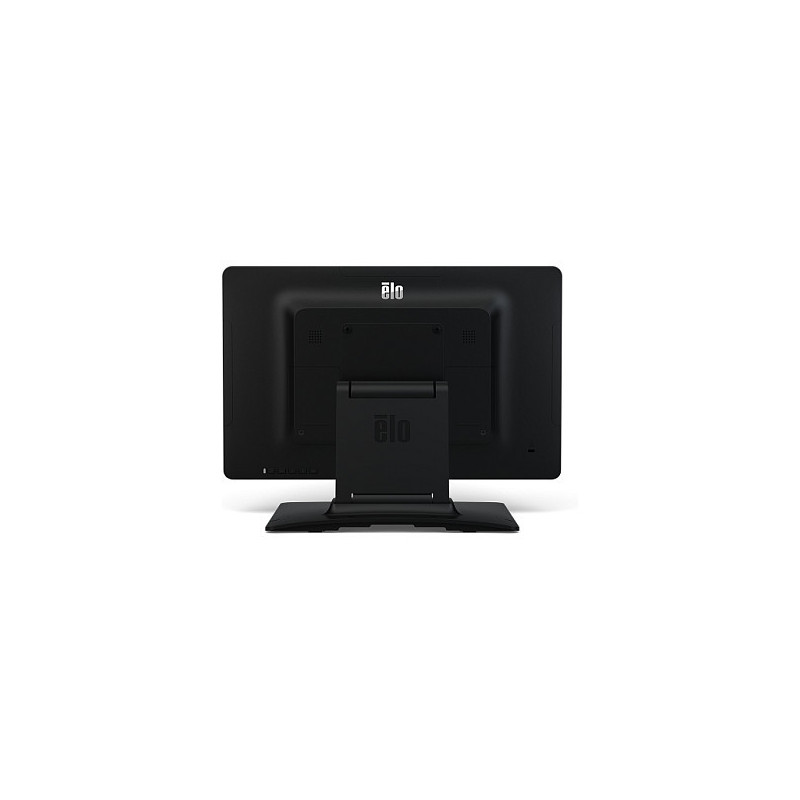

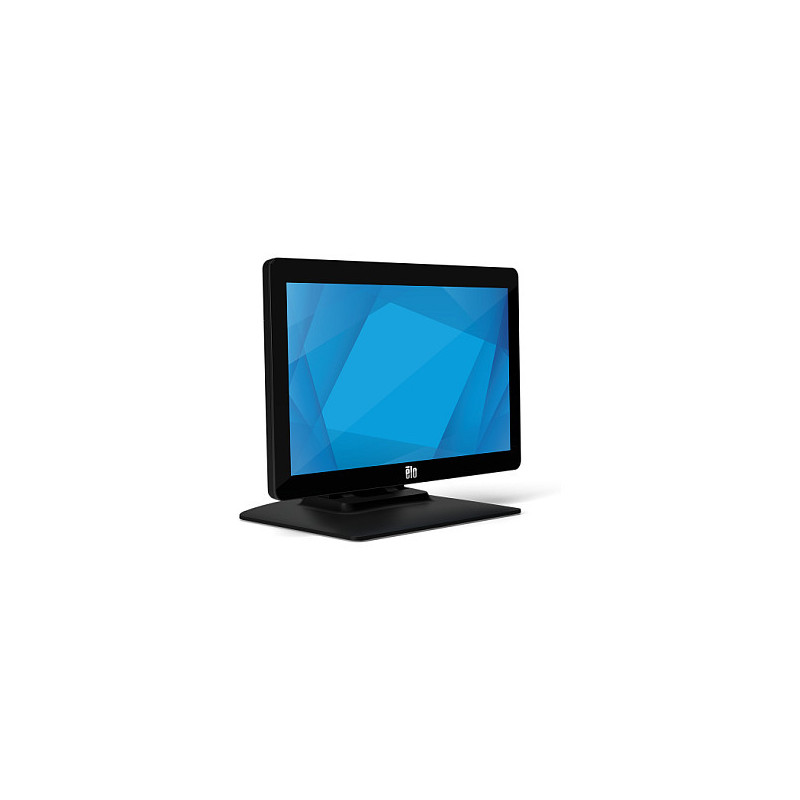

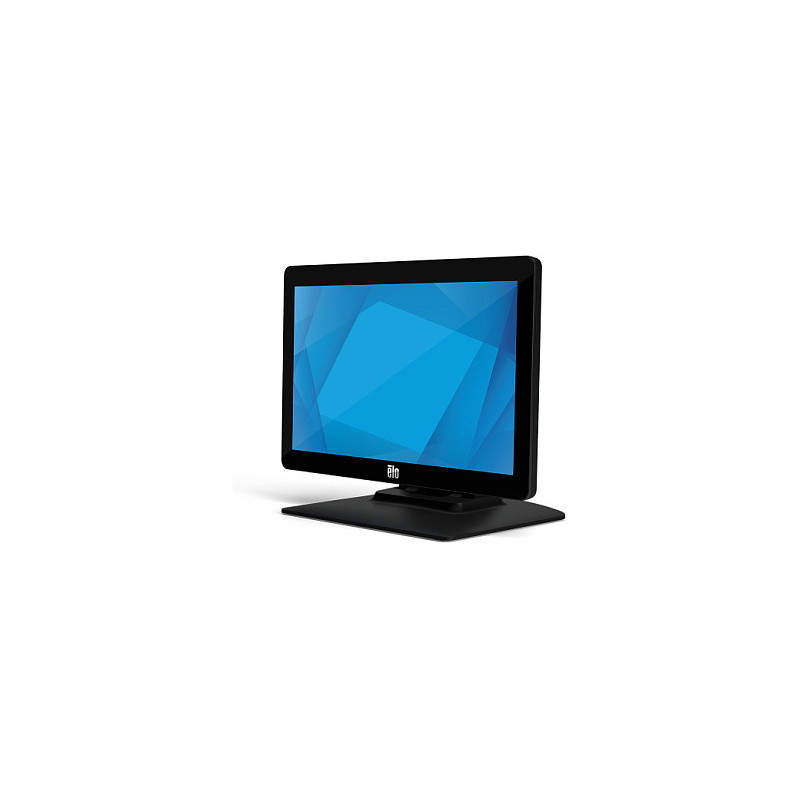

Elo's 1502L
Touchscreen Monitor
The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

Display

Panel type: TFT
Display diagonal: 39.6 cm (15.6")
Display technology: LED
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Feature: Touchscreen
Native aspect ratio: 16:9
Response time: 30 ms
Contrast ratio (typical): 700:1
Viewing angle, horizontal: 160°
Viewing angle, vertical: 160°
Display number of colours: 262144 colours
Horizontal scan range: 31.5 - 82 kHz
Vertical scan range: 50 - 75 Hz

Ports & interfaces

HDMI ports quantity: 1
Feature: DC-in jack

Audio

Feature: Built-in speaker(s)
RMS rated power: 2 W

Design

Product colour: Black
Screen shape: Flat
Feature: VESA mounting

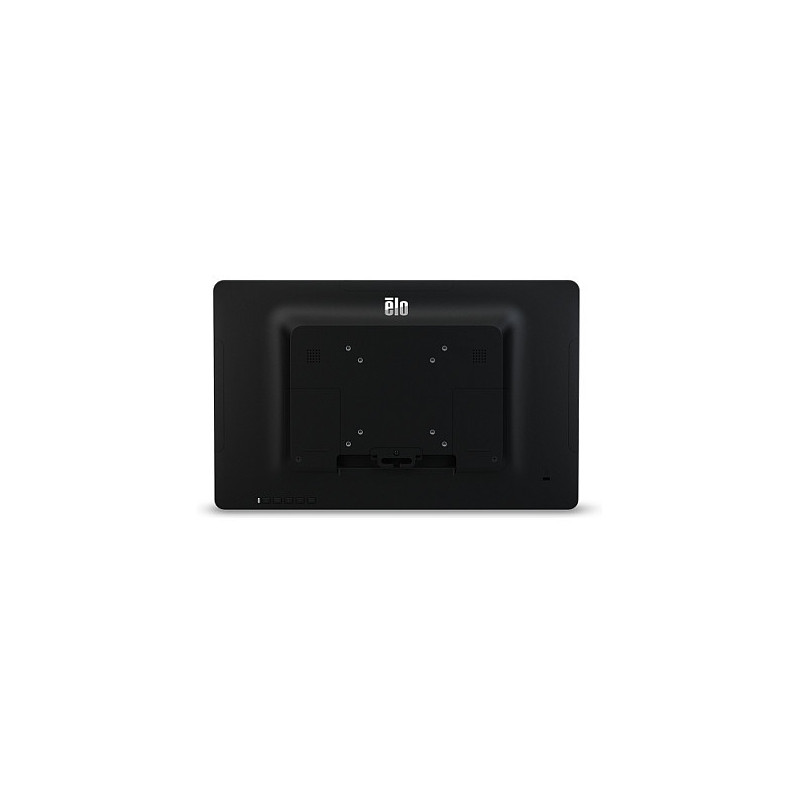

Panel mounting interface: 75 x 100 mm
Feature: Anti-glare screen

Performance

Feature: On Screen Display (OSD)
International Protection (IP) code: IPX1

Power

Power consumption (typical): 9.5 W
Power consumption (standby): 1.87 W
Power consumption (off): 0.2 W
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 12 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Weight & dimensions

Width (with stand): 284.6 mm
Depth (with stand): 199.1 mm
Height (with stand): 387 mm
Weight (with stand): 3.05 kg

Packaging data

Package width: 204 mm
Package depth: 451 mm
Package height: 344 mm
Package weight: 5.01 kg

Packaging content

Cables included: AC, HDMI, USB Type-A to USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Logistics data

Harmonized System (HS) code: 85285210

Other features

Feature: Quick start guide
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Package type: Box
