Elo Touch Solutions E131375 POS monitor

Elo Touch Solutions E131375. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD. Product colour: Black, Mean time between failures (MTBF): 50000 h. Interface: USB 2.0. Power source type: DC, Power: 13.23 W, AC adapter output voltage: 12 V. Width: 394.7 mm, Depth: 43.4 mm, Height: 242 mm

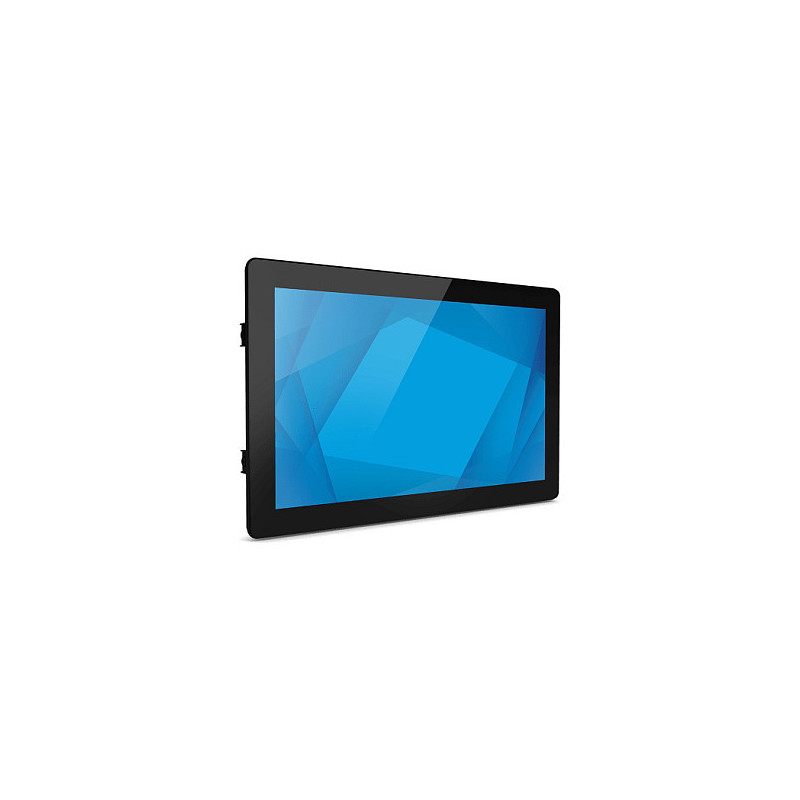

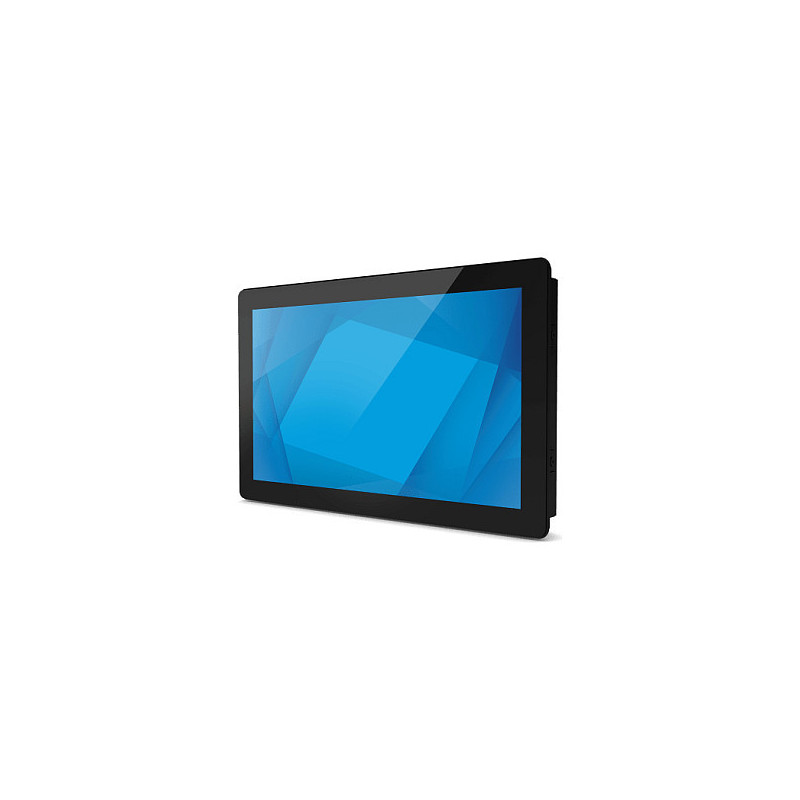

Elo 1594L Open Frame Touchscreen Display
The Elo 1594L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Design Your Solution with Elo
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru GlassEnabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings.
Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and
environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market - We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Display type: TFT-LCD
Display brightness: 315 cd/m²
Feature: Touchscreen
Touchscreen type: Capacitive
Feature: LED backlight
Contrast ratio (typical): 800:1
Response time: 25 ms
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Number of colours: 16.78 million colours
Native aspect ratio: 16:9
Effective viewing area: 344.16 x 193.59 mm
Native refresh rate: 60 Hz

Features

Product colour: Black
Mean time between failures (MTBF): 50000 h

Ports & interfaces

Interface: USB 2.0

Power

Power source type: DC
Power: 13.23 W
AC adapter output voltage: 12 V

Weight & dimensions

Width: 394.7 mm
Depth: 43.4 mm
Height: 242 mm
Weight: 3.02 kg

Packaging data

Package width: 470 mm
Package depth: 175 mm
Package height: 331 mm
Package weight: 4.62 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%
