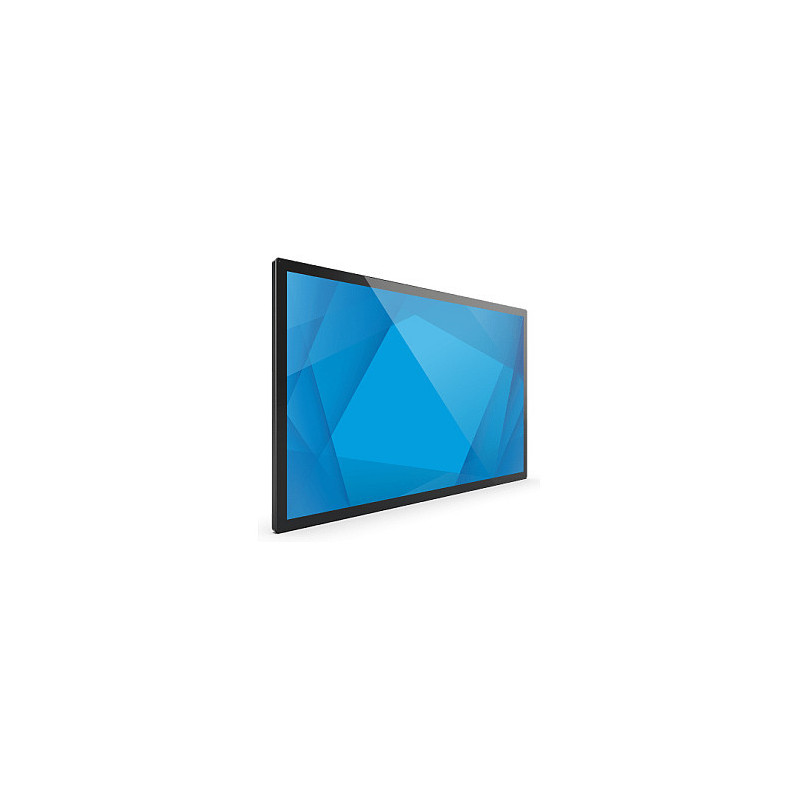

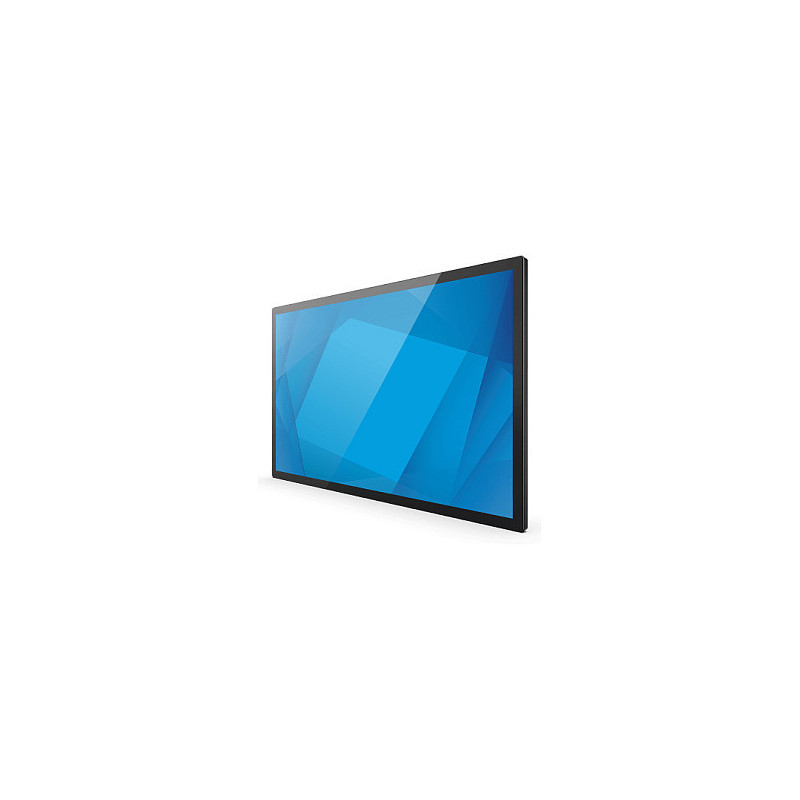

Elo Touch Solutions 5054L

Elo Touch Solutions 5054L. Product design: Interactive flat panel. Display diagonal: 127 cm (50"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 430 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black

Interactive Display
Elevate your applications with Elo's 5054L 50‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5054L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 50‑inch tablet.

Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 5054L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo's TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

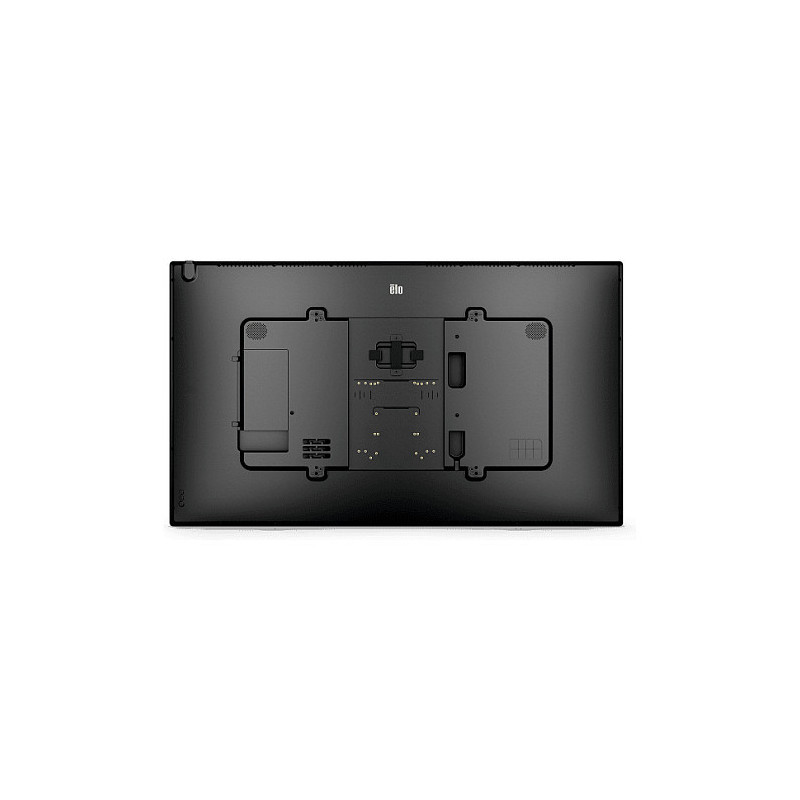

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo's 5054L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5054L for diverse international markets.

Get peace of mind with EloCare.
EloCare delivers service and support from the people who know your Elo products best. And as part of the three-year standard warranty for large format digital signage displays, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service.

Quality that is built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Display

Panel type: TFT-LCD
Feature: LED backlight
Display diagonal: 127 cm (50")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 430 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Capacitive
Number of simultaneous touchpoints: 40
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 9.5 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Number of displays: 1

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: USB port
USB connector type: Micro-USB, USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232 interface

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 16 W

Design

Product design: Interactive flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Mounting type: Wall

Performance

Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 99 W
Power consumption (sleep): 2.3 W
Power consumption (off): 0.28 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 75 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 / 60 Hz

Weight & dimensions

Display width: 1161.1 mm
Display depth: 53.6 mm
Display height: 681.7 mm
Display weight: 24.2 kg

Packaging data

Package width: 1310 mm
Package depth: 940 mm
Package height: 187 mm
Package weight: 30.8 kg

Packaging content

Cables included: Power, USB Type-C to USB Type-C
Feature: Tilt adjustment

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Sensors

Feature: Ambient light sensor

Network

Feature: Ethernet LAN

Features

Feature: Wall mountable
