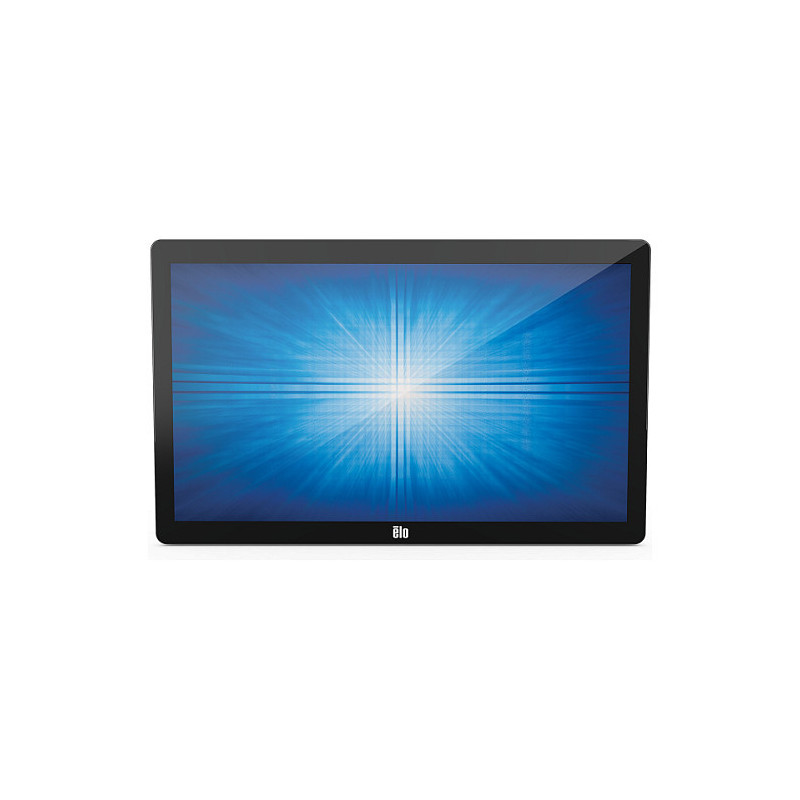

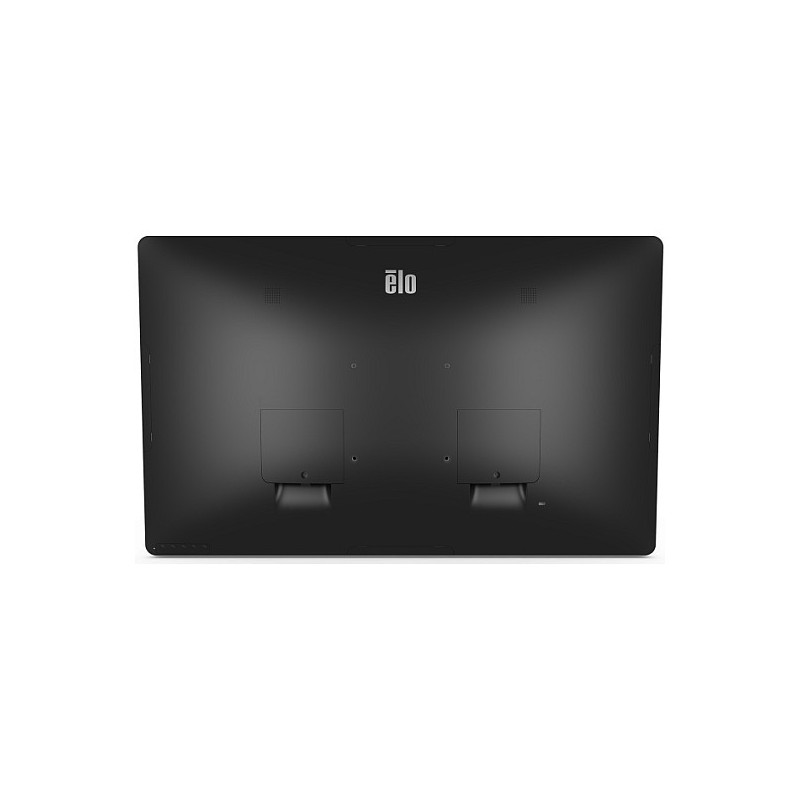

Elo Touch Solutions 2702L

Elo Touch Solutions 2702L. Display diagonal: 68.6 cm (27"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.

Display

Panel type: TFT
Display diagonal: 68.6 cm (27")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 300 cd/m²
HD type: Full HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Supported graphics resolutions: 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)

Ports interfaces

HDMI ports quantity: 1

Audio

Built-in speaker(s): Yes
RMS rated power: 4 W

Design

Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 100 x 100 mm

Performance

Number of OSD languages: 10
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
International Protection (IP) code: IPX1
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 28 W
Power consumption (standby): 0.45 W
Power consumption (off): 0.38 W
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Packaging data

Package width: 770 mm
Package depth: 187 mm
Package height: 520 mm
Package weight: 9.58 kg

Packaging content

Stand included: No
Cables included: AC, Audio (3.5mm), HDMI, USB, VGA

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3.048 m
Non-operating altitude: 0 - 12.192 m

Certificates

Certification: Canada (CUL, IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC, UL), Japan VCCI, International CB, Australia RCM, Russia EAC, Mexico CoC

Logistics data

Harmonized System (HS) code: 85285210

Features

Wall mountable: Yes

Other features

Micro-USB ports quantity: 4
Maximum refresh rate: 60 Hz
Quick start guide: Yes
AC adapter included: Yes
Digital horizontal frequency: 30 - 82 kHz
Digital vertical frequency: 50 - 75 Hz
Headphone outputs: 1
Display viewable area (HxV): 597.88 x 336.31 mm
Height (without stand): 394.1 mm
Weight (without stand): 7.24 kg
Depth (without stand): 44.9 mm
Power supply type: AC/DC
Built-in camera: No
