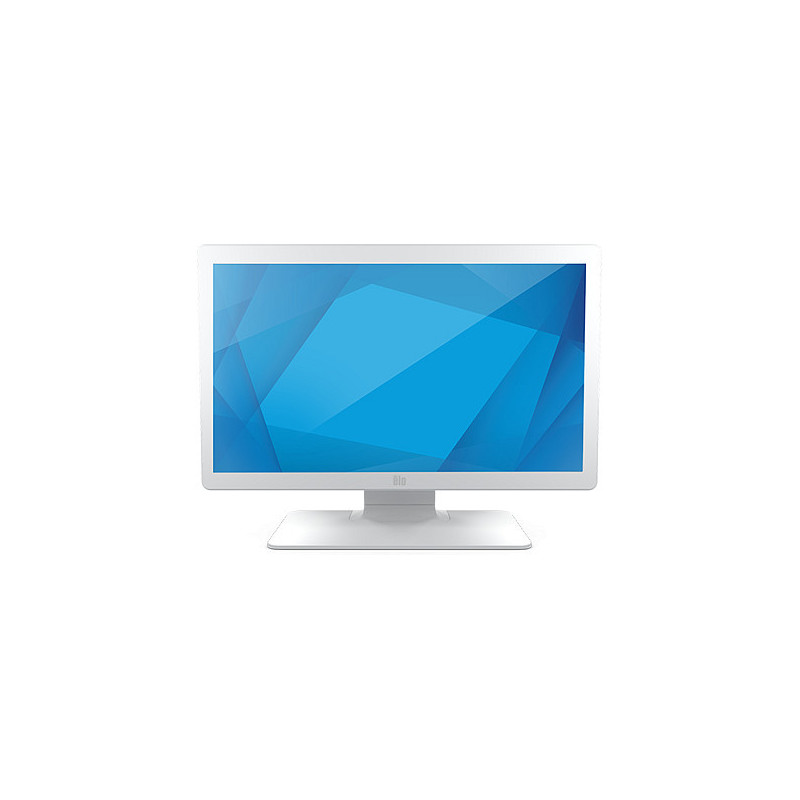

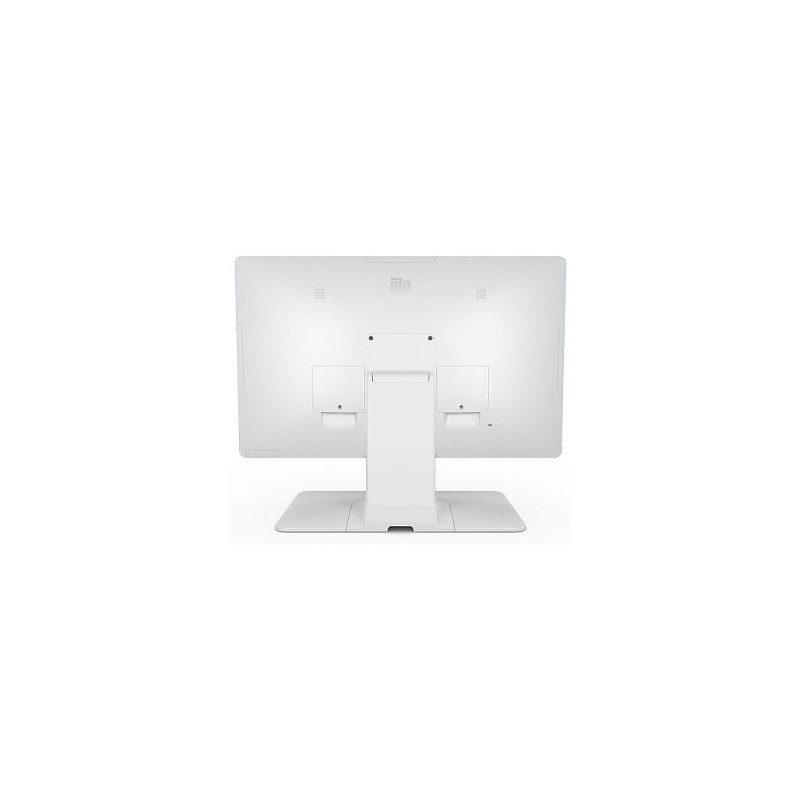

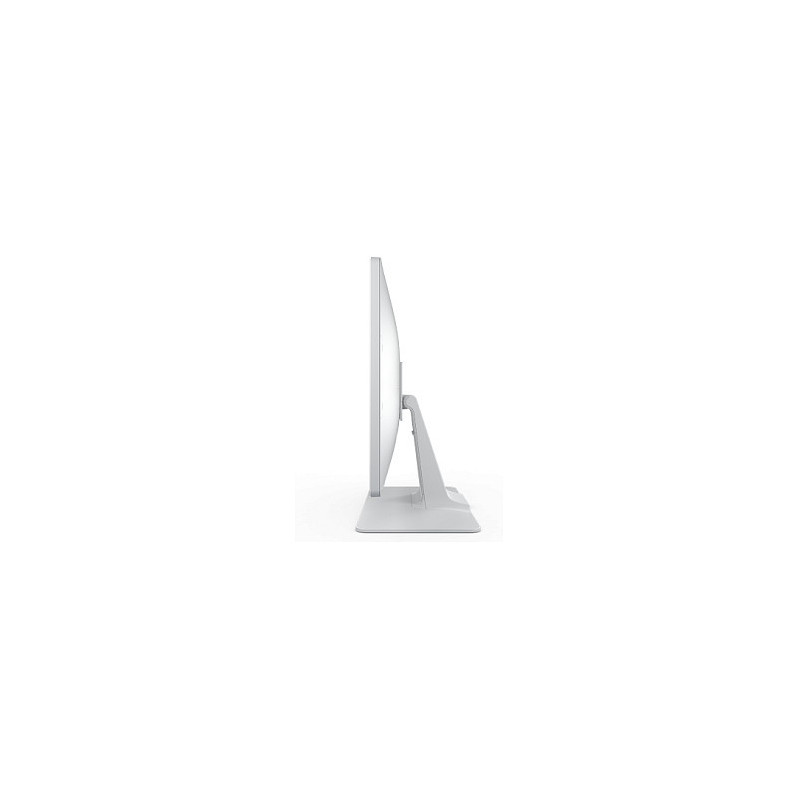

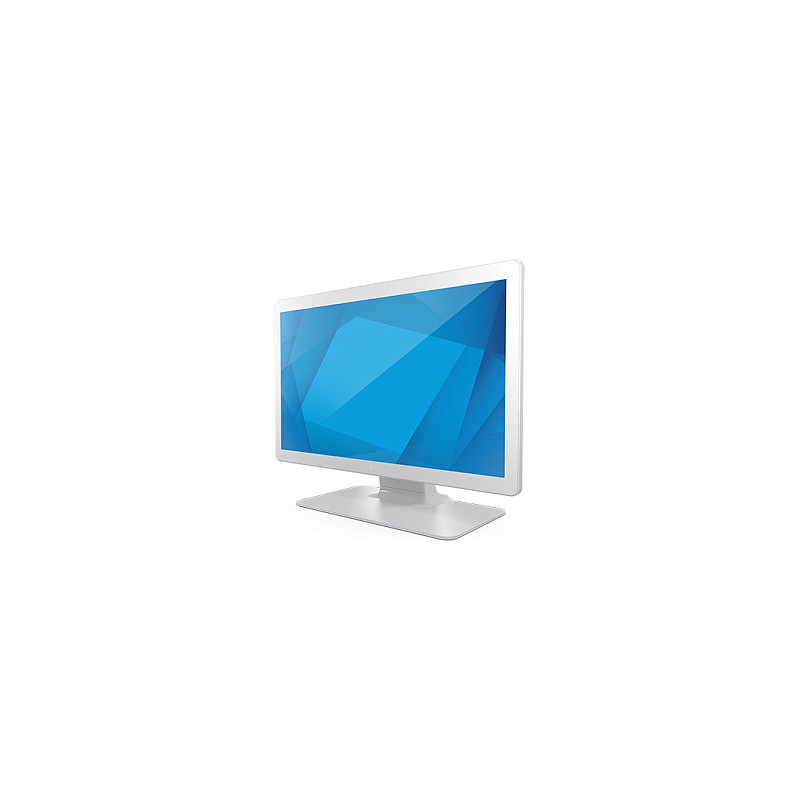

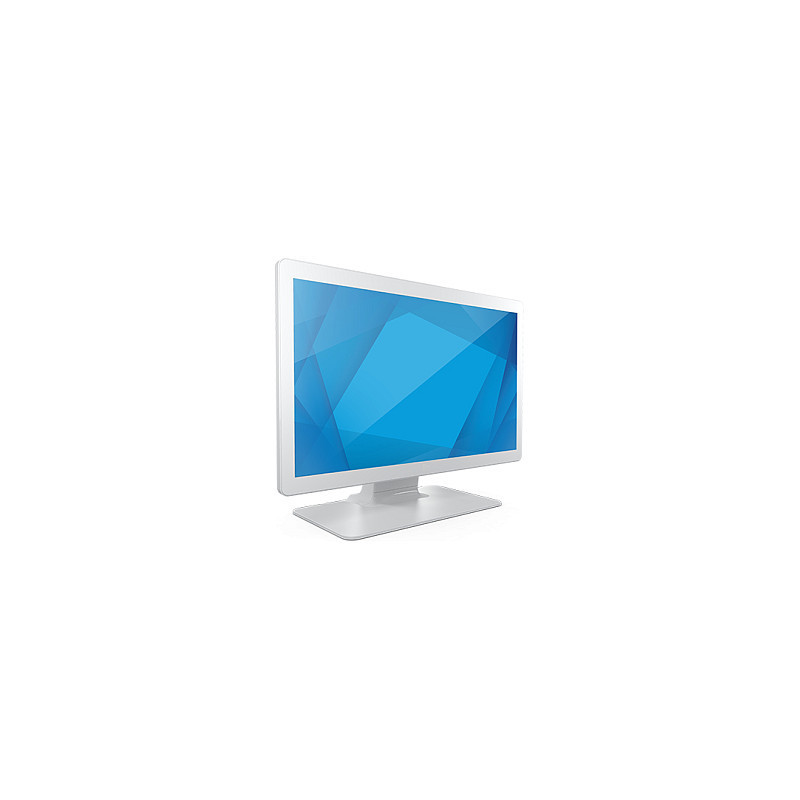

Elo Touch Solutions 2403LM

Elo Touch Solutions 2403LM. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 225 cd/m², HD type: Full HD, Touchscreen. Product colour: White
DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Display

Panel type: TFT
Display diagonal: 60.5 cm (23.8")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 225 cd/m²
HD type: Full HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 16 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Display diagonal (metric): 60.5 cm
Supported graphics resolutions: 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)

Ports interfaces

HDMI ports quantity: 1

Audio

Built-in speaker(s): Yes
RMS rated power: 2 W

Design

Product colour: White
Screen shape: Flat
VESA mounting: Yes
Anti-glare screen: Yes

Performance

On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
International Protection (IP) code: IP54
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 15.68 W
Power consumption (standby): 1.09 W
Power consumption (off): 0.24 W
Power consumption (max): 17.33 W
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
Energy efficiency scale: A to G

Weight dimensions

Depth (with stand): 233 mm
Height (with stand): 432.9 mm
Weight (with stand): 9.8 kg

Packaging data

Package width: 680 mm

Packaging content

Cables included: HDMI, USB, VGA

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Features

Wall mountable: Yes

Technical details

Compliance certificates: RoHS

Other features

Maximum refresh rate: 70 Hz
LED indicators: Power
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Display viewable area (HxV): 527.04 x 296.46 mm
Weight (without stand): 6.69 kg
Power supply type: DC
Built-in camera: No
