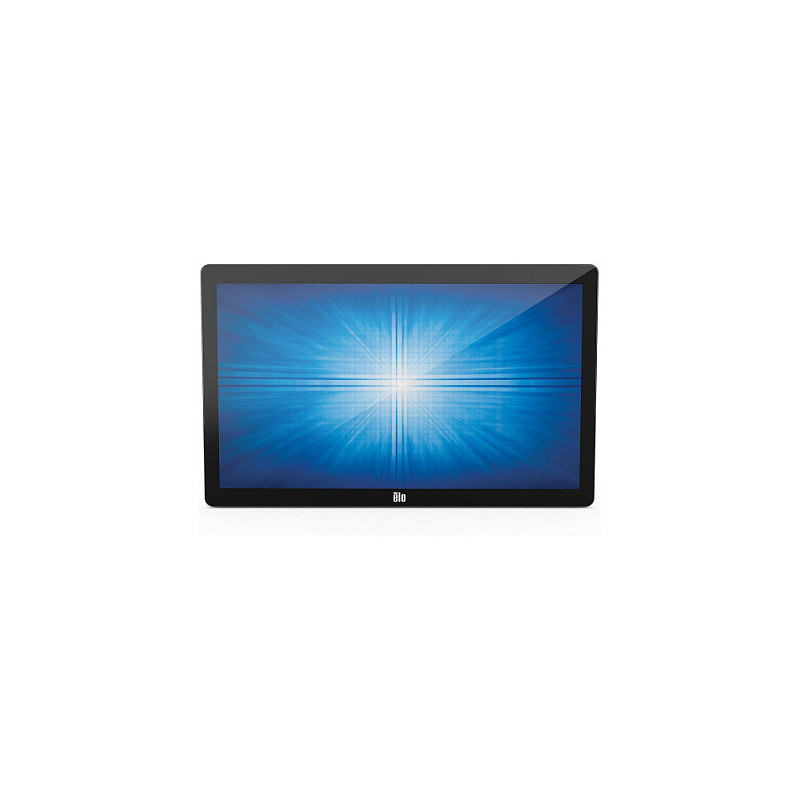

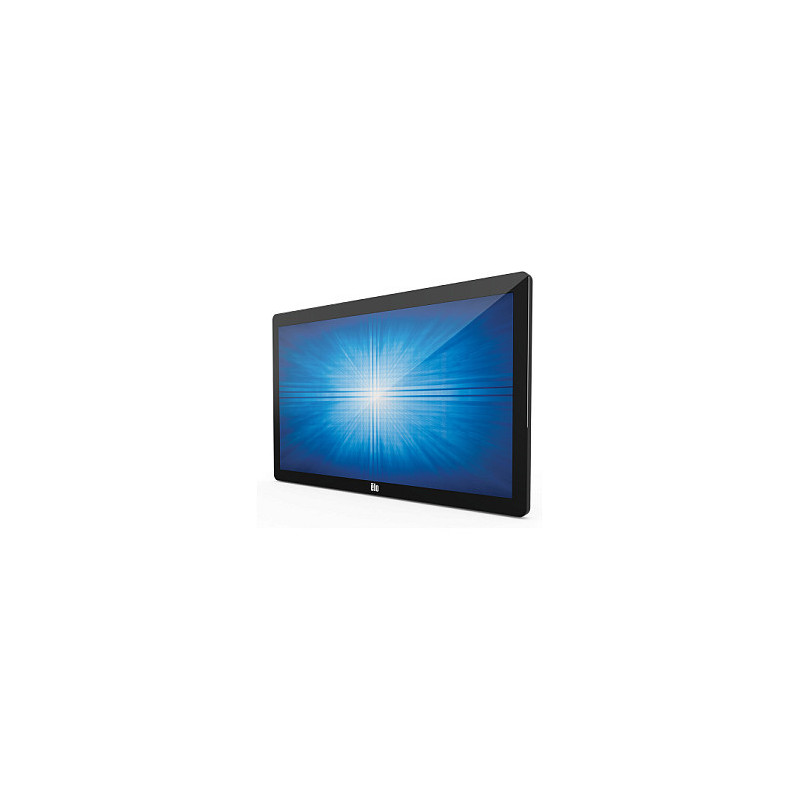

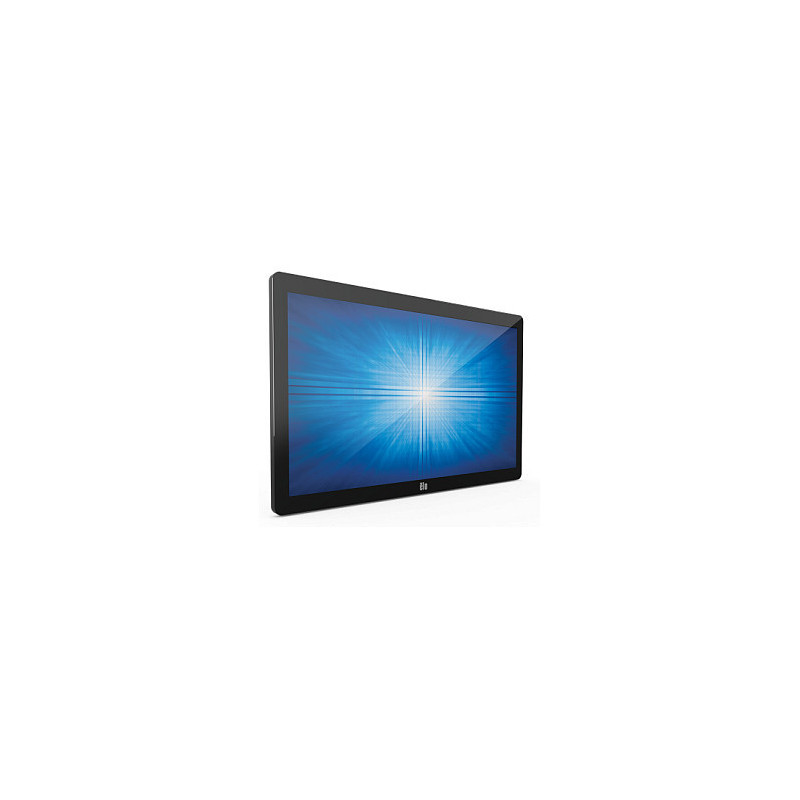

Elo Touch Solutions 2402L

Elo Touch Solutions 2402L. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.

Display

Panel type: TFT
LED backlight: Yes
Display diagonal: 60.5 cm (23.8")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
HD type: Full HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 15 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Supported graphics resolutions: 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)

Ports interfaces

HDMI ports quantity: 1

Audio

Built-in speaker(s): Yes
RMS rated power: 4 W

Design

Product colour: Black
Screen shape: Flat

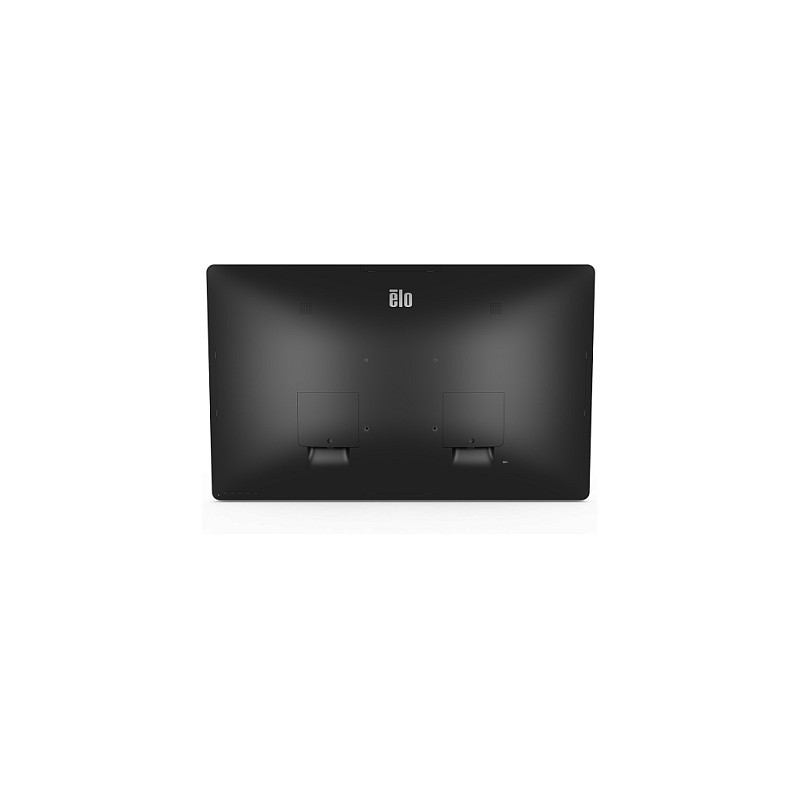

VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm

Performance

Number of OSD languages: 10
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
International Protection (IP) code: IPX1
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 25.5 W
Power consumption (standby): 0.33 W
Power consumption (off): 0.27 W

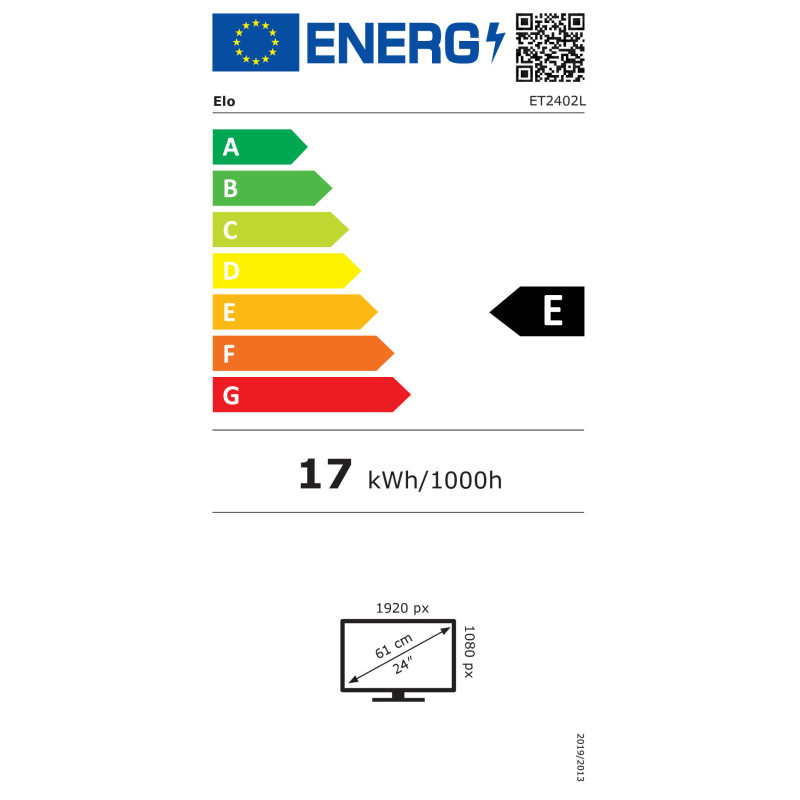

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 17 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Packaging data

Package width: 680 mm
Package depth: 169 mm
Package height: 460 mm
Package weight: 7.54 kg

Packaging content

Stand included: No
Cables included: AC, Audio (3.5mm), HDMI, USB, VGA

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3.048 m
Non-operating altitude: 0 - 12.192 m

Certificates

Certification: Canada (CUL,IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC,UL), Japan VCC, Internationa lCB, Australia RCM, Russia EAC, Mexico CoC

Logistics data

Harmonized System (HS) code: 85285210

Other features

Micro-USB ports quantity: 4
Maximum refresh rate: 60 Hz
Quick start guide: Yes
AC adapter included: Yes
Digital horizontal frequency: 30 - 82 kHz
Digital vertical frequency: 50 - 75 Hz
Headphone outputs: 1
Display viewable area (HxV): 527.04 x 296.46 mm
Height (without stand): 337.2 mm
Weight (without stand): 5.42 kg

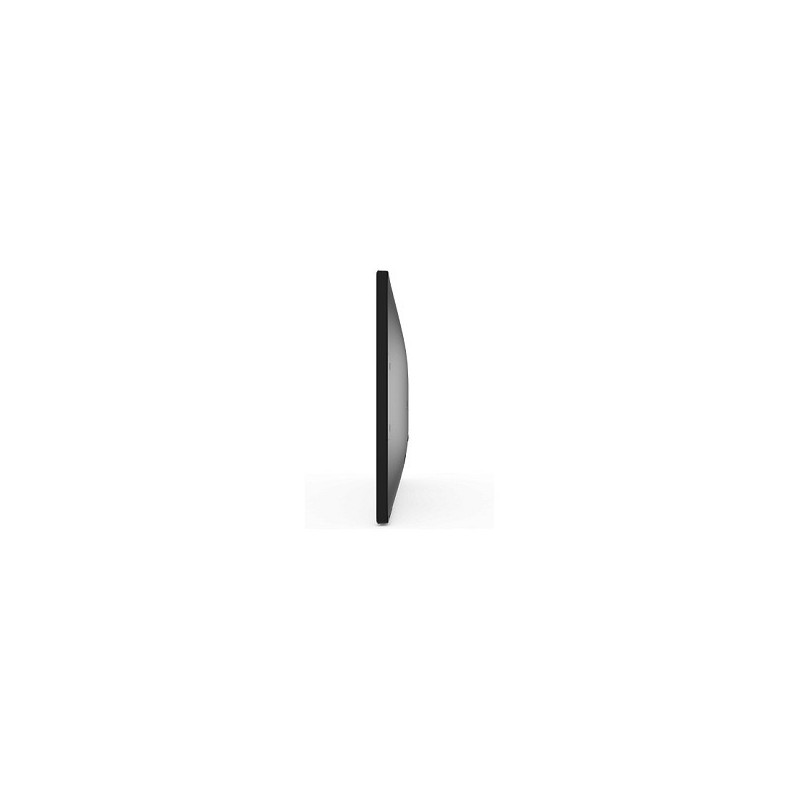

Depth (without stand): 42.8 mm
Power supply type: AC/DC
Built-in camera: No
