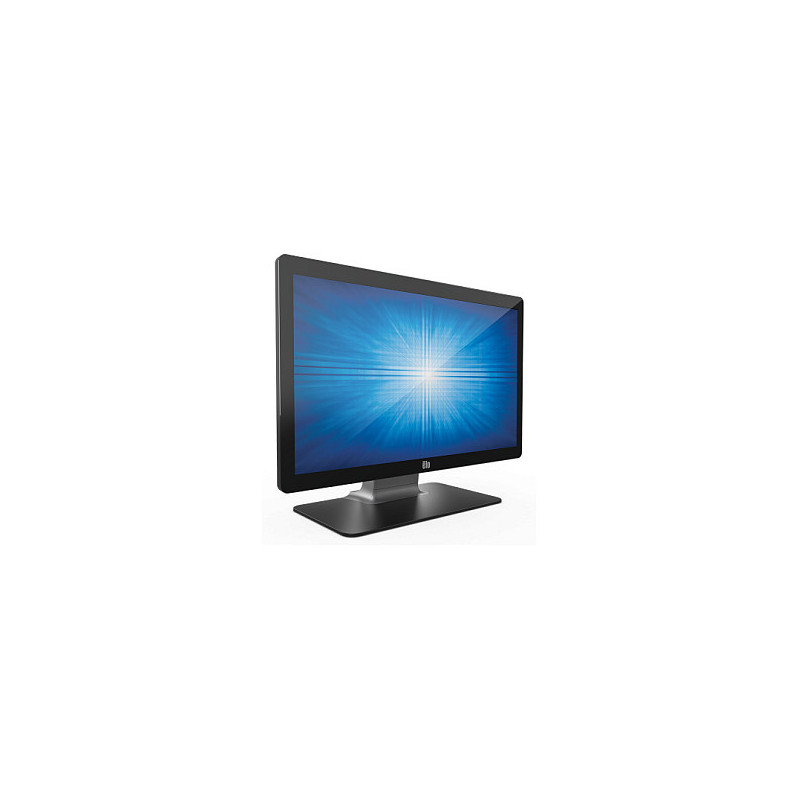

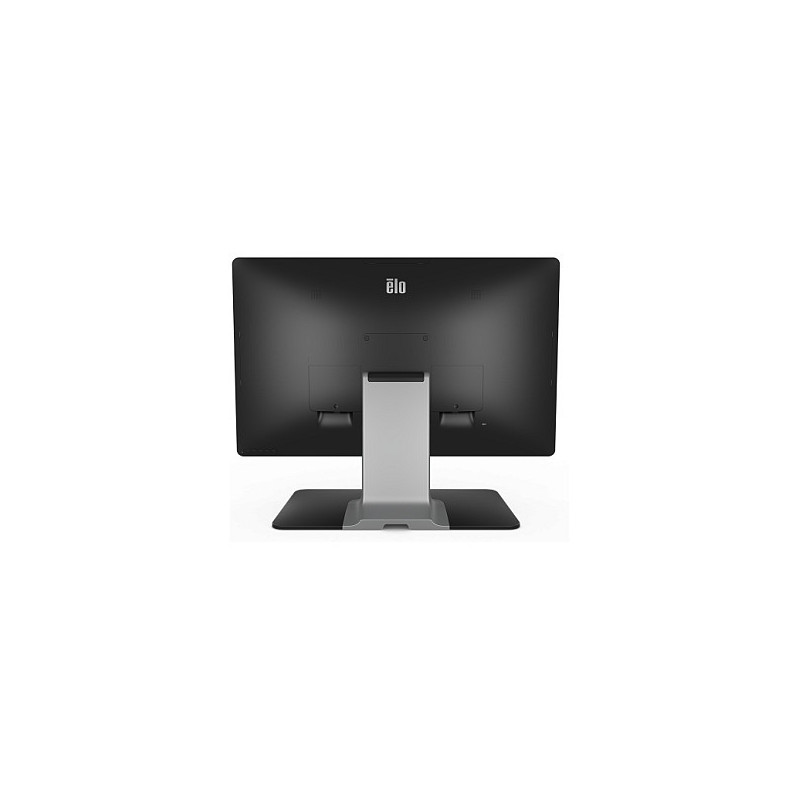

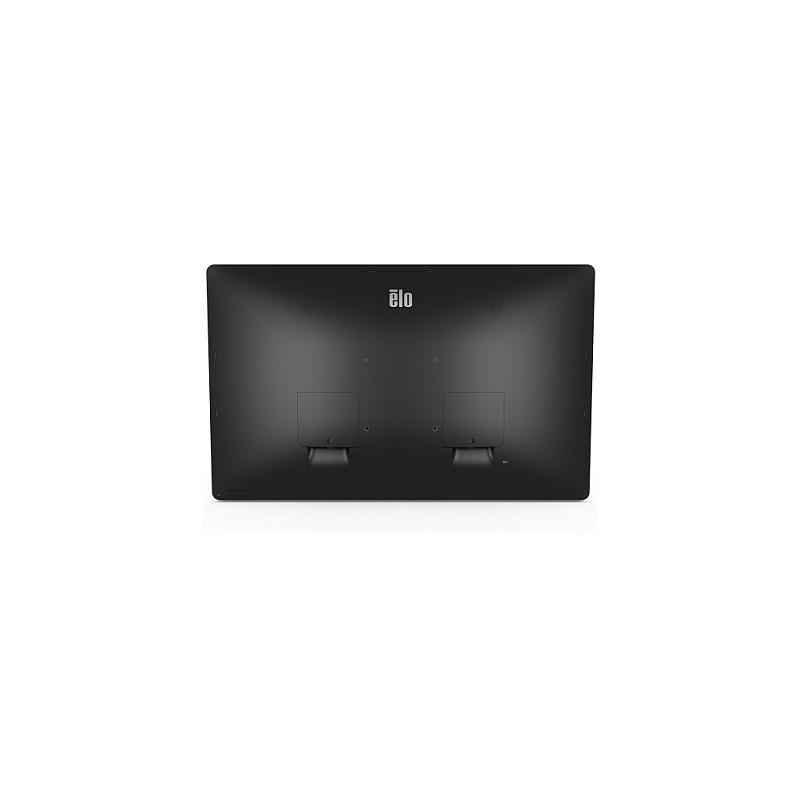

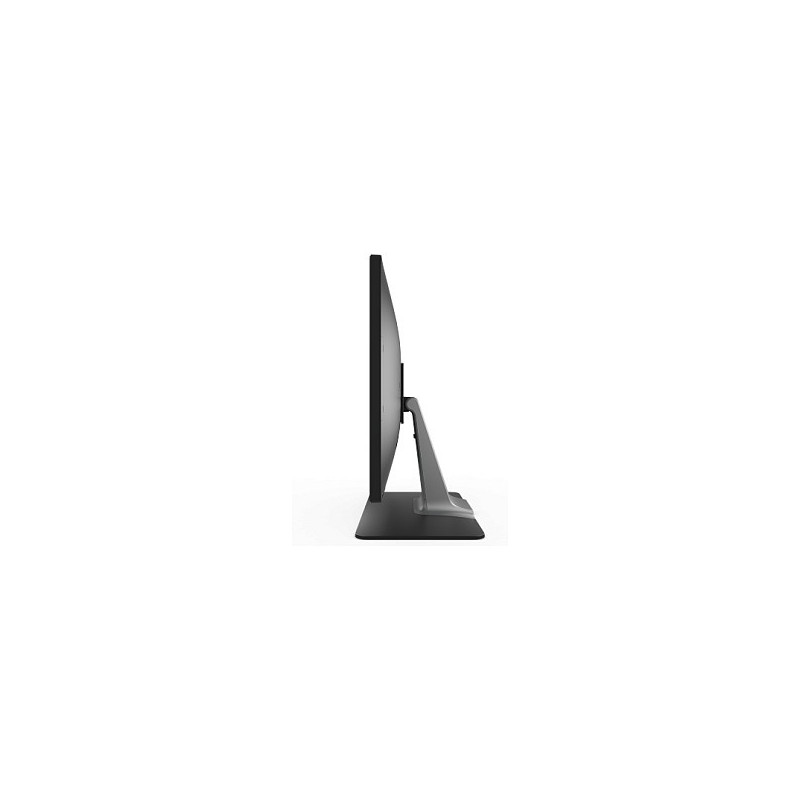

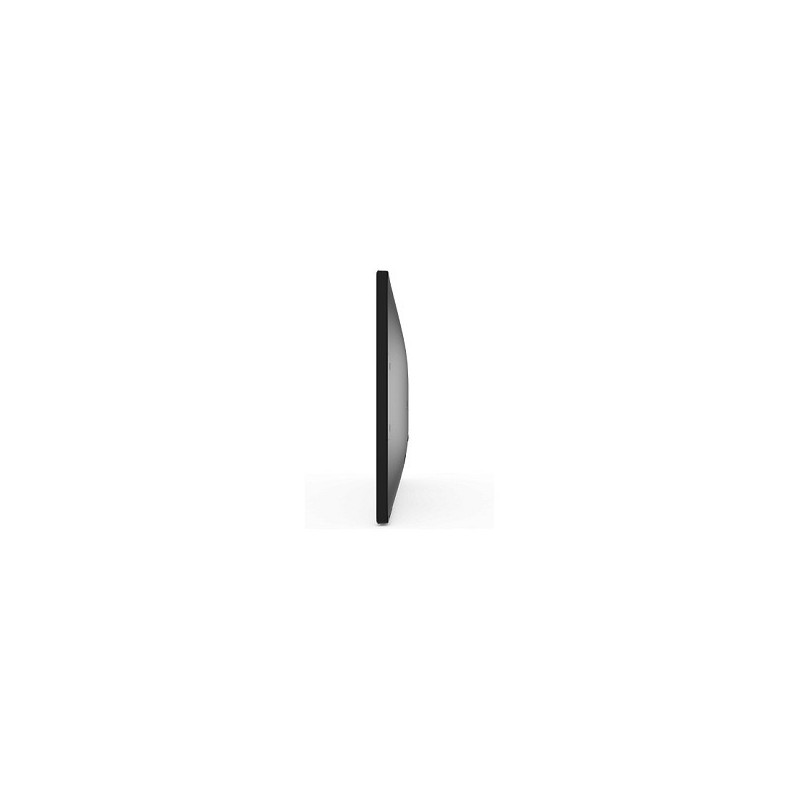

Elo Touch Solutions 2402L

Elo Touch Solutions 2402L. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 240 cd/m², Touchscreen. Product colour: Black

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.

One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Display

Feature: LED backlight
Display diagonal: 60.5 cm (23.8")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 240 cd/m²
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Response time: 15 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Horizontal scan range: 30 - 82 kHz
Vertical scan range: 50 - 75 Hz

Ports & interfaces

HDMI ports quantity: 1

Audio

Feature: Built-in speaker(s)
RMS rated power: 4 W

Design

Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

Performance

On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
International Protection (IP) code: IPX1

Power

Power consumption (typical): 25.5 W
Power consumption (standby): 0.33 W
Power consumption (off): 0.27 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width (with stand): 574.6 mm
Depth (with stand): 233 mm
Height (with stand): 432.9 mm
Weight (with stand): 8.7 kg

Packaging data

Package width: 680 mm
Package depth: 318 mm
Package height: 526 mm
Package weight: 12 kg

Packaging content

Cables included: AC, Audio (3.5mm), HDMI, USB, VGA

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Logistics data

Harmonized System (HS) code: 85285210

Other features

Micro-USB ports quantity: 4
Maximum refresh rate: 60 Hz
Feature: Quick start guide
Aspect ratio: 16:9
Headphone outputs: 1
Voltage tolerance: 5%
Display viewable area (HxV): 527.04 x 296.46 mm
Weight (without stand): 5.42 kg
Dimensions (W x D x H) with stand: 574.6 x 233 x 432.9 mm
Power supply type: AC/DC
