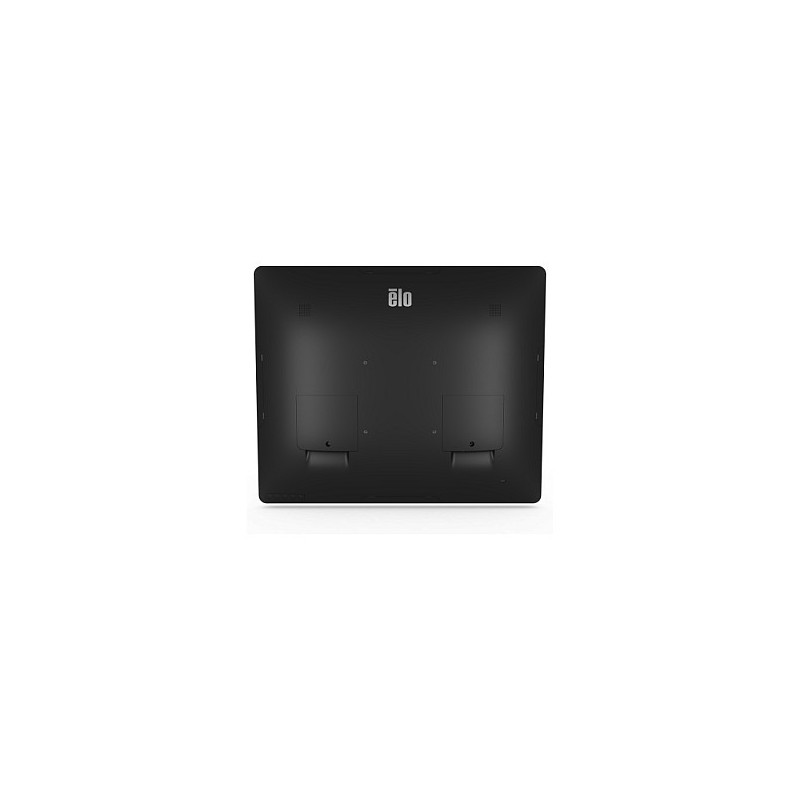

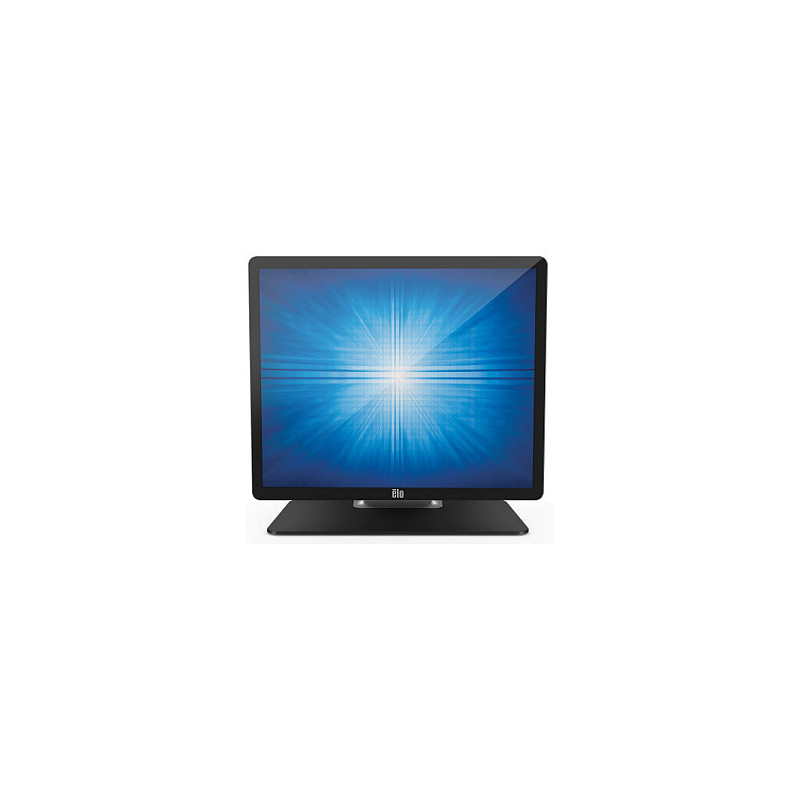

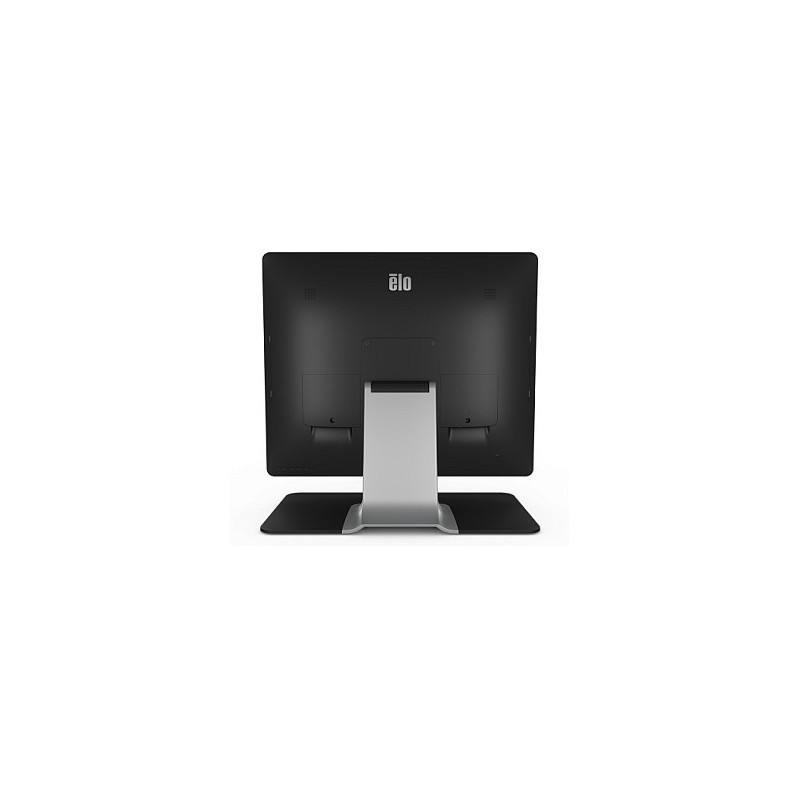

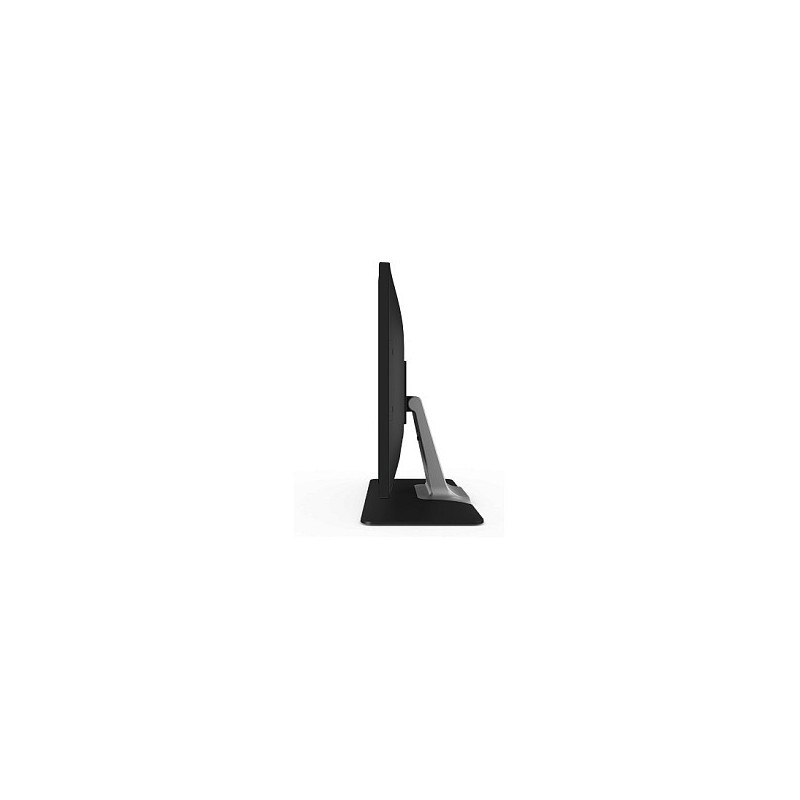

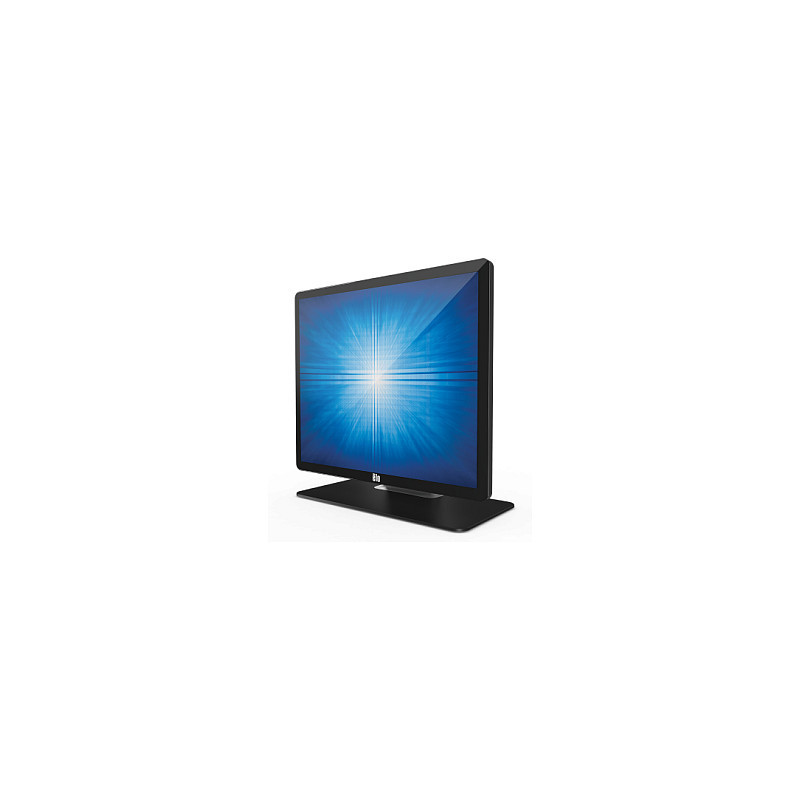

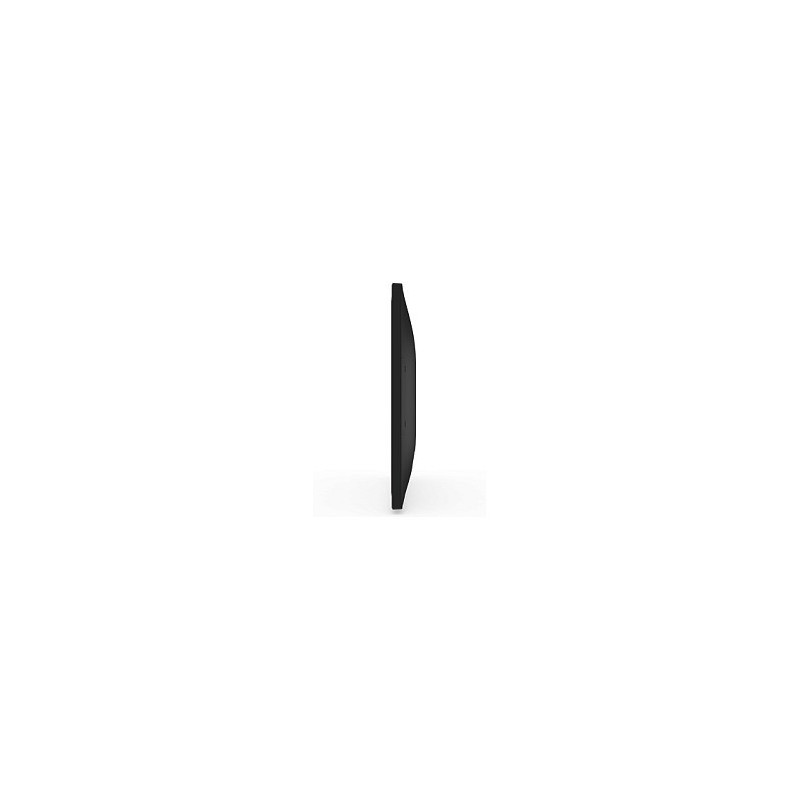

Elo Touch Solutions 1902L

Elo Touch Solutions 1902L. Display diagonal: 48.3 cm (19"), Display technology: LCD, Display resolution: 1280 x 1024 pixels, Display brightness: 235 cd/m², Touchscreen. Product colour: Black
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.
One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Display

LED backlight: Yes
Display diagonal: 48.3 cm (19")
Display technology: LCD
Display resolution: 1280 x 1024 pixels
Display brightness: 235 cd/m²
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 5:4
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Horizontal scan range: 30 - 82 kHz
Vertical scan range: 50 - 75 Hz

Ports interfaces

HDMI ports quantity: 1

Audio

Built-in speaker(s): Yes
RMS rated power: 4 W

Design

Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 100 x 100 mm

Performance

On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
International Protection (IP) code: IPX1
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 18 W
Power consumption (standby): 0.8 W
Power consumption (off): 0.4 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight dimensions

Width (with stand): 429.6 mm
Depth (with stand): 193.4 mm
Height (with stand): 397.7 mm
Weight (with stand): 6.3 kg

Packaging data

Package width: 527 mm
Package depth: 260 mm
Package height: 482 mm
Package weight: 9.8 kg

Packaging content

Cables included: AC, Audio (3.5mm), HDMI, USB, VGA

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Logistics data

Harmonized System (HS) code: 85285210

Other features

Micro-USB ports quantity: 4
Maximum refresh rate: 60 Hz
Quick start guide: Yes
Aspect ratio: 5:4
Headphone outputs: 1
Voltage tolerance: 5%
Display viewable area (HxV): 374.78 x 299.83 mm
Weight (without stand): 4.3 kg
Dimensions (W x D x H) with stand: 429.6 x 193.4 x 397.7 mm
Power supply type: AC/DC
Built-in camera: No
