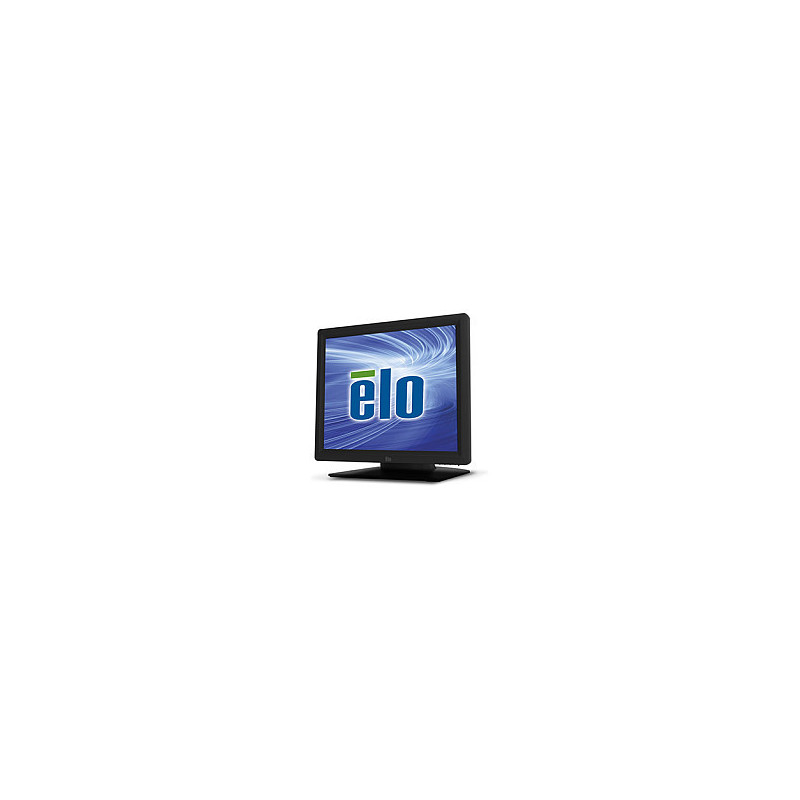

Elo Touch Solutions 1717L

Elo Touch Solutions 1717L. Display diagonal: 43.2 cm (17"), Display technology: LCD, Display resolution: 1280 x 1024 pixels, Display brightness: 200 cd/m², Touchscreen. Product colour: Black
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Display

Display diagonal: 43.2 cm (17")
Display technology: LCD
Display resolution: 1280 x 1024 pixels
Display brightness: 200 cd/m²
Touchscreen: Yes
Native aspect ratio: 5:4
Response time: 5 ms
Contrast ratio (typical): 800:1
Display number of colours: 16.78 million colours

Design

Product colour: Black
Screen shape: Flat
Panel mounting interface: 75 x 75 mm

Performance

Mean time between failures (MTBF): 50000 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight dimensions

Weight (with stand): 5.4 kg

Packaging data

Package width: 511 mm
Package depth: 233 mm
Package height: 510 mm
Package weight: 8.3 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 90%

Logistics data

Harmonized System (HS) code: 85285210

Features

Wall mountable: Yes

Other features

Aspect ratio: 5:4
Height (without stand): 215 mm
Depth (without stand): 361 mm
Power supply type: AC
