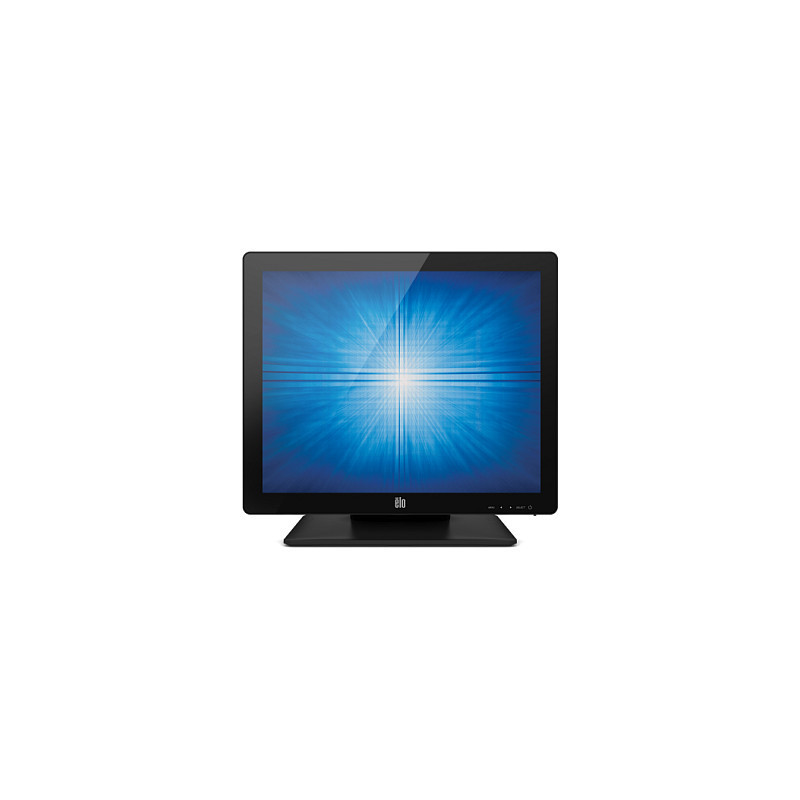

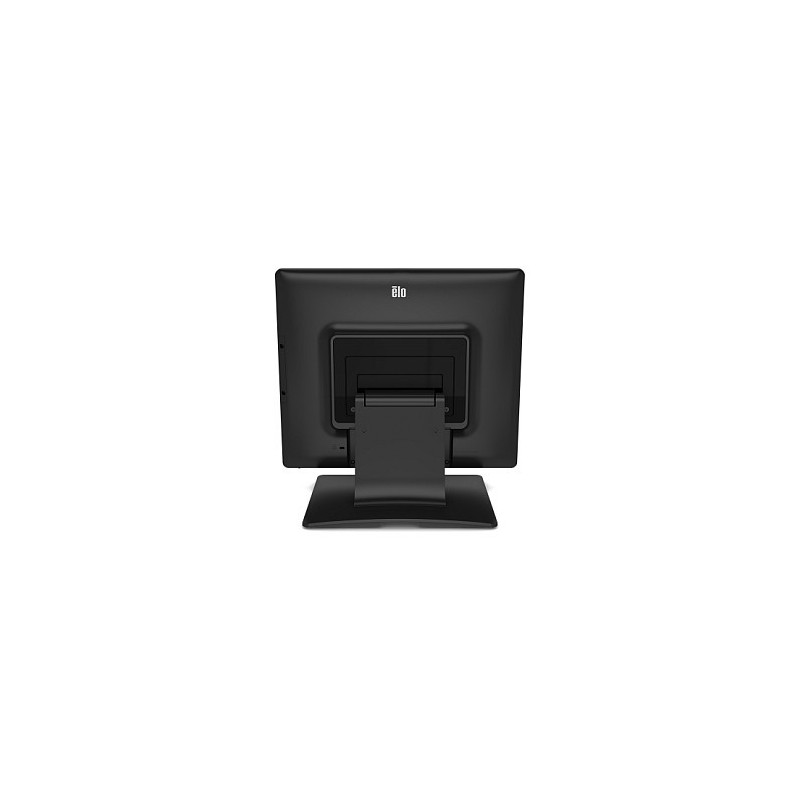

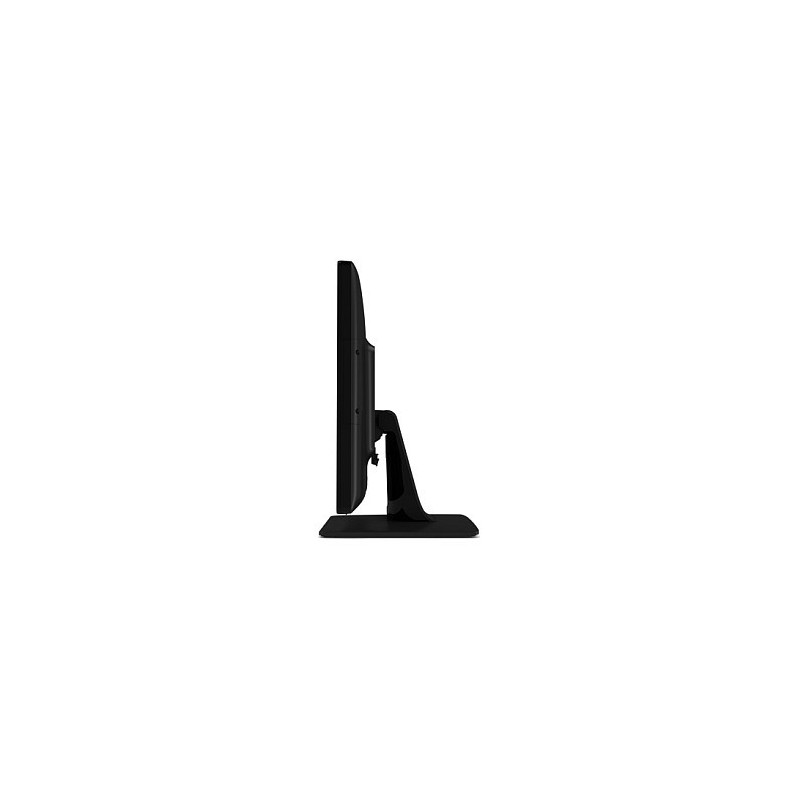

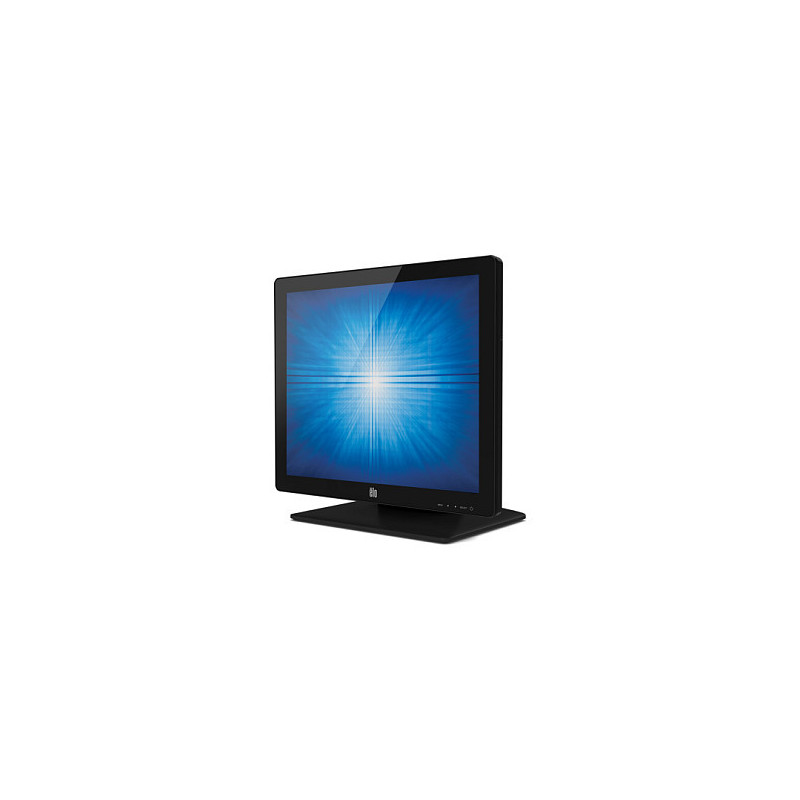

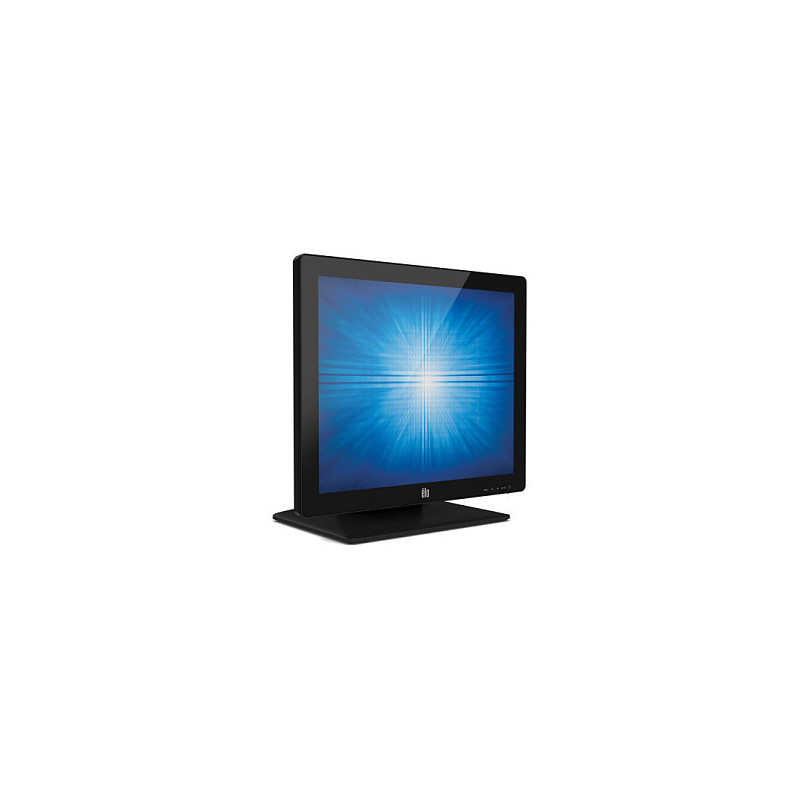

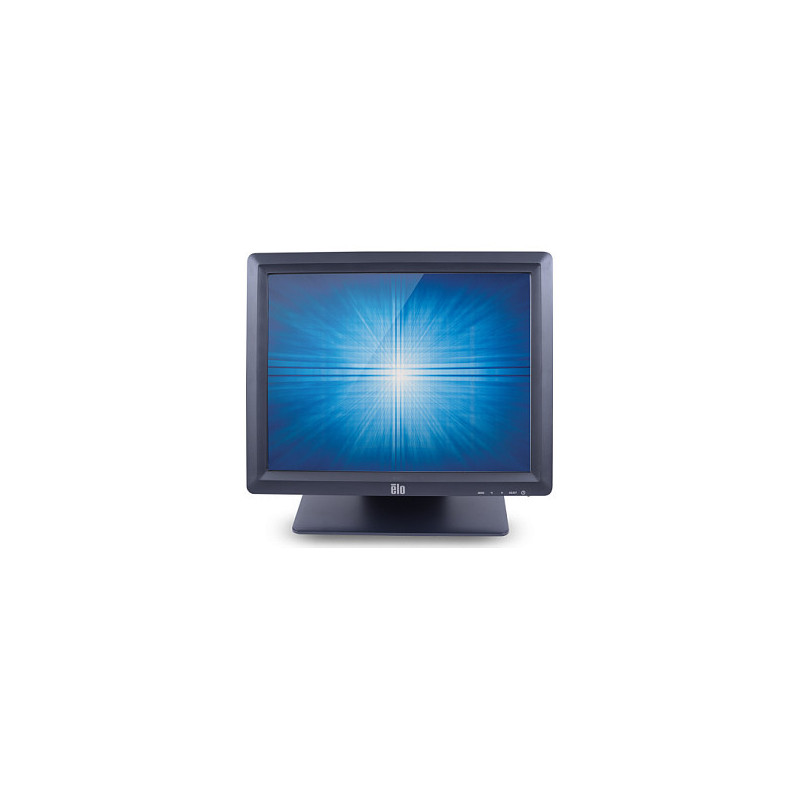

Elo Touch Solutions 1517L

Elo Touch Solutions 1517L. Display diagonal: 38.1 cm (15"), Display technology: LED, Display resolution: 1024 x 768 pixels, Display brightness: 240 cd/m², Touchscreen. Product colour: Black
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

Display

Panel type: TFT
LED backlight: Yes
Display diagonal: 38.1 cm (15")
Display technology: LED
Display resolution: 1024 x 768 pixels
Display brightness: 240 cd/m²
Touchscreen: Yes
Touchscreen technology: Resistive
Native aspect ratio: 4:3
Response time: 23 ms
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 160°
Viewing angle, vertical: 150°
Display number of colours: 16.2 million colours
Horizontal scan range: 31.5 - 60 kHz
Vertical scan range: 56 - 75 Hz

Design

Placement supported: Horizontal
Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 75 x 75 mm

Performance

On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese

Power

Power consumption (typical): 10.5 W
Power consumption (off): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight dimensions

Width (with stand): 358 mm
Depth (with stand): 197 mm
Height (with stand): 319 mm
Weight (with stand): 4.3 kg

Packaging data

Package width: 487 mm
Package depth: 231 mm
Package height: 485 mm
Package weight: 7.3 kg

Packaging content

Stand included: Yes
Cables included: AC, USB, VGA

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 90%

Certificates

Certification: UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE

Logistics data

Harmonized System (HS) code: 85285210

Features

Wall mountable: Yes

Technical details

Sustainability compliance: Yes
Compliance certificates: CE, RoHS

Other features

Built-in microphone: No
LED indicators: Yes
Viewable size, horizontal: 22.8 cm
Viewable size, vertical: 30.4 cm
Power supply type: AC
Built-in camera: No
