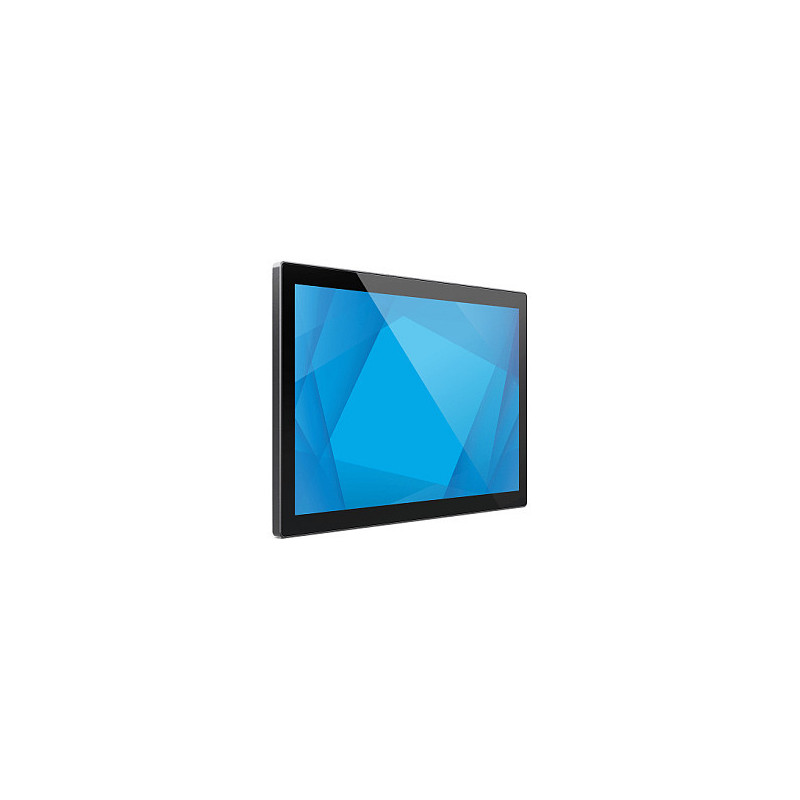

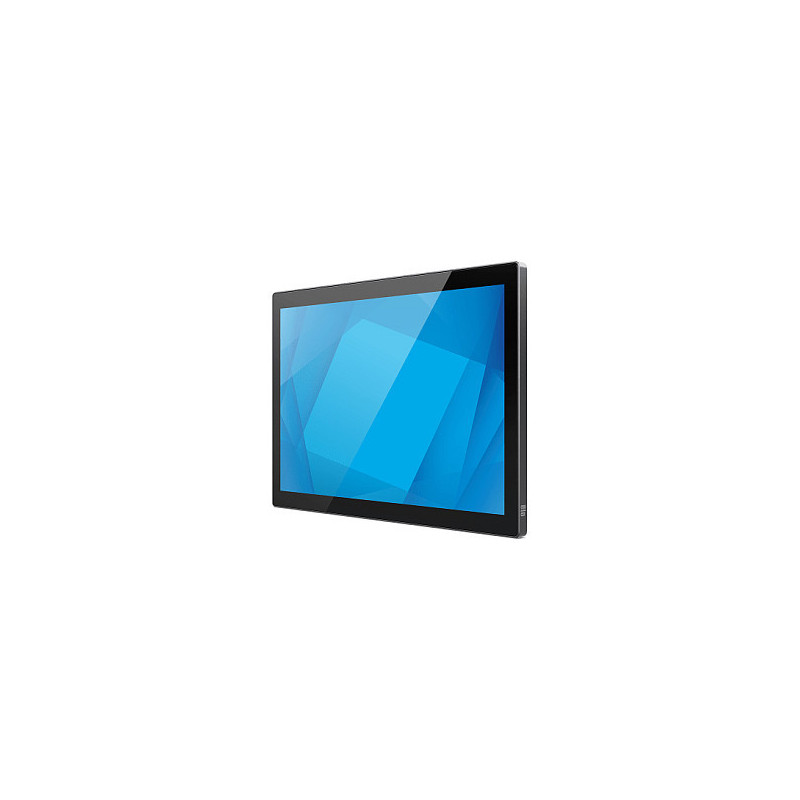

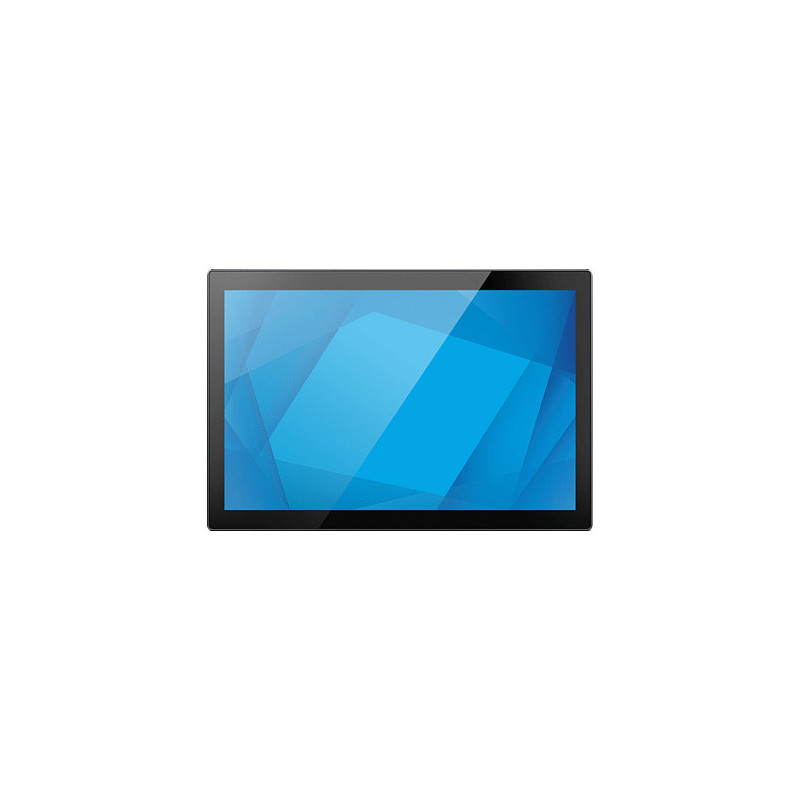

Elo Touch Solutions 1304LS

Elo Touch Solutions 1304LS. Product design: Digital signage flat panel. Display diagonal: 33.8 cm (13.3"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², Touchscreen. Product colour: Grey
Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 13-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.
Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
A clean slate for touch experiences.

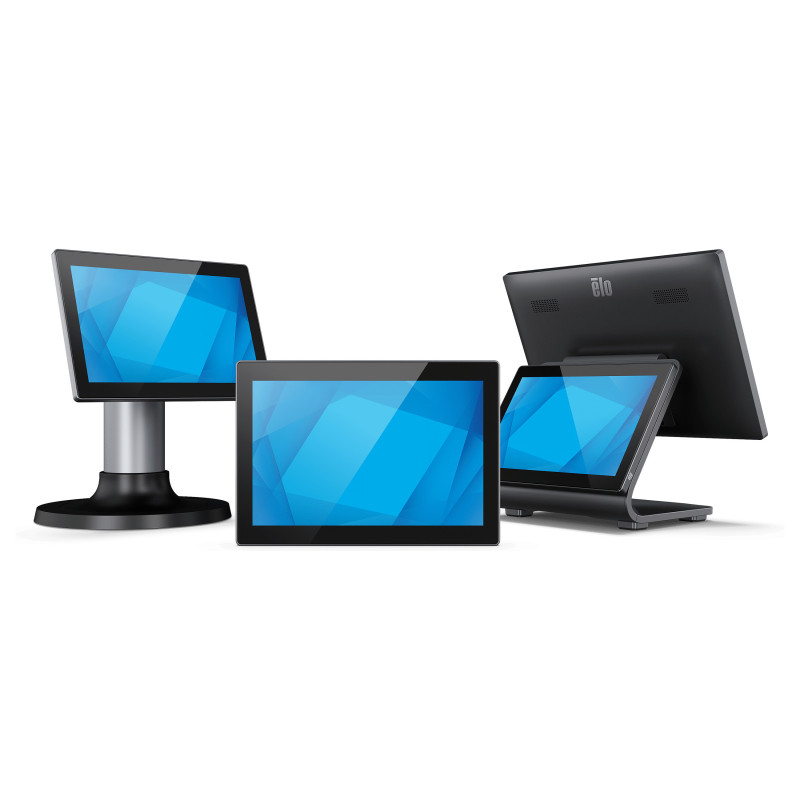

The perfect pairing for your POS terminal.
Whether you want to pair the 1304LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
Get peace of mind with EloCare.SM
From advance unit replacement to extended warranties, EloCare delivers service and support from the people
who know your Elo products best.

Display

Panel type: TFT-LCD
Display diagonal: 33.8 cm (13.3")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 300 cd/m²
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Multi-touch: Yes
Response time: 27 ms
Contrast ratio (typical): 600:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Active display area (W x H): 293.76 x 165.24 mm
Display diagonal (metric): 337.82 cm
Number of displays: 1
Horizontal scan range: 30 - 82 kHz
Native refresh rate: 60 Hz

Ports interfaces

USB port: Yes
USB connector type: USB Type-C

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 4 W

Design

Product design: Digital signage flat panel

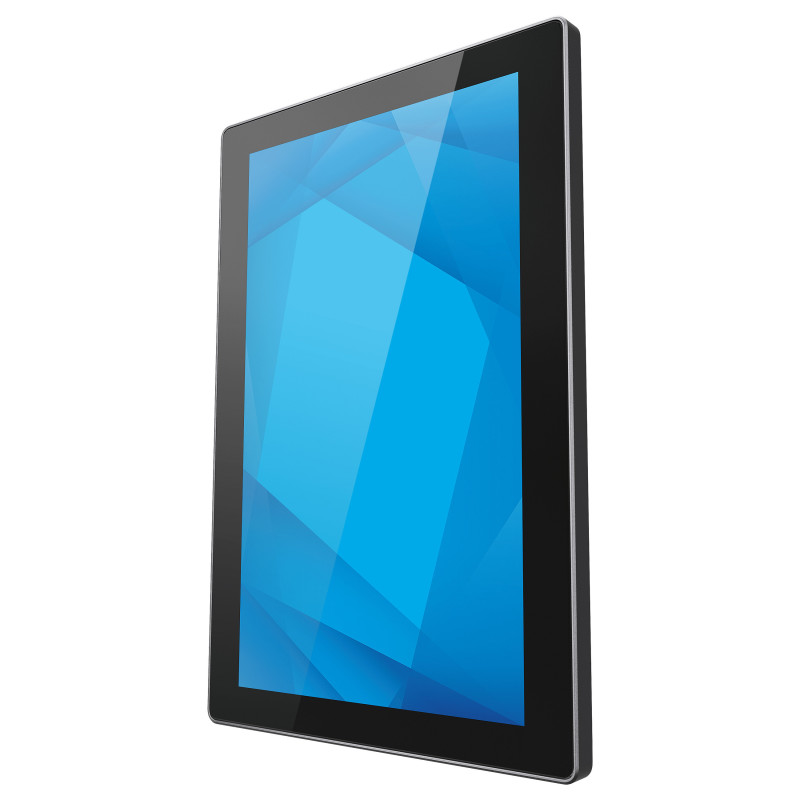

Orientation: Horizontal/Vertical
Product colour: Grey
Screen shape: Flat

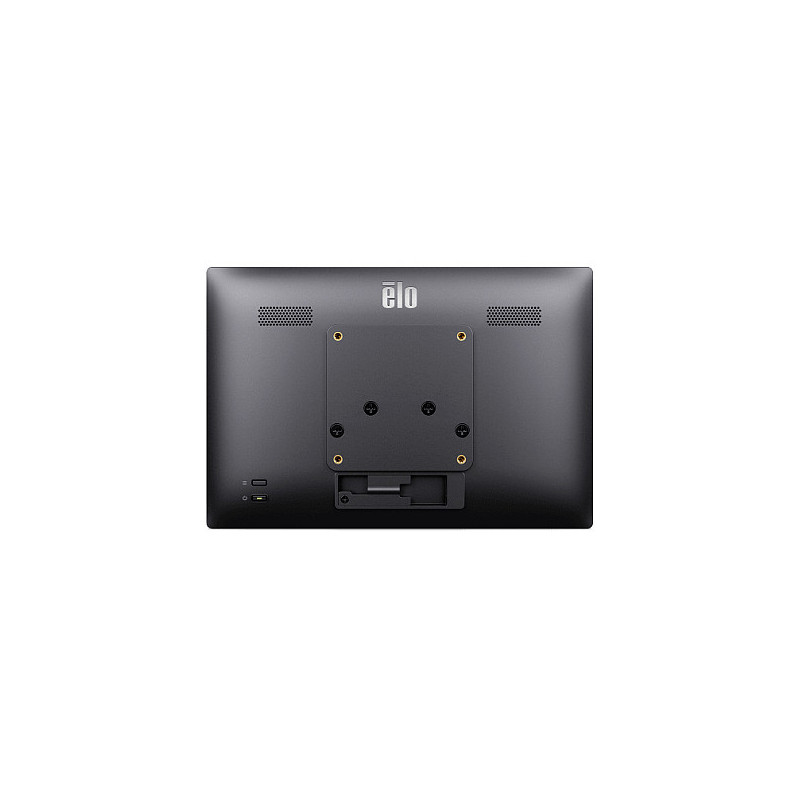

VESA mounting: Yes
Anti-glare screen: Yes

Performance

On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 6.6 W
Power consumption (sleep): 0.8 W
Power consumption (off): 0.15 W

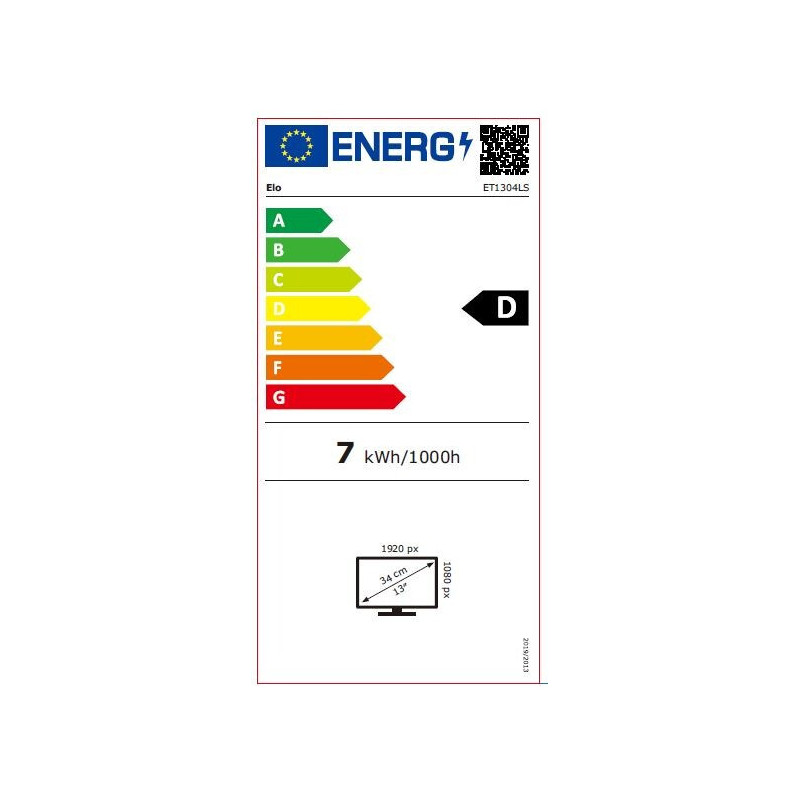

Energy efficiency class (SDR): D
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Weight dimensions

Display width: 311.5 mm
Display depth: 14.9 mm
Display height: 191.9 mm
Display weight: 870 g

Packaging data

Package width: 378 mm
Package depth: 92 mm
Package height: 252 mm
Package weight: 1.55 kg

Packaging content

Cables included: USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Logistics data

Quantity per pack: 1 pc(s)

Network

Ethernet LAN: No

Other features

Aspect ratio: 16:9
