Elo Touch Solutions 1004L

Elo Touch Solutions 1004L. Product design: Digital signage flat panel. Display diagonal: 25.6 cm (10.1"), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 360 cd/m², HD type: WXGA, Touchscreen. Product colour: Black

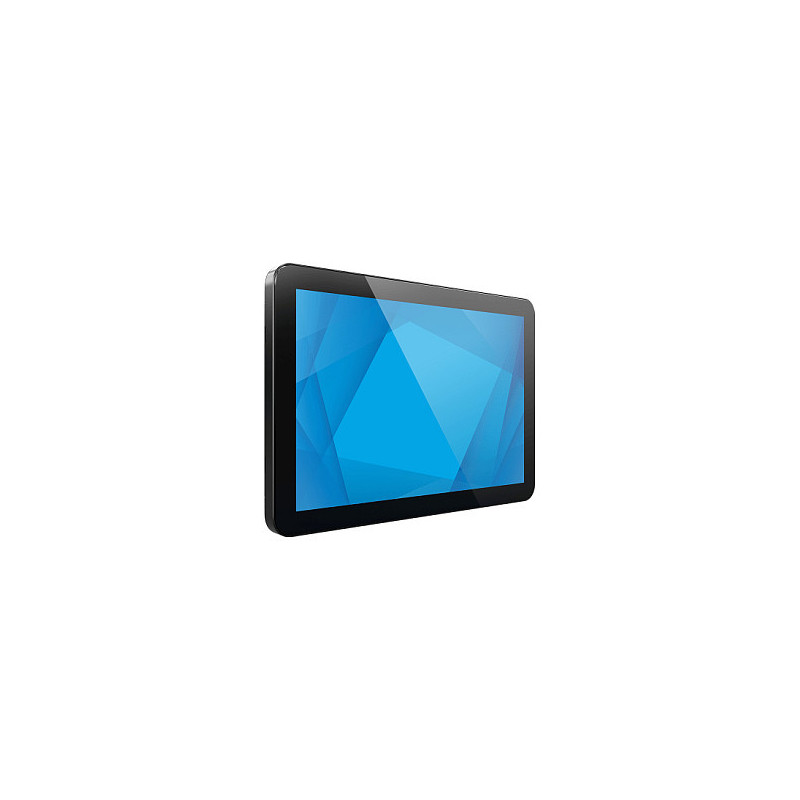

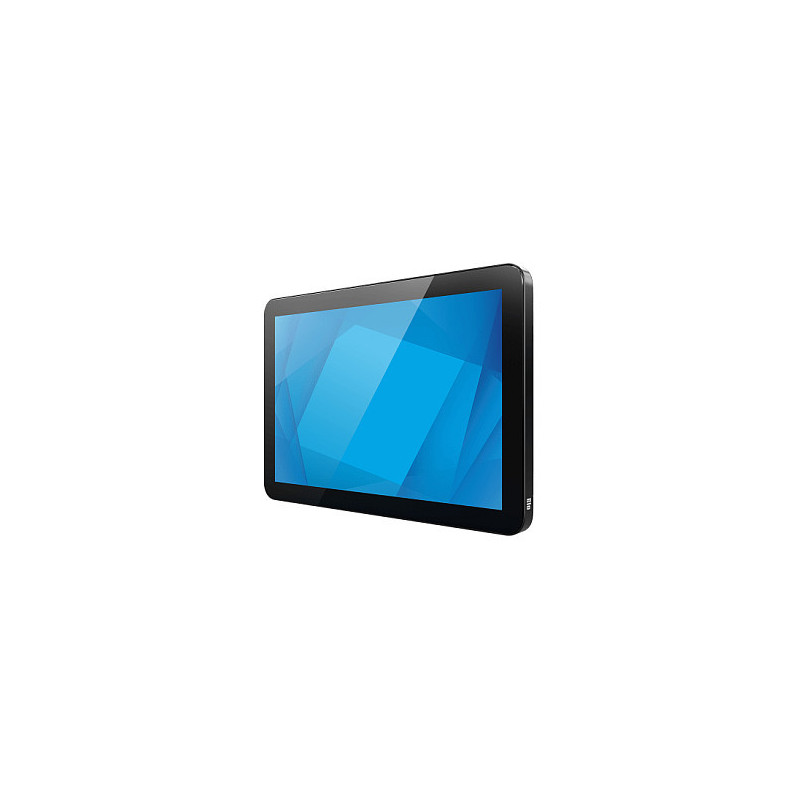

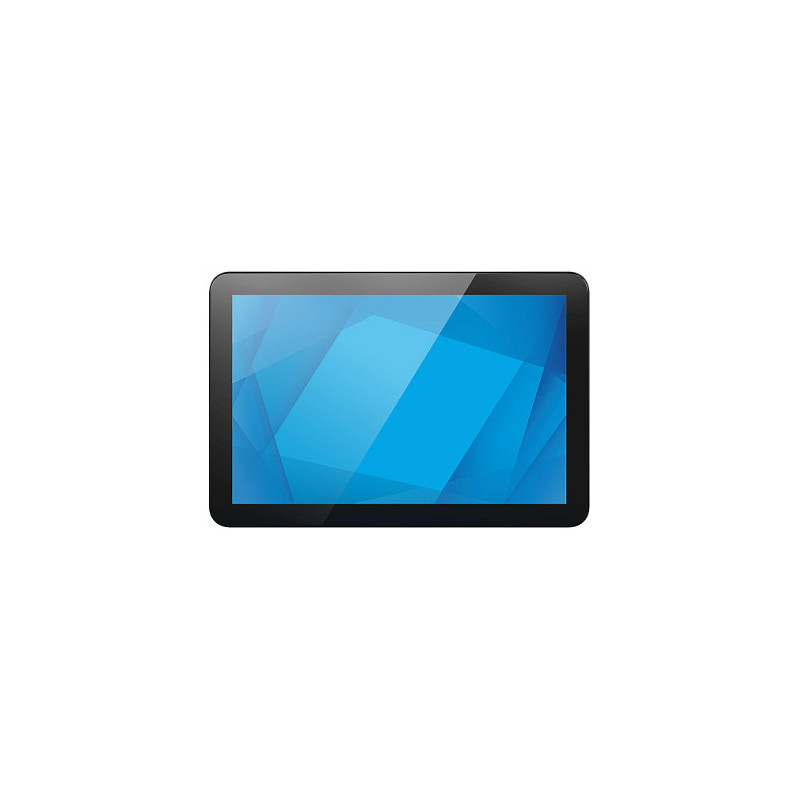

The 1004L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10" touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 10" touchscreen.
Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1004L offers the perfect compact touch display with the connectivity you need at the point of sale.

Display

Panel type: TFT-LCD
Display diagonal: 25.6 cm (10.1")
Display technology: LED
Display resolution: 1280 x 800 pixels
Display brightness: 360 cd/m²
HD type: WXGA
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Response time: 30 ms
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 170°
Display number of colours: 16.7 million colours
Active display area (W x H): 216.96 x 135.6 mm
Display diagonal (metric): 26 cm
Number of displays: 1
Horizontal scan range: 30 - 80 kHz
Native refresh rate: 60 Hz

Ports interfaces

HDMI ports quantity: 1
Feature: USB port
USB connector type: Micro-USB, USB Type-C
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 18 W
Feature: DC-in jack

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 4 W

Design

Product design: Digital signage flat panel
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

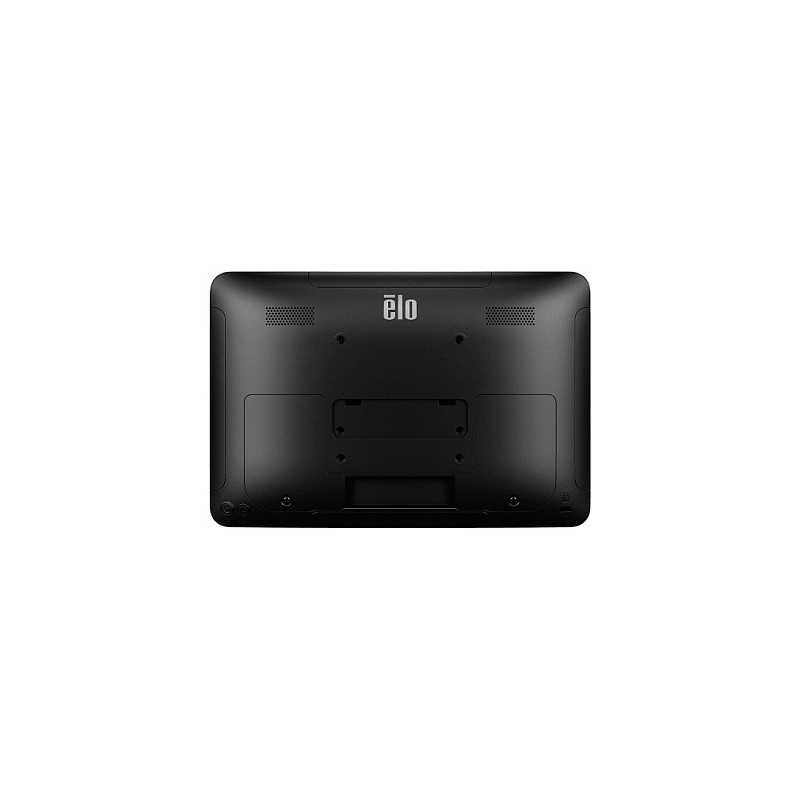

Feature: VESA mounting
Panel mounting interface: 75 x 75 mm

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
International Protection (IP) code: IP54
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 6.5 W
Power consumption (sleep): 1 W
Power consumption (off): 0.25 W

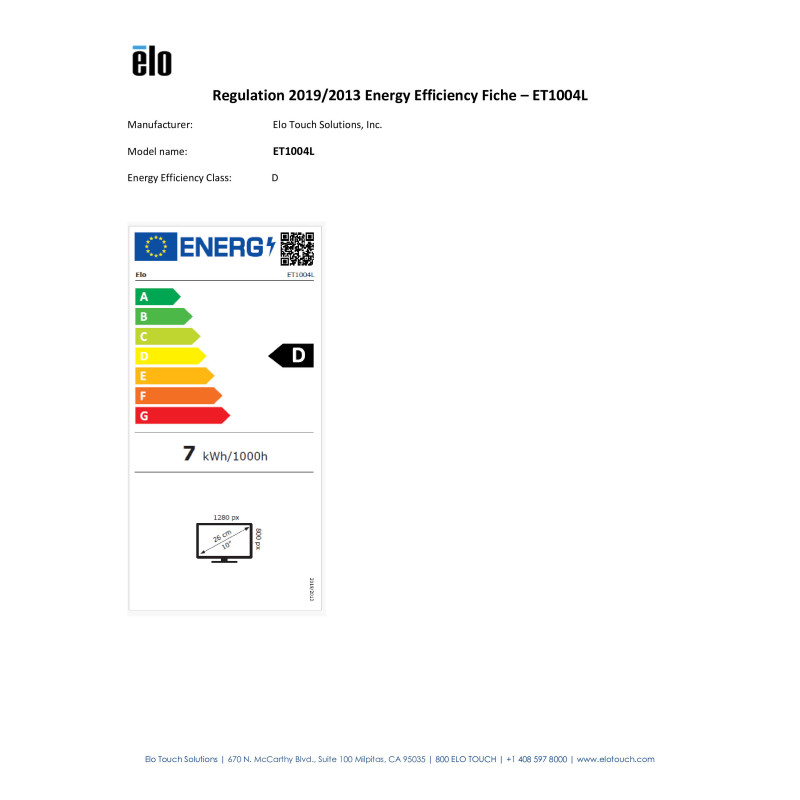

Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 7 kWh
Energy efficiency scale: A to G

Weight dimensions

Display width: 249 mm
Display depth: 168 mm
Display height: 25 mm
Display weight: 900 g

Packaging data

Package width: 308 mm
Package depth: 143 mm
Package height: 223 mm
Package weight: 2.2 kg

Packaging content

Cables included: HDMI, Power, USB Type-A to USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%
