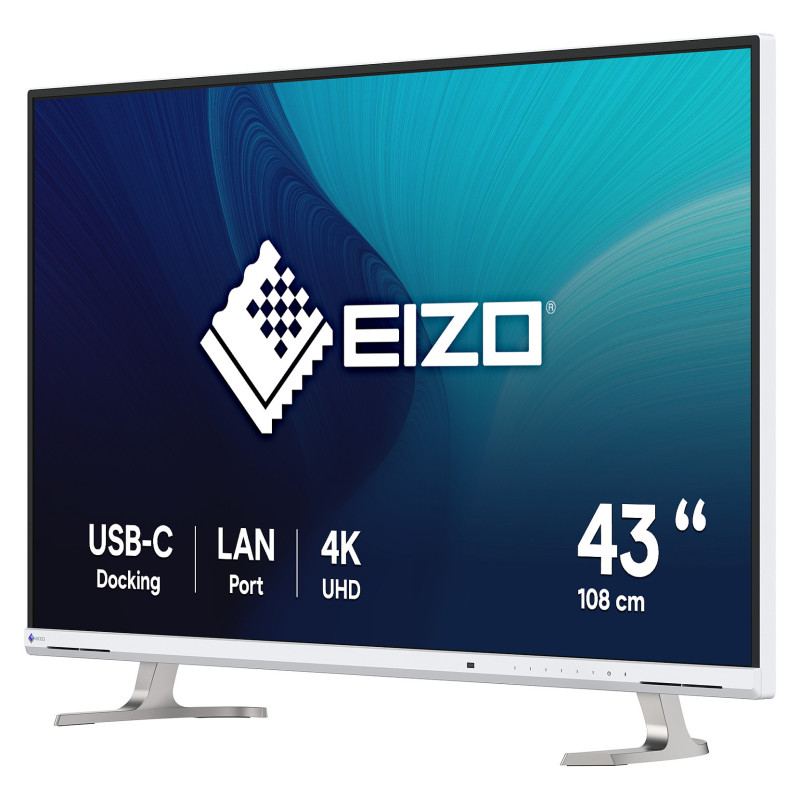

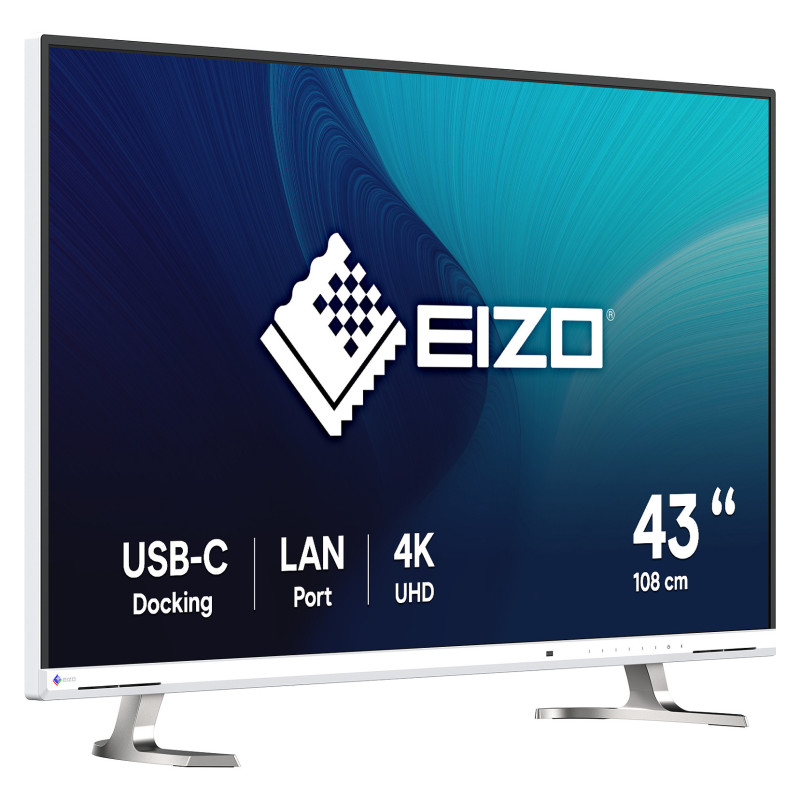

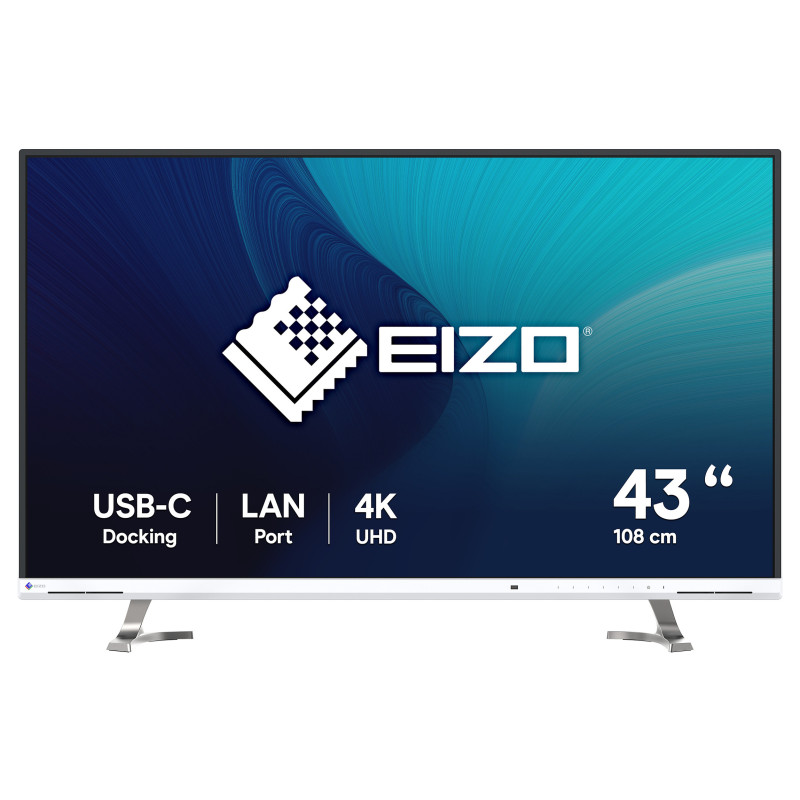

EIZO FlexScan EV4340X-WT computer monitor

EIZO FlexScan EV4340X-WT. Display diagonal: 108 cm (42.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: White

With a 42.5 inch screen diagonal, the EIZO FlexScan EV4340X is ideal for use in control rooms, control centers, trading floors or similar work environments: Its 4K resolution (3840 x 2160 pixels) offers four times as much information as a Full HD monitor. In addition to two HDMI inputs and a DisplayPort connection, the monitor has full USB-C docking functionality including DisplayPort Alt Mode, transmission of video, audio and USB data signals and a power supply of up to 94 watts. The EV4340X also masters operation with multiple computers or image sources with ease. The integrated KVM switch allows the use of a keyboard and mouse combination on two computers. Thanks to its picture-in-picture (PbP) function, the monitor can display up to four video signals side by side. The button on the front can be used to conveniently switch between 12 available layouts. The picture-in-picture (PiP) function for two signal sources offers efficient screen utilization for presentations and meetings. These and other important functions can be controlled on the monitor or via the supplied remote control. Therefore, the EIZO FlexScan EV4340X is also well suited for wall mounting when buttons on the device are not accessible. Its slim design makes grouping in multi-screen systems particularly easy.

Display

Display diagonal: 108 cm (42.5")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 350 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.245 x 0.245 mm
Pixel density: 104 ppi
Viewable size, horizontal: 94.1 cm
Viewable size, vertical: 52.9 cm
Digital horizontal frequency: 31 - 134 kHz
Digital vertical frequency: 29 - 61 Hz
Display diagonal (metric): 108 cm
Colour gamut standard: sRGB

Performance

Feature: Flicker-free technology
Feature: Low Blue Light technology

Multimedia

Number of speakers: 2
RMS rated power: 8 W
Feature: Built-in speaker(s)

Design

Market positioning: Office
Product colour: White
Feet colour: Silver

Ports & interfaces

Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 1
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 94 W
Feature: HDMI
HDMI ports quantity: 2
DisplayPorts quantity: 1
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: Built-in KVM switch
Feature: HDCP
HDCP version: 1.4/2.3

Network

Feature: Ethernet LAN

Ergonomics

Feature: VESA mounting
Panel mounting interface: 100 x 100,200 x 200 mm
Feature: Picture-in-Picture
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish

Power

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 31 kWh
Power consumption (typical): 31 W
Power consumption (standby): 0.4 W
Power consumption (max): 243 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width (with stand): 966.8 mm
Depth (with stand): 225.3 mm
Height (with stand): 631 mm
Weight (with stand): 15.9 kg
Width (without stand): 966.8 mm
Depth (without stand): 89.9 mm
Height (without stand): 571 mm
Weight (without stand): 15.2 kg

Packaging content

Feature: Stand included
Cables included: AC, DisplayPort, USB Type-A to USB Type-B, USB Type-C to USB Type-C
Feature: Remote control included
Feature: Quick start guide

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Silver, TCO

Other features

Feature: Picture-by-Picture (PbP)
Feature: Automatic brightness control
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 14
Compliance certificates: CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, TÜV mark, UKCA, VCCI
Ethernet LAN (RJ-45) ports: 1

Logistics data

Harmonized System (HS) code: 85285210
