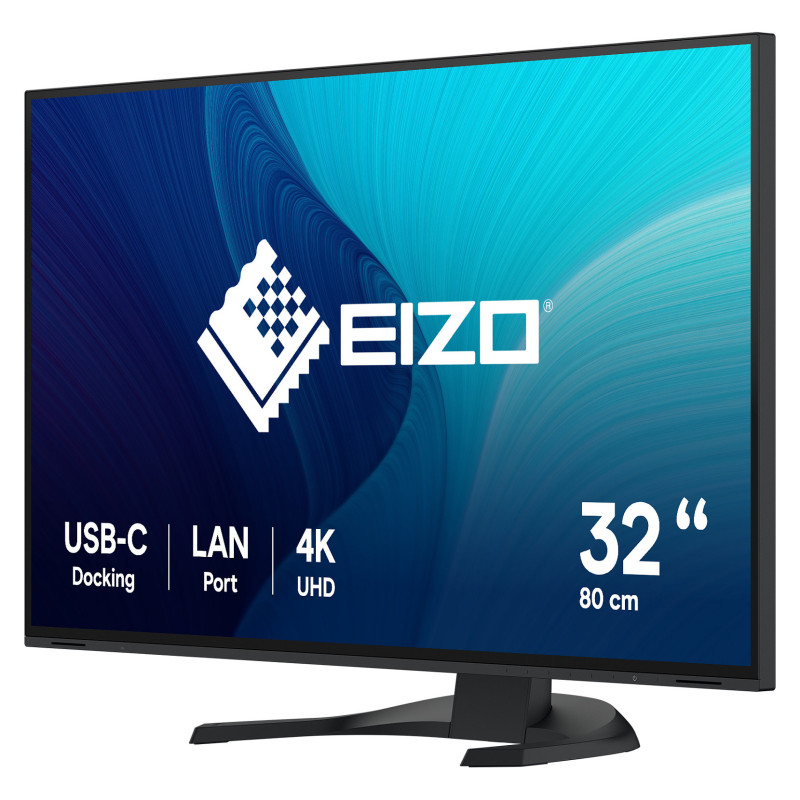

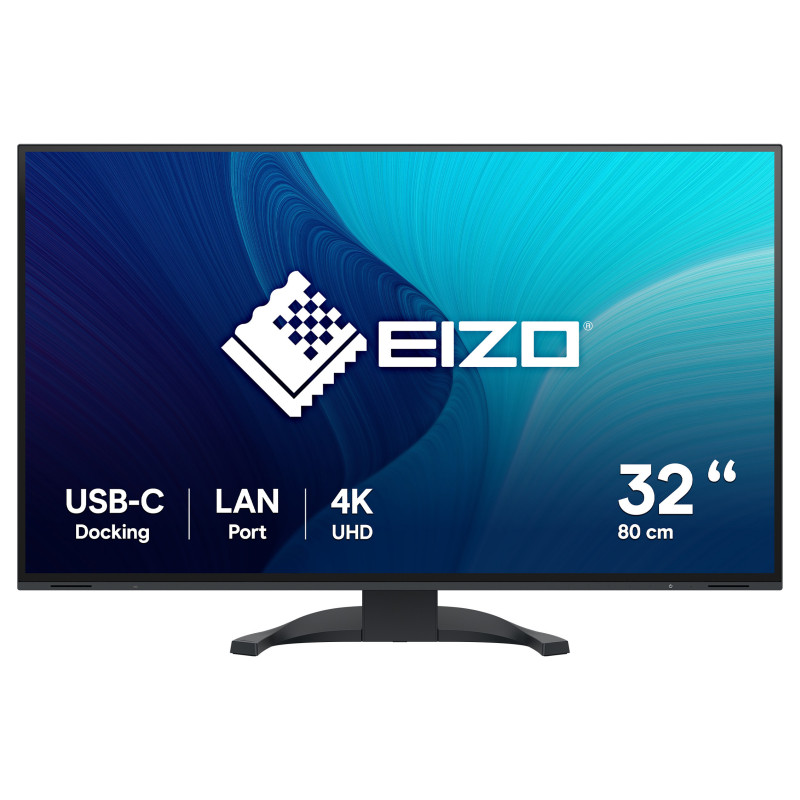

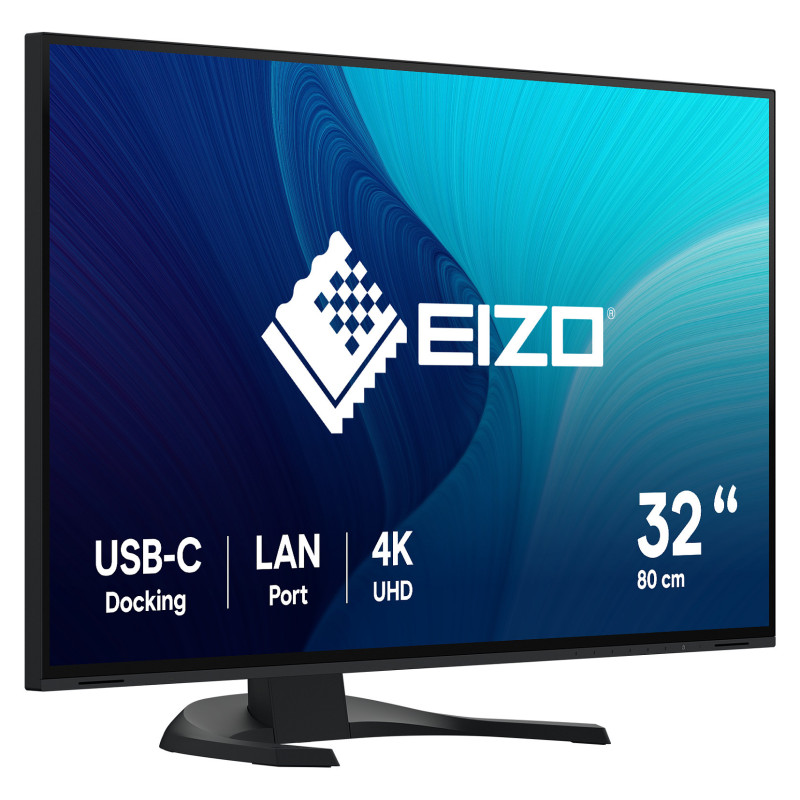

EIZO FlexScan EV3240X-BK computer monitor

EIZO FlexScan EV3240X-BK. Display diagonal: 80 cm (31.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Thanks to quadruple Full HD resolution, the EV3240X is ideally suited for professional applications. With 3840 x 2160 pixels, it offers a pixel density of 140 dpi on a 31.5" diagonal. Graphics and texts are therefore displayed razor-sharp. Its USB-C port guarantees state-of-the-art connectivity and charges end devices like tablets or notebooks. Thus, it convinces as a fully functional docking, including LAN connection and 94 watts of power delivery for the computer. Fewer cables offer more freedom on the desk. It also shines with its almost frameless design. Highest picture quality and ergonomics inspire and qualify it for highest demands in the office and at home. The case is available in black or white; even the cables are color-coordinated. The monitor is equipped with two HDMI ports as well as one DisplayPort and USB-C port each. With its two USB upstream ports, the EV3240X can be used as a keyboard/mouse switcher. For example, if both a home PC and a company computer are connected to the monitor in the home office, both computers can be operated with a single keyboard and mouse. When using its Picture-by-Picture function, it even displays two signal sources simultaneously.

Display

Display diagonal: 80 cm (31.5")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 350 cd/m²
Response time: 5 ms
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 720 x 400, 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 2560 x 1440, 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Contrast ratio (typical): 2000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.182 x 0.182 mm
Pixel density: 140 ppi
Viewable size, horizontal: 69.7 cm
Viewable size, vertical: 39.2 cm
Digital horizontal frequency: 31 - 135 kHz
Digital vertical frequency: 29 - 61 Hz
Display diagonal (metric): 80 cm
Colour gamut standard: sRGB

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes
Low Blue Light technology: Yes

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Market positioning: Office
Product colour: Black
Feet colour: Black

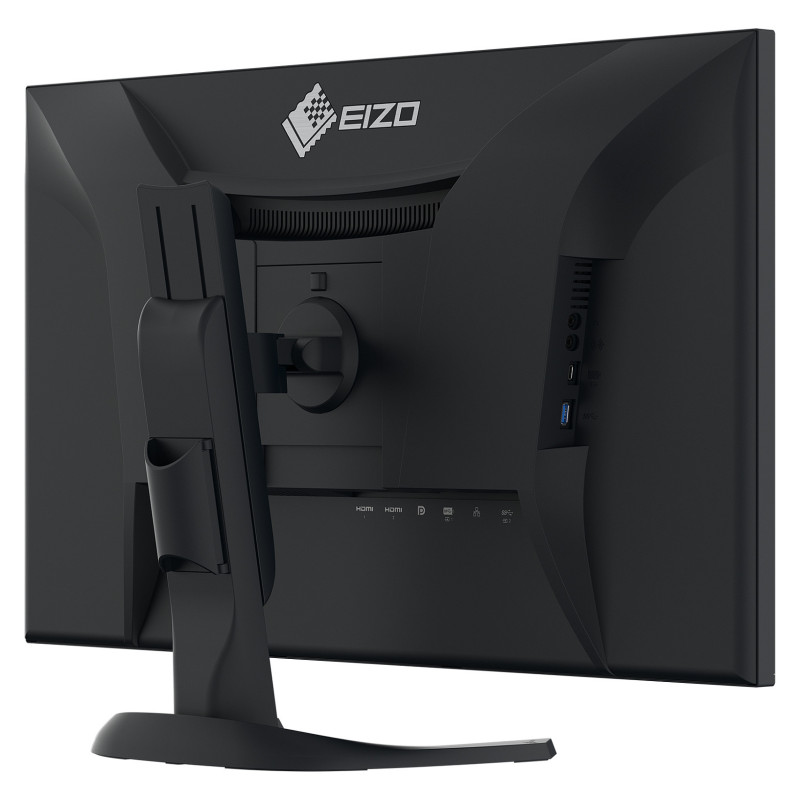

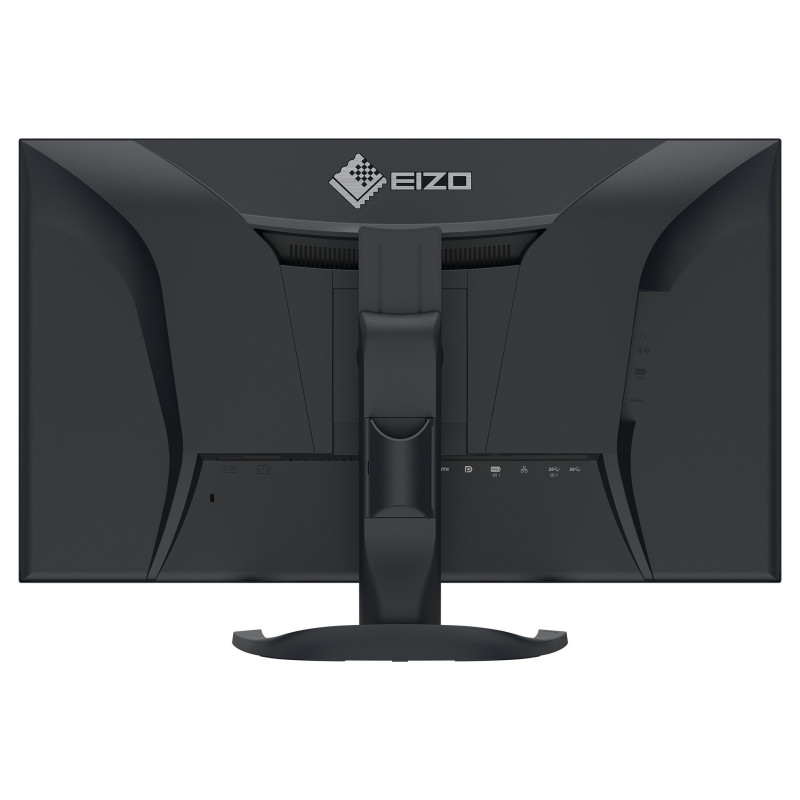

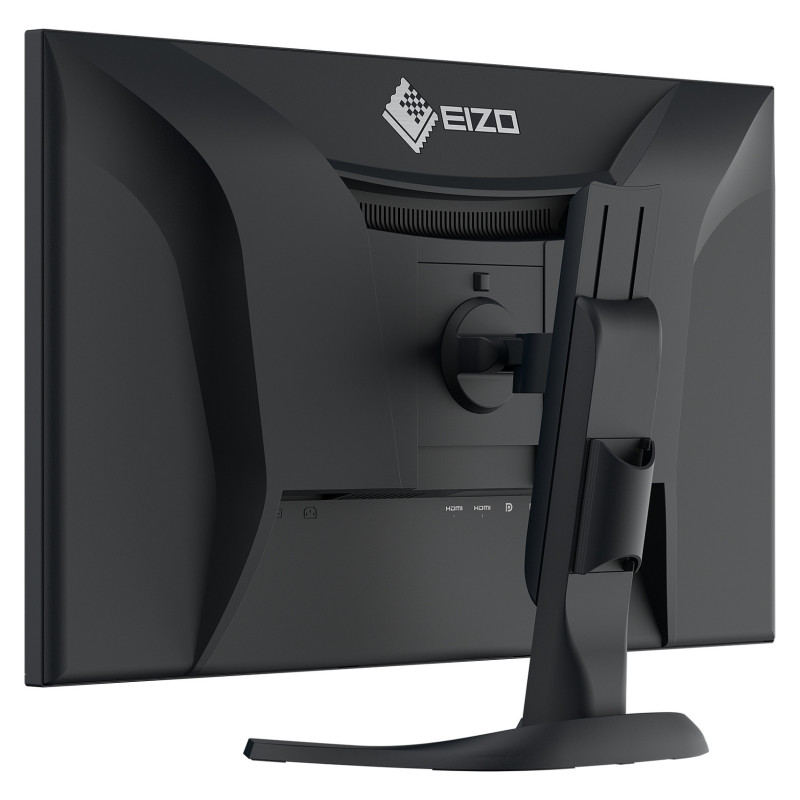

Ports interfaces

Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 3
USB Type-C downstream ports quantity: 1
USB Type-C DisplayPort Alternate Mode: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 94 W
HDMI: Yes
HDMI ports quantity: 2
DisplayPorts quantity: 1
Headphone out: Yes
Headphone outputs: 2
Headphone connectivity: 3.5 mm
Built-in KVM switch: Yes
HDCP: Yes
HDCP version: 1.4/2.3

Network

Ethernet LAN: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington

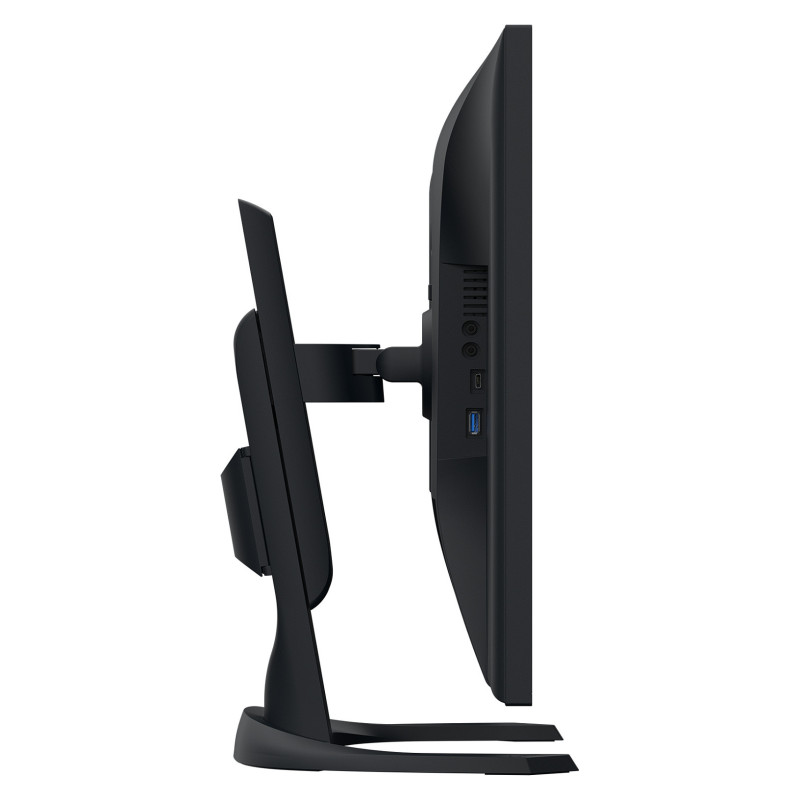

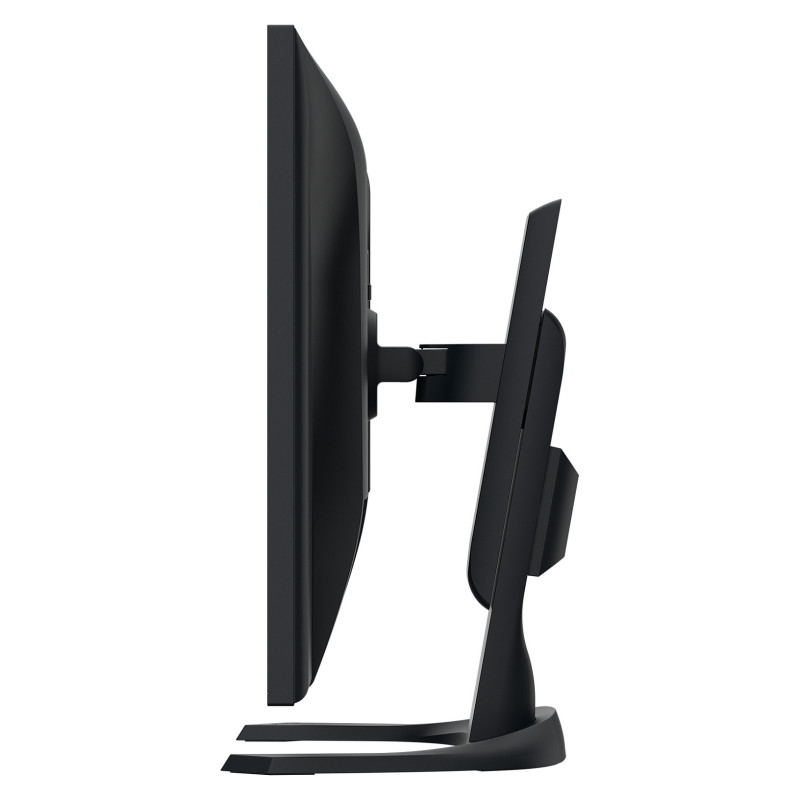

Height adjustment: Yes
Adjustable height (max): 19.5 cm
Pivot: Yes
Pivot angle: 0 - 90°
Swivelling: Yes
Swivel angle range: -90 - 90°
Tilt adjustment: Yes
Tilt angle range: -5 - 35°
Picture-in-Picture: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish

Power

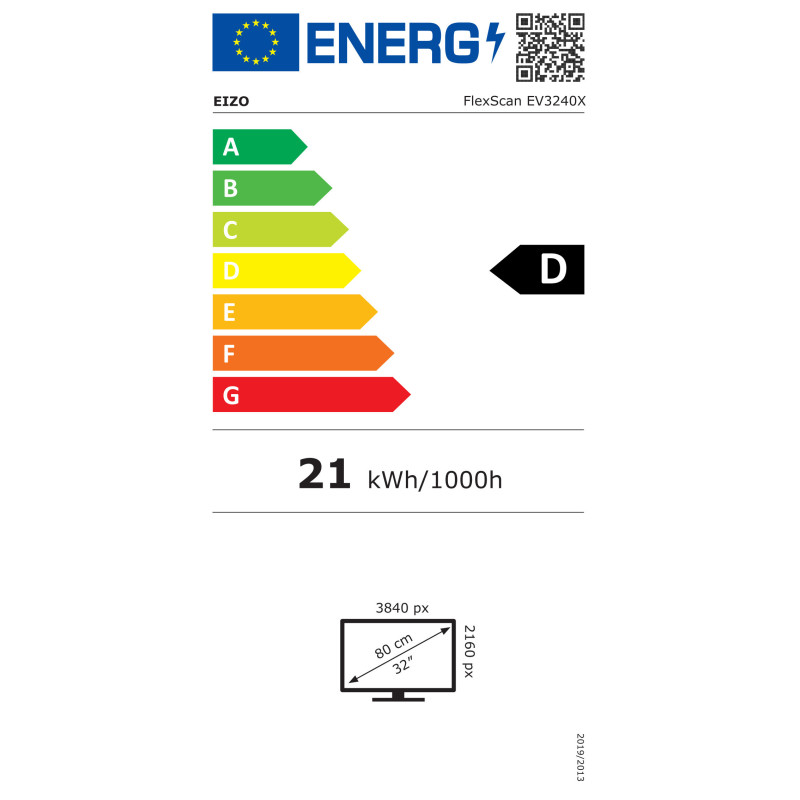

Energy efficiency class (SDR): D
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 21 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.35 W
Power consumption (max): 196 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width (with stand): 712 mm
Depth (with stand): 242 mm
Height (with stand): 622 mm
Weight (with stand): 9.4 kg
Width (without stand): 712 mm
Depth (without stand): 59 mm
Height (without stand): 415 mm
Weight (without stand): 6.7 kg

Packaging content

Stand included: Yes
Cables included: AC, USB Type-C to USB Type-C
Quick start guide: Yes

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO

Other features

Picture-by-Picture (PbP): Yes
Automatic brightness control: Yes
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 14
Compliance certificates: CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), GS mark, ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Certification: CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC

Logistics data

Harmonized System (HS) code: 85285210
