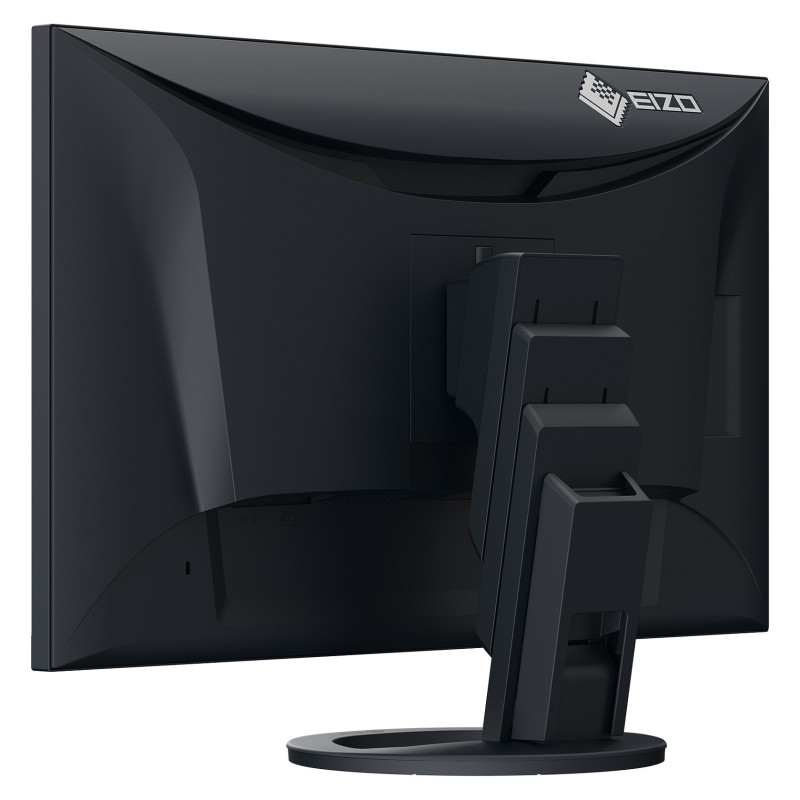

EIZO FlexScan EV2740S-BK computer monitor

EIZO FlexScan EV2740S-BK. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
The EV2740S has all the features you need for a crisp, clear, and flicker-free display. With 4K UHD resolution, it displays four times as much information as standard Full HD (1920 x 1080) resolution. This means users can see more information at once on the 27-inch screen, reducing the need to scroll or switch between hidden windows. Although 4K monitors typically require more power due to their higher resolution and larger screen size, the EV2740S boasts a typical power consumption of just 12 watts. This helps companies reduce energy costs and minimize their environmental footprint. Like all EIZO 4K monitors, the EV2740S is equipped with a USB-C port. This transmits the video signal, provides access to the monitor's USB hub with four ports for peripheral devices, and delivers up to 70 watts of power—all with just one cable between the notebook and the screen. In Picture-by-Picture (PbyP) mode, the monitor displays images from two signal sources side by side. The EV2740S is certified to comprehensive global sustainability standards, including TCO Certified generation 10 and the ENERGY STAR® label. The EPEAT Gold award, the highest level, and EPEAT Climate+ underscore EIZO's commitment to sustainability.

Display

Display diagonal: 68.6 cm (27")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 350 cd/m²
Response time: 6 ms
Response time measurement type: GTG (Gray to Gray)
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 720 x 400, 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 2560 x 1440, 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.155 x 0.155 mm
Pixel density: 163 ppi
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Digital horizontal frequency: 31 - 134 kHz
Digital vertical frequency: 29 - 61 Hz
Display diagonal (metric): 68.5 cm
Colour gamut standard: sRGB

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes
Low Blue Light technology: Yes

Multimedia

Number of speakers: 2
RMS rated power: 2 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Market positioning: Office
Product colour: Black
Feet colour: Black

Ports interfaces

Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-C
Number of upstream ports: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
USB Type-C DisplayPort Alternate Mode: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 70 W
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone out: No
HDCP: Yes
HDCP version: 1.4/2.3

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: Yes
Adjustable height (max): 16.9 cm
Pivot: Yes
Pivot angle: -90 - 90°
Swivelling: Yes
Swivel angle range: 0 - 344°
Tilt adjustment: Yes
Tilt angle range: -5 - 35°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish

Power

Energy efficiency class (SDR): C
Energy consumption (SDR) per 1000 hours: 13 kWh
Power consumption (typical): 12 W
Power consumption (standby): 0.27 W
Power consumption (max): 149 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width (with stand): 611.6 mm
Depth (with stand): 230 mm
Height (with stand): 376.3 mm
Weight (with stand): 8.6 kg
Width (without stand): 611.6 mm
Depth (without stand): 60.7 mm
Height (without stand): 364.3 mm
Weight (without stand): 5.8 kg

Packaging content

Stand included: Yes
Cables included: USB Type-C to USB Type-C, AC
Quick start guide: Yes

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO

Other features

Picture-by-Picture (PbP): Yes
Automatic brightness control: Yes
Warranty period: 7 year(s)
Look-up table (LUT) bit depth: 10
Compliance certificates: CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), GS mark, ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE
Certification: CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (includingISO 9241-307), TCO Certified Generation 10, TÜV/LowBlue Light Content, TÜV/Flicker Free, RCM, cTÜVus,FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPAENERGY STAR, RoHS, WEEE, China RoHS, CCC

Logistics data

Harmonized System (HS) code: 85285210
