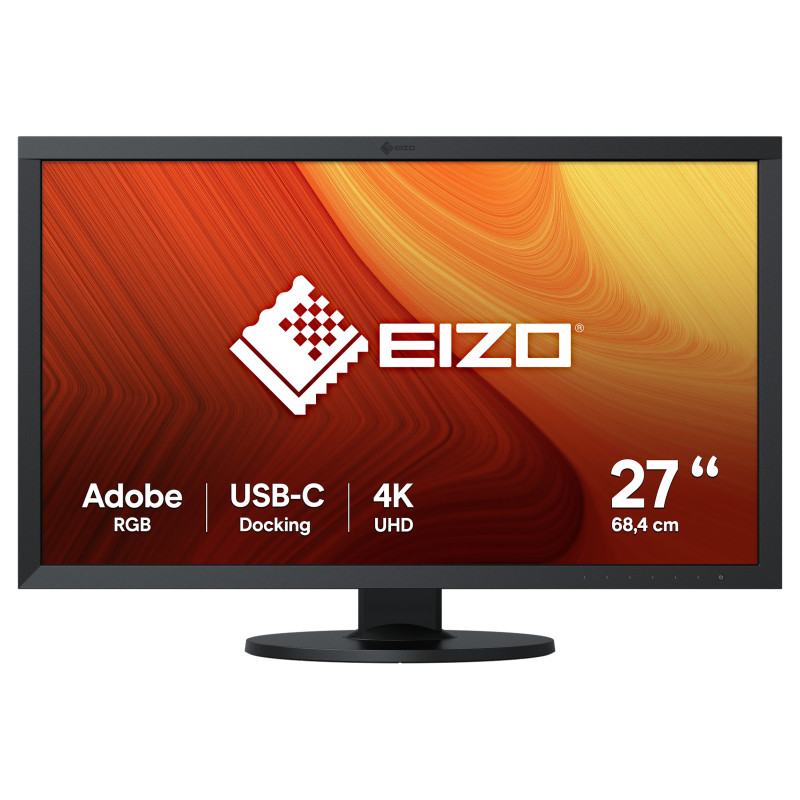

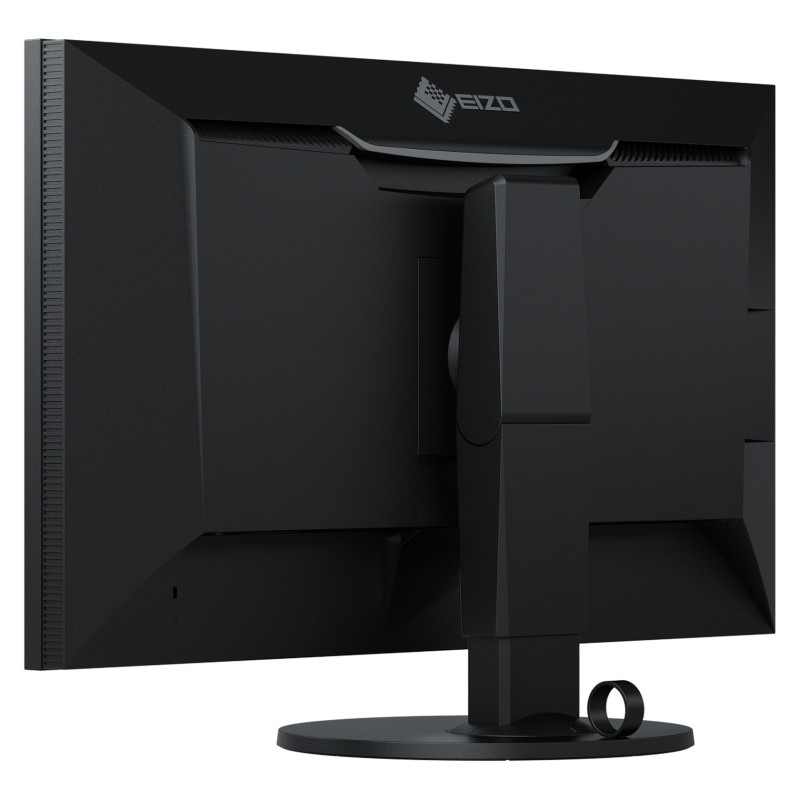

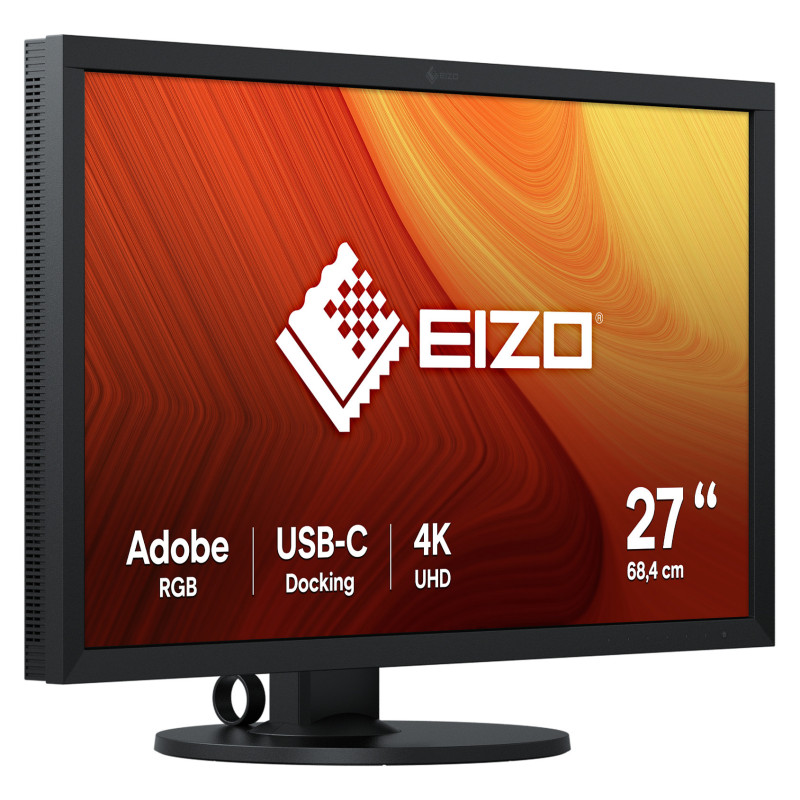

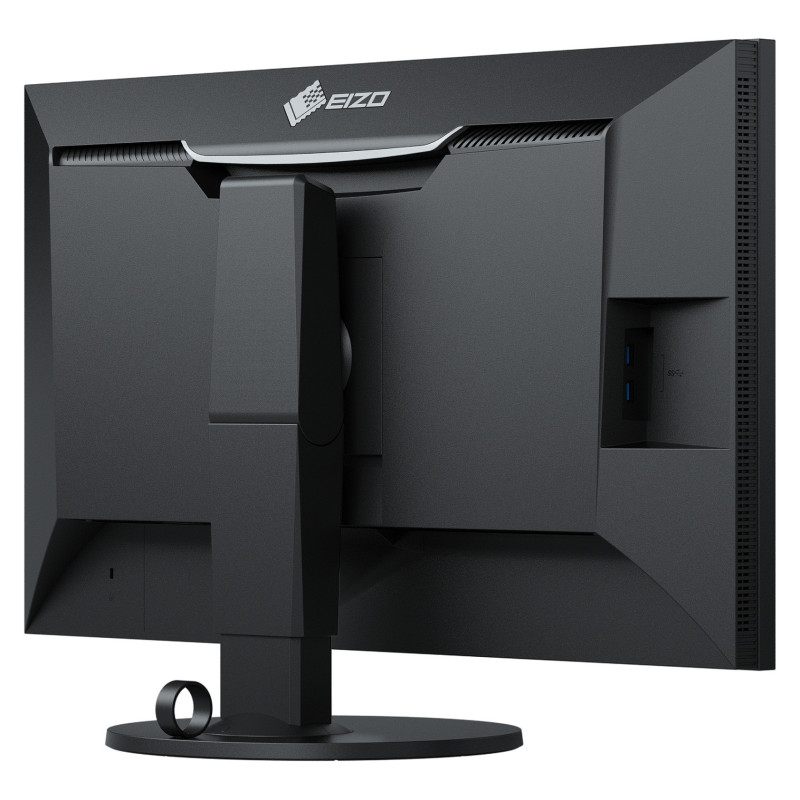

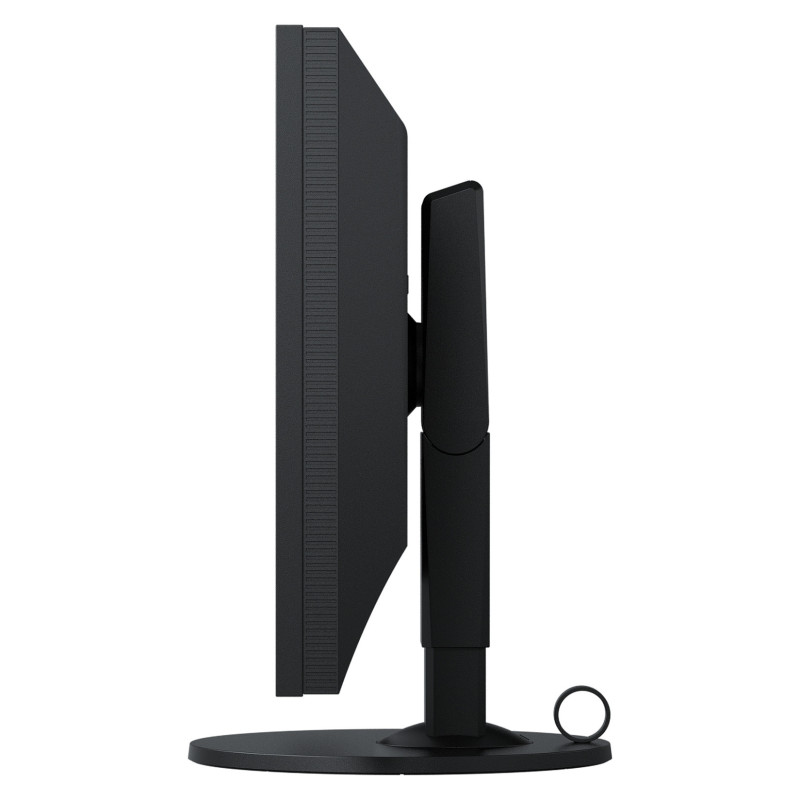

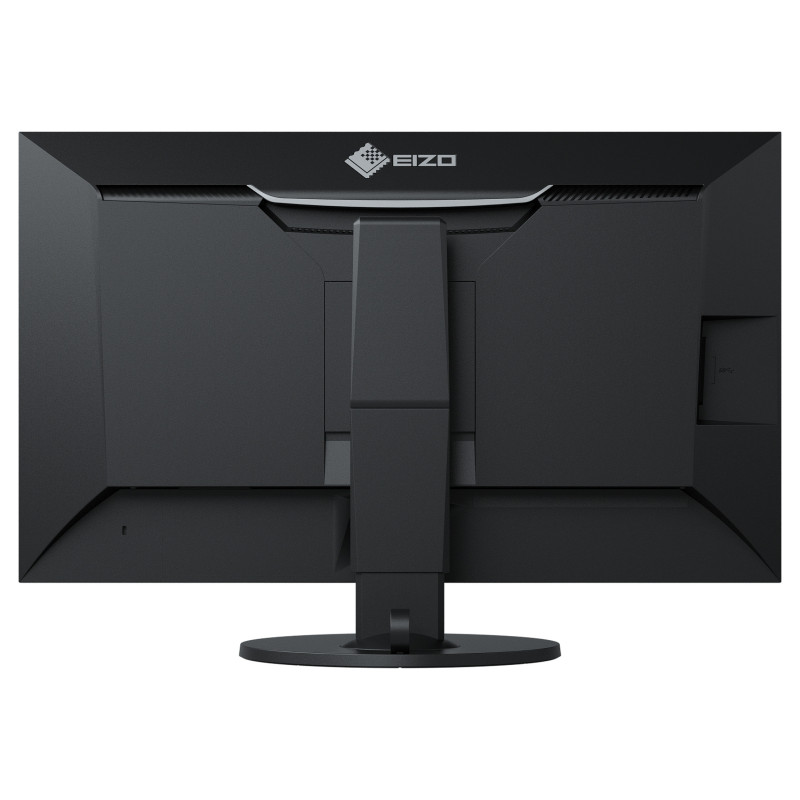

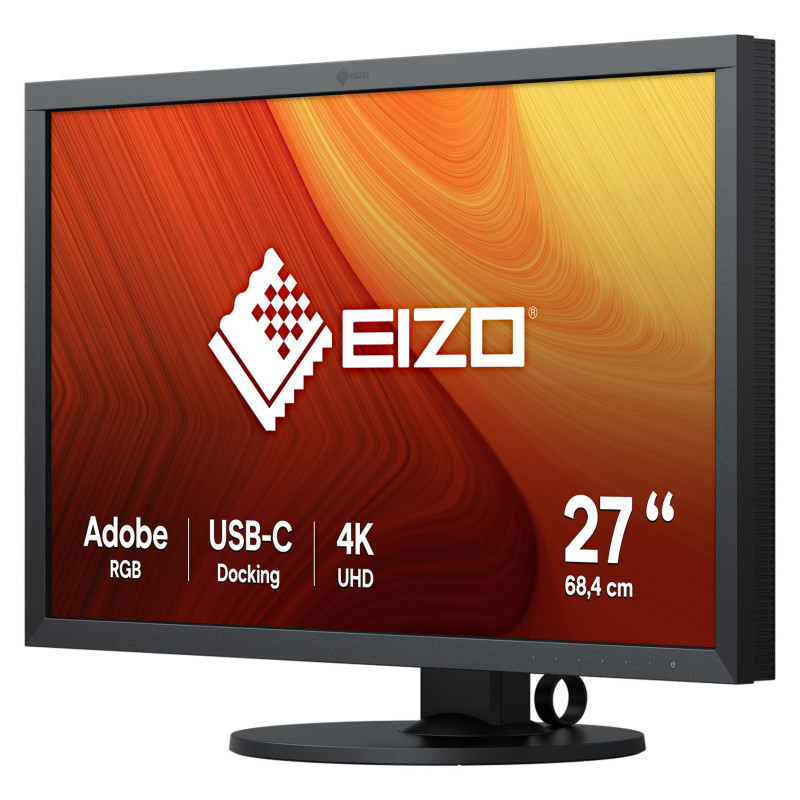

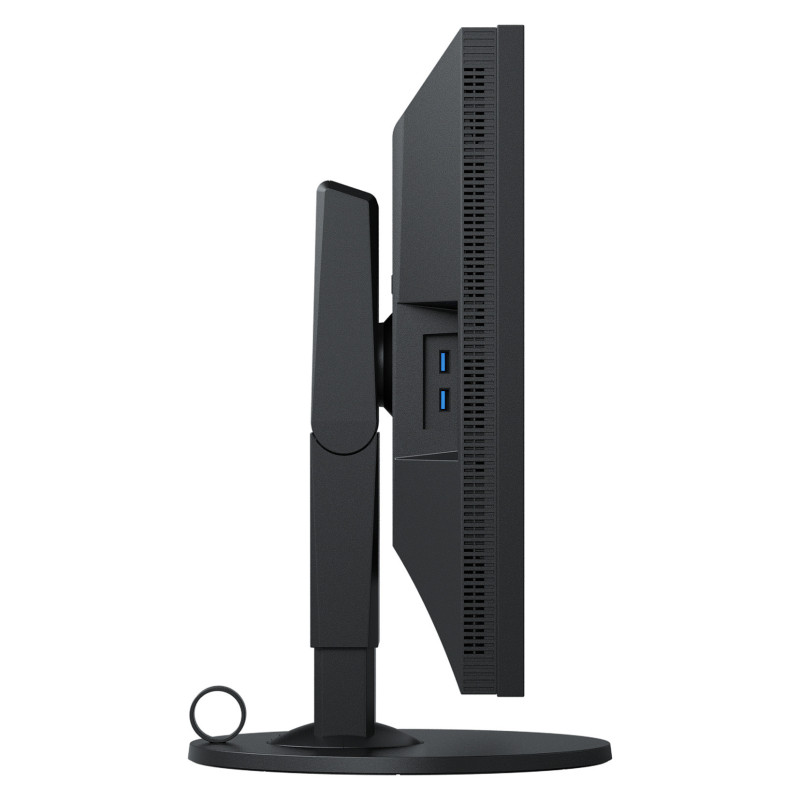

EIZO ColorEdge CS2740 computer monitor

EIZO ColorEdge CS2740. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

Display

Display diagonal: 68.6 cm (27")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 350 cd/m²
Response time: 10 ms
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Supported video modes: 480i, 576p, 720p, 1080i, 1080p
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.155 x 0.155 mm
Pixel density: 164 ppi
Viewable size, horizontal: 59.6 cm
Viewable size, vertical: 33.5 cm
Digital horizontal frequency: 15 - 135 kHz
Digital vertical frequency: 23 - 61 Hz
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, EBU, Rec. 709, sRGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 99%
DCI-P3 coverage: 90%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes

Multimedia

Built-in speaker(s): No
Built-in camera: No

Design

Market positioning: Photo editing
Product colour: Black
Feet colour: Black

Ports interfaces

Built-in USB hub: Yes
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
USB Type-C DisplayPort Alternate Mode: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 60 W
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Built-in KVM switch: Yes
HDCP: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Height adjustment: Yes
Adjustable height (max): 15.5 cm
Pivot: Yes
Pivot angle: 0 - 90°
Swivelling: Yes
Swivel angle range: 0 - 344°
Tilt adjustment: Yes
Tilt angle range: -5 - 35°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 8

Power

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 37.8 kWh
Power consumption (typical): 37.8 W
Power consumption (standby): 0.5 W
Power consumption (max): 168 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width (with stand): 638 mm
Depth (with stand): 265 mm
Height (with stand): 559 mm
Weight (with stand): 10.3 kg
Width (without stand): 638 mm
Depth (without stand): 75 mm
Height (without stand): 378.2 mm
Weight (without stand): 6.7 kg

Packaging content

Stand included: Yes
Cables included: AC, DisplayPort, USB Type-C to USB Type-C, USB Type-A to USB Type-B
Quick start guide: Yes

Other features

Hardware calibration: Yes
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 16
Compliance certificates: RoHS
Certification: CE, CB, TÜV / GS, TÜV ergonomics tested (including ISO 9241-307), cTÜVus, TÜV / S, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, China RoHS, WEEE

Logistics data

Harmonized System (HS) code: 85285210
