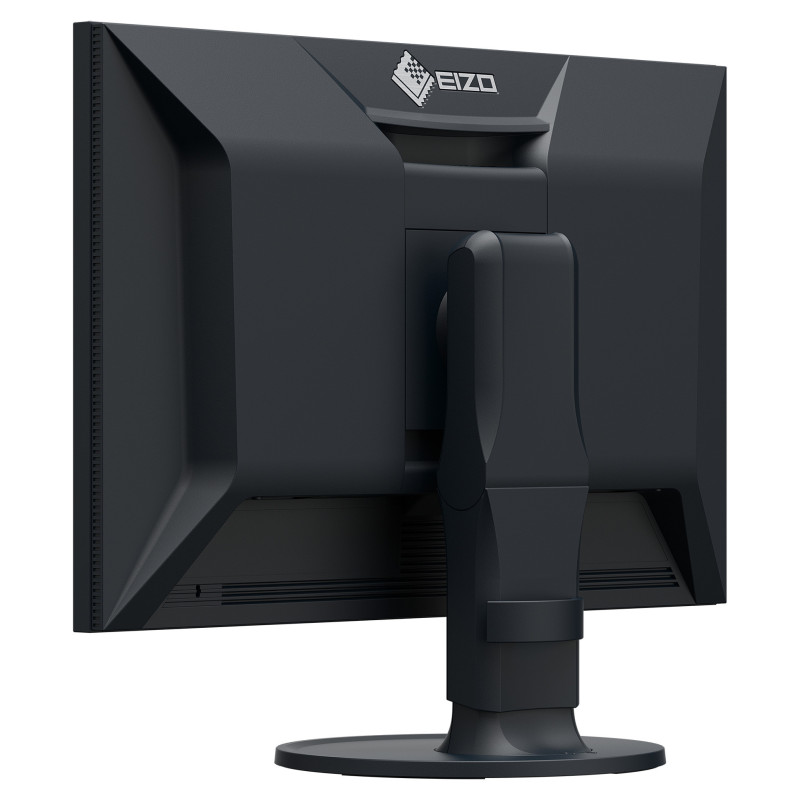

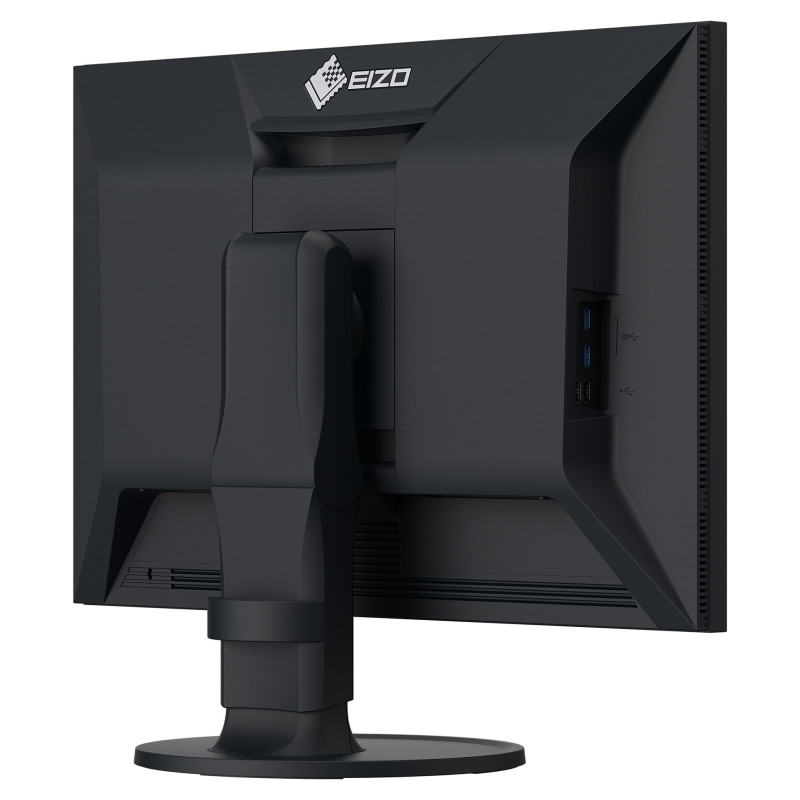

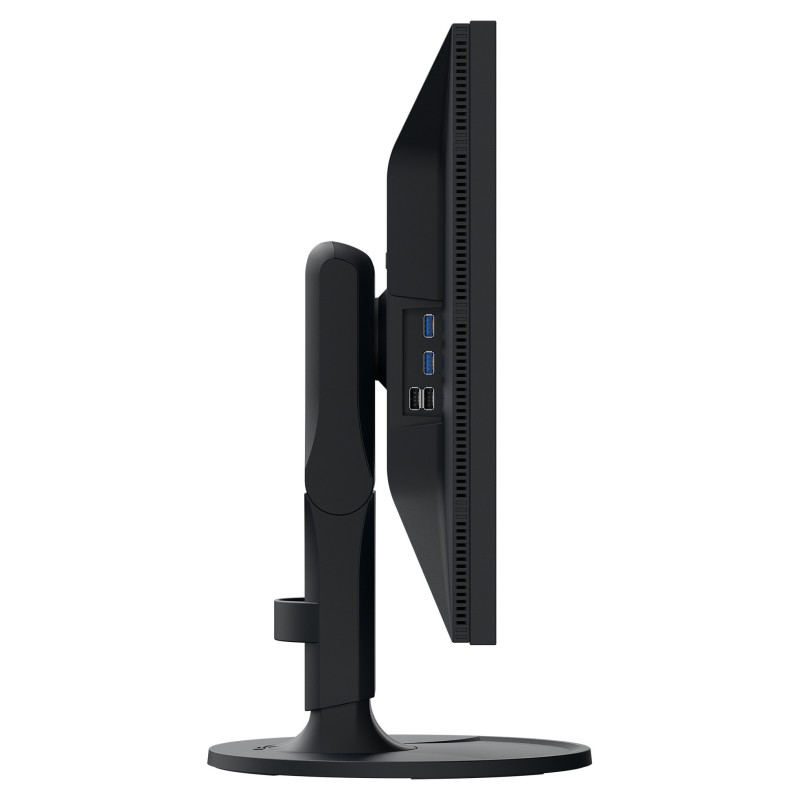

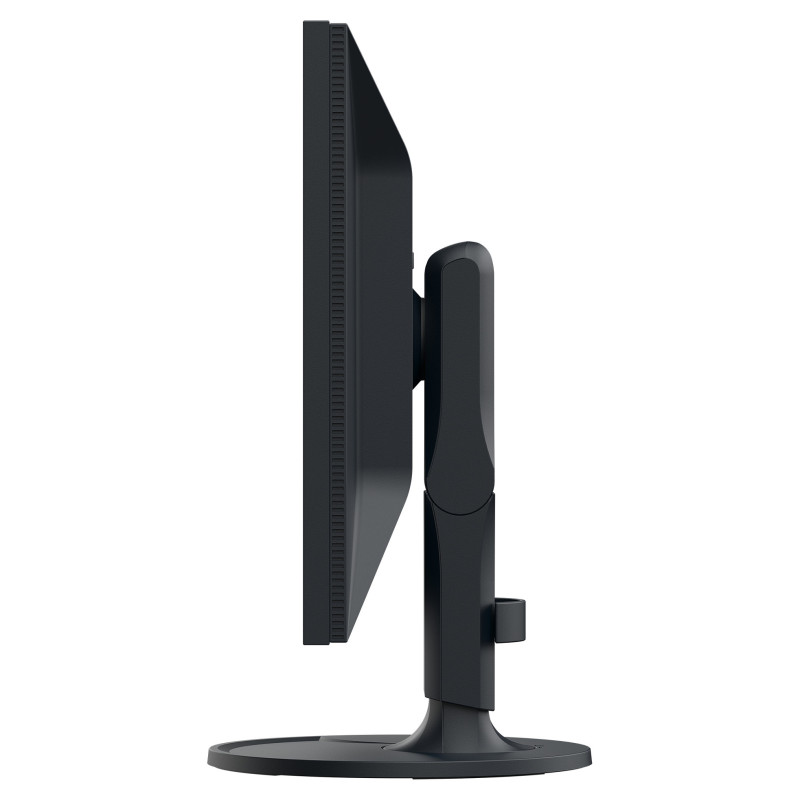

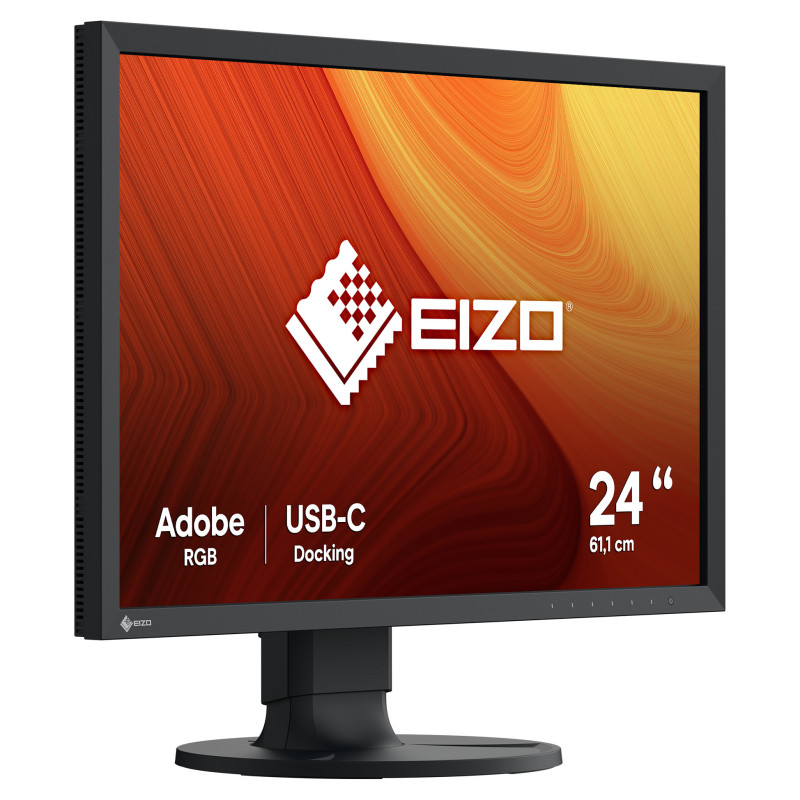

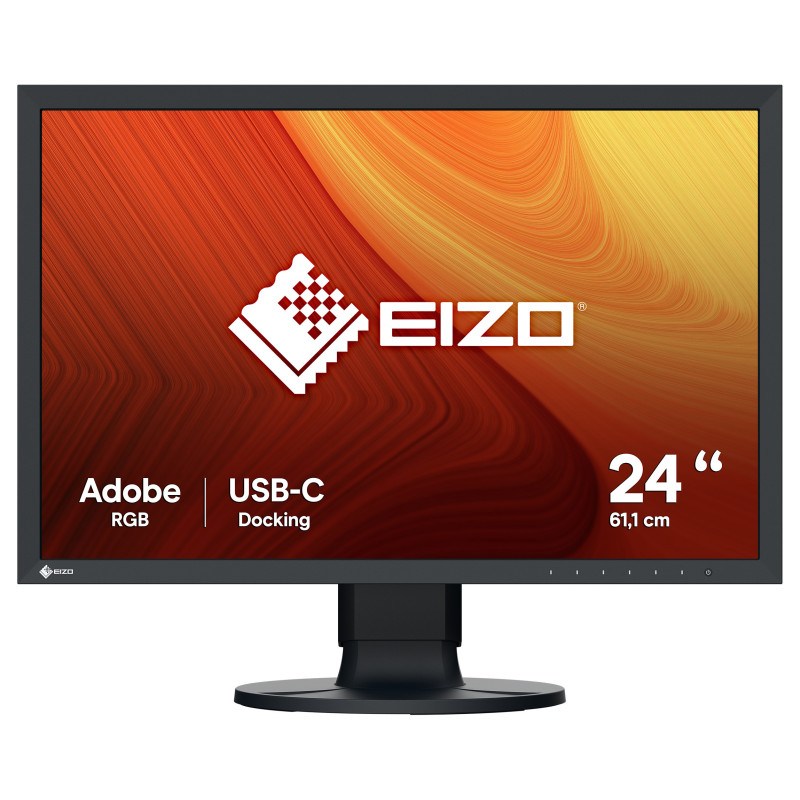

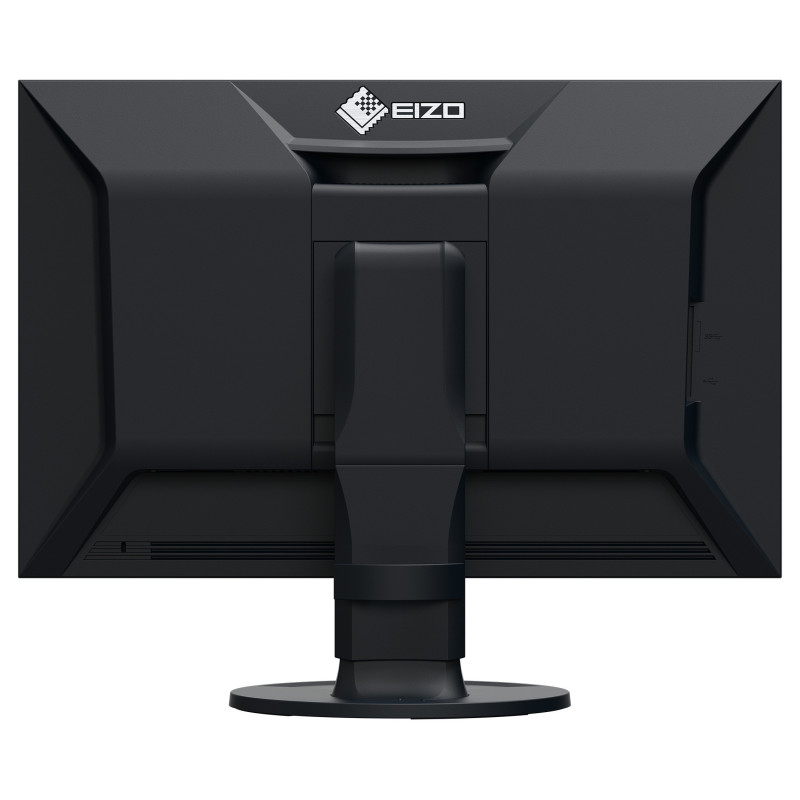

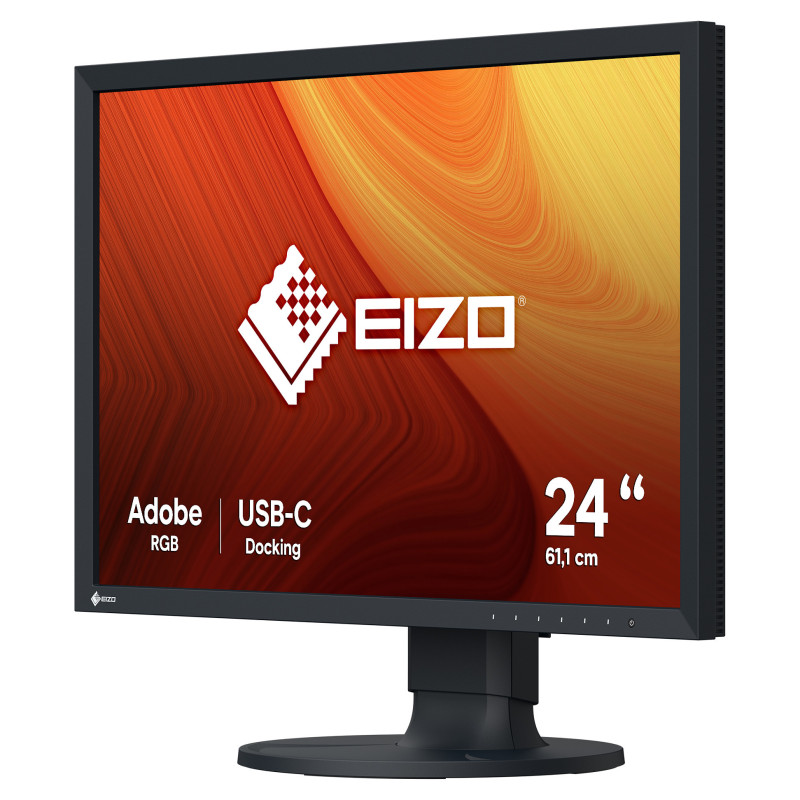

EIZO ColorEdge CS2400S computer monitor

EIZO ColorEdge CS2400S. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Response time: 19 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
The ColorEdge CS2400S is the perfect entry into the world of maximum precision: the panel offers extremely wide coverage of the relevant colour spaces (e.g. 99 % AdobeRGB). The Digital Uniformity Equalizer (DUE) ensures homogeneous image representation and the 16-bit look-up table guarantees absolutely precise colour representation with up to 10 bits. On the one hand, the exact factory calibration guarantees the highest precision "out of the box". On the other hand, the regularly recommended recalibration is done in no time at all. This means that photographers, filmmakers or image editors can always rely on their monitor to show them an absolutely precise view of their image file. The docking functions via USB-C allow the image signal to be transferred and the monitor's USB hub to be powered with just one cable. In addition, a mobile device can be supplied with up to 70 watts of charging current. In this way, the CS2400S becomes the central dock of the creative workflow with a flick of the wrist. Alternatively, the monitor can of course also be operated via HDMI or DisplayPort as well as USB-B upstream.

Display

Display diagonal: 61.2 cm (24.1")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Native aspect ratio: 16:10
Display technology: LCD
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 410 cd/m²
Response time: 19 ms
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080)
Supported video modes: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Contrast ratio (typical): 1350:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.27 x 0.27 mm
Pixel density: 94 ppi
Horizontal scan range: 15 - 76 kHz
Vertical scan range: 23 - 61 Hz
Viewable size, horizontal: 51.8 cm
Viewable size, vertical: 32.4 cm
Display diagonal (metric): 61.1 cm
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, sRGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 99%
DCI-P3 coverage: 99%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes

Multimedia

Built-in speaker(s): No
Built-in camera: No

Design

Market positioning: Photo editing
Product colour: Black
Feet colour: Black

Ports interfaces

Built-in USB hub: Yes
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
USB Type-C DisplayPort Alternate Mode: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 70 W
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Built-in KVM switch: Yes
HDCP: Yes
HDCP version: 2.3

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Height adjustment: Yes
Adjustable height (max): 15.5 cm
Pivot: Yes
Pivot angle: 0 - 90°
Swivelling: Yes
Swivel angle range: 0 - 344°
Tilt adjustment: Yes
Tilt angle range: -5 - 35°
On Screen Display (OSD): Yes

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 16 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.3 W
Power consumption (max): 149 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width (with stand): 554.4 mm
Depth (with stand): 245 mm
Height (with stand): 396 mm
Weight (with stand): 8.2 kg
Width (without stand): 554.4 mm
Depth (without stand): 64 mm
Height (without stand): 362 mm
Weight (without stand): 5.2 kg

Packaging content

Stand included: Yes
Cables included: AC, HDMI, USB Type-C to USB Type-C
Quick start guide: Yes

Other features

Hardware calibration: Yes
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 16
Compliance certificates: CB, CCC, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), PSE, RoHS, cTUVus, UKCA, WEEE
Certification: CE, UKCA, CB, TÜV/GS, TÜV Ergonomie geprüft (einschließlich ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC

Logistics data

Harmonized System (HS) code: 85285210
