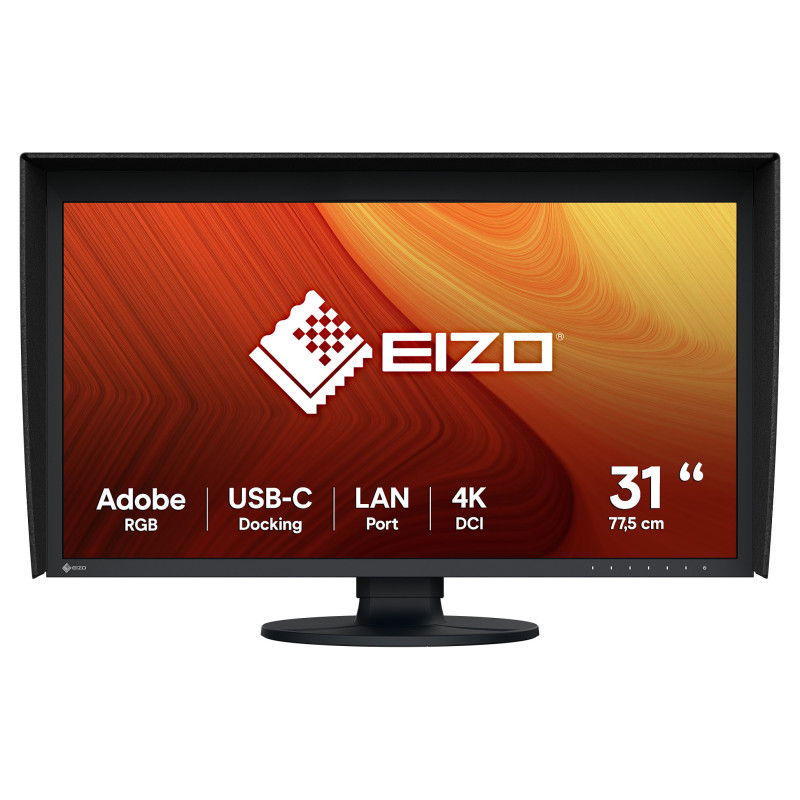

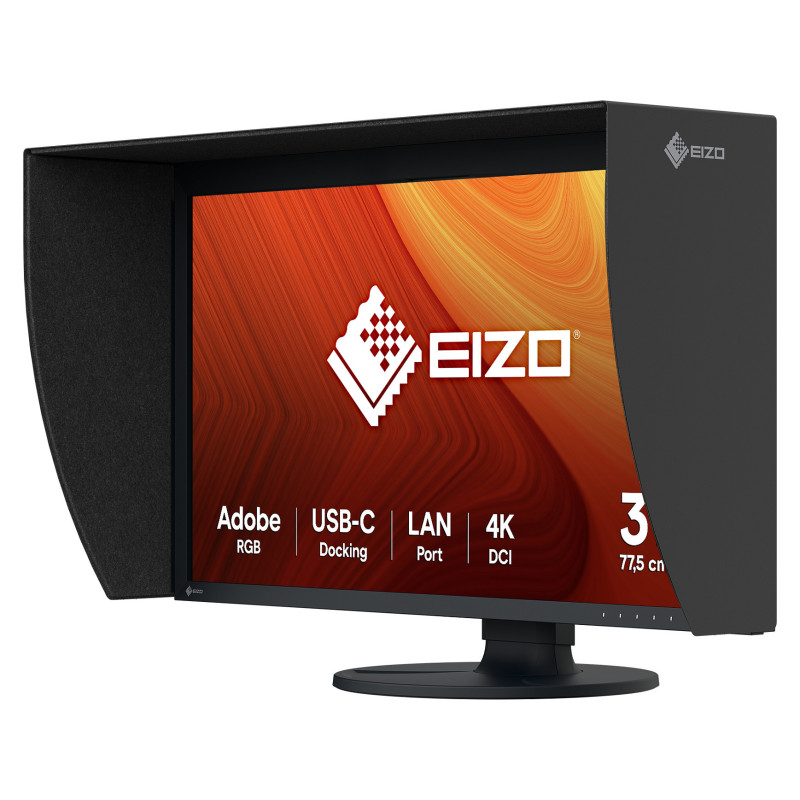

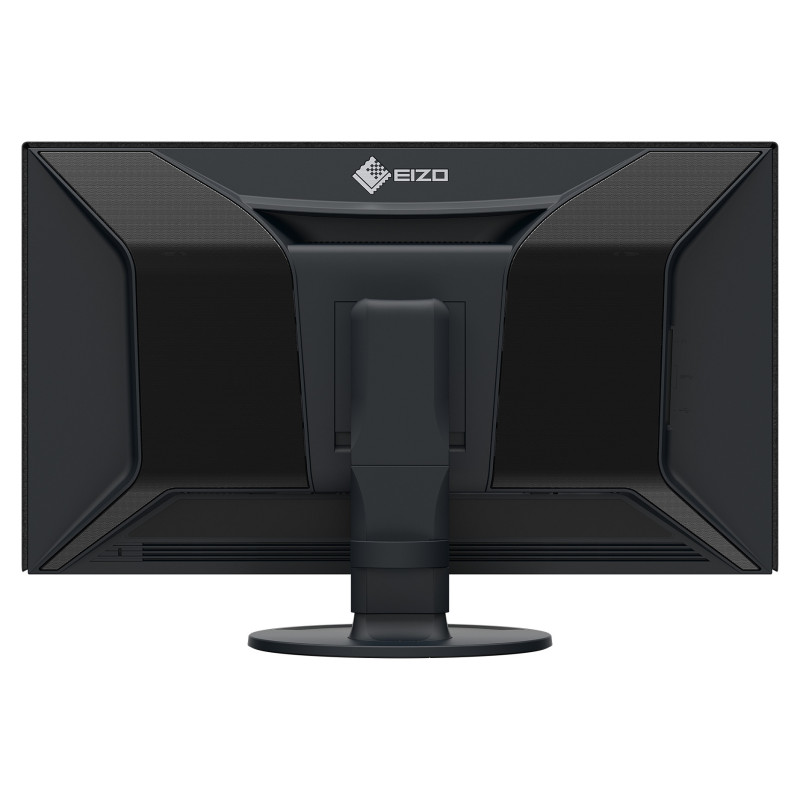

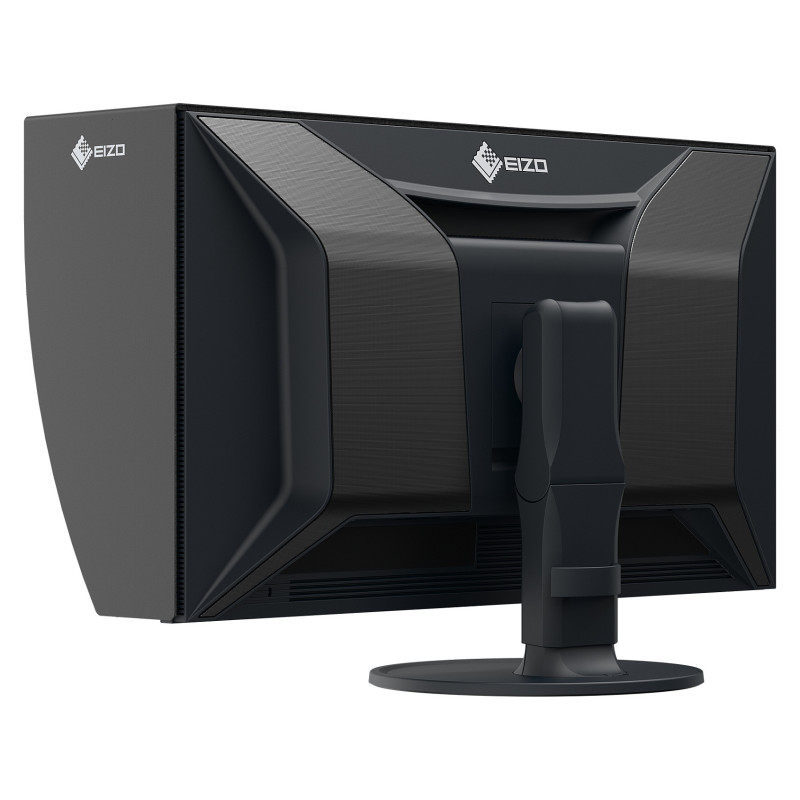

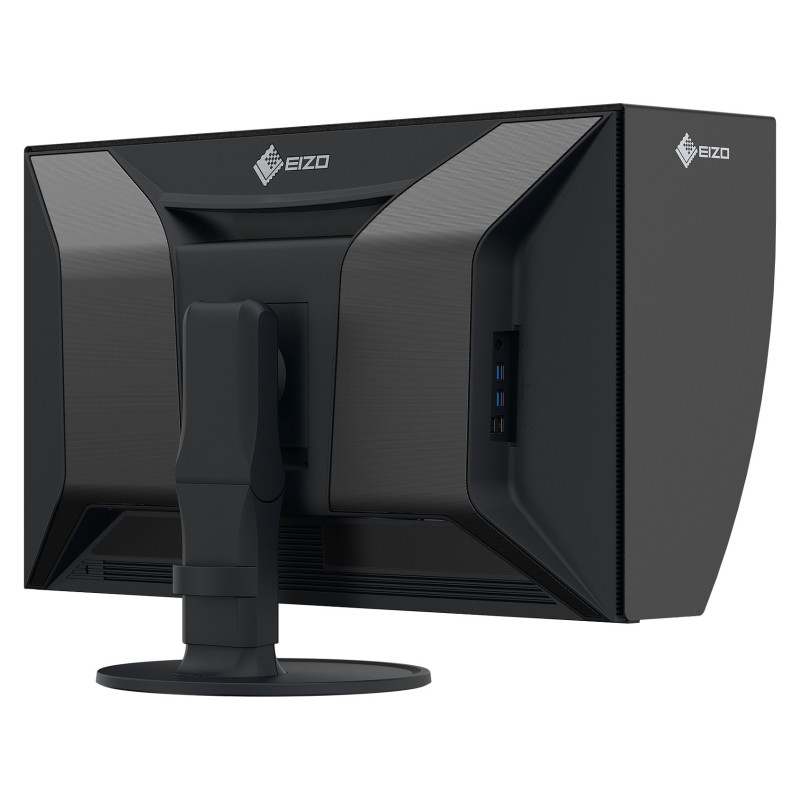

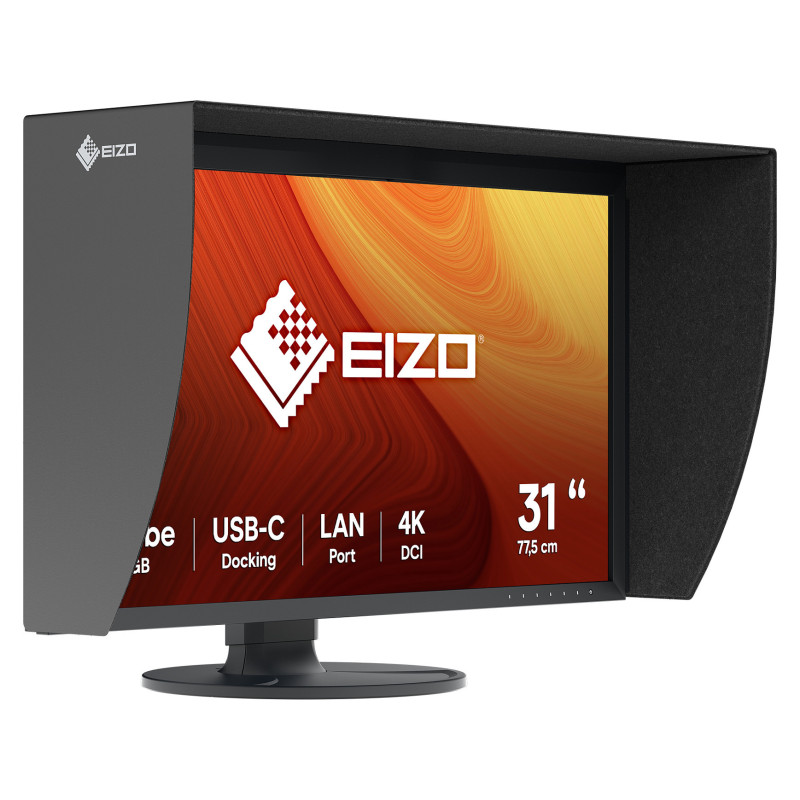

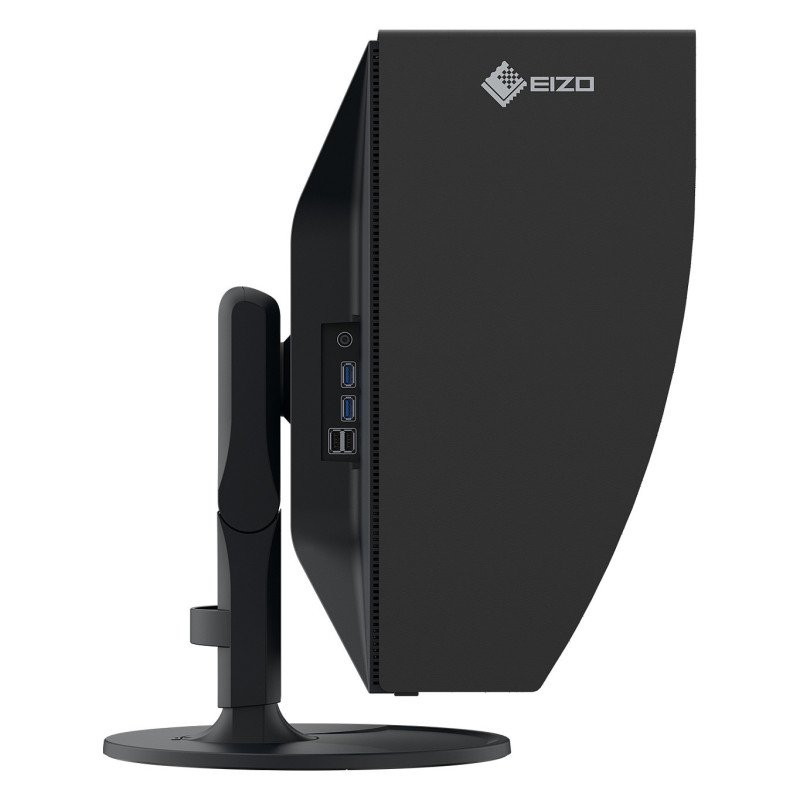

EIZO ColorEdge CG3100X computer monitor

EIZO ColorEdge CG3100X. Display diagonal: 77.5 cm (30.5"), Display resolution: 4096 x 2160 pixels, HD type: 4K DCI, Display technology: LCD, Response time: 15 ms, Native aspect ratio: 17:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
The ColorEdge CG3100X is the top model in the ColorEdge series. With a generous screen diagonal of 30.5 inches and DCI-4K resolution (4096 × 2160 pixels), it meets all the requirements of professional users in film post-production, color grading, and image editing. Thanks to pre-installed PQ and HLG HDR presets and a maximum brightness of 500 cd/m², the CG3100X can be seamlessly integrated into modern HDR workflows. Photographers, content creators, and digital artists benefit from the generous 17:9 format, which offers plenty of space for creative expression with a razor-sharp detail resolution of 152 ppi. The wide color gamut coverage of common standard color spaces such as Rec709, Rec2020, DCI-P3, and AdobeRGB, as well as the 24-bit 3D LUT, ensure realistic and high-contrast color reproduction with maximum precision. The CG3100X also impresses in terms of connectivity: Notebooks can be connected via USB-C with just one cable - including image and data transfer as well as power supply with up to 94 watts. In addition to a DisplayPort connection, there is also a powerful HDMI connection that even supports uncompressed DCI 4K (4:4:4) material in 12 bits at up to 60 Hz - ideal for HDMI-based production environments. An integrated calibration sensor enables effortless, automatic self-calibration, while the RJ45 LAN port, USB hub, and included light shield round out the CG3100X's professional features.

Display

Display diagonal: 77.5 cm (30.5")
Display resolution: 4096 x 2160 pixels
HD type: 4K DCI
Native aspect ratio: 17:9
Display technology: LCD
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 500 cd/m²
Response time: 15 ms
Response time measurement type: GTG (Gray to Gray)
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Supported video modes: 1080i, 1080p, 720p, 576p, 480i
Contrast ratio (typical): 1800:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.167 x 0.167 mm
Pixel density: 152 ppi
Horizontal scan range: 15 - 136 kHz
Vertical scan range: 23 - 61 Hz
Viewable size, horizontal: 68.6 cm
Viewable size, vertical: 36.2 cm
Digital horizontal frequency: 25 - 137 kHz
Digital vertical frequency: 23 - 61 Hz
Display diagonal (metric): 77.5 cm
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, EBU, Rec. 709, sRGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 97%
DCI-P3 coverage: 99%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes

Multimedia

Built-in speaker(s): No
Built-in camera: No

Design

Market positioning: Photo editing
Product colour: Black
Feet colour: Black

Ports interfaces

Built-in USB hub: Yes
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
USB Type-C DisplayPort Alternate Mode: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 94 W
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone out: Yes
Headphone connectivity: 3.5 mm
Built-in KVM switch: Yes
HDCP: Yes
HDCP version: 2.3

Network

Ethernet LAN: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: Yes
Adjustable height (max): 15.5 cm
Swivelling: Yes
Swivel angle range: 0 - 344°
Tilt adjustment: Yes
Tilt angle range: -5 - 35°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish

Power

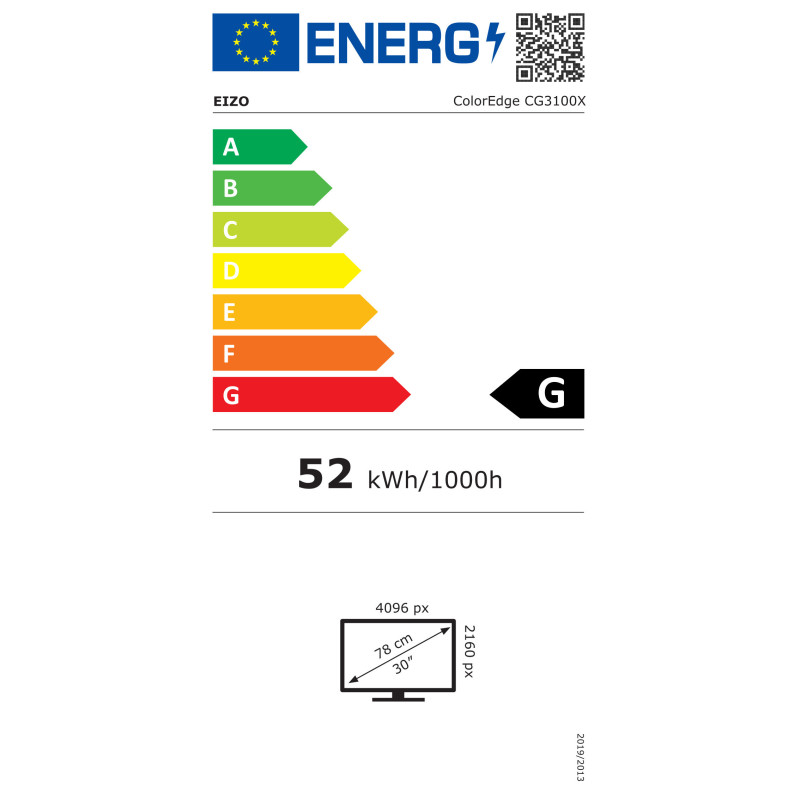

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 51.9 kWh
Power consumption (typical): 86 W
Power consumption (standby): 0.5 W
Power consumption (max): 270 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width (with stand): 721 mm
Depth (with stand): 290 mm
Height (with stand): 428.1 mm
Weight (with stand): 12.3 kg
Width (without stand): 721 mm
Depth (without stand): 87.2 mm
Height (without stand): 413.9 mm
Weight (without stand): 8.9 kg

Packaging content

Stand included: Yes
Cables included: HDMI, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC

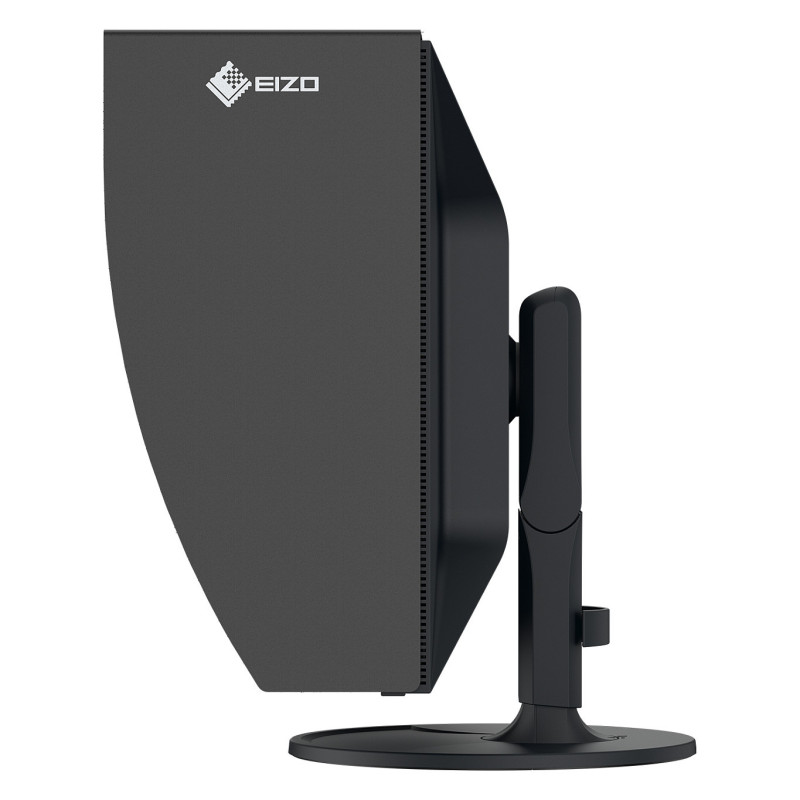

Sun hood included: Yes
Quick start guide: Yes

Other features

Hardware calibration: Yes
Built-in calibration sensor: Yes
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 24
Compliance certificates: CB, CE, Federal Communications Commission (FCC), PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Certification: CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (includingISO 9241-307), FograCert Softproofing System (classA), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE,VCCI-A, RoHS, WEEE

Logistics data

Harmonized System (HS) code: 85285210
