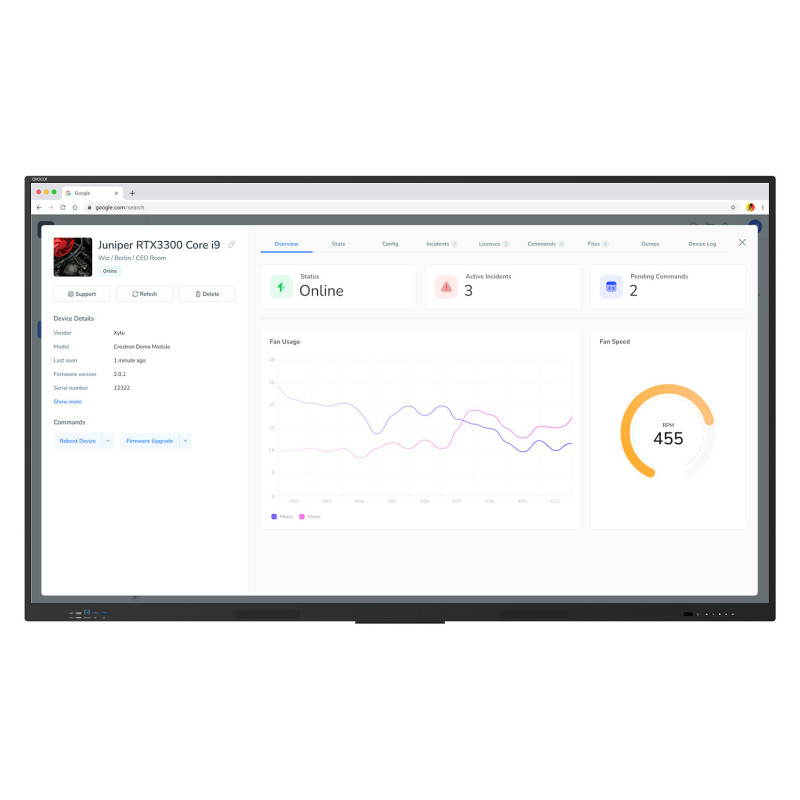

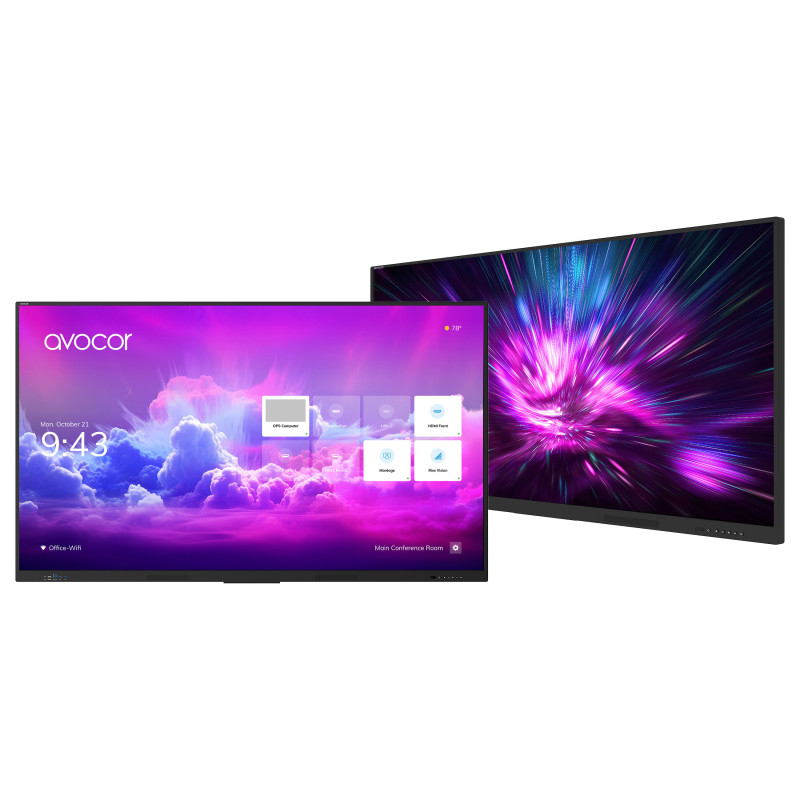

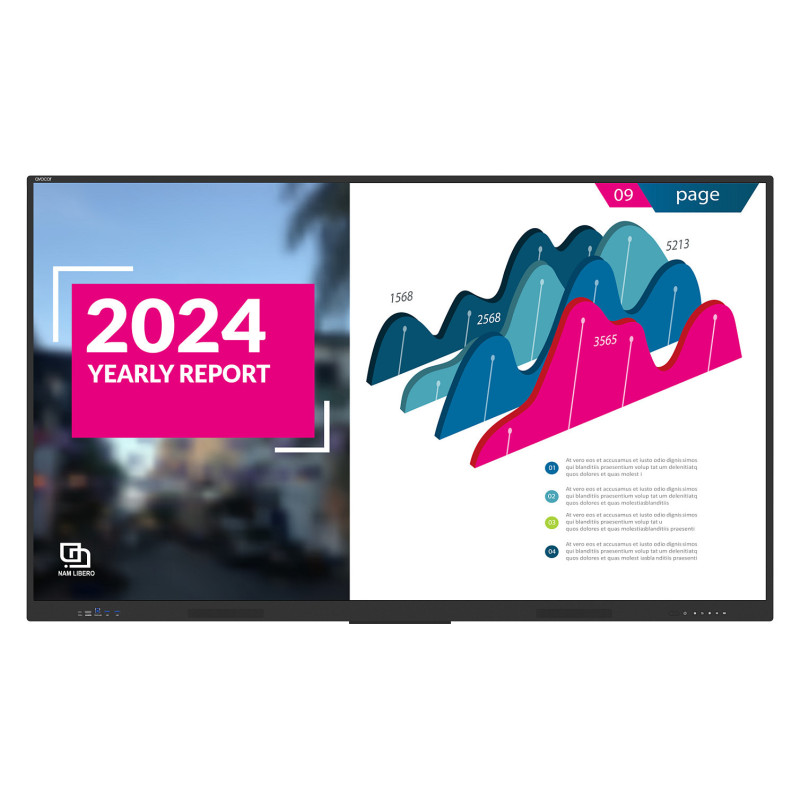

Avocor Digital Signage interactive whiteboard

Avocor E-50 Series 55" 4K IR LED Interactive Display. Display diagonal: 139.7 cm (55"), Display brightness: 400 cd/m², Display number of colours: 1.07 billion colours. Speaker power: 30 W. USB connector type: Mini-USB A, USB Type-B, USB Type-C, USB Power Delivery up to: 65 W. Panel mounting interface: 400 x 400 mm, Power cable length: 3 m. Operating hours (hours/days): 16/7
The E50 Series displays from Avocor offer an exceptional collaboration experience, ideal for education, corporate, and government environments. With advanced IR touch technology, the E50 Series supports up to 40 points of touch, allowing for seamless interaction and collaboration. This series is designed to enhance user engagement through intuitive and responsive touch capabilities, making it perfect for scaling across various organizational needs.
The E50 Series features superior glass technology, providing a smooth and accurate writing experience with low latency. Users can effortlessly switch between using a pen, finger, or palm, ensuring a fluid and natural collaborative environment in real-time.
Additionally, the E50 Series includes multiple frontfacing connectivity options, such as USB and Type-C ports, integrated into the Connect and Control bar, along with Avocor's UiQ touch-enabled interface for easy access and control.

Display

Display diagonal: 139.7 cm (55")
Display brightness: 400 cd/m²
Display number of colours: 1.07 billion colours
Display resolution: 3840 x 2160 pixels
Feature: Anti-glare screen
HD type: 4K Ultra HD
Feature: LED backlight
LED backlighting type: Direct-lit LED
Native aspect ratio: 16:9
Contrast ratio (typical): 1200:1
Response time: 8 ms
Maximum refresh rate: 60 Hz
Feature: Touchscreen
Touch technology: Multi-touch
Touchscreen type: Infrared
Number of simultaneous touchpoints: 40
Touch object size (min): 3 mm
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Feature: Pen touch differentiation
Technology: Infrared (IR)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
Speaker power: 30 W

Network

Feature: Wi-Fi
Feature: Ethernet LAN
Feature: Wake-on-LAN ready

Ports interfaces

Feature: HDCP
HDCP version: 2.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 4
USB connector type: Mini-USB A, USB Type-B, USB Type-C
USB 2.0 Type-A hub ports quantity: 1
USB 2.0 Type-B Touch ports quantity: 4
HDMI ports quantity: 3
USB Type-C ports quantity: 2
Feature: USB Type-C DisplayPort Alternate Mode
HDMI version: 2.0
HDMI output ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 65 W
DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Feature: Line-out
Feature: S/PDIF out port
Audio output: 1
RS-232 ports: 1

Ergonomics

Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Feature: Wall mountable
Power cable length: 3 m

Performance

Feature: Ambient light sensor
Operating hours (hours/days): 16/7

Power

Power consumption (max): 210 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 8
Feature: Mac compatibility
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 85%
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width: 1289.5 mm
Depth: 92.6 mm
Height: 791.6 mm
Weight: 29 g

Packaging data

Package width: 1420 mm
Package depth: 220 mm
Package height: 870 mm
Package weight: 35 g
Quantity per pack: 1 pc(s)

Packaging content

USB cable length: 3 m
Feature: Pen tray included
Cables included: HDMI, USB Type-A to USB Type-B
Feature: Remote control included
Feature: Mounting kit
Feature: Batteries included
Feature: Mounting brackets included
Feature: Stylus included
Stylus pen type: Passive
Number of stylus pens: 2

Other features

Warranty period: 3 year(s)
Country of origin: China
