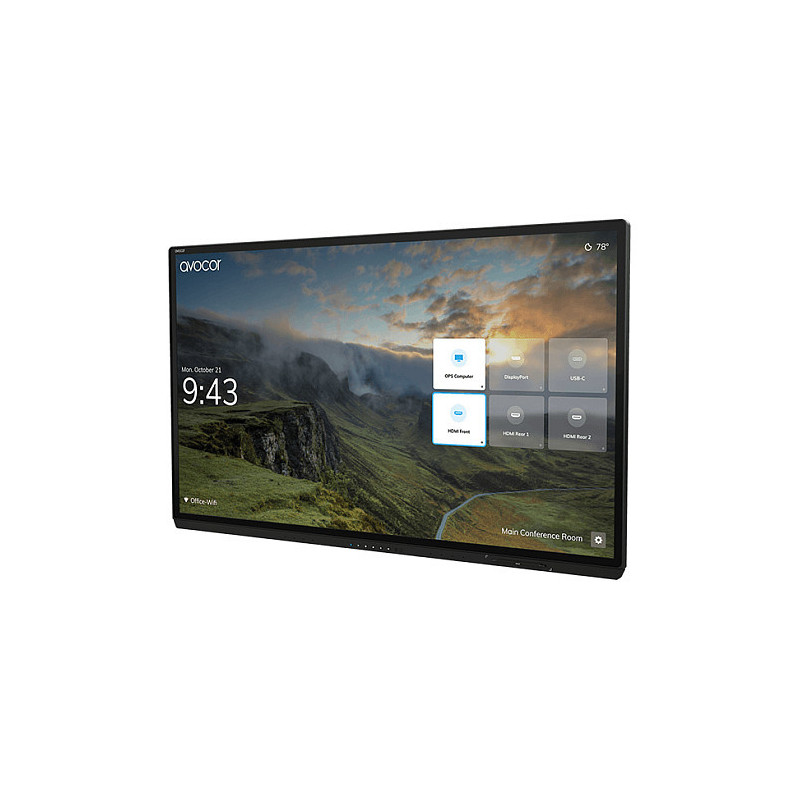

Avocor AVG-6560 interactive whiteboard

Avocor AVG-6560 G-Series - 65" 4K InGlass™ LED Interactive Display. Display diagonal: 165.1 cm (65"), Display brightness: 500 cd/m², Display resolution: 3840 x 2160 pixels. Speaker power: 10 W. USB connector type: USB Type-A, USB Type-B, USB Type-C, USB Power Delivery up to: 60 W. Product colour: Brushed steel, Panel mounting interface: 400 x 400 mm. Power consumption (max): 335 W, Power consumption (standby): 0.5 W, AC input voltage: 100 - 240 V

The Avocor G series is a range of sleek, bezel-less, edge-to-edge interactive displays designed to streamline workplace collaboration. These crystalclear 4K collaboration displays use the latest InGlassTM technology combined with bonded glass to deliver ultra-fast touch performance, supporting up to 20 individual touch points and 4 passive styluses. The G series also provides a 40W crystal-clear audio experience with built-in active microphones. The result is a pixel-perfect user experience and high performance.

Available in stunning 65", 75", and 85" sizes, the G series collaboration displays give users an intuitive and interactive experience for participants in the room and meeting equity for those who are remote.

Display

Display diagonal: 165.1 cm (65")
Display brightness: 500 cd/m²
Display resolution: 3840 x 2160 pixels
Feature: Anti-glare screen
HD type: 4K Ultra HD
Panel type: LCD
Feature: LED backlight
LED backlighting type: Direct-lit LED
Native aspect ratio: 16:9
Contrast ratio (typical): 5000:1
Response time: 9.5 ms
Maximum refresh rate: 60 Hz
Feature: Touchscreen
Touch technology: Multi-touch
Number of simultaneous touchpoints: 20
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Screen glass thickness: 3 mm
Feature: Pen & touch differentiation
Feature: Palm erase
Feature: Palm rejection

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 4
Speaker power: 10 W
Feature: Built-in microphone
Number of microphone arrays: 4

Network

Feature: Ethernet LAN
Feature: Wake-on-LAN ready

Ports & interfaces

Feature: HDCP
HDCP version: 2.2
USB connector type: USB Type-A, USB Type-B, USB Type-C
USB 2.0 Type-A hub ports quantity: 5
USB 2.0 Type-B Touch ports quantity: 3
HDMI ports quantity: 2
USB Type-C ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
HDMI version: 2.0
HDMI output ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 60 W
DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Line-out
OPS slot: 1
Feature: S/PDIF out port
Audio output: 1
RS-232 ports: 1

Ergonomics

Product colour: Brushed steel
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Feature: Wall mountable
Feature: Fanless

Performance

Feature: Ambient light sensor
Feature: Proximity sensor

Power

Power consumption (max): 335 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 8
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 85%
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 1481.4 mm
Depth: 116 mm
Height: 884.4 mm
Weight: 56 kg

Packaging data

Package width: 1672 mm
Package depth: 253 mm
Package height: 1156 mm
Package weight: 75.5 kg
Quantity per pack: 1 pc(s)

Packaging content

USB cable length: 3 m
Cables included: HDMI, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C
Feature: Remote control included
Feature: Batteries included
Feature: Quick start guide
Feature: Stylus included
Stylus pen type: Passive
Number of stylus pens: 2
Stylus tip diameter: 3 mm

Other features

Warranty period: 3 year(s)
Country of origin: Taiwan
