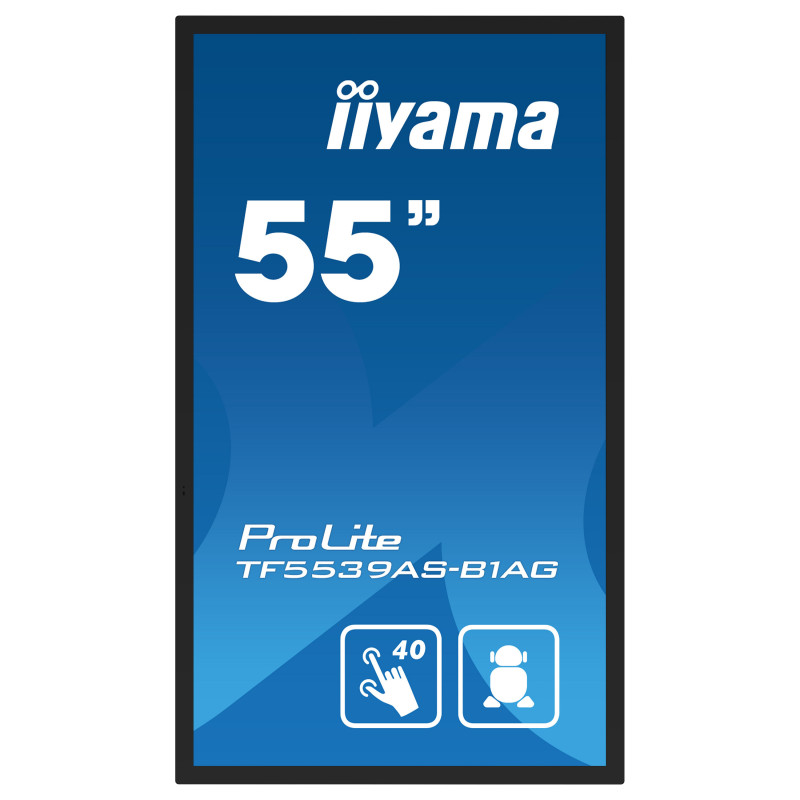

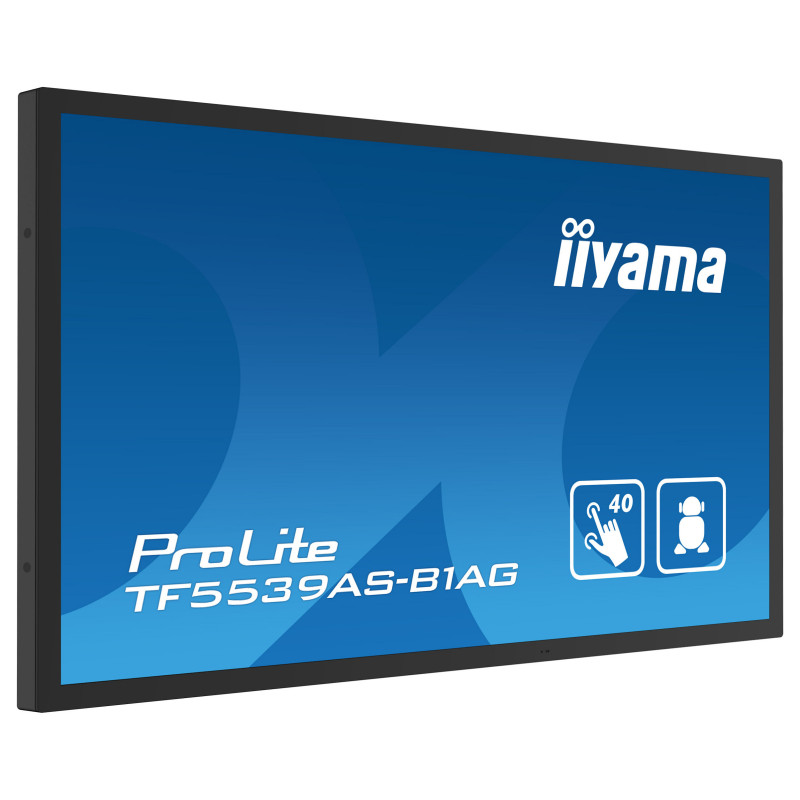

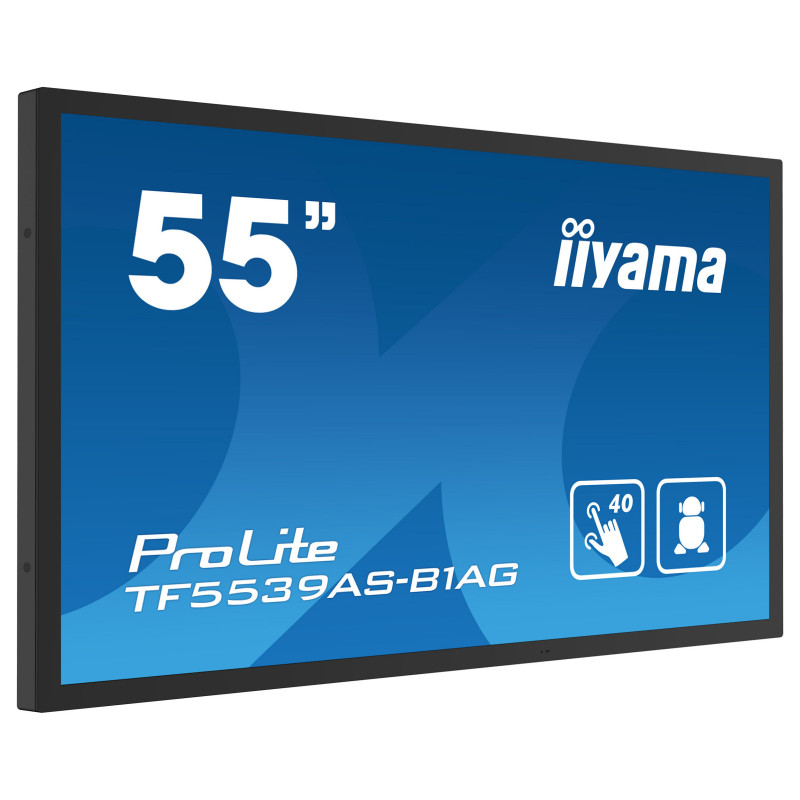

approval TF5539AS-B1AG Signage Display

iiyama TF5539AS-B1AG. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 435 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5539AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).

Display

Panel type: IPS
LED backlight: Yes
Display diagonal: 138.7 cm (54.6")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 435 cd/m²
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 40
Multi-touch: Yes
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1209.6 x 680.4 mm
Display diagonal (metric): 139 cm
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 7H
Glass thickness: 4 mm

Ports interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DVI port: No
DisplayPorts quantity: 1
DisplayPort version: 1.2
USB port: Yes
USB ports quantity: 2
USB connector type: USB Type-A, USB Type-B
USB 2.0 Type-B ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
RS-232C: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Kiosk design
Placement supported: Indoor

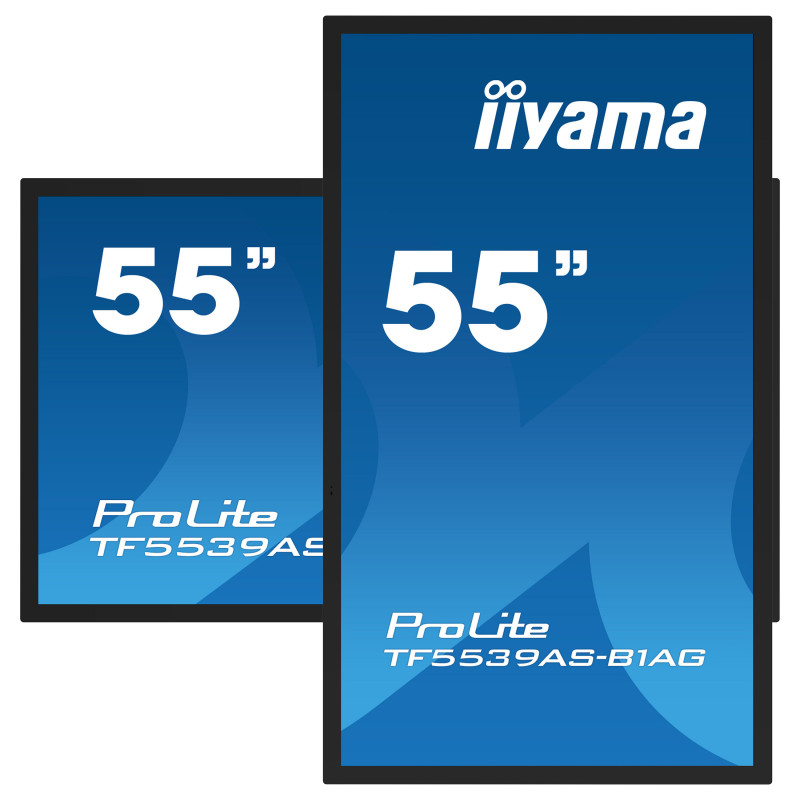

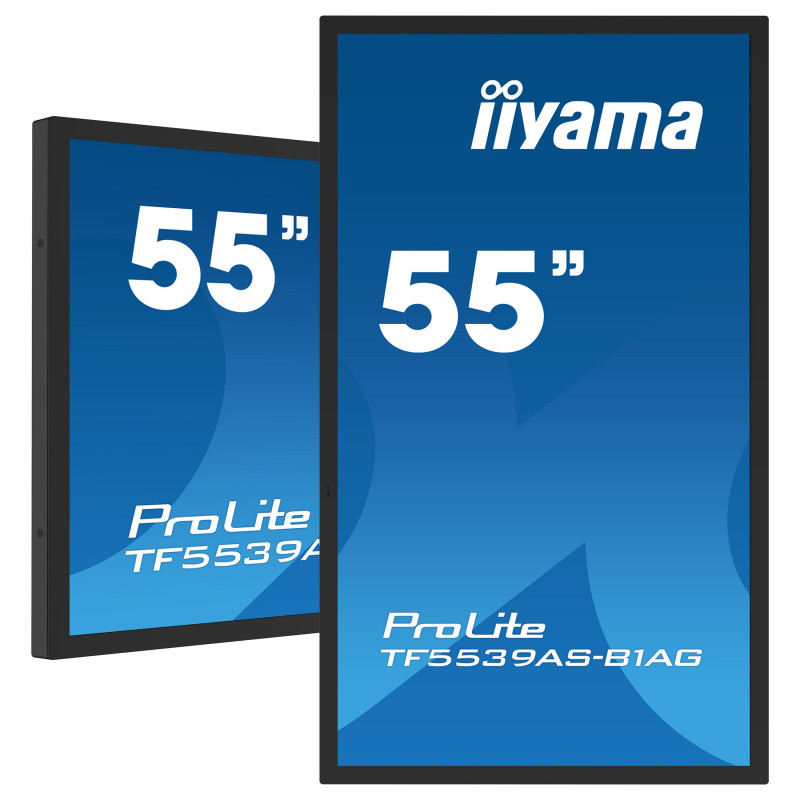

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

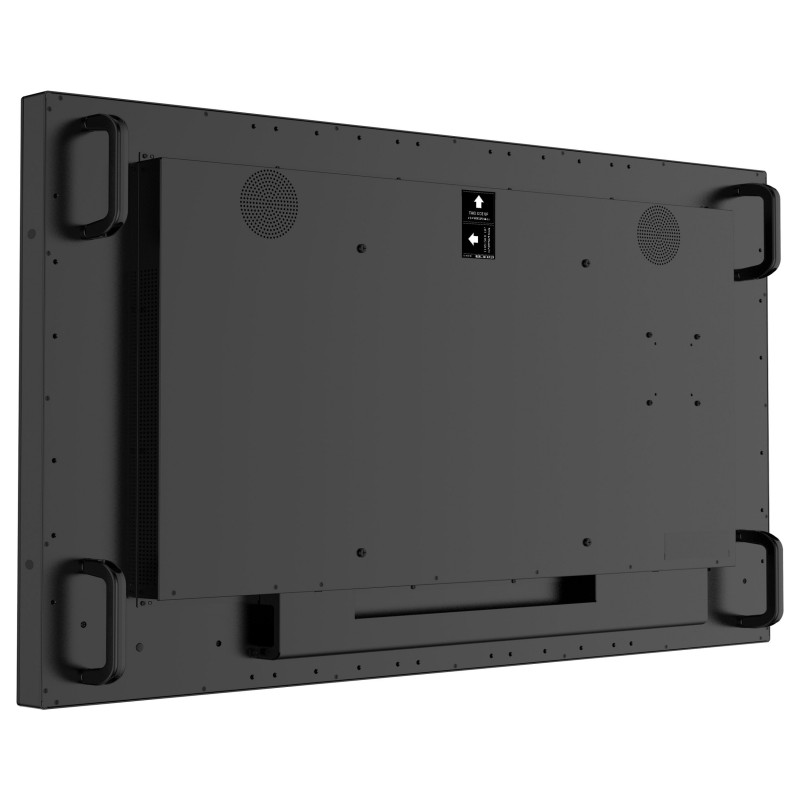

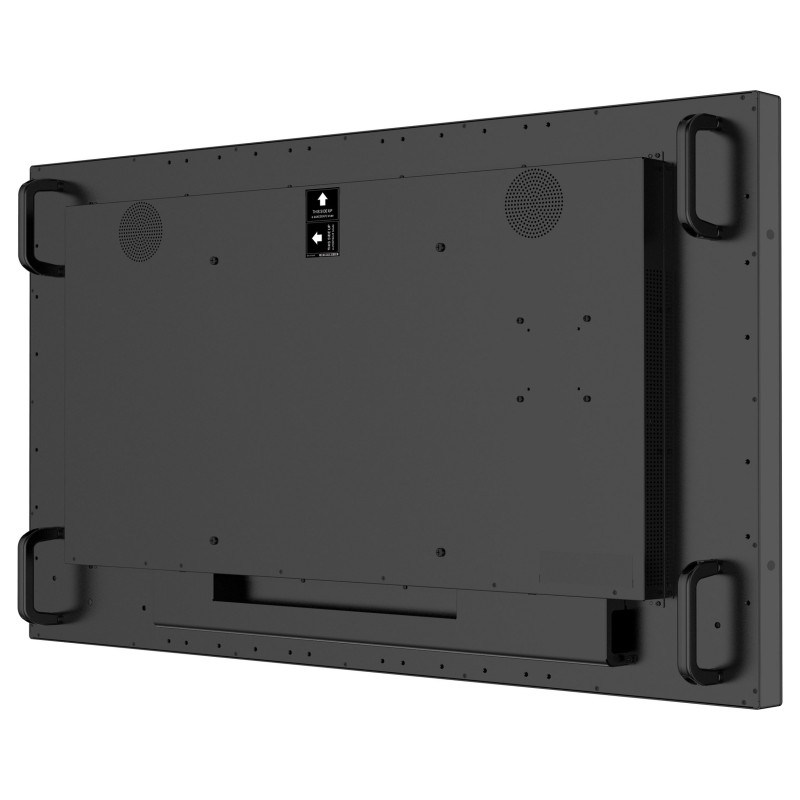

VESA mounting: Yes
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 3 cm
Bezel width (side): 3 cm
Bezel width (top): 3 cm
Bezel colour: Black
Anti-glare screen: Yes

Performance

Purpose: Universal
On Screen Display (OSD): Yes
Number of OSD languages: 13
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
HDCP: Yes
International Protection (IP) code: IP65
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 139 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 78 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: Yes
Built-in processor: Yes
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A73
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Operating system version: 11

Weight dimensions

Display width: 1274 mm
Display depth: 65.2 mm
Display height: 744.8 mm
Display weight: 39.6 kg
Width: 1274 mm
Depth: 65.2 mm
Height: 744.8 mm
Weight: 39.6 kg
Width (with stand): 1274 mm
Depth (with stand): 65.2 mm
Height (with stand): 744.8 mm
Weight (with stand): 39.6 kg

Packaging data

Package width: 1428 mm
Package depth: 185 mm
Package height: 894 mm
Package volume: 47200 cm³
Package weight: 47.2 kg

Packaging content

Remote control included: Yes
Batteries included: Yes

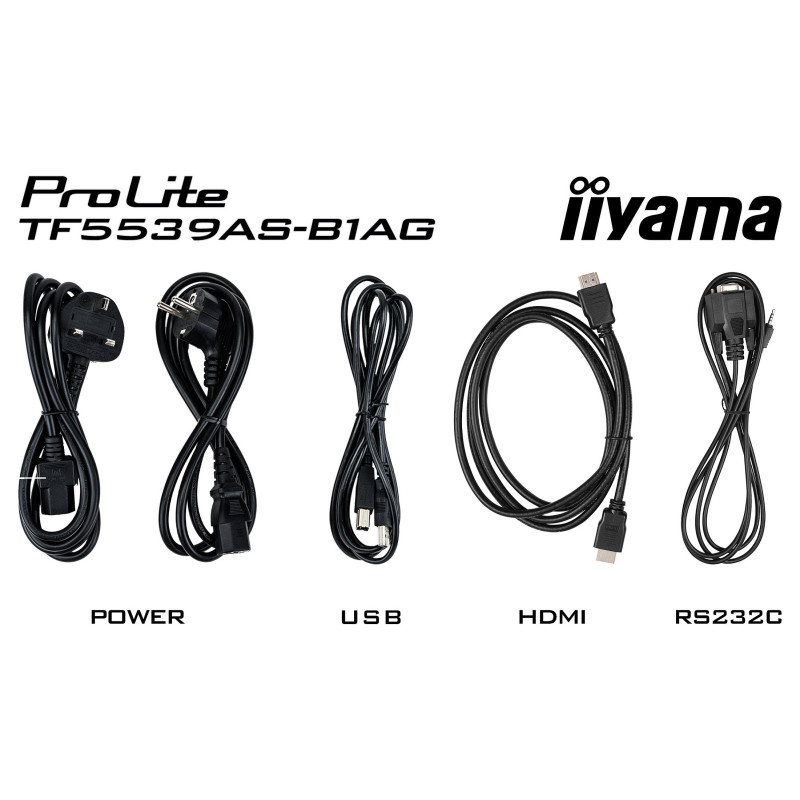

Cables included: AC, USB, HDMI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH

Network

Ethernet LAN: Yes

Technical details

User controls: picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset)
Sustainability certificates: ErP
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Maximum refresh rate: 60 Hz
Quick start guide: Yes
Viewable size, horizontal: 121 cm
Viewable size, vertical: 68 cm
Brightness: 435 cd/m²
Display surface: Matt
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type: Internal
