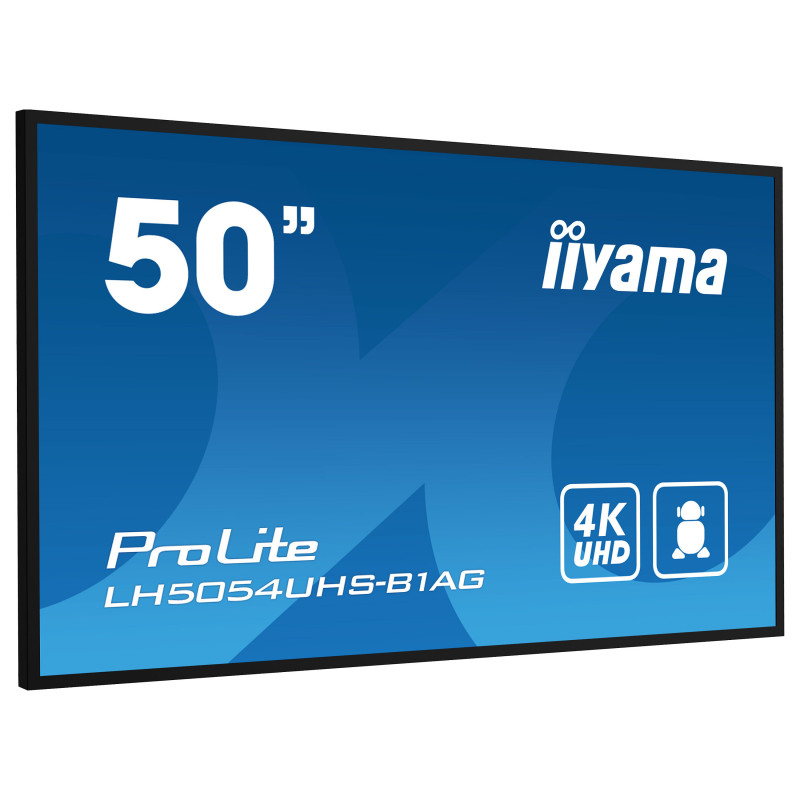

approval LH5054UHS-B1AG Signage Display

iiyama LH5054UHS-B1AG. Product design: Digital signage flat panel. Display diagonal: 125.7 cm (49.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5054UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry's display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it. The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display

Panel type: IPS
Display diagonal: 125.7 cm (49.5")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 9.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.285 x 0.285 mm
Active display area (W x H): 1095.8 x 616.4 mm
Display diagonal (metric): 125.7 cm
Maximum frame rate: 60 fps
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

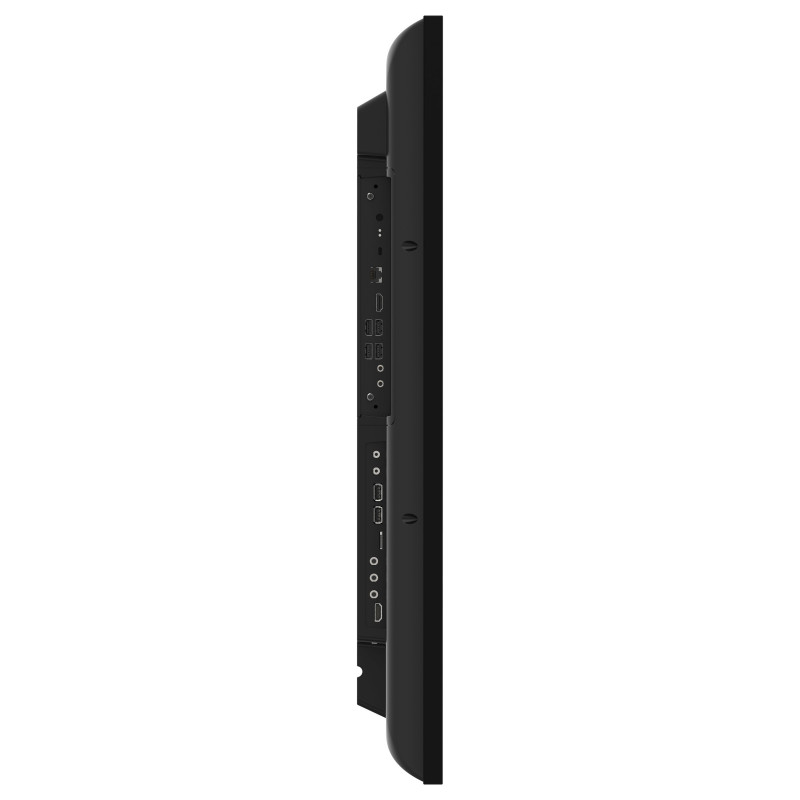

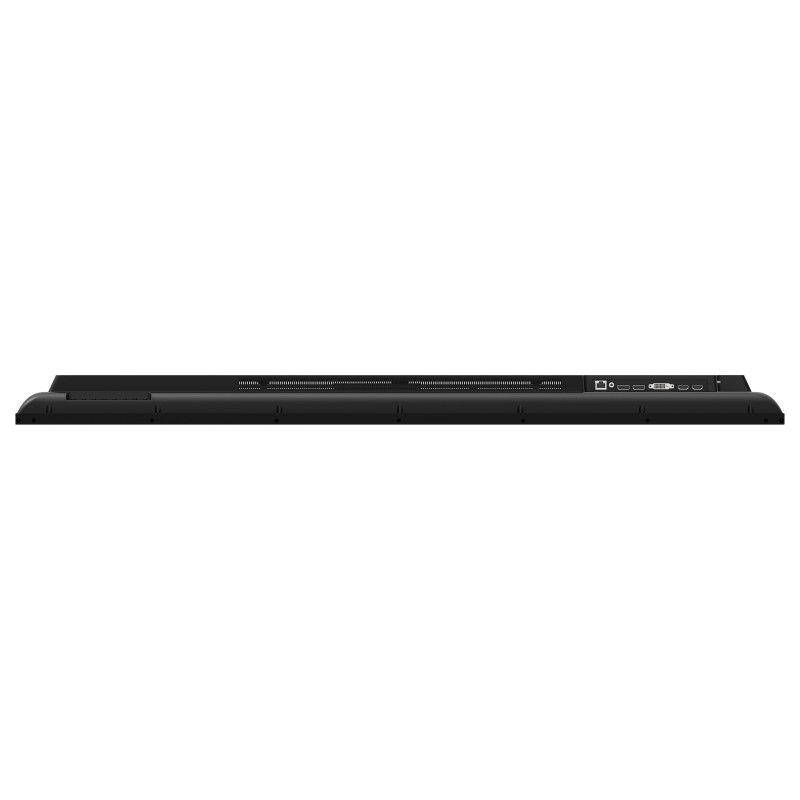

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
DVI port: Yes
DVI-I ports quantity: 1
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
USB port: Yes
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
RS-232C: Yes
Remote (IR) input: 1
Remote (IR) output: 1
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Digital signage flat panel

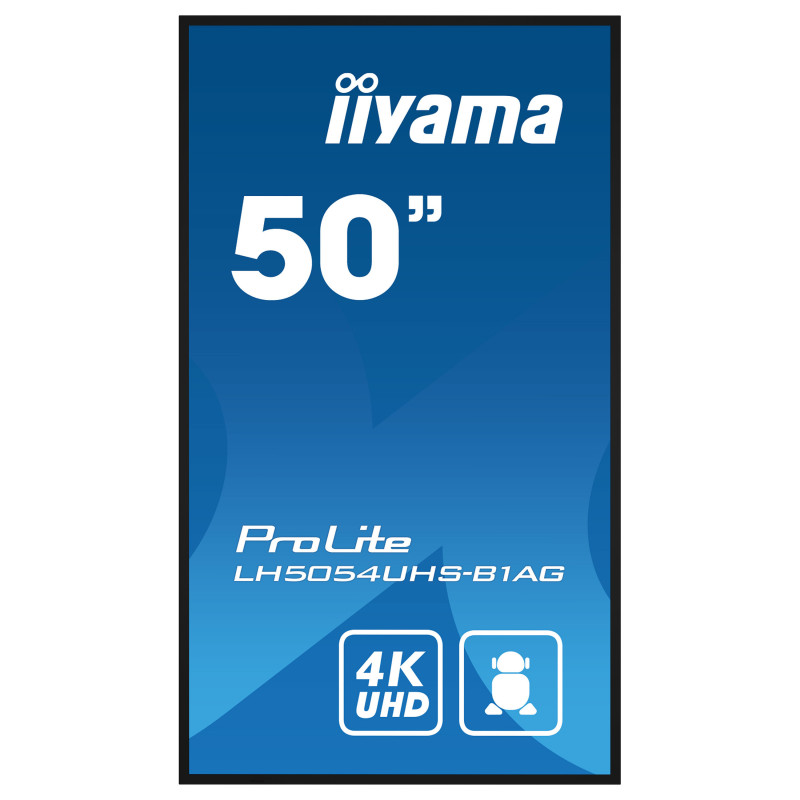

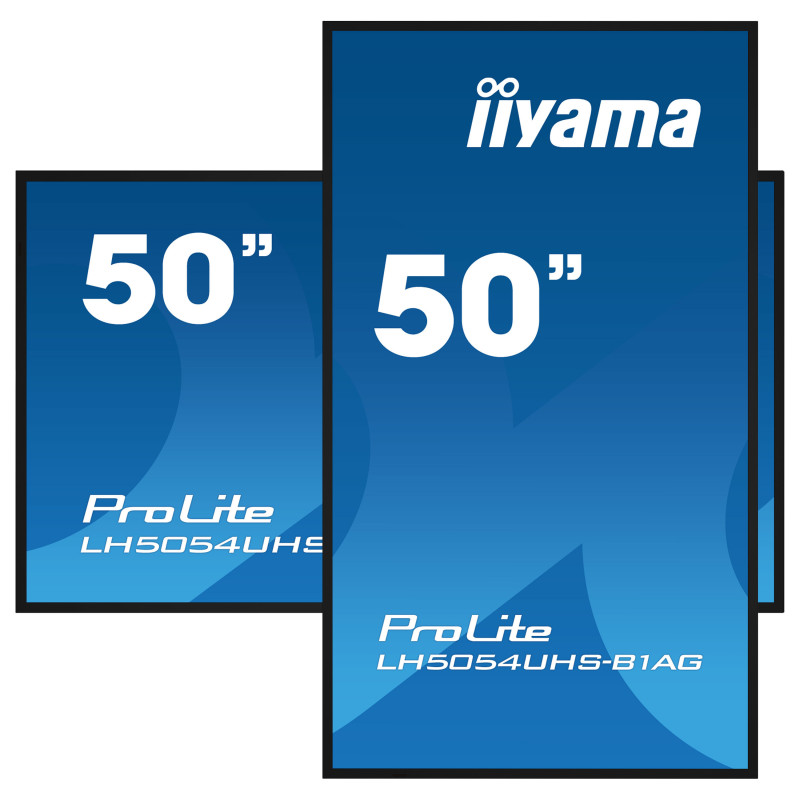

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

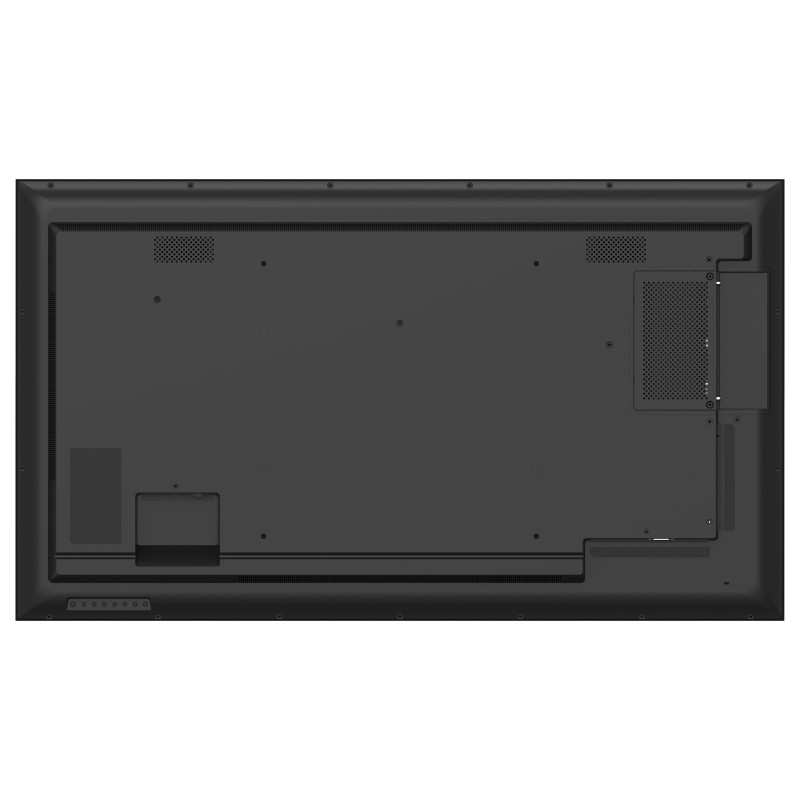

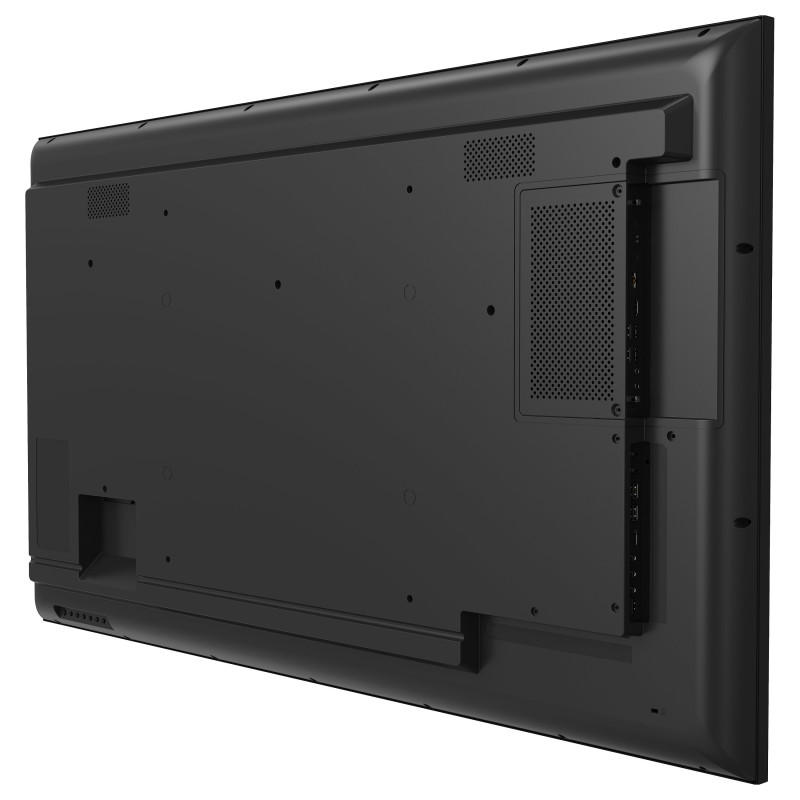

VESA mounting: Yes
Panel mounting interface: 400 x 400 mm

Performance

On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 2.0
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 156 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W

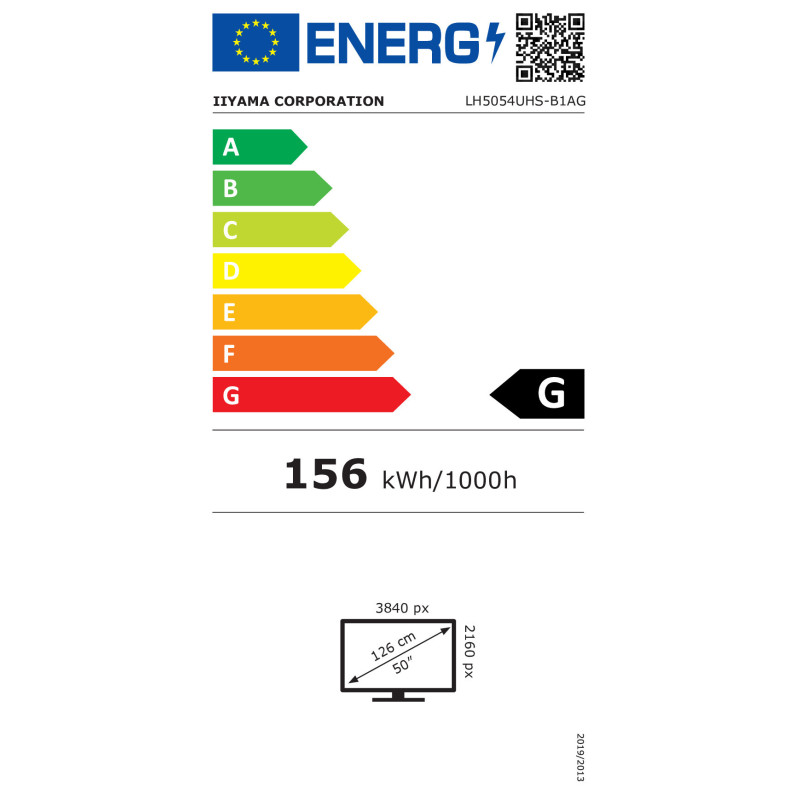

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 156 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Built-in processor: Yes
Processor architecture: ARM Cortex-A53+Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11

Weight dimensions

Display width: 1127.6 mm
Display depth: 72.6 mm
Display height: 648.2 mm
Display weight: 13.9 kg

Packaging data

Package weight: 18.6 kg

Packaging content

Remote control included: Yes
Batteries included: Yes

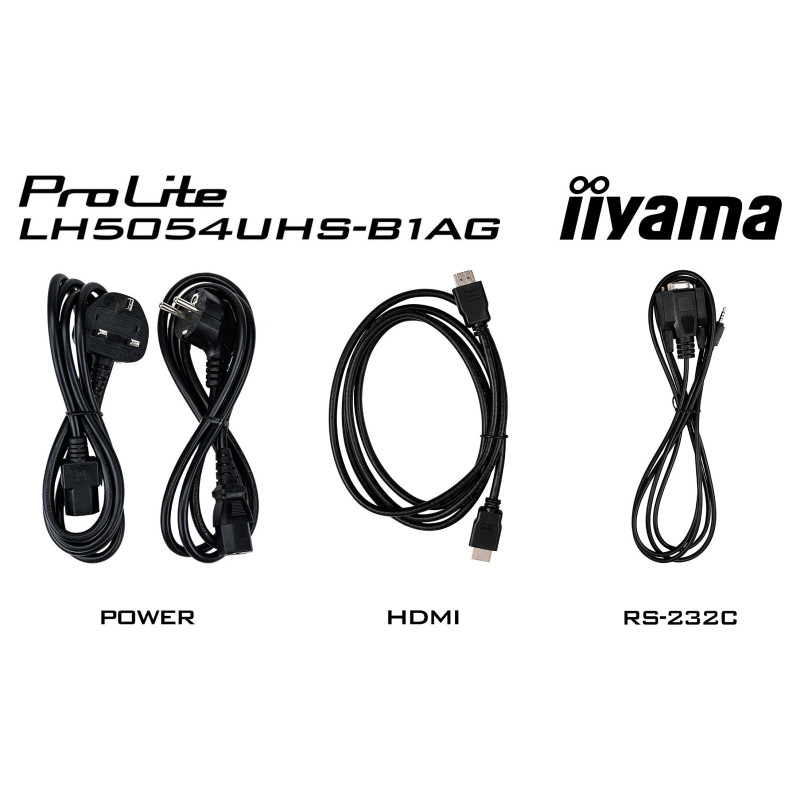

Cables included: HDMI, Power, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Ethernet LAN: Yes
Wi-Fi: Yes

Other features

Power supply type: Internal
