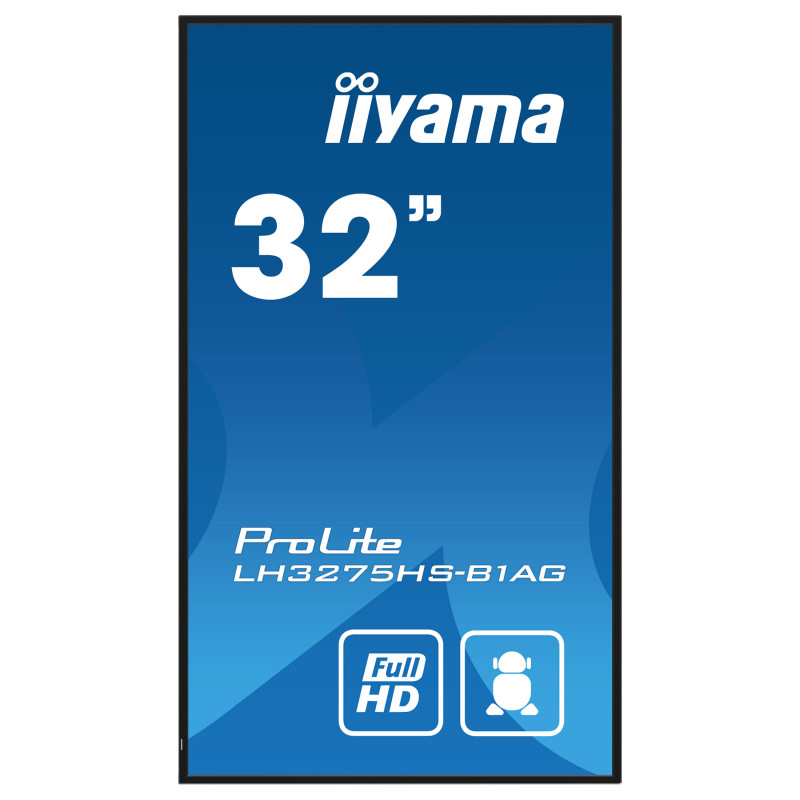

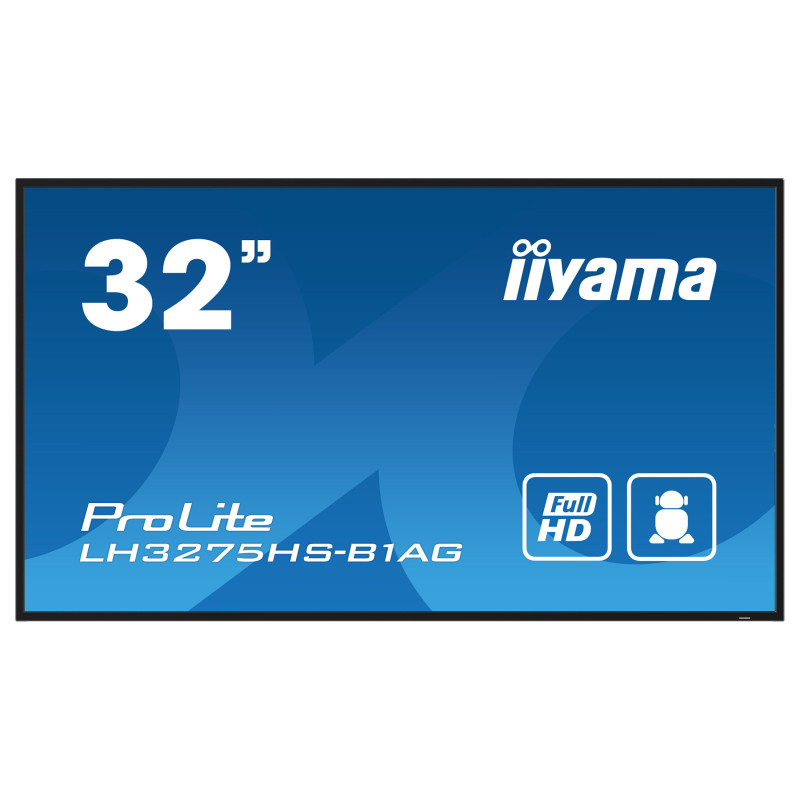

approval LH3275HS-B1AG Signage Display

iiyama LH3275HS-B1AG. Product design: Digital signage flat panel. Display diagonal: 80 cm (31.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

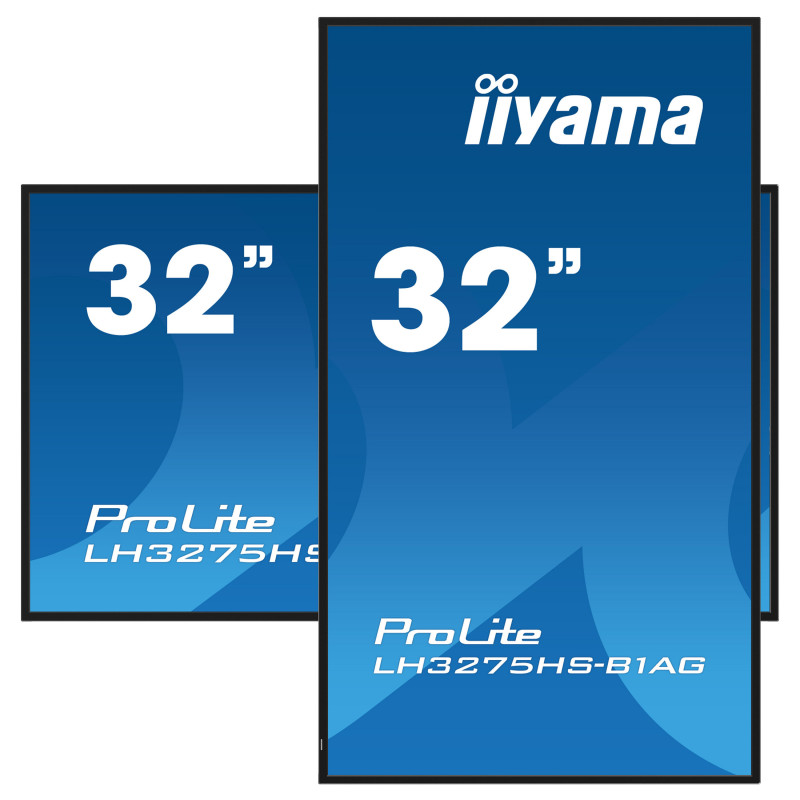

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3275HS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry's display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display

Panel type: IPS
Display diagonal: 80 cm (31.5")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.364 x 0.364 mm
Active display area (W x H): 698.4 x 392.85 mm
Display diagonal (metric): 80 cm
Maximum frame rate: 60 fps
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
RGB colour space: sRGB

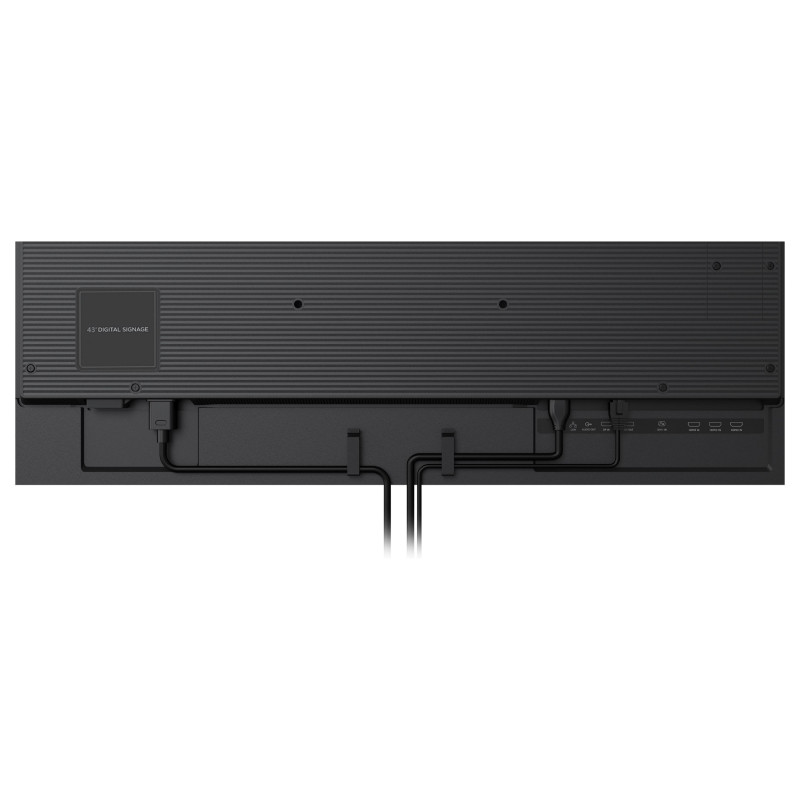

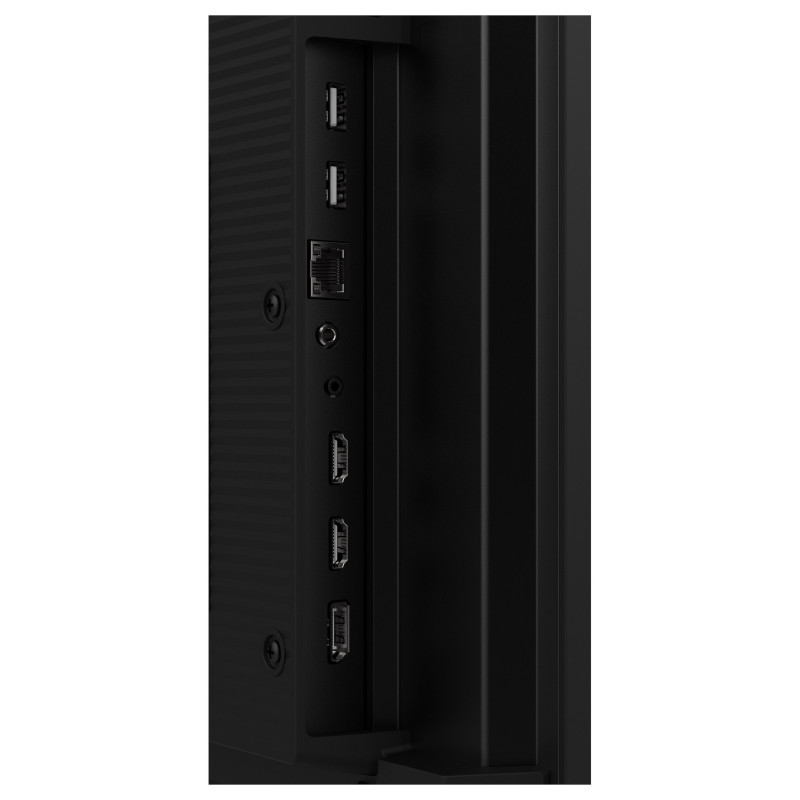

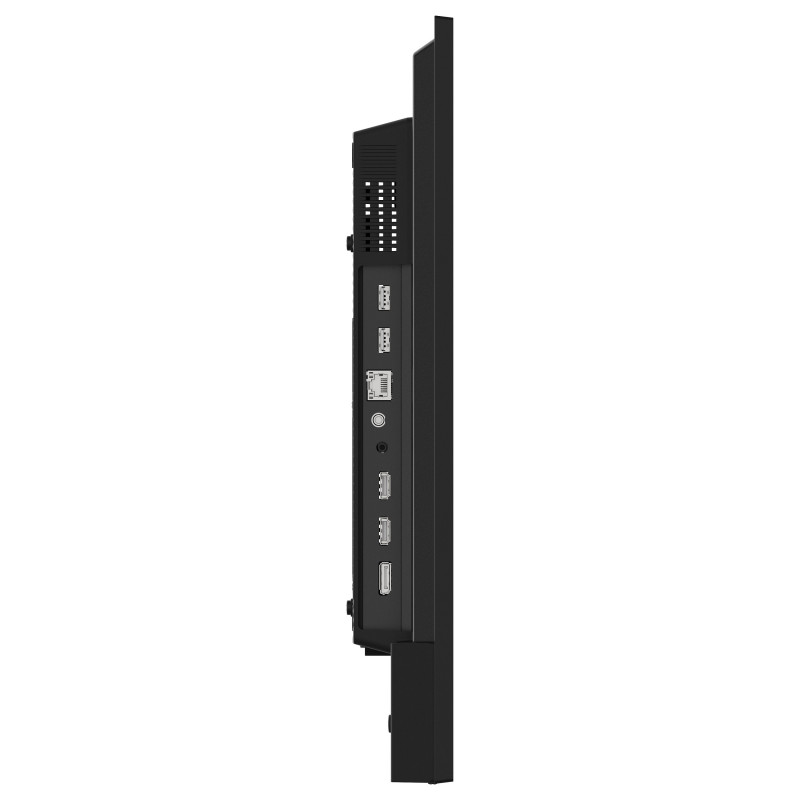

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Feature: PC Audio in
Feature: RS-232C
Feature: Audio Return Channel (ARC)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor

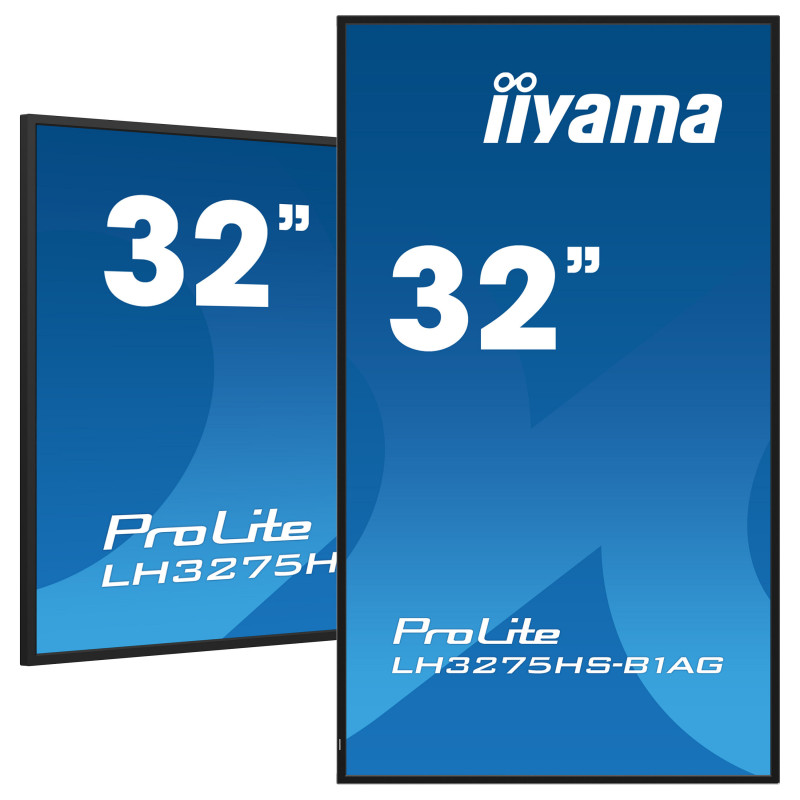

Orientation: Horizontal/Vertical
Product colour: Black

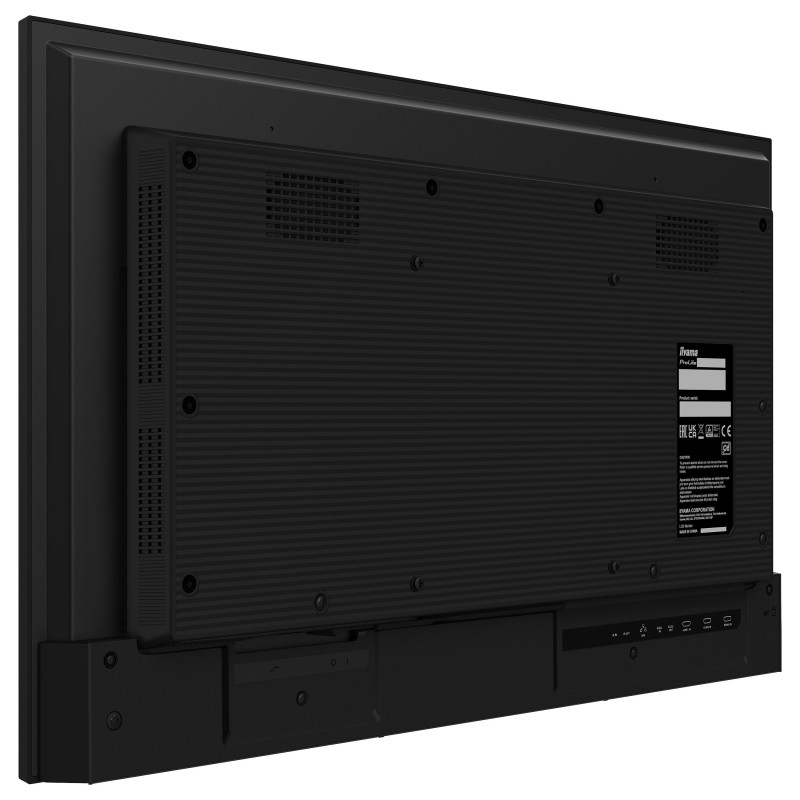

Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.19 cm
Bezel width (side): 1.19 cm
Bezel width (top): 1.19 cm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 11
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 44000 h

Power

Power consumption (typical): 46 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 45.7 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11

Weight & dimensions

Display width: 725.5 mm

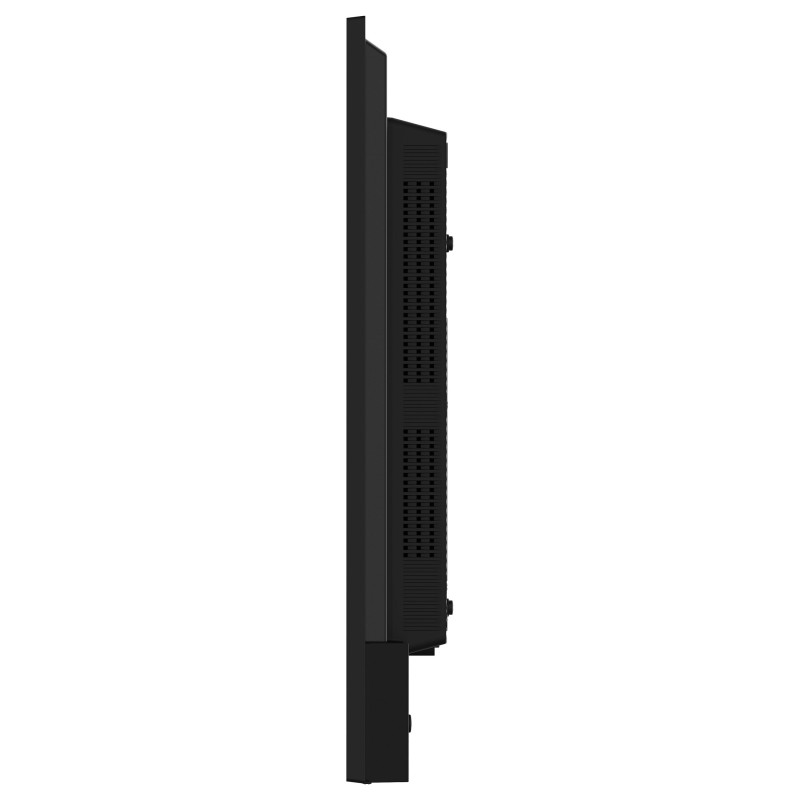

Display depth: 54 mm
Display height: 421.8 mm
Display weight: 5.2 kg
Width: 725.5 mm
Depth: 54 mm
Height: 421.8 mm
Weight: 5.2 kg

Packaging data

Package width: 824 mm
Package depth: 119 mm
Package height: 554 mm
Package weight: 7.3 kg

Packaging content

Feature: Remote control included
Feature: Batteries included

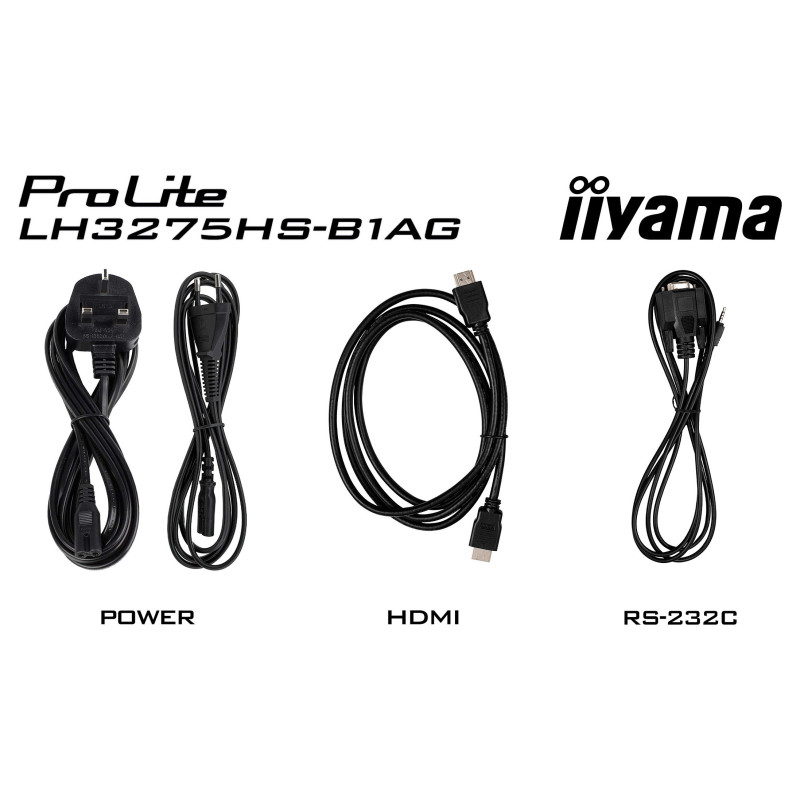

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)

Technical details

Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CE, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
Housing material: Metal
