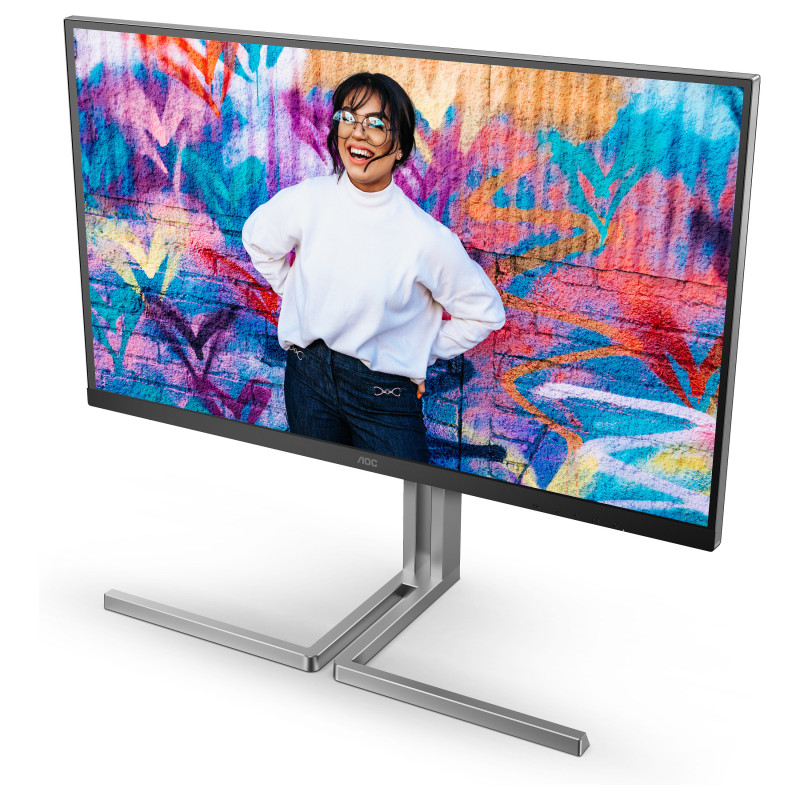

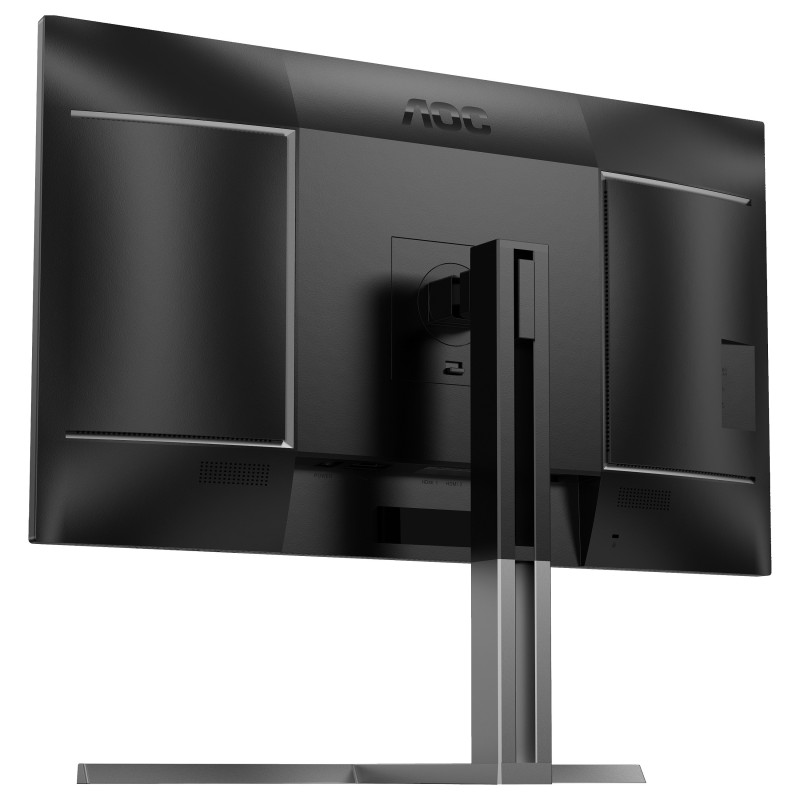

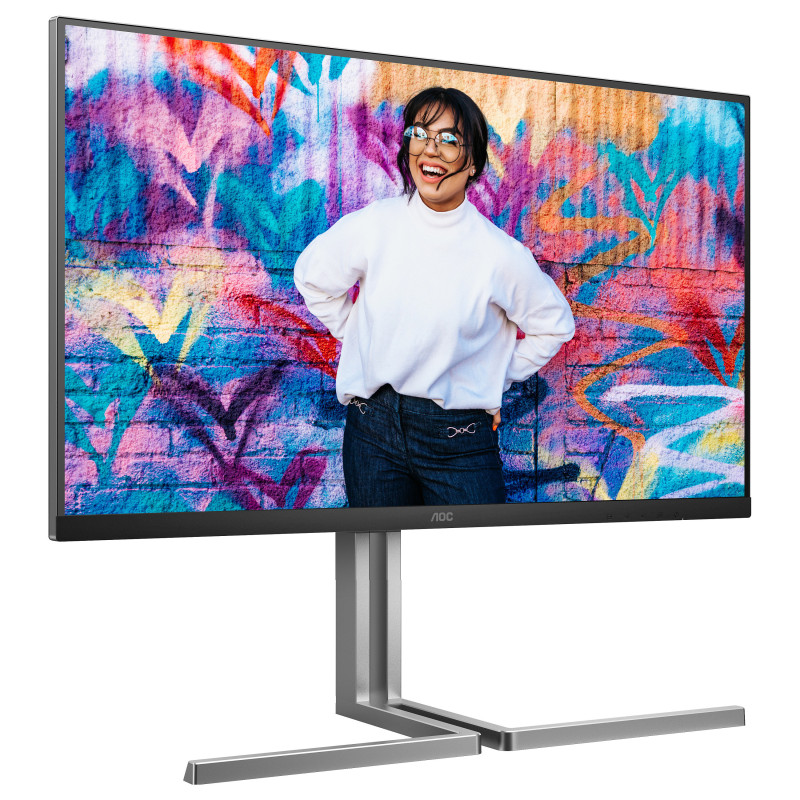

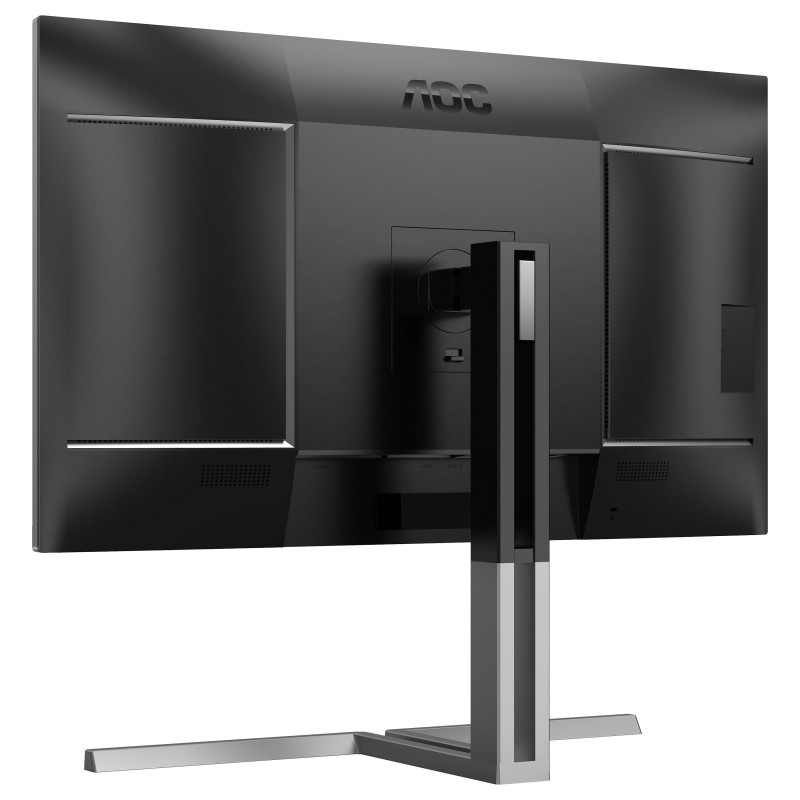

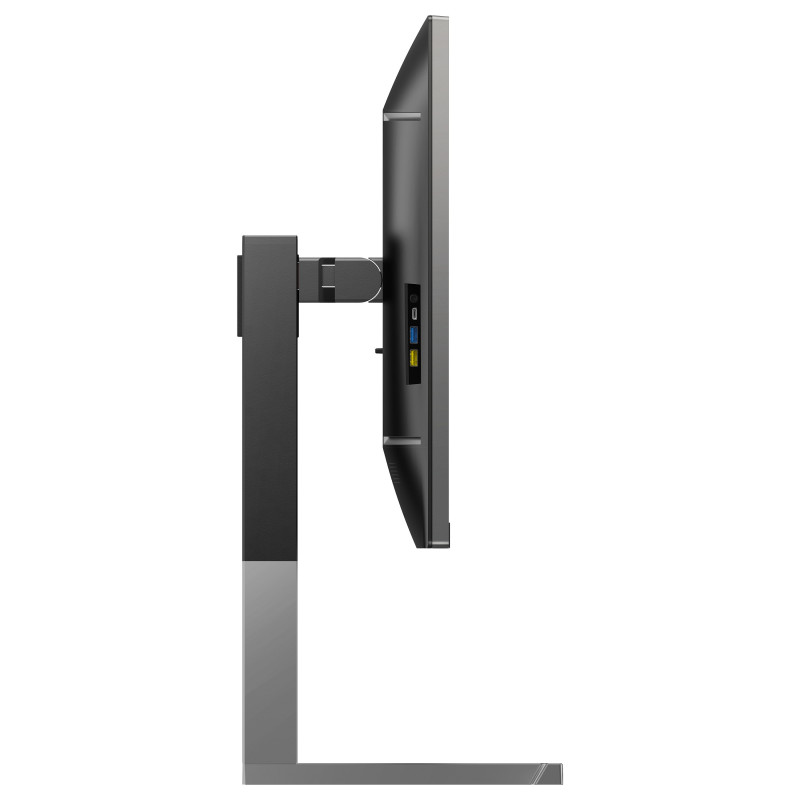

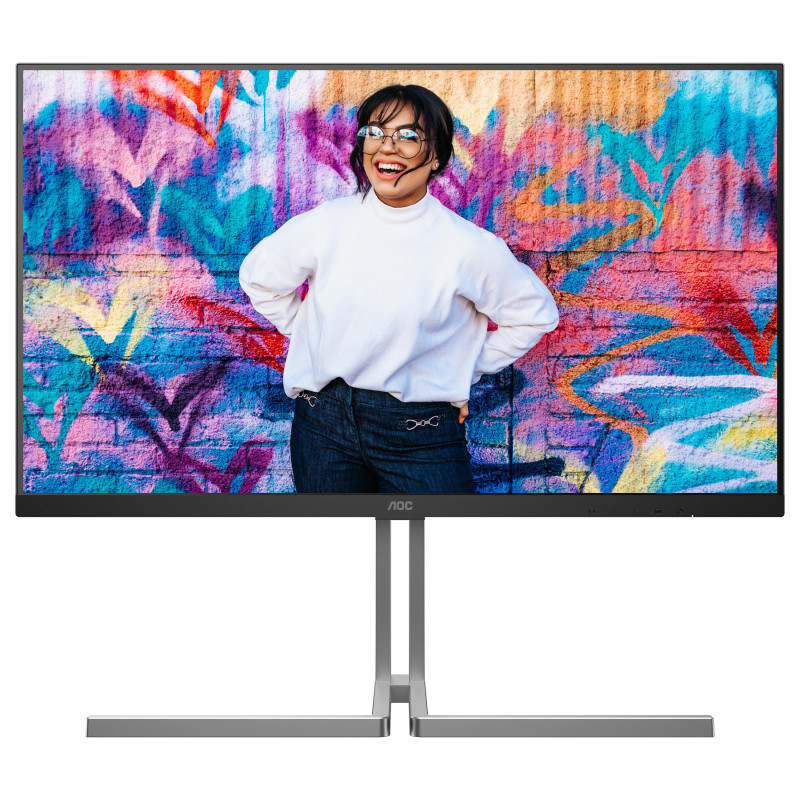

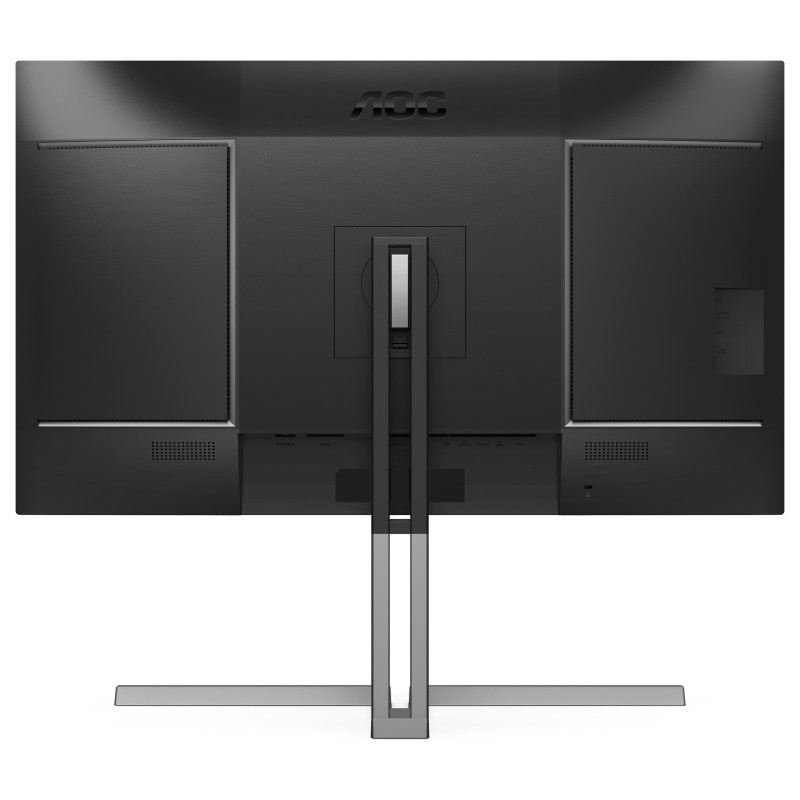

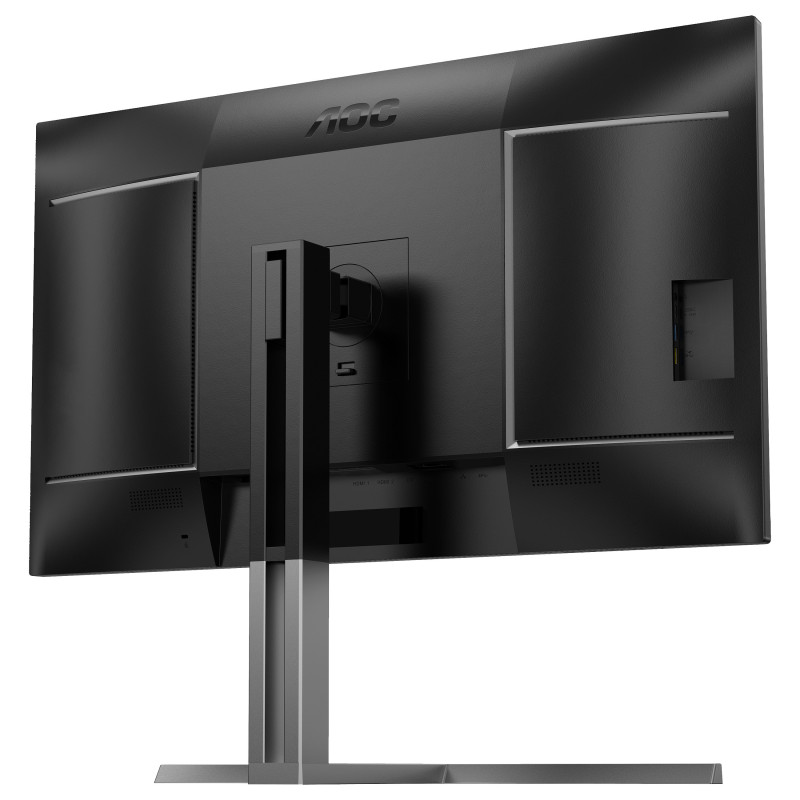

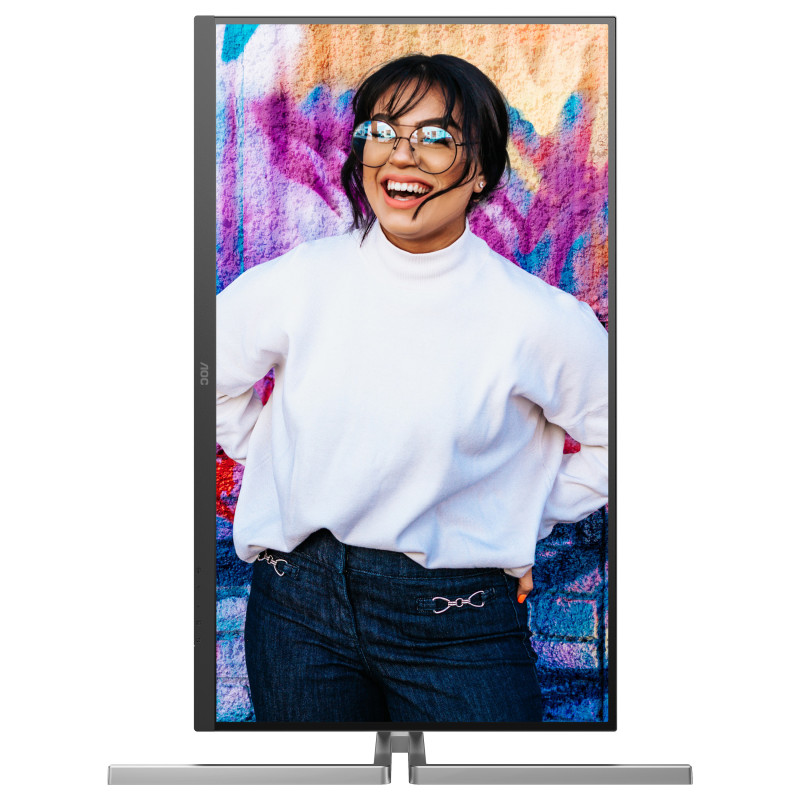

AOC U3 U32U3CV computer monitor

AOC U3 U32U3CV. Display diagonal: 80 cm (31.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black

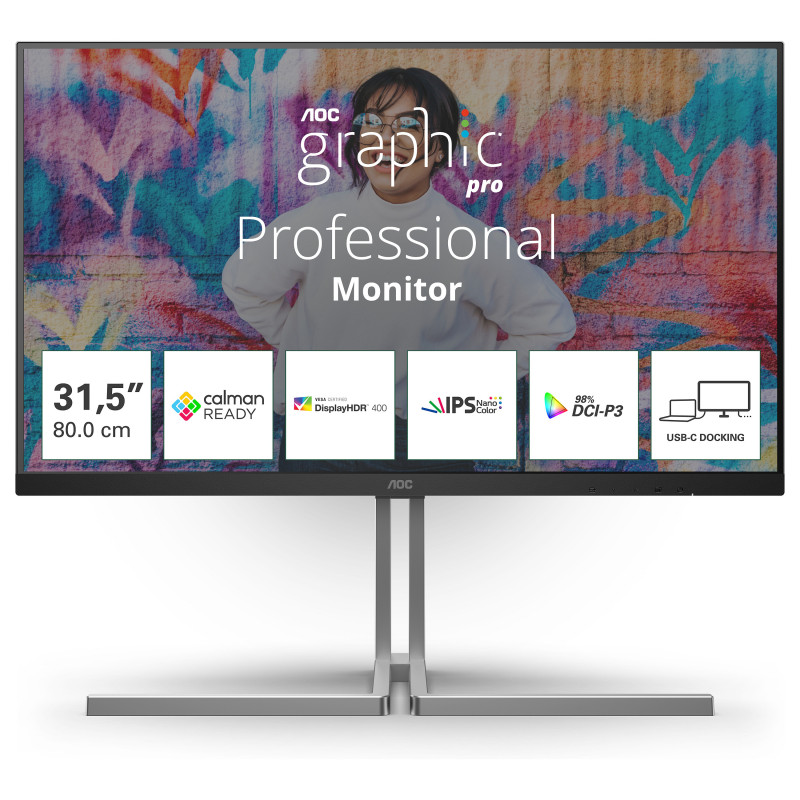

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display
The AOC Graphic Pro U32U3CV delivers outstanding color accuracy right out of the box, courtesy of its hardware calibration achieving Delta E<2 (sRGB). Easily adjust settings for peak performance with the Calman Ready feature. With a remarkable 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's tailor-made for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering that exceeds human eye perception. Enhanced with a UHD Nano IPS display, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands out as the ultimate choice for professionals.

Display

Display diagonal: 80 cm (31.5")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: Nano IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 400 cd/m²
Response time: 4 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 80000000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.18159 x 0.18159 mm
Pixel density: 140 ppi
Horizontal scan range: 30 - 140 kHz
Vertical scan range: 23 - 75 Hz
Viewable size, horizontal: 69.7 cm
Viewable size, vertical: 39.2 cm
Digital horizontal frequency: 30 - 140 kHz
Digital vertical frequency: 23 - 75 Hz
Display diagonal (metric): 80 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: DisplayHDR 400
Feature: DDC/CI
Haze rate: 25%
Surface hardness: 3H
Colour gamut standard: sRGB
Colour gamut: 98%
sRGB coverage (typical): 135.3%

Performance

Feature: Fast charging
Feature: VESA Adaptive Sync support
Feature: Flicker-free technology

Multimedia

Number of speakers: 2
RMS rated power: 6 W
Feature: Built-in speaker(s)

Design

Market positioning: Graphics design
Product colour: Black
Feature: Frameless design
Front bezel colour: Black/Silver
Feature: Detachable stand
Feet colour: Grey

Ports interfaces

Feature: Built-in USB hub
USB hub version: 3.2 Gen 2 (3.1 Gen 2)
USB upstream port type: USB Type-C
Number of upstream ports: 2
USB Type-A downstream ports quantity: 4
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 96 W
Feature: HDMI
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Audio output: Yes
Feature: Headphone out
Headphone outputs: 1
Feature: Built-in KVM switch
Feature: HDCP
HDCP version: 2.2
Feature: AC (power) in

Network

Feature: Ethernet LAN

Ergonomics

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15 cm

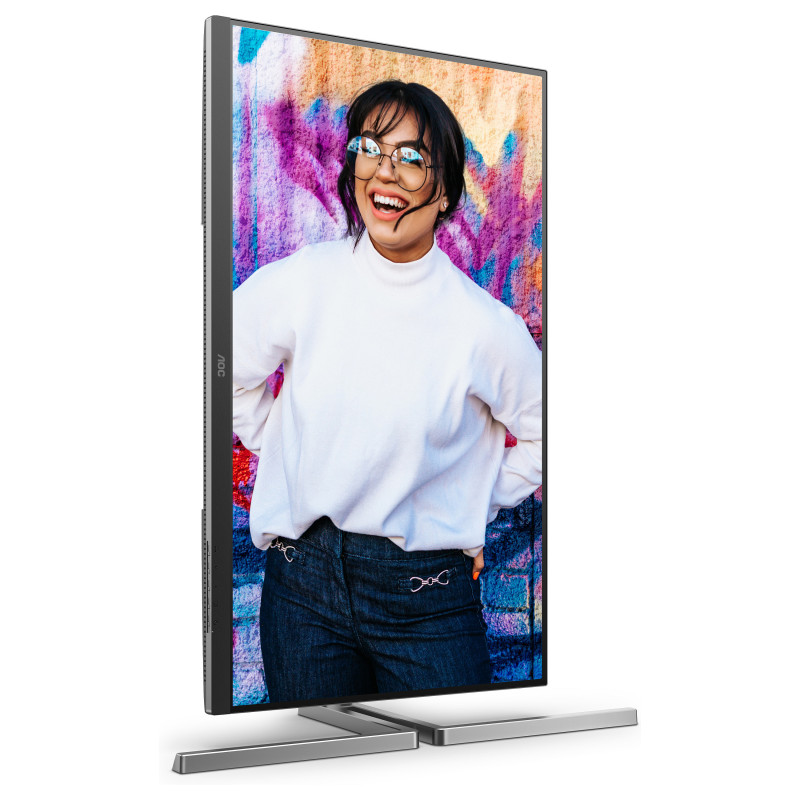

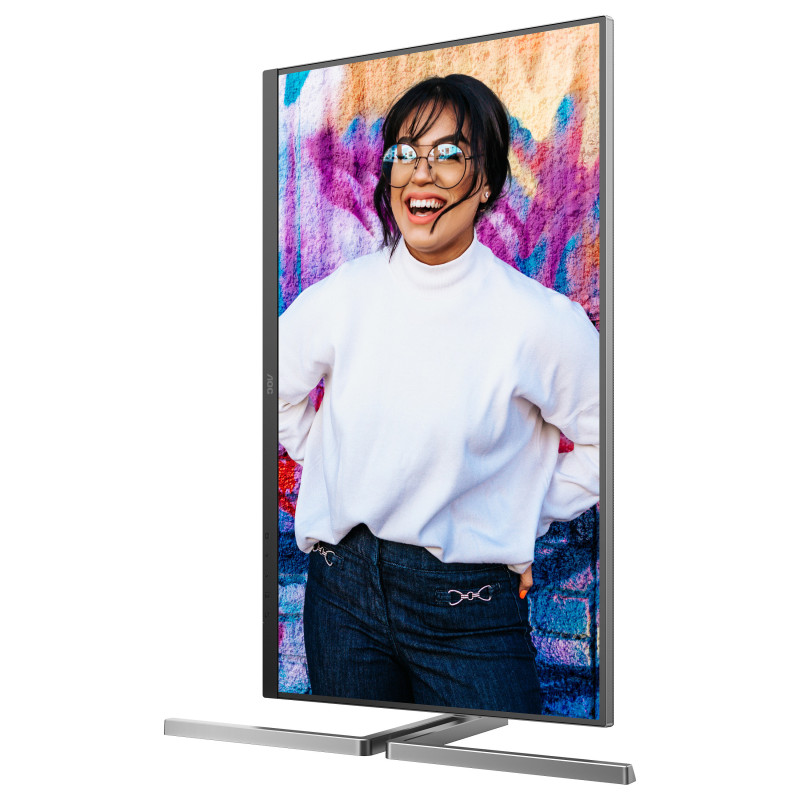

Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: -15 - 15°
Feature: Tilt adjustment
Tilt angle range: -6.5 - 23°
Feature: Picture-in-Picture
Feature: Plug and Play

Power

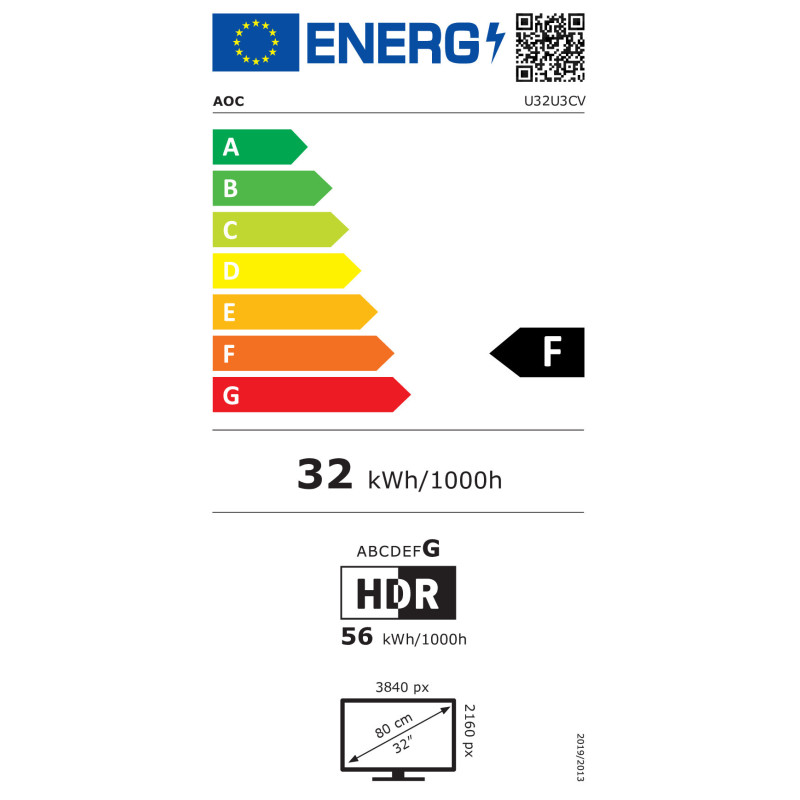

Energy efficiency class (SDR): F
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 32 kWh
Energy consumption (HDR) per 1000 hours: 56 kWh
Power consumption (typical): 30.37 W
Power consumption (standby): 0.3 W
Power consumption (max): 215 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 3 A
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 55 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 93%
Operating altitude: 0 - 5000 m
Non-operating altitude: 0 - 12192 m

Weight dimensions

Width (with stand): 714.4 mm
Depth (with stand): 258.6 mm
Height (with stand): 609.3 mm
Weight (with stand): 8.46 kg
Weight (without stand): 6.34 kg

Packaging data

Package weight: 12.6 kg
Package type: Box

Packaging content

Feature: Stand included
Cables included: AC, HDMI, DisplayPort, USB Type-C
Feature: Quick start guide
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m

Sustainability

Sustainability certificates: EPEAT Gold, TCO
Doesn't contain: Mercury, PVC/BFR

Other features

Feature: Local dimming
Bezel thickness type: Frameless
Warranty period: 3 year(s)
Compliance certificates: CE
Mean time between failures (MTBF): 30000 h
Certification: WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,EAC,FCC,Microsoft WHQL

Recycling data

Product post-consumer recycled plastic: 85%
Packaging recycled content: 80%
