AG Neovo X-22E computer monitor

AG Neovo X-22E. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 3 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black
The X-22E semi-industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV Optical Glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.
The NeoV Optical Glass attached to the X-22E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.
DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT
Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-22E semi-industrial monitor durable for demanding environments.
VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
The X-22E allows viewing critical data and engaging multiple video sources with versatile connectivity, including DisplayPort, HDMI, DVI, and VGA. The PIP/PBP option allows for increased productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.
PATENTED ANTI-BURN-IN TECHNOLOGY
AG Neovo's patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user's investment.
CONSISTENT DESIGN WITH A LONGER LIFETIME
Replacing AG Neovo semi-industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
ENHANCED GAMMA CORRECTION
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-22E semi-industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: TN
Backlight type: LED
Touchscreen: No
Display brightness (typical): 250 cd/m²
Response time: 3 ms
Screen shape: Flat
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 2000000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.78 million colours
Pixel pitch: 0.2482 x 0.2482 mm
Digital horizontal frequency: 24 - 83 kHz
Digital vertical frequency: 50 - 75 Hz
Surface hardness: 9H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Market positioning: Industrial
Product colour: Black
Housing material: Metal

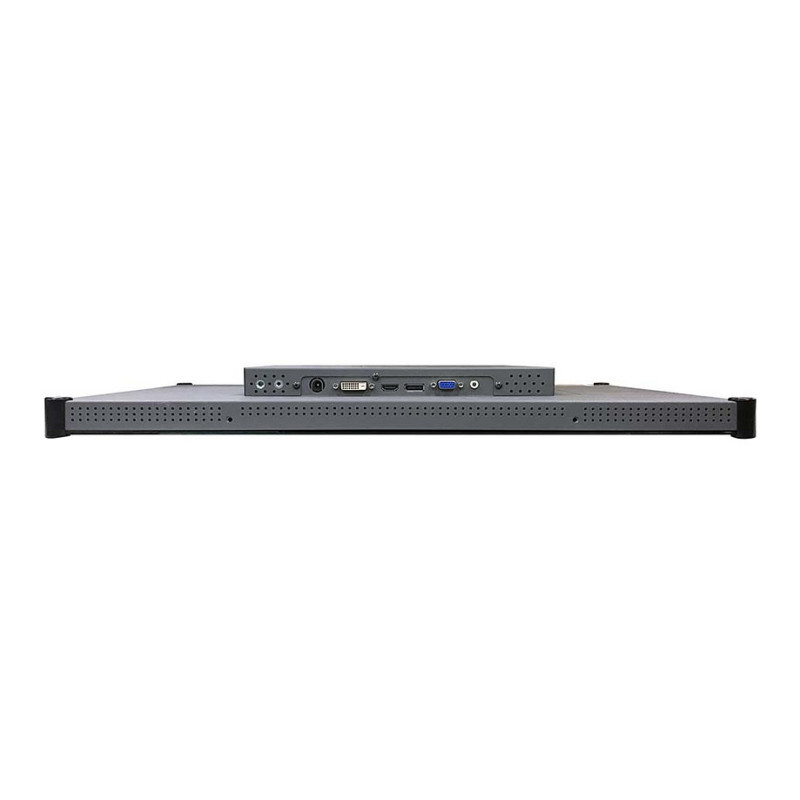

Ports interfaces

Built-in USB hub: No
VGA (D-Sub) ports quantity: 1
DVI port: Yes
DVI-D ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2a
Audio input: Yes
PC Audio in: Yes

Network

Ethernet LAN: No

Ergonomics

VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: No
Tilt adjustment: Yes
Tilt angle range: 0 - 15°
Picture-in-Picture: Yes

Power

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.3 W
Power consumption (off): 0.3 W
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 444584

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width (with stand): 513.2 mm
Depth (with stand): 155 mm
Height (with stand): 368.5 mm
Weight (with stand): 6.7 kg
Width (without stand): 513.2 mm
Depth (without stand): 56.2 mm
Height (without stand): 324.3 mm
Weight (without stand): 6.1 kg

Packaging data

Package width: 614 mm
Package depth: 204 mm
Package height: 477 mm
Package type: Box

Packaging content

Stand included: Yes
Cables included: AC, Audio (3.5mm), VGA
Quick start guide: Yes

Other features

AC adapter included: Yes
Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85285210
