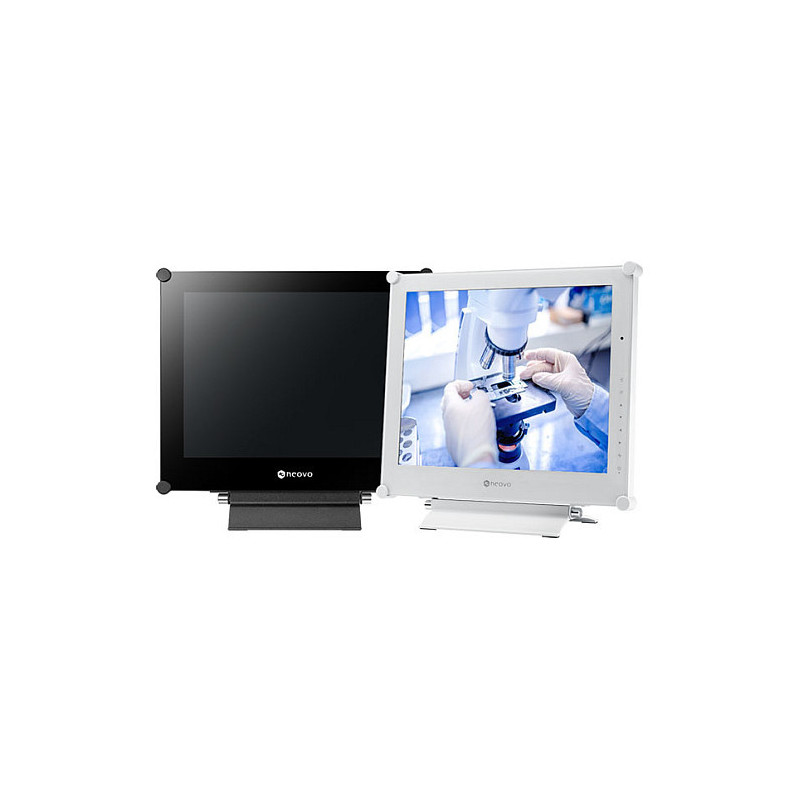

AG Neovo X-15E computer monitor

AG Neovo X-15E. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 3 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 176°, Viewing angle, vertical: 176°. Built-in speaker(s). VESA mounting. Product colour: Black
The X-15E 4:3 industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV optical glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.
PROTECTIVE GLASS TO WITHSTAND CHEMICAL EXPOSURE
The NeoV Optical Glass attached to the X-15E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.
DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT
Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-15E industrial monitor durable for demanding environments.
VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
Visualize critical data and engage with multiple video sources and PC applications with versatile connectivity options, including DisplayPort and HDMI, and PIP/PBP to increase productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.
PATENTED ANTI-BURN-IN TECHNOLOGY
AG Neovo's patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user's investment.
CONSISTENT DESIGN WITH A LONGER LIFETIME
Replacing AG Neovo industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
ENHANCED GAMMA CORRECTION
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-15E industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.

Display

Display diagonal: 38.1 cm (15")
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: VA
Backlight type: LED
Touchscreen: No
Display brightness (typical): 300 cd/m²
Response time: 3 ms
Screen shape: Flat
Supported graphics resolutions: 1024 x 768 (XGA)
Contrast ratio (typical): 2000:1
Viewing angle, horizontal: 176°
Viewing angle, vertical: 176°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Digital horizontal frequency: 24 - 83 kHz
Digital vertical frequency: 50 - 75 Hz
Surface hardness: 9H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Market positioning: Industrial
Product colour: Black
Housing material: Metal

Ports interfaces

Built-in USB hub: No
VGA (D-Sub) ports quantity: 1
DVI port: Yes
DVI-D ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2a
Audio input: Yes
DC-in jack: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: No
Tilt adjustment: Yes
Tilt angle range: 0 - 20°
Picture-in-Picture: Yes

Power

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 444544

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width (with stand): 380 mm
Depth (with stand): 155 mm
Height (with stand): 359 mm
Weight (with stand): 4.6 kg
Width (without stand): 380 mm
Depth (without stand): 53.5 mm
Height (without stand): 315 mm
Weight (without stand): 4.2 kg

Packaging data

Package width: 470 mm
Package depth: 199 mm
Package height: 460 mm
Package weight: 5.8 kg

Packaging content

Stand included: Yes
Cables included: AC, Audio (3.5mm), VGA
Quick start guide: Yes

Other features

AC adapter included: Yes
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE

Logistics data

Harmonized System (HS) code: 85285210
