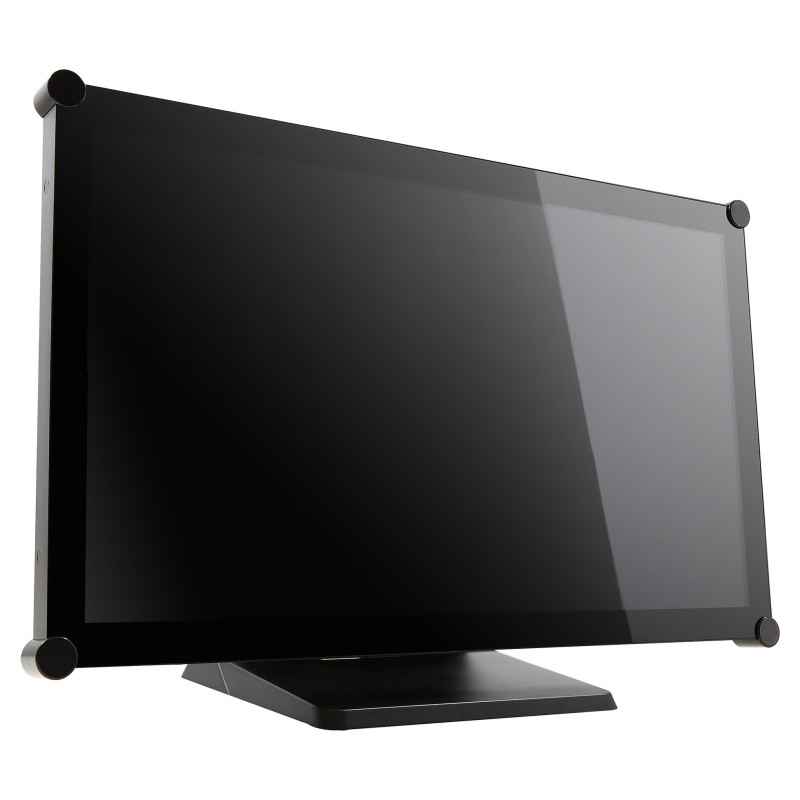

AG Neovo TX-2202A computer monitor

AG Neovo TX-2202A. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
The TX-2202A touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI, VGA input connectivity, and dual speakers, the TX-2202A touch monitor is built for flexible use such as self-check-in, self-ordering, and information kiosk. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.
10-point PCAP Touch Screen
The TX-2202A 22" 10-point touch screen monitor adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.
Seamless Integration
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choices of the operating system you use.
Front IP65 Dust and Water Protection
This 22" 10-point touch screen monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

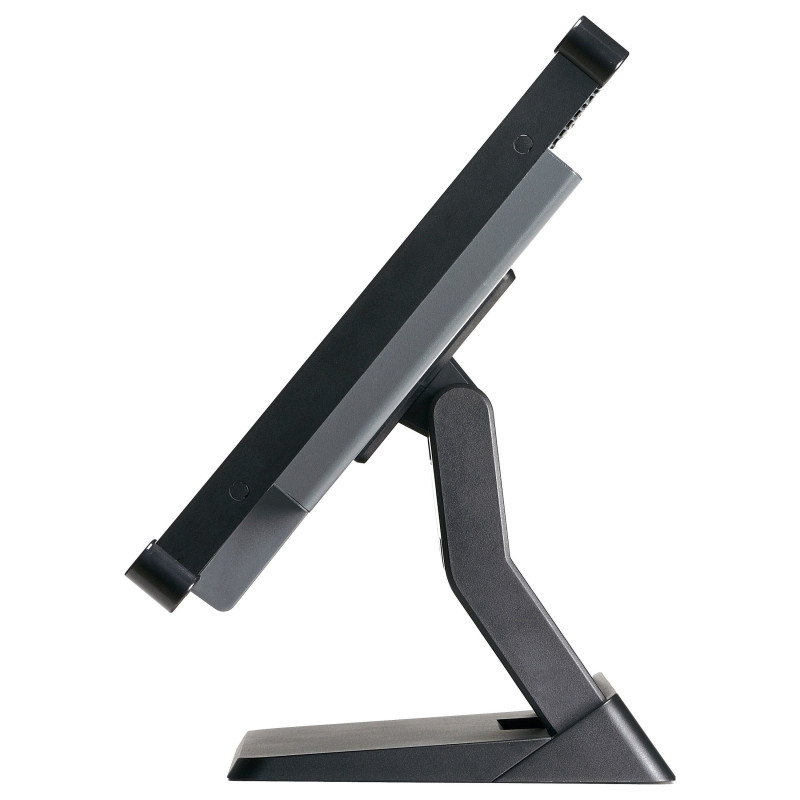

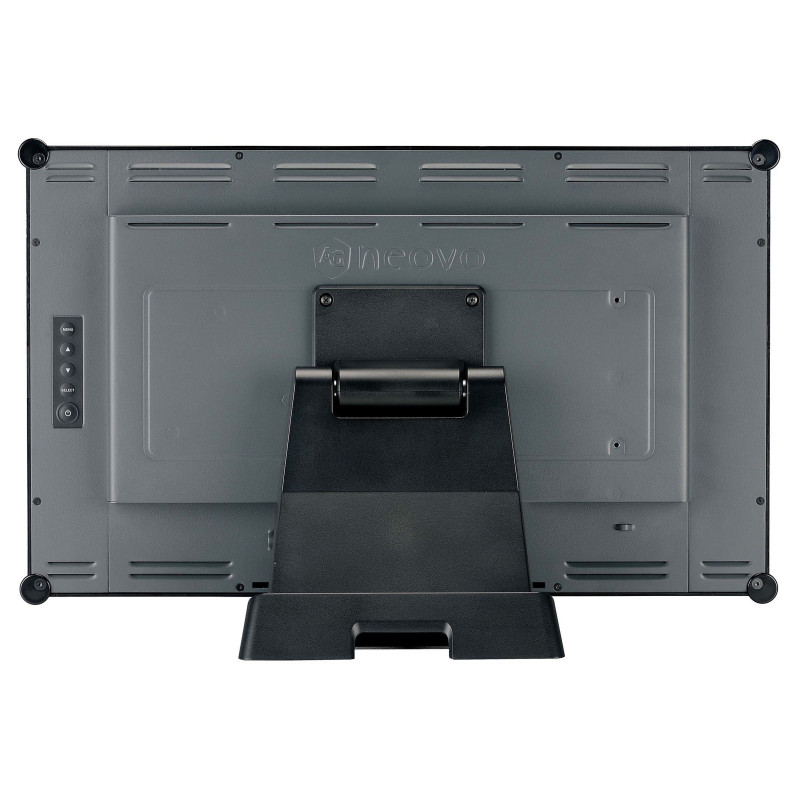

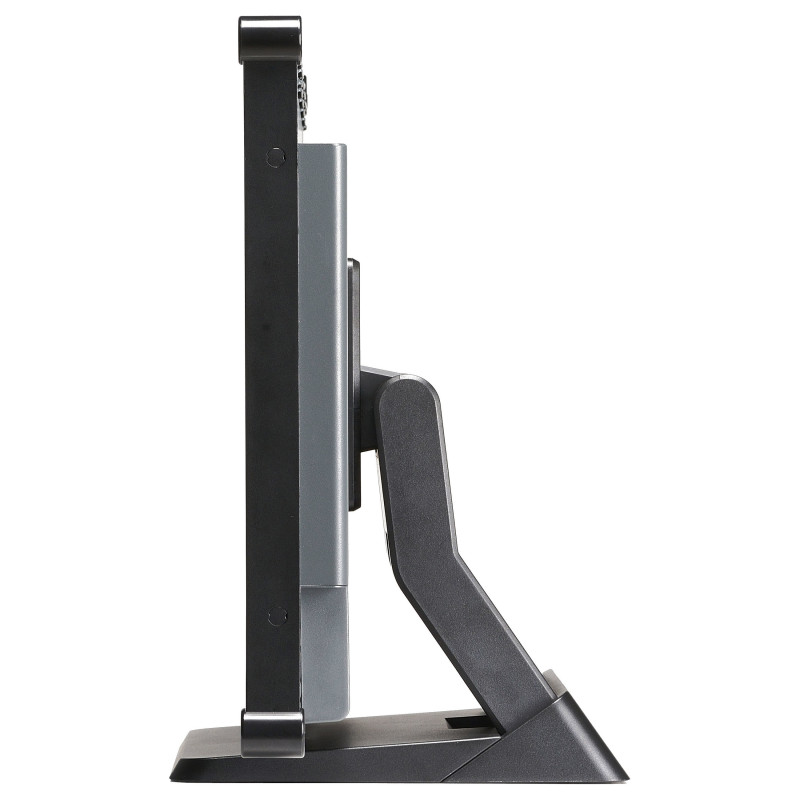

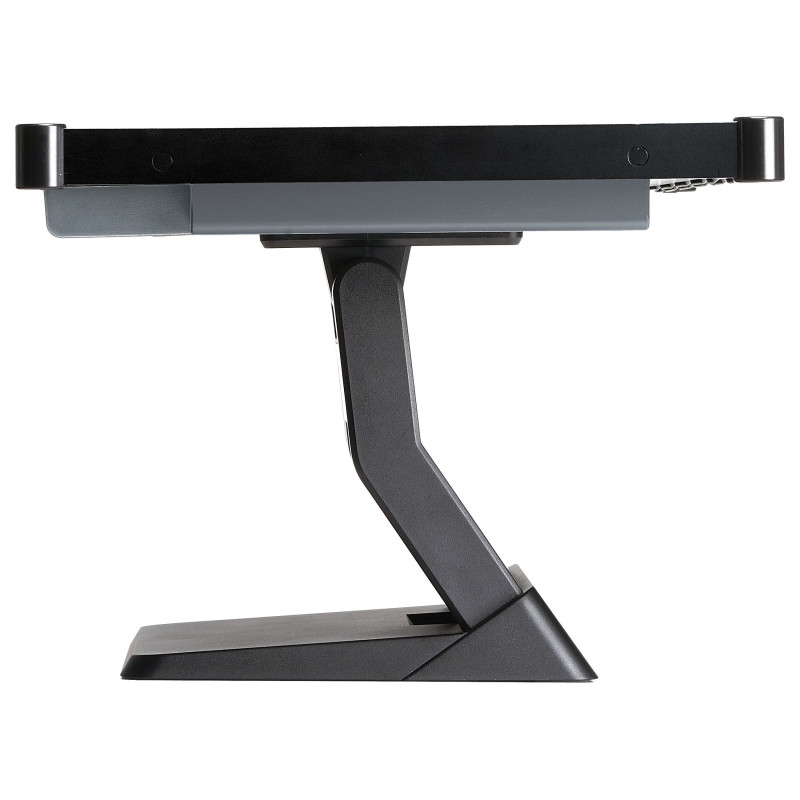

Thanks to VESA compatibility, the TX-2202A 22" 10-point touch screen monitor offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.
Versatile Connectivity

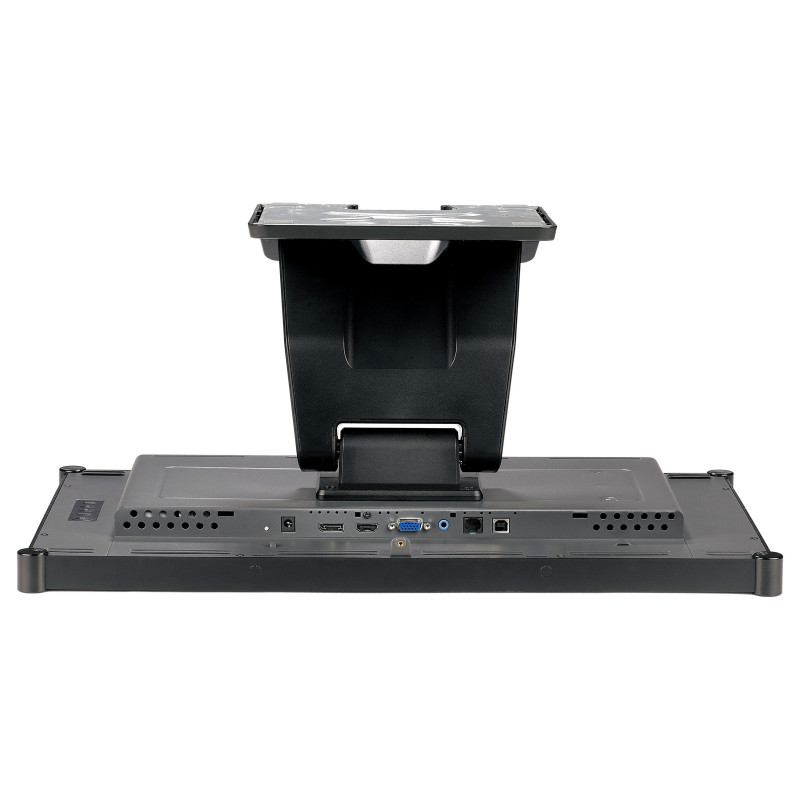

The TX-2202A provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Touchscreen: Yes
Touchscreen technology: Capacitive
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Anti-glare screen: Yes
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 30 - 84 kHz
Vertical scan range: 50 - 76 Hz
Haze rate: 25%
Surface hardness: 7H

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Other operating systems supported: Android

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Market positioning: Medical
Product colour: Black
Housing material: Metal
Glass thickness: 2.05 mm

Ports interfaces

Built-in USB hub: No
USB upstream port type: USB Type-B
Number of USB Type-B upstream ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
Audio input: Yes
Headphone out: No

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Tilt angle range: -5 - 90°

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 15 W
Power consumption (standby): 0.7 W
Power consumption (off): 0.3 W
Power supply type: External
European Product Registry for Energy Labelling (EPREL) code: 1372216

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width (with stand): 528.6 mm
Depth (with stand): 214.2 mm
Height (with stand): 346.7 mm
Weight (with stand): 6.7 kg
Width (without stand): 528.6 mm
Depth (without stand): 48.5 mm
Height (without stand): 324.3 mm
Weight (without stand): 4.8 kg

Packaging data

Package width: 610 mm
Package depth: 320 mm
Package height: 460 mm
Package weight: 9.8 kg

Packaging content

Cables included: AC, Audio, HDMI, USB, VGA
Power adapter included: Yes
Quick start guide: Yes

Sustainability

Sustainability compliance: Yes

Other features

International Protection (IP) code: IP65
Protection features: Dust resistant, Waterproof
Transmission rate: 90%
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
