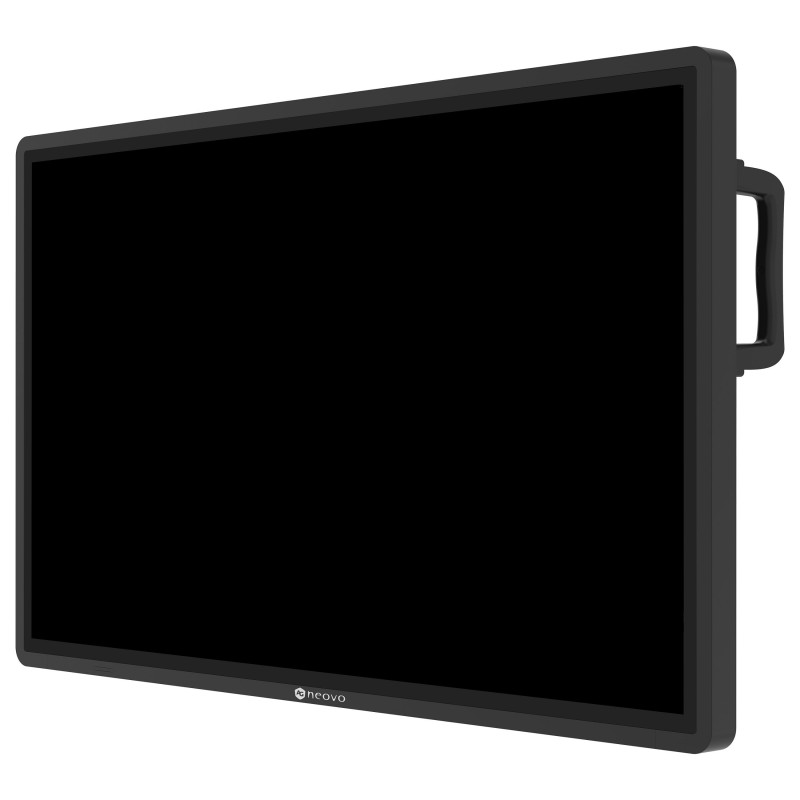

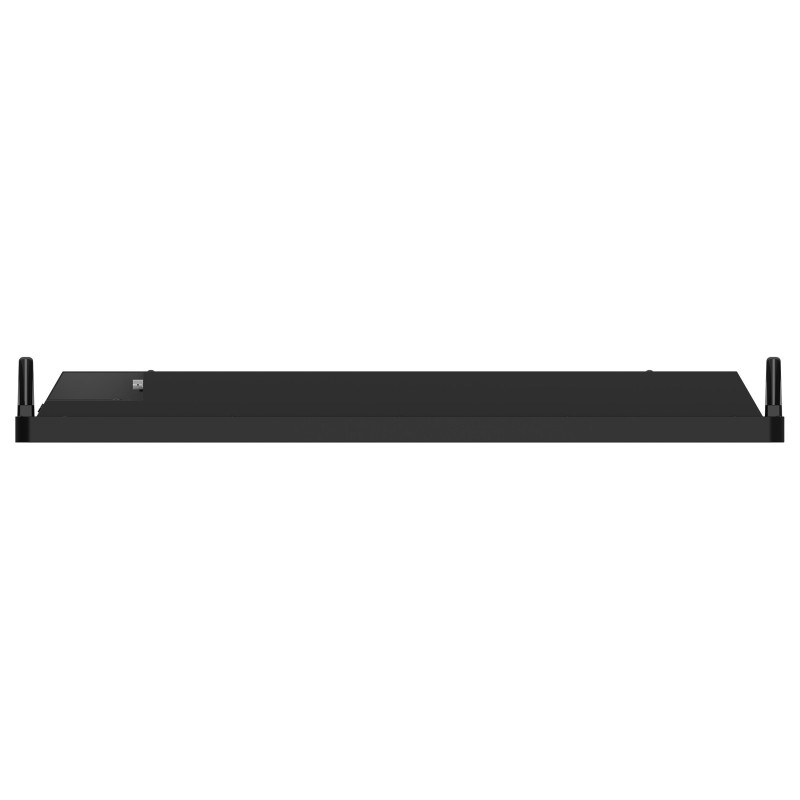

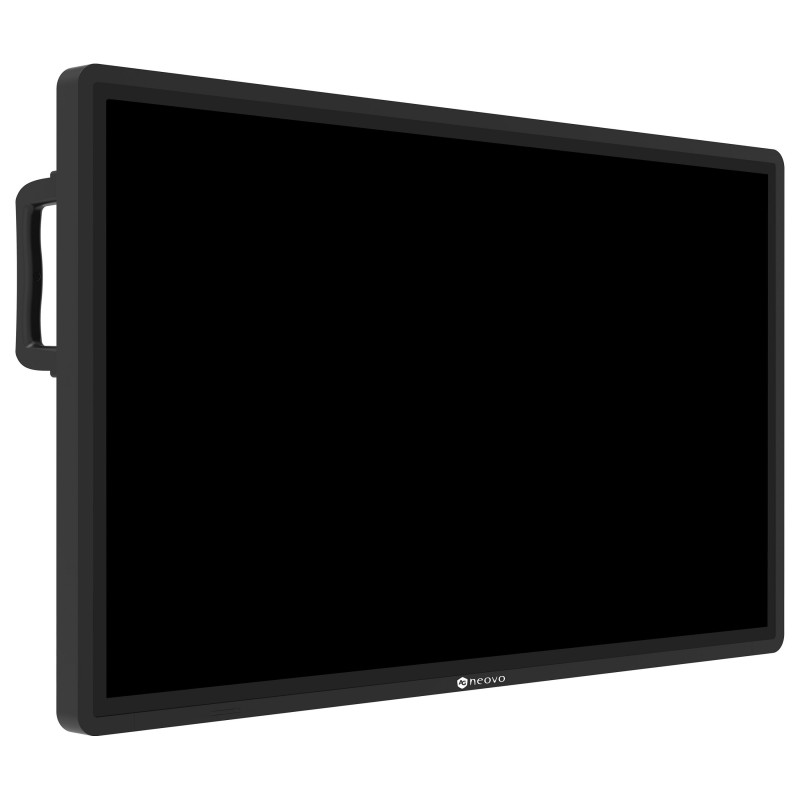

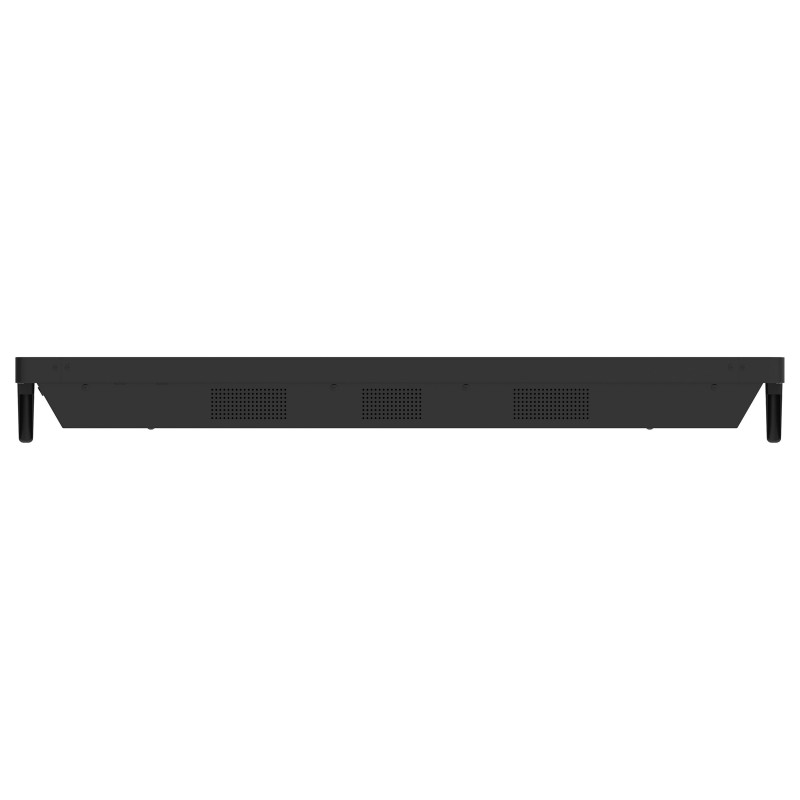

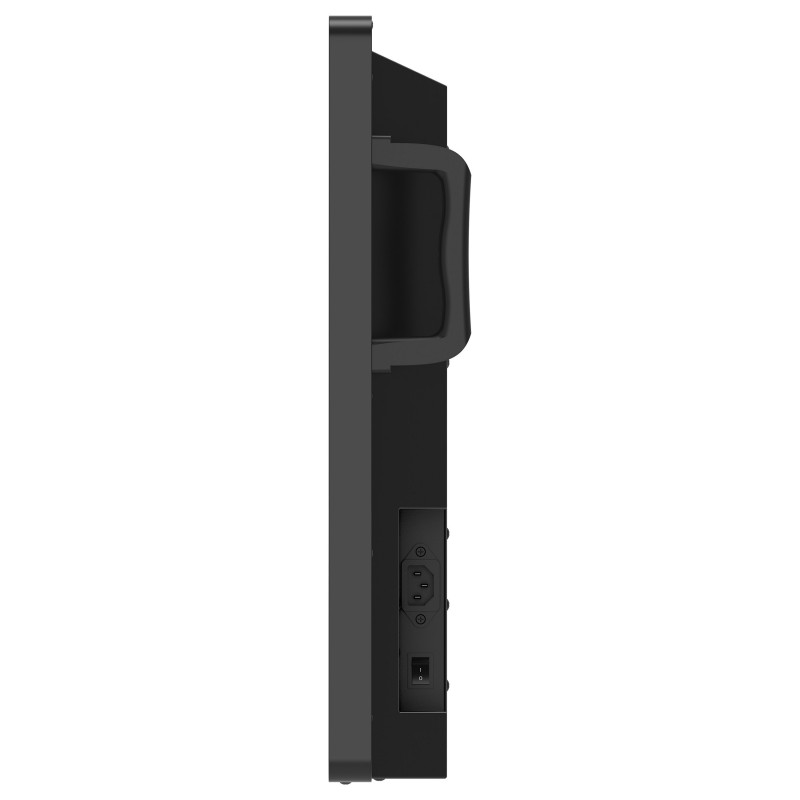

AG Neovo TTN-3201 Signage Display

AG Neovo TTN-3201. Product design: Digital signage flat panel. Display diagonal: 80 cm (31.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black

Unmatched Clarity and Reliability for High-Stakes Surveillance

The TTN-3201 32" LCD display is engineered for critical surveillance in environments like transportation hubs, retail stores, and manufacturing sites, offering exceptional operational excellence 24/7. Its robust construction ensures longevity, and its comprehensive connectivity alongside advanced remote management capabilities streamline operations. Designed specifically for crucial surveillance and property security, the TTN-3201 delivers crystal-clear, detailed video footage with resolution, boosting security efficacy in demanding conditions.

Exceptional Front Protection

Experience outstanding durability with our IP22-rated LCD display, crafted to withstand dust and water. The front panel is enhanced with IK08 hardness glass, providing superior scratch resistance and maintaining clarity and resilience over time.

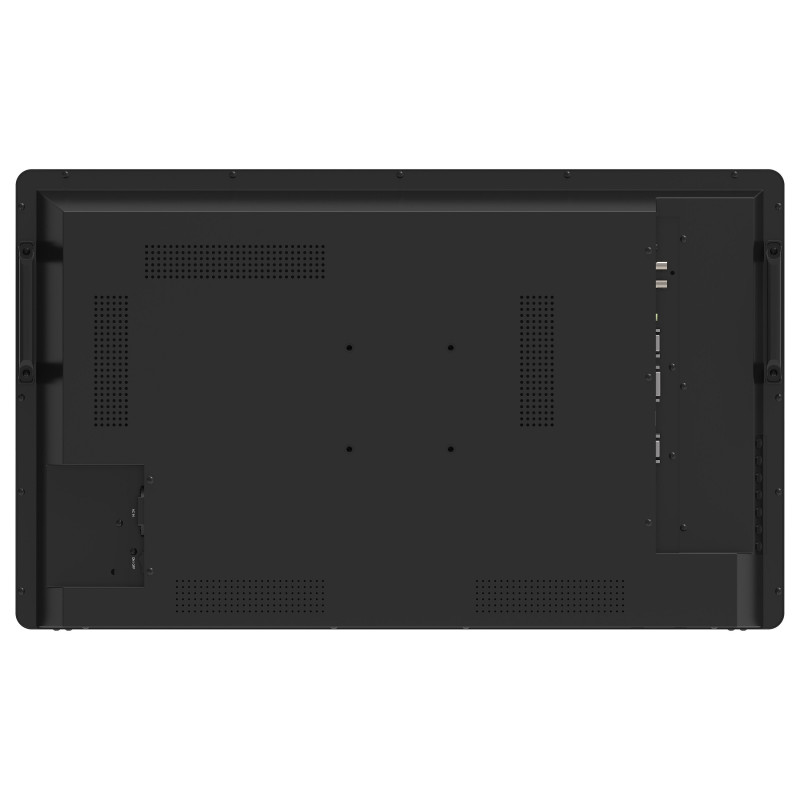

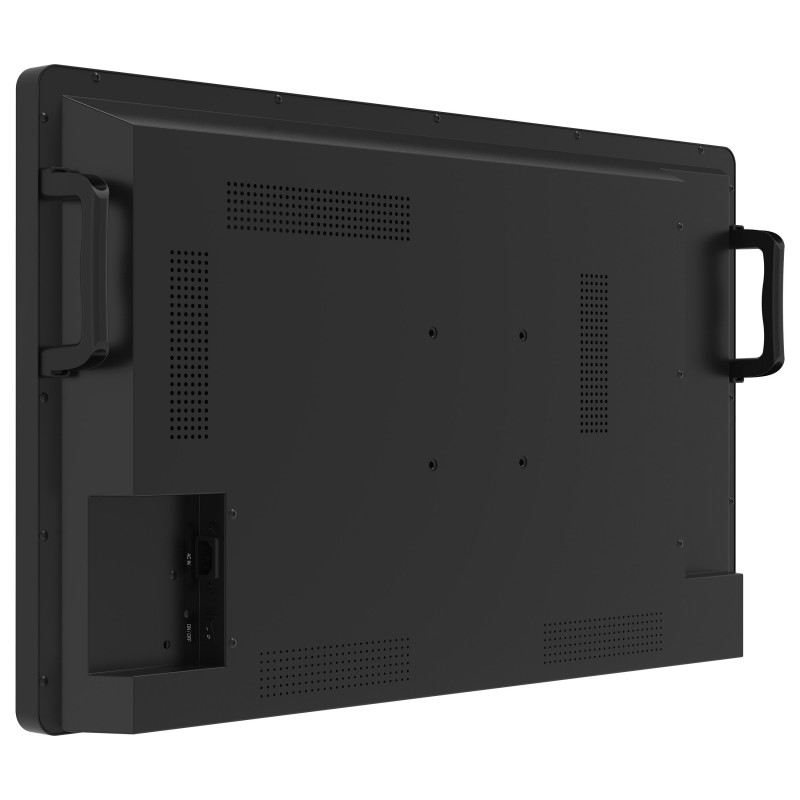

Superior Backside Endurance

Fortified with an IK10-rated housing, the LCD display offers unrivaled protection against vandalism, ideal for use in public spaces and areas without supervision. Its durable metal casing supports effective heat dissipation, ensuring consistent performance under continuous operation.

Craftsmanship and Quality

Proudly manufactured in Taiwan, the LCD display epitomizes top-tier production quality. This commitment guarantees a product that not only integrates advanced technology but also offers peerless durability and reliability, standing out in the most challenging situations.

Round-the-Clock Reliability

With specialised public information display panels, our LCD displays are engineered for 24/7 continuous operation, embodying resilience and ensuring your operations are uninterrupted.

Advanced Thermal Management

An innovative heat control sensor and a fan-based cooling system actively manage temperatures, maintaining reliability 24/7. Exceeding temperature thresholds triggers alarms, preventing overheating for consistent performance.

Energy Efficiency

EcoSmart Technology dynamically adjusts backlighting based on environmental lighting, reducing power consumption by 30-50%. This feature not only saves energy but also supports sustainable operation, essential for businesses aiming to minimise their ecological impact while maintaining constant surveillance.

Consistent Clarity & Extended Lifespan

Anti-burn-in technology prevents static image degradation, preserving image quality over time and maintaining the clarity and accuracy of surveillance footage, critical for security analysis and decision-making.

Display

Panel type: IPS
Display diagonal: 80 cm (31.5")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 450 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.364 x 0.364 mm
Horizontal scan range: 15 - 135 kHz
Vertical scan range: 24 - 86 Hz
Native refresh rate: 60 Hz
Haze rate: 1%
Surface hardness: 2H
Glass thickness: 3.2 mm

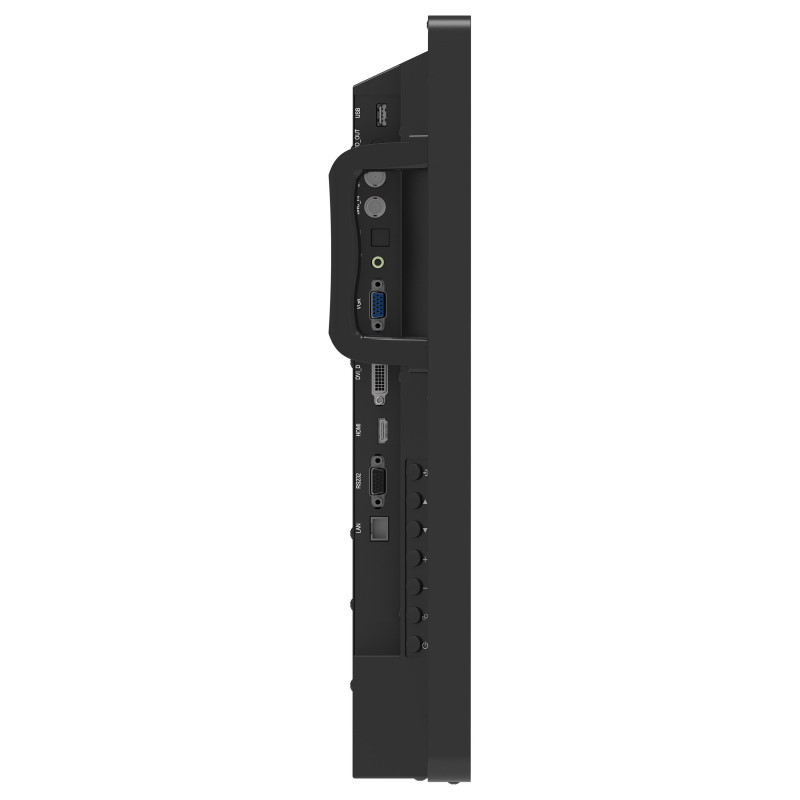

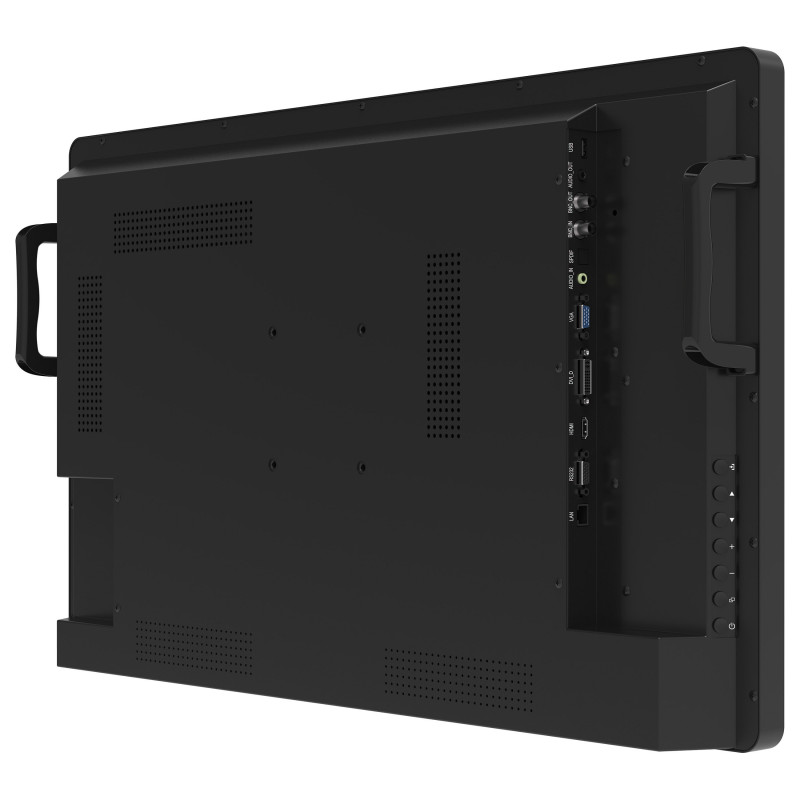

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 2.0
HDMI input ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 1
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Composite video in: 1
Composite video out: 1
Number of speaker outputs: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Anti-glare screen

Performance

Purpose: Retail
Operating hours (hours/days): 24/7

Power

Power consumption (typical): 50 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 50 kWh
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Energy efficiency scale: A to G

Weight & dimensions

Display width: 758.4 mm
Display depth: 84.5 mm
Display height: 454.2 mm
Display weight: 10.2 kg

Packaging data

Package width: 840 mm
Package depth: 150 mm
Package height: 535 mm
Package weight: 12 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -10 - 60 °C
Storage relative humidity (H-H): 10 - 80%

Network

Feature: Ethernet LAN

Other features

Power supply type: Internal
